Description

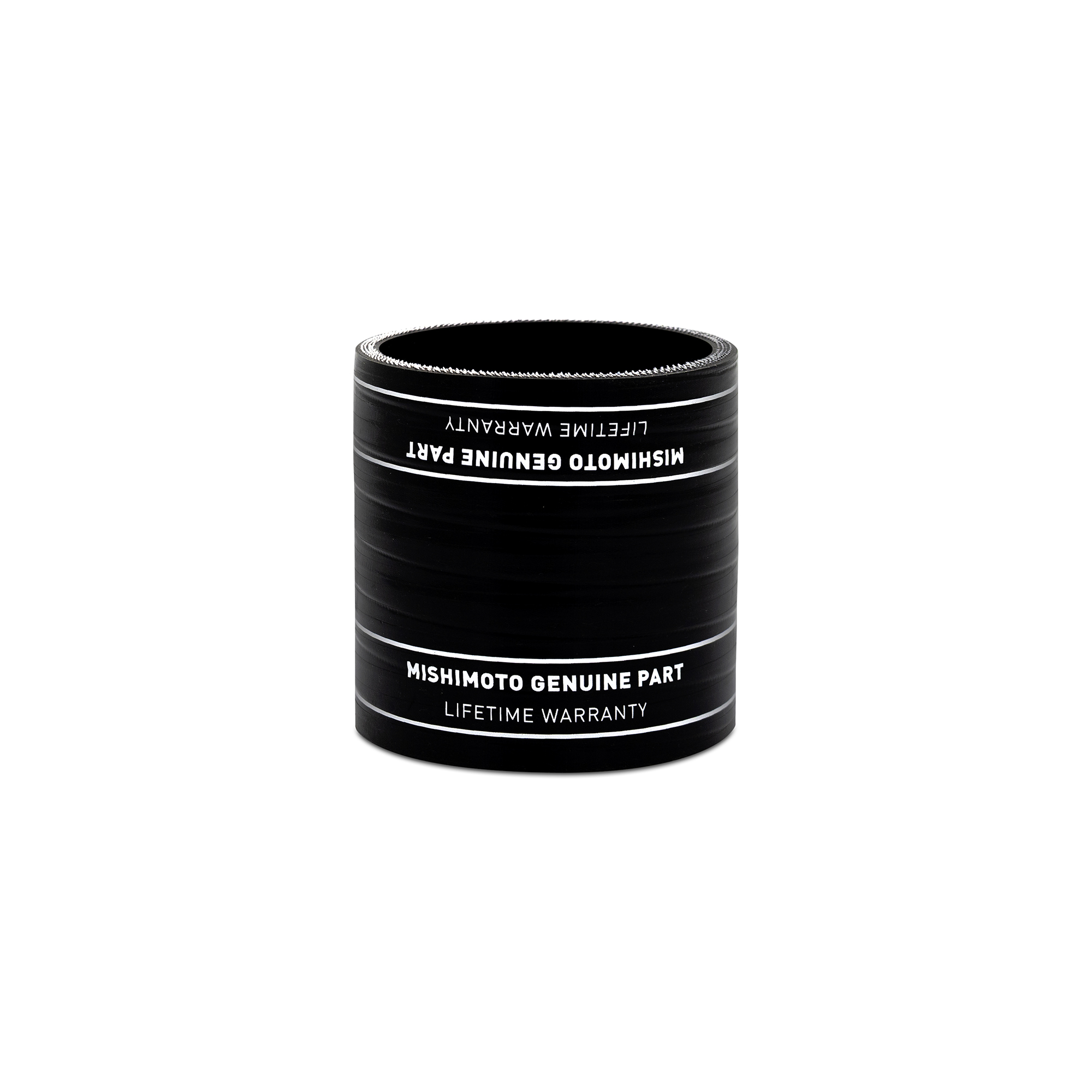

The Mishimoto DuraCoreâ„¢ Silicone Intercooler Boot (MMDCC-30SBK) is a straight-style black silicone coupler engineered for custom intercooler piping kits. Built with a 3.43-inch outer diameter and 3.5-inch overall length, this boot uses Mishimoto’s proprietary DuraCoreâ„¢ synthetic inner layer to stand up to the heat, pressure, fuel, and oil exposure that standard silicone can’t always handle. It’s a purpose-built component for fabricators who need a boot that won’t be the weak point in their build.

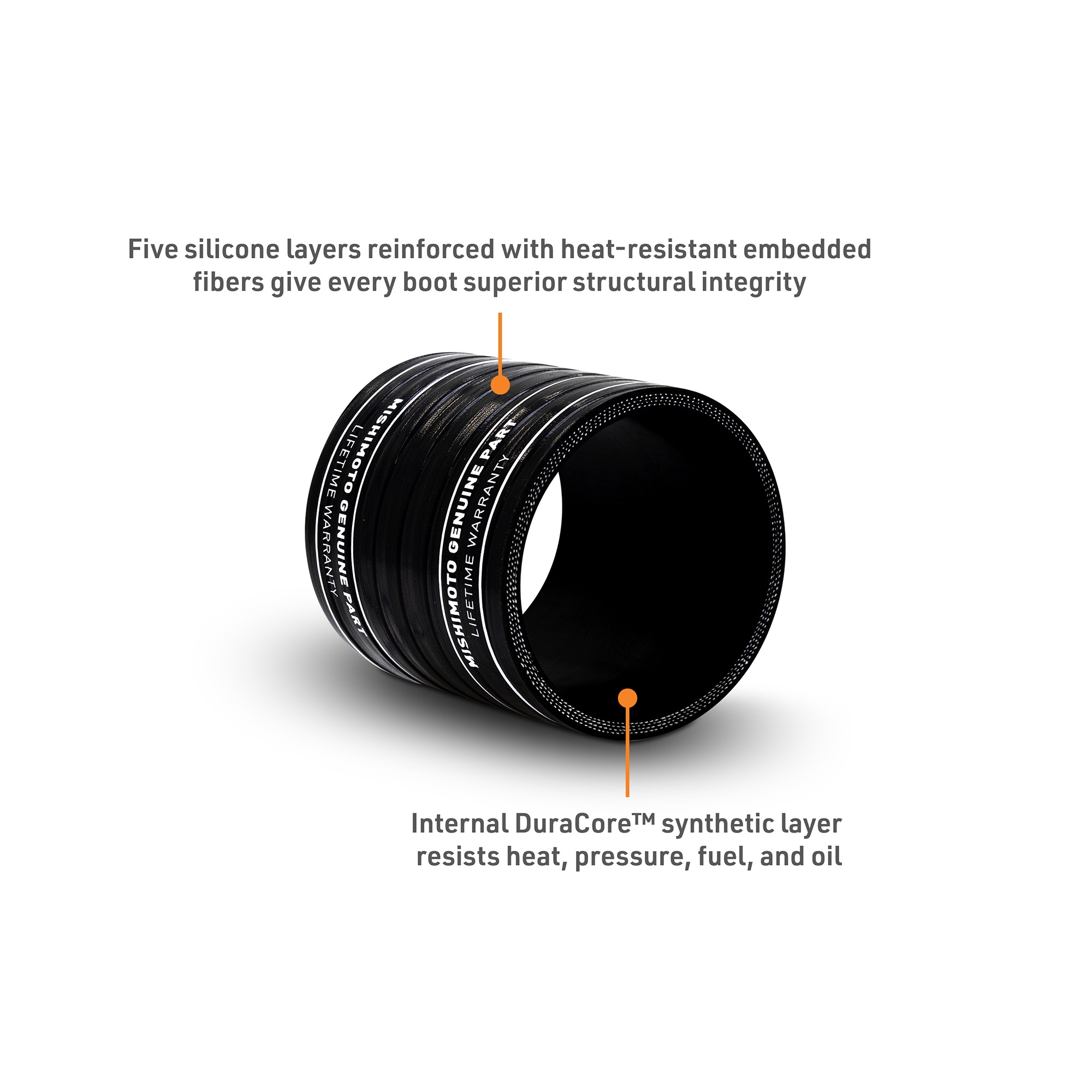

Whether you’re piecing together a custom air intake system, rerouting charge pipes around a tight engine bay, or connecting mismatched tube diameters in a turbo or intercooler setup, this DuraCore straight boot delivers a rock-solid connection point. Each boot is molded from five layers of silicone reinforced with heat-resistant embedded fibers, and reinforcing rings add structural integrity where applicable to keep connections locked down under boost. With a maximum temperature rating of 347°F and coolant compatibility, the MMDCC-30SBK is built to handle demanding truck and performance builds without leaking or blowing out under pressure.
Vehicle Applications
This DuraCoreâ„¢ silicone intercooler boot is a universal-fit component rather than a vehicle-specific part—it’s designed to complete custom intercooler and turbo piping kits on trucks and performance builds where fabricators need a straight coupler sized to match their piping. Because it’s part of Mishimoto’s full DuraCore lineup, which spans straight, straight hump, transition, 45-degree, and 90-degree configurations from 3 inches to 4 inches, it can be paired with straight tubing of matching diameter on virtually any custom-built intake or intercooler piping system, regardless of make or model.
Features
- Straight coupler configuration with a 3.43-inch outer diameter and 3.5-inch overall length
- Constructed from silicone with Mishimoto’s DuraCoreâ„¢ technology for added resistance to heat, pressure, fuel, and oil
- Five layers of silicone reinforced with heat-resistant embedded fibers for structural integrity
- Reinforcing rings (where applicable) help keep connection points secure under boost
- Coolant compatible
- Rated to a maximum temperature of 347°F
- Includes (1) coupler; hose clamps are not included
- Backed by the Mishimoto Lifetime Warranty
- Part of the full DuraCoreâ„¢ lineup available in straight, straight hump, transition, 45-degree, and 90-degree shapes from 3″ to 4″ for complete custom piping kits
Specifications
- Brand: Mishimoto
- Part Number: MMDCC-30SBK
- Material: Silicone with DuraCoreâ„¢ Technology
- Color: Black
- Coupler Style: Straight

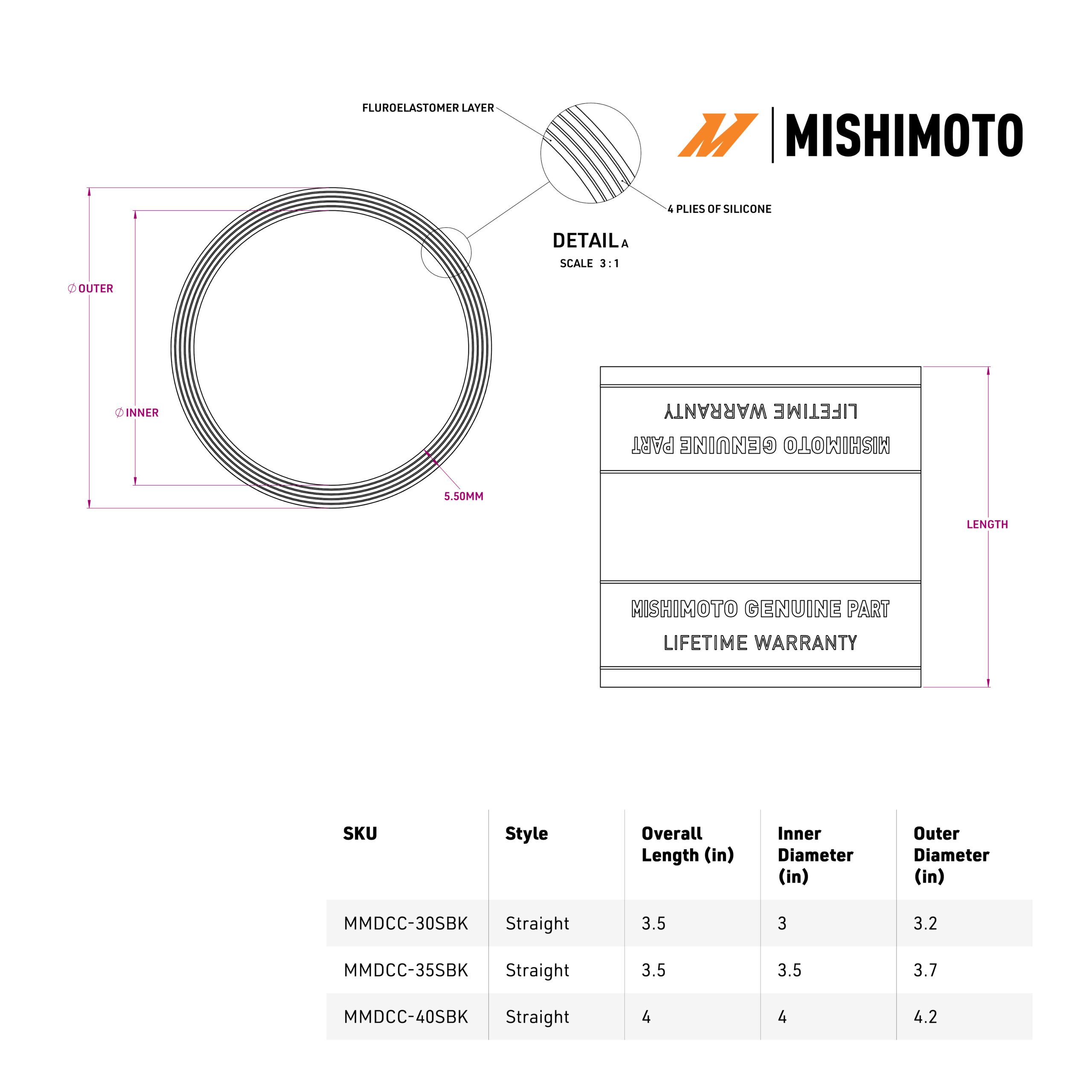

- Outer Diameter: 3.43 in
- Overall Length: 3.5 in
- Maximum Temperature: 347°F
- Coolant Compatible: Yes
- Hose Clamps Included: No
- Includes: (1) Coupler, Mishimoto Lifetime Warranty
Frequently Asked Questions
Does this boot include hose clamps?
No, hose clamps are not included. Mishimoto recommends Constant Tension T-Bolt clamps (2x MMCLAMP-35T) or Constant Tension Worm-Gear clamps (2x MMCLAMP-CTWG-92).
What is DuraCoreâ„¢ technology?
DuraCoreâ„¢ is the synthetic material comprising the innermost layer of every Mishimoto silicone boot, delivering superior resistance to heat, pressure, fuel, and oil compared to standard silicone.
What size is this intercooler boot?
It’s a straight coupler style with a 3.43-inch outer diameter and a 3.5-inch overall length.
Is this boot coolant compatible?
Yes, this boot is coolant compatible.
What is the maximum temperature rating for this boot?
This boot is rated to a maximum temperature of 347°F.
Will this boot fit my specific vehicle?
This is a universal-fit component intended for custom intercooler and piping builds rather than a specific make or model; it’s part of Mishimoto’s DuraCore lineup offered from 3″ to 4″ in several shapes to match your build.
