Description
The Mishimoto MMICP-EVO-01LBK is a mandrel bent aluminum intercooler pipe kit built specifically for the Mitsubishi Lancer Evolution 7/8/9, finished in polished aluminum and paired with black silicone couplers. Designed with high-horsepower vehicles in mind, this kit replaces restrictive factory piping with bead-rolled aluminum tubing that helps keep couplers locked in place while keeping airflow moving efficiently through the charge air system.
Airflow efficiency is central to any forced induction system, and this Mishimoto intercooler pipe kit is engineered to support that goal on the Evolution’s turbocharged platform. The mandrel bending process preserves consistent pipe diameter through every bend, and the bead-rolled pipe ends work with the included silicone couplers to guard against leaks and coupler disconnection under boost. Compared to the stock rubber couplers, the silicone couplers included with this induction system offer increased heat and pressure tolerance, making the setup equally suited to a daily-driven Evolution or a stripped and caged time attack car. Whether you’re focused on improved turbo spool or simply want more durable intercooler piping, this Mishimoto kit is a direct upgrade path for the Evolution’s forced induction hardware.
Vehicle Applications
This Mishimoto intercooler pipe kit is designed to fit the Mitsubishi Lancer Evolution from 2003 through 2006, along with the Lancer Evolution MR and Lancer Evolution RS for the 2005 and 2006 model years, and the Lancer Evolution SE for 2006. The kit carries CARB EO Number D-759 and is CARB compliant for 2003-2006 model years only.
Features

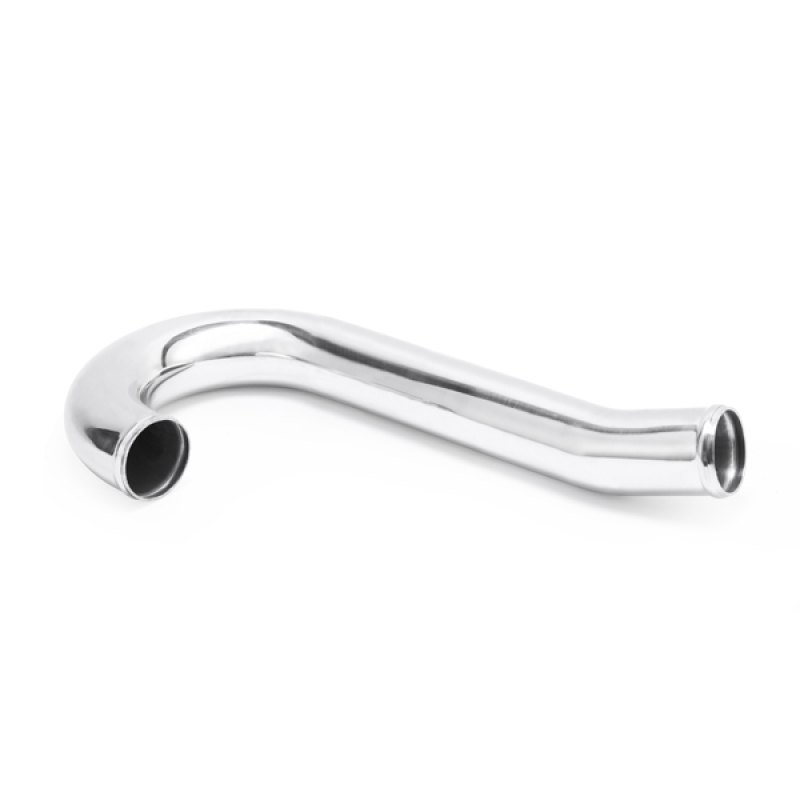

- Mandrel bent, polished aluminum intercooler pipe construction
- Bead-rolled pipe ends help prevent leaks and coupler disconnection

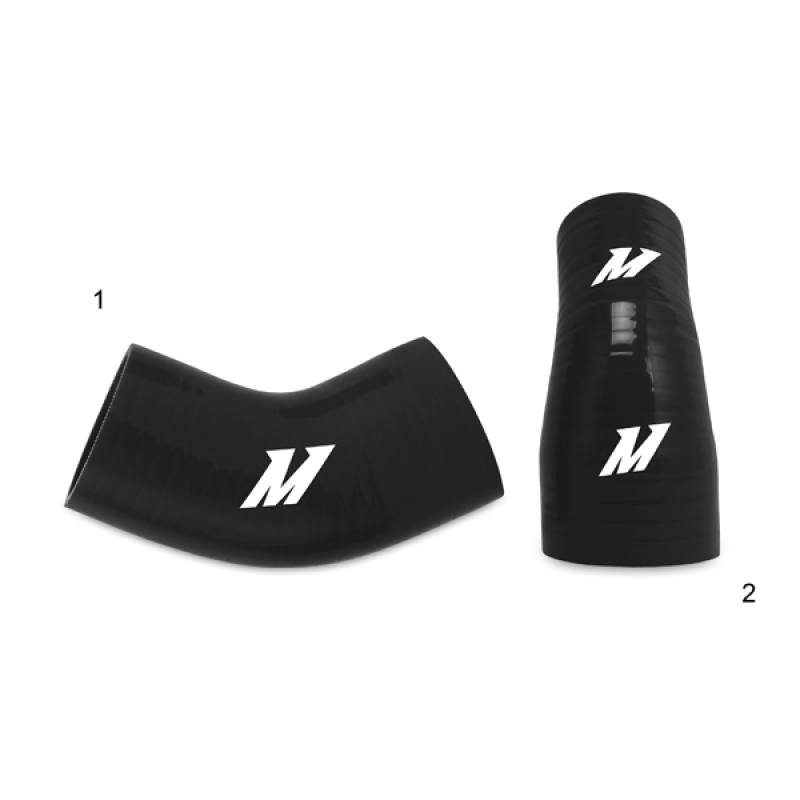

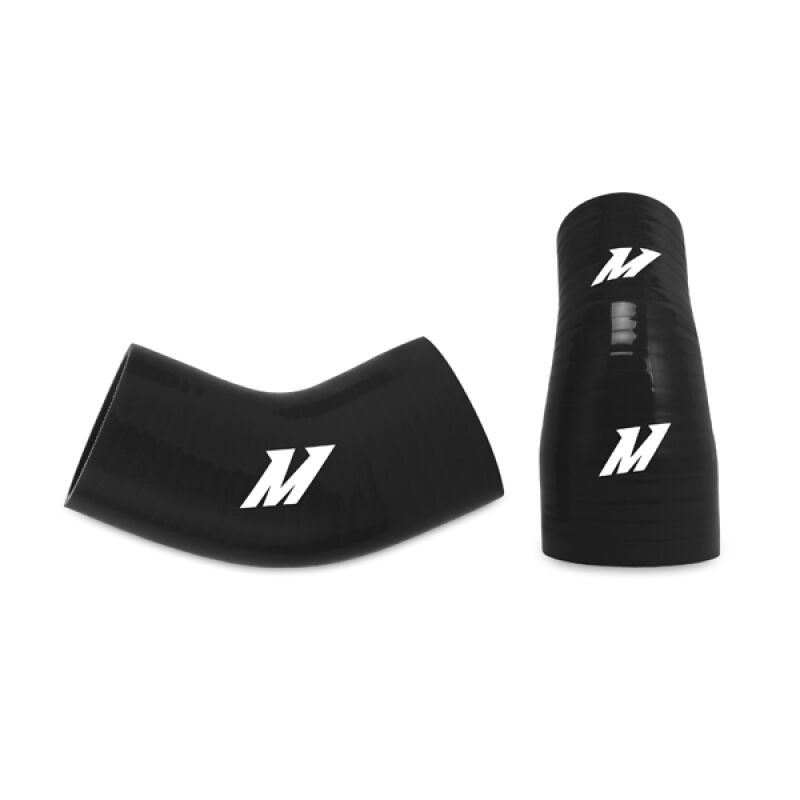

- Black silicone couplers offer increased heat and pressure tolerance versus stock rubber couplers
- T-bolt clamps included for a secure, leak-resistant connection

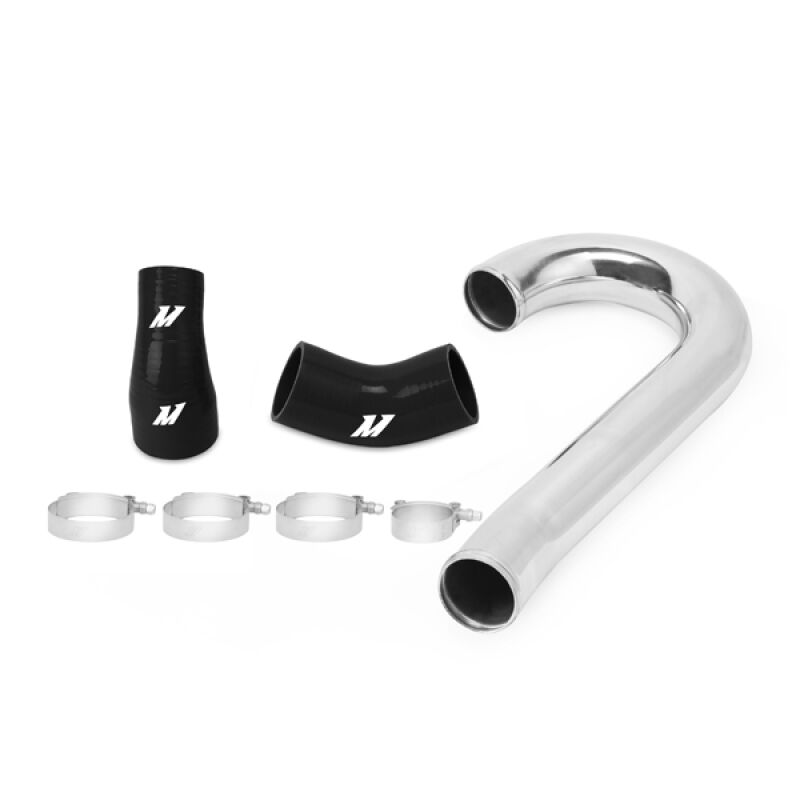

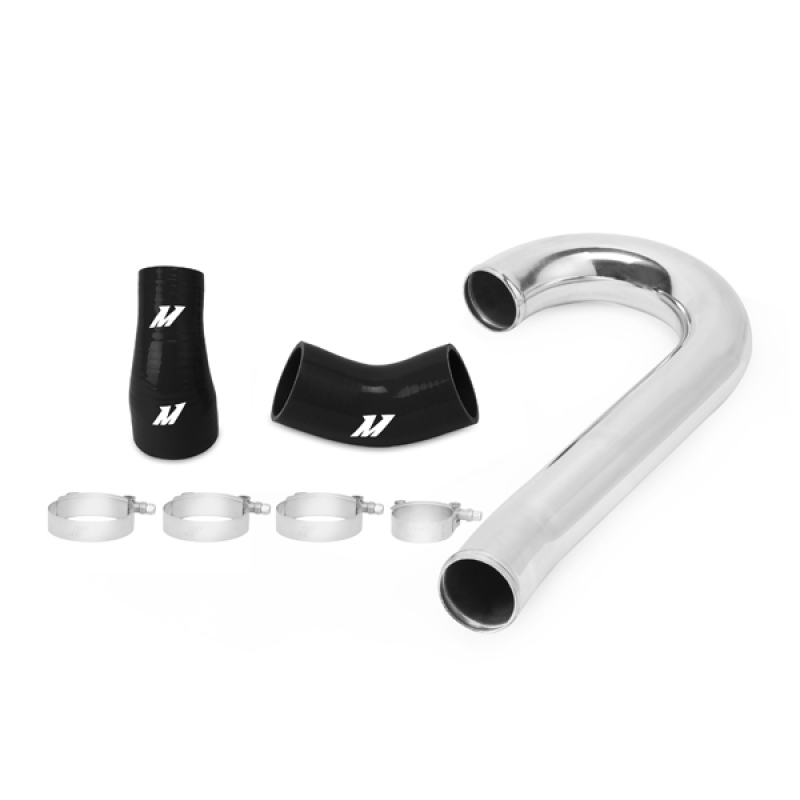

- Kit includes (1) Performance Aluminum Lower Intercooler Pipe, (2) Silicone Couplers, (4) T-Bolt Clamps, and (1) CARB Sticker
- CARB EO Number D-759; CARB compliant for 2003-2006 model years only
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-EVO-01LBK
- Finish: Polished
- Pipe Material: Aluminum
- Pipe Color: Polished
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: T-Bolt
- Clamps Included: Yes
- CARB EO Number: D-759
Frequently Asked Questions
What vehicles does the Mishimoto MMICP-EVO-01LBK intercooler pipe kit fit?
It fits the Mitsubishi Lancer Evolution (2003-2006), Lancer Evolution MR (2005-2006), Lancer Evolution RS (2005-2006), and Lancer Evolution SE (2006).
What are the pipes made from?
The pipes are mandrel bent, polished aluminum with bead-rolled pipe ends.
What color are the couplers in this kit?
This kit includes black silicone couplers.
Is this kit CARB compliant?
Yes, it carries CARB EO Number D-759 and is CARB compliant for 2003-2006 model years only.
What is included in the kit?
The kit includes one performance aluminum lower intercooler pipe, two silicone couplers, four T-bolt clamps, and one CARB sticker.
What torque should the T-bolt clamps be tightened to?
Mishimoto recommends 27 in-lbs (3NM) for all T-bolt and constant-tension T-bolt clamps, which have an operating range of 18-35 in-lbs (2-4NM); do not exceed the maximum torque rating of 35 in-lbs (4NM).
