Description

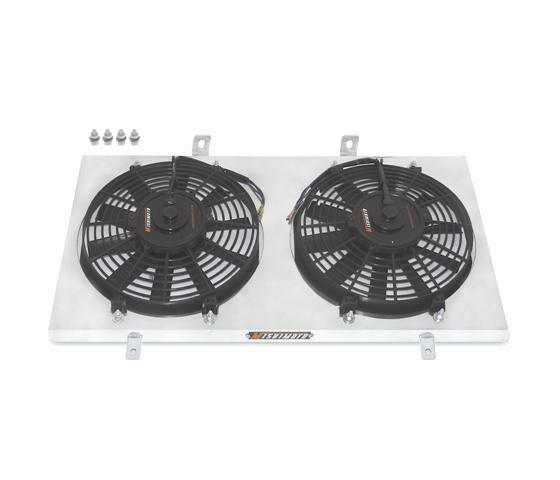

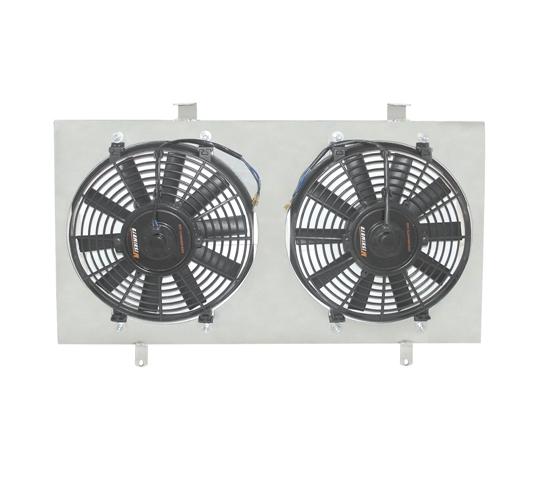

The Mishimoto MMFS-EVO-10 is a performance aluminum fan shroud kit purpose-built for the Mitsubishi Lancer Evolution X, pairing a lightweight polished aluminum shroud with two 12-inch slim electric fans to pull more air through the radiator than a standard shroud setup. Unlike the bulky factory shroud, this Mishimoto unit is engineered to be considerably lighter while still directing airflow exactly where the engine needs it.
Keeping coolant temperatures in check is critical to long-term engine health, especially under hard driving or hot ambient conditions, and this Mishimoto cooling upgrade tackles that job directly by increasing the volume of air pulled across the Evo X radiator core to drive out excess heat. The shroud also plays a structural role, securing the fan blades in place to help prevent them from contacting and damaging other components in the engine bay. Built with a performance-grade aluminum shroud and dual electric fans, it’s a straightforward bolt-on way to support the radiator and overall cooling system on a car that sees spirited use.
Vehicle Applications
This fan shroud kit is designed to fit the Mitsubishi Lancer Evolution X, including the Evolution GSR and Evolution MR for the 2008 model year and again from 2010 through 2015, the Evolution MR Touring for 2010-2011, the Evolution SE for 2010, and the Evolution Final Edition for 2015. It also covers a range of standard Lancer trims, including the Lancer DE (2009), Lancer ES (2009 and 2014), Lancer ES Sportback (2014), Lancer GT and GT Sportback (2014), Lancer GTS (2009), Lancer SE (2014), Lancer Ralliart (2009-2015), and Lancer Ralliart Sportback (2010-2011). Beyond the Lancer lineup, the kit is also compatible with the Mitsubishi Outlander ES (2008-2009), Outlander LS (2008), Outlander SE (2008-2009), and Outlander XLS (2008-2009).
Features
- Direct fit for the 2008-2015 Mitsubishi Lancer Evolution X
- Fits both the stock radiator and the Mishimoto 2008-2015 Mitsubishi Lancer Evolution X radiator
- Maximizes airflow across the radiator for improved engine cooling
- Includes two 12-inch slim electric fans and all mounting hardware
- Polished aluminum shroud finish
- Compatible with OEM and Mishimoto radiators (fans may require additional wiring)
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto | Part Number: MMFS-EVO-10
- Shroud Material: Aluminum | Shroud Color: Silver | Shroud Included: Yes
- Width: 3.5 in | Height: 16 in | Depth: 3.5 in | Length: 30.7 in
- Fan 1 Diameter: 12 in | Fan 2 Diameter: 12 in
- Blade Material: Plastic | Blade Type: Straight | Blade Color: Black
- Fan 1 Blade Quantity: 10 | Fan 2 Blade Quantity: 10
- Maximum CFM (each fan): 1150
- Motor Included: Yes | Hardwired Or Plug-In: Plug-In | Electrical Or Mechanical: Electrical
- Fan Clutch Mounted: No | Control Module Included: No
- Mounting Hardware Included: Yes | Grade Type: Performance
- Chassis Code: CZ4A | Engine Codes: 4B11T, 4G69, 4B12, 6B31 (Outlander)
- Includes: (1) Aluminum Fan Shroud, (2) 12-inch Slim Electric Fans, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMFS-EVO-10 fan shroud kit fit?
It fits the Mitsubishi Lancer Evolution GSR and MR (2008, 2010-2015), Evolution MR Touring (2010-2011), Evolution SE (2010), Evolution Final Edition (2015), Lancer DE (2009), Lancer ES (2009, 2014), Lancer ES Sportback (2014), Lancer GT and GT Sportback (2014), Lancer GTS (2009), Lancer SE (2014), Lancer Ralliart (2009-2015), Lancer Ralliart Sportback (2010-2011), and the Mitsubishi Outlander ES, SE, and XLS (2008-2009) and Outlander LS (2008).
Does the kit include the electric fans?
Yes, the kit includes two 12-inch slim electric fans along with the aluminum fan shroud and all mounting hardware.
What is the shroud made of?
The shroud is made of aluminum with a polished aluminum finish and a silver shroud color.
Will this fan shroud work with my stock radiator?
Yes, it is compatible with both the stock Evolution X radiator and the Mishimoto Evolution X radiator, though the fans may require additional wiring.
What is the airflow rating of the fans?
Each of the two included 12-inch electric fans is rated at a maximum of 1150 CFM.
Does this kit come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
