Description

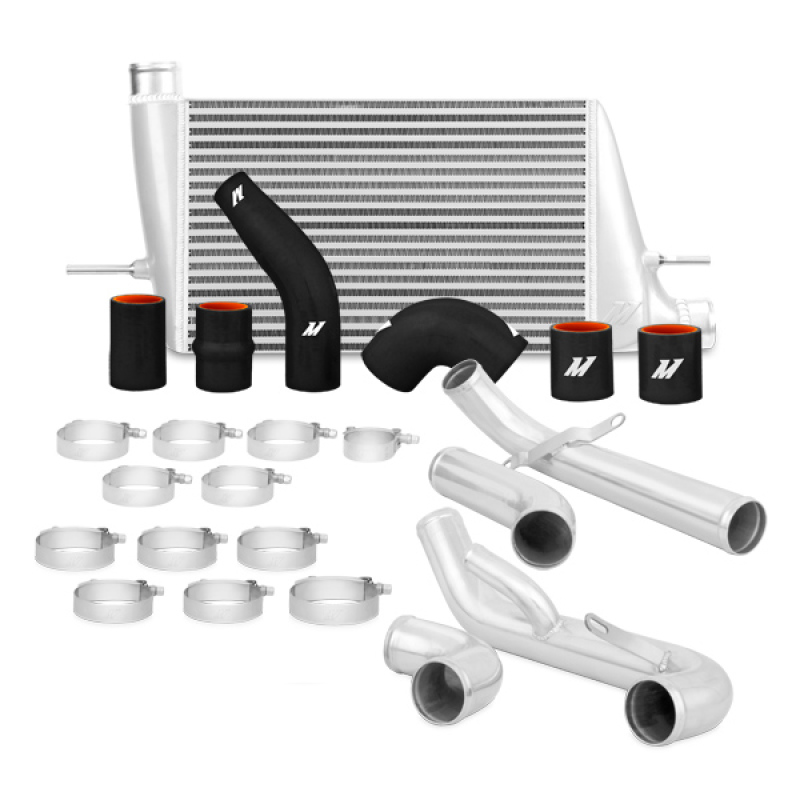

The Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler kit (MMINT-EVO-10KSL) is a direct bolt-on forced induction upgrade engineered specifically for the Evo X’s 4B11T engine and CZ4A chassis. Built around a 3.5-inch thick bar-and-plate aluminum core with cast aluminum end tanks, this intercooler is designed to pull heat out of the charge air fast, keeping intake temperatures in check when boost pressure climbs.
A high-horsepower Evo needs a forced induction system that can actually keep pace, and heat soak or rising air intake temperatures will quietly rob a modified induction engine of the power it’s making. This performance induction upgrade addresses that directly: the strategic fin design inside the core promotes substantial heat exchange while keeping pressure loss across the core to a minimum, so the induction system stays efficient even under sustained boost. Polished 2.5-inch mandrel-bent aluminum piping, four-layer 100-percent silicone couplers with heat-resistant embedded fibers, and stainless steel T-bolt clamps replace the factory rubber connections with hardware built to handle increased boost pressure without failure. On the dyno, this kit is proven for a 10 whp and 10 tq gain, and the core volume is sized to support forced induction turbo setups up to 600 whp, making it just as useful for a track-day Evo as it is for a daily-driven Ralliart.
Vehicle Applications
This is a specific-fit forced induction component for the Mitsubishi Lancer Evolution X platform, not a universal induction system. It bolts directly onto the 2008-2015 Lancer Evolution GSR and 2008-2015 Lancer Evolution MR, and it also fits the 2009 Lancer Evolution RS, the 2010 Lancer Evolution SE, and the 2010-2011 Lancer Evolution MR Touring. Coverage extends to the 2014 Lancer Evolution and the 2015 Lancer Evolution Final Edition, as well as the 2009-2015 Lancer Ralliart and the 2010-2011 Lancer Ralliart Sportback.
Features
- Direct bolt-on fit for the 2008-2015 Mitsubishi Lancer Evolution X
- Dyno-proven 10 whp and 10 tq bolt-on power increase
- 3.5-inch thick bar-and-plate aluminum core for optimal heat dissipation and low AITs
- Full cast aluminum end tanks for increased durability and smooth, uninterrupted airflow
- Strategically designed core fins for minimal pressure loss
- Substantial core volume supports modified vehicles up to 600 whp
- Polished 2.5-inch mandrel-bent aluminum piping
- Four-layer 100-percent silicone couplers with heat-resistant embedded fibers
- Stainless steel T-bolt clamps included for every connection
- Powder-coated finish available in Sleek Silver or Stealth Black
- Compatible with stock or aftermarket intercooler pipes; CNC mounting pegs must be installed by the customer
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-EVO-10KSL
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Height: 12 in
- Core Length: 19.5 in
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Inlet Diameter: 2.375 in
- Outlet Diameter: 2.5 in
- Hot Side Pipe Inside Diameter: 2.375 in
- Cold Side Pipe Inside Diameter: 2.5 in
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Silver
- Core Color: Silver
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Overall Width: 4.5 in
- Overall Height: 13.7 in
- Overall Length: 28.3 in
- Weight: 23 lbs
- Engine Code: 4B11T
- Chassis Code: CZ4A
- Grade Type: Performance
- Fit Type: Specific
- Includes: (1) Mishimoto Intercooler, CNC Mounting Pegs, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-EVO-10KSL intercooler kit fit?
This kit is a direct, specific fit for the 2008-2015 Mitsubishi Lancer Evolution GSR and MR, the 2009 Evolution RS, the 2010 Evolution SE, the 2010-2011 Evolution MR Touring, the 2014 Lancer Evolution, the 2015 Lancer Evolution Final Edition, the 2009-2015 Lancer Ralliart, and the 2010-2011 Lancer Ralliart Sportback.
How much power does this intercooler add?
Mishimoto’s dyno testing shows this intercooler kit provides a 10 whp and 10 tq bolt-on power increase, and its core volume supports modified vehicles up to 600 whp.
What is the intercooler core made of and how is it built?
The core is an aluminum bar-and-plate design that is 3.5 inches thick, measuring 12 inches in core height and 19.5 inches in core length, with a strategic fin design for substantial heat exchange and minimal pressure loss.
What color finishes are available?
This intercooler is available with a powder-coated finish in Sleek Silver or Stealth Black.
What is included with the kit, and is installation difficult?
The kit includes (1) Mishimoto Intercooler and CNC Mounting Pegs, backed by the Mishimoto Lifetime Warranty. The intercooler can be used with stock or aftermarket intercooler pipes, but the CNC mounting pegs must be installed by the customer.
What clamps and couplers does the piping use?
The kit features polished 2.5-inch mandrel-bent aluminum piping connected with four-layer 100-percent silicone couplers featuring heat-resistant embedded fibers, secured by stainless steel T-bolt clamps at each connection.
