Description

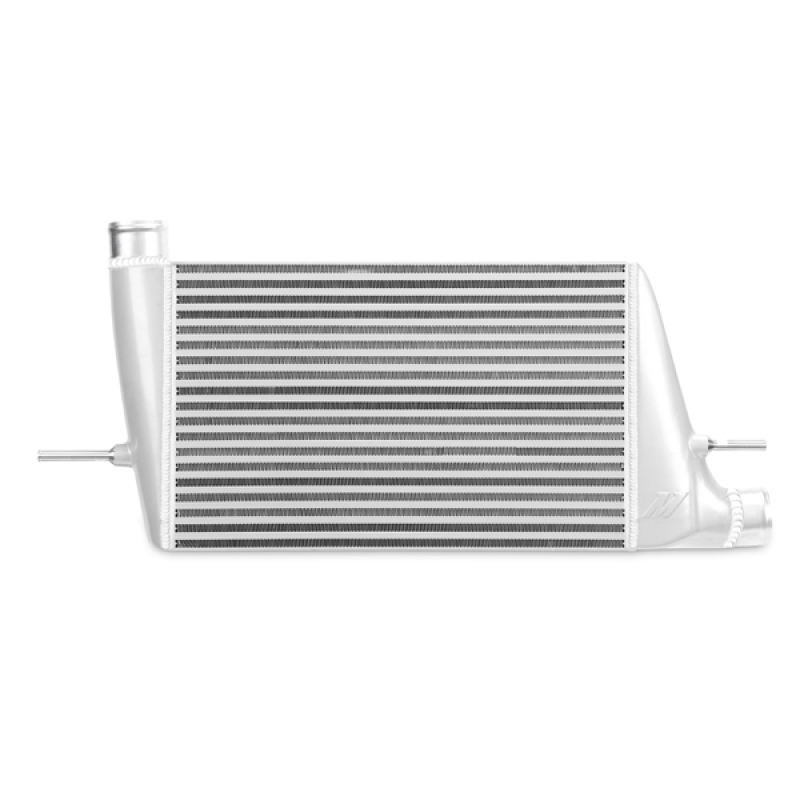

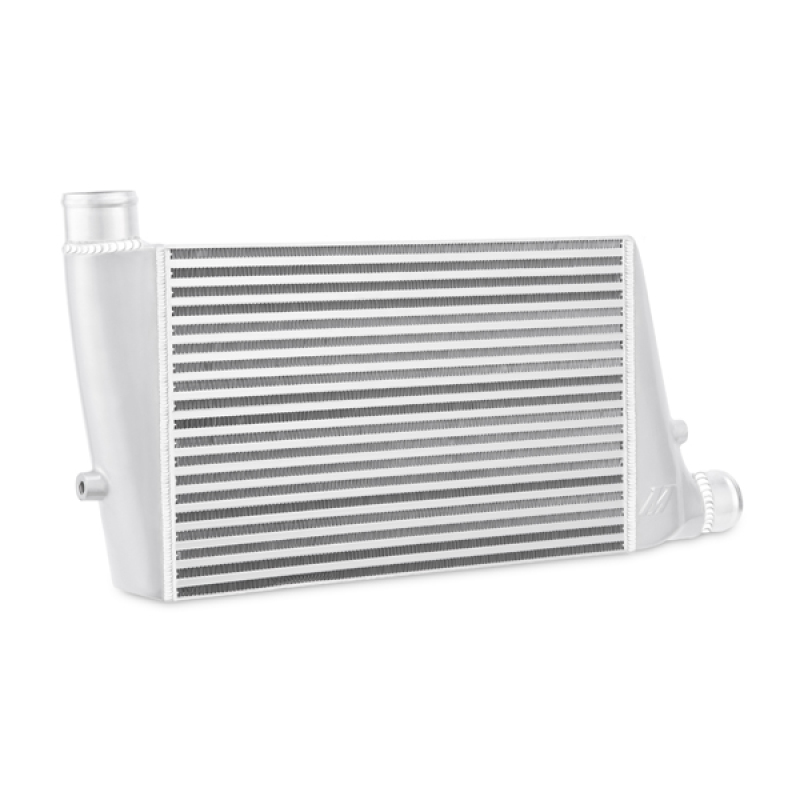

The Mishimoto Lancer Evolution X Performance Intercooler (MMINT-EVO-10X) is a direct bolt-on forced induction upgrade engineered specifically for the Evo X’s 4B11T engine on the CZ4A chassis. It swaps in a 3.5-inch thick bar-and-plate core with full cast aluminum end tanks, and Mishimoto has dyno-proven it to add 10 hp and 10 tq while supporting modified builds up to 600 hp.
Running a high-boost forced induction setup pushes intake air temperatures up fast, and heat soak can quietly rob a hard-working engine of the power it should be making. This performance induction upgrade is built to counter that: its bar-and-plate core and strategically designed fins promote substantial heat exchange while keeping pressure loss across the core to a minimum, so the induction system keeps delivering a cool, dense charge whether you’re staging a pass at the drag strip or working through a rally stage. The cast aluminum end tanks add durability and keep airflow smooth and uninterrupted, and the core itself is sized with enough volume to keep supporting your forced induction system as your Evo X’s power climbs.
Vehicle Applications
This intercooler is a specific-fit part engineered for the Mitsubishi Lancer Evolution X platform. It bolts directly onto the 2008-2015 Mitsubishi Lancer Evolution GSR and Mitsubishi Lancer Evolution MR, the 2009 Mitsubishi Lancer Evolution RS, the 2010 Mitsubishi Lancer Evolution SE, the 2010-2011 Mitsubishi Lancer Evolution MR Touring, the 2014 Mitsubishi Lancer Evolution, and the 2015 Mitsubishi Lancer Evolution Final Edition. It also fits the 2009-2015 Mitsubishi Lancer Ralliart and the 2010-2011 Mitsubishi Lancer Ralliart Sportback.
Features
- Direct fit for the 2008-2015 Mitsubishi Lancer Evolution X
- 10 whp and 10 tq bolt-on power increase, dyno-proven

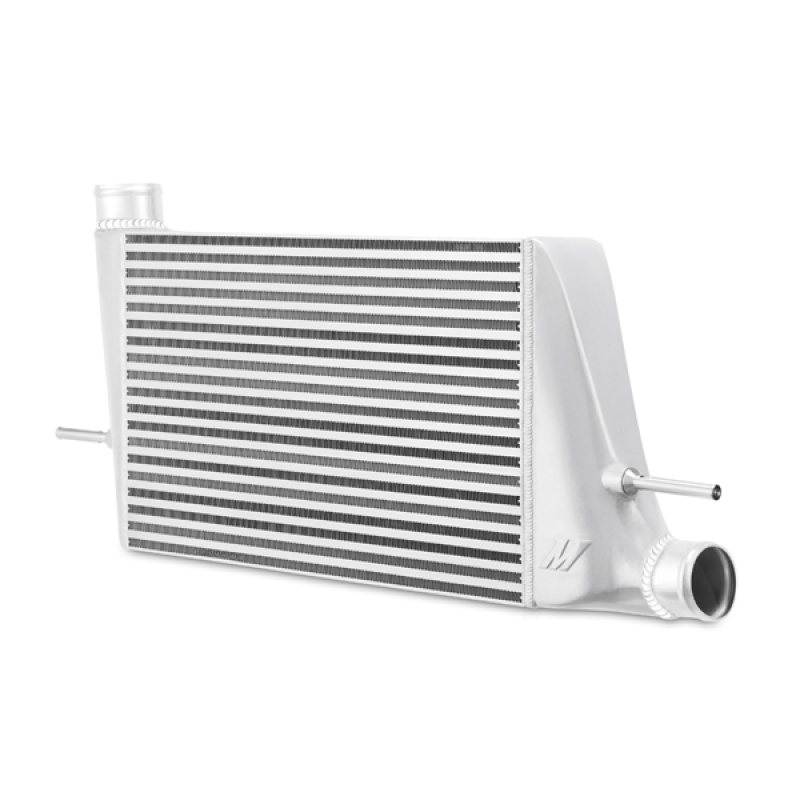

- Efficient 3.5-inch thick bar-and-plate core provides optimal heat dissipation and low air intake temperatures
- Full aluminum cast end tanks provide increased durability and smooth, uninterrupted airflow
- Strategically designed fins for minimal pressure loss
- Substantial core volume supports vehicles up to 600 whp
- Available with a powder-coated finish in Sleek Silver or Stealth Black

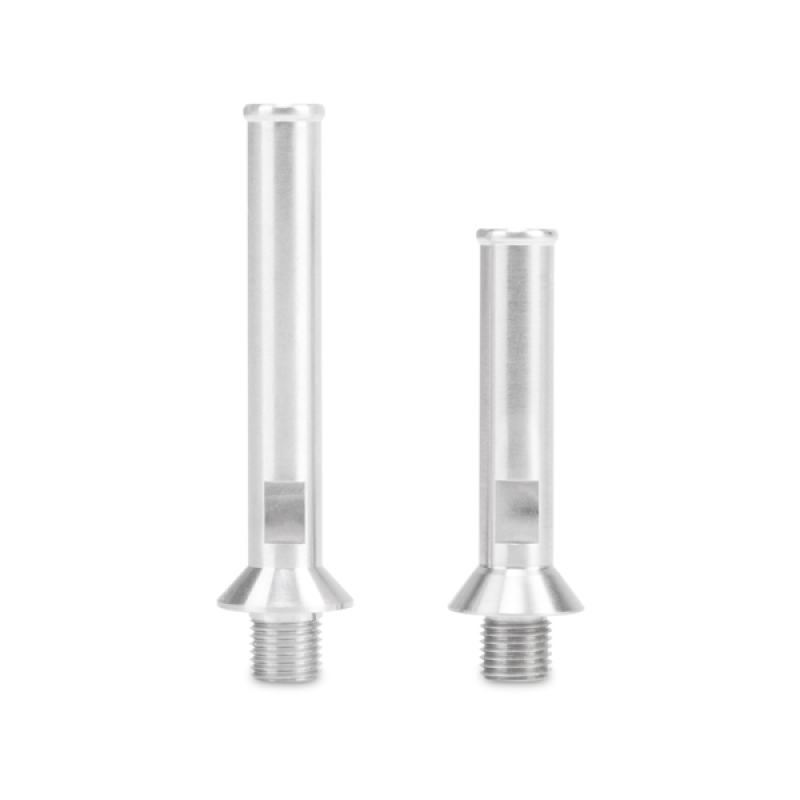

- Can be used with stock or aftermarket intercooler pipes; CNC mounting pegs must be installed by the customer
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Silver (Stealth Black also available)
- Inlet Tank Material: Aluminum
- Grade Type: Performance
- Universal Or Specific Fit: Specific
- Overall Length: 28.3 in
- Overall Width: 4.5 in
- Overall Height: 13.7 in
- Core Length: 19.5 in
- Core Height: 12 in
- Inlet Outside Diameter: 2.375 in (Male)
- Outlet Outside Diameter: 2.5 in (Male)
- Weight: 23 lbs
- Engine Code: 4B11T
- Chassis Code: CZ4A
- CARB EO Number: D-759
- Includes: (1) Mishimoto Intercooler, CNC Mounting Pegs, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this intercooler fit?
It is a direct bolt-on for the 2008-2015 Mitsubishi Lancer Evolution GSR and MR, 2009 RS, 2010 SE, 2010-2011 MR Touring, 2014 Lancer Evolution, 2015 Final Edition, 2009-2015 Ralliart, and 2010-2011 Ralliart Sportback.
What performance gains can I expect?
Mishimoto reports a dyno-proven increase of 10 hp and 10 tq, and the core has enough volume to support vehicles up to 600 hp.
What type of core does it use?
It uses an efficient 3.5-inch thick bar-and-plate aluminum core with strategically designed fins for heat exchange and minimal pressure loss.
What color options are available?
This intercooler is available with a powder-coated finish in Sleek Silver or Stealth Black.
What is included with the intercooler?
The kit includes (1) Mishimoto Intercooler and CNC mounting pegs, which must be installed by the customer, backed by the Mishimoto Lifetime Warranty.
Does it work with my existing piping?
Yes, this intercooler can be used with stock or aftermarket intercooler pipes.
