Description

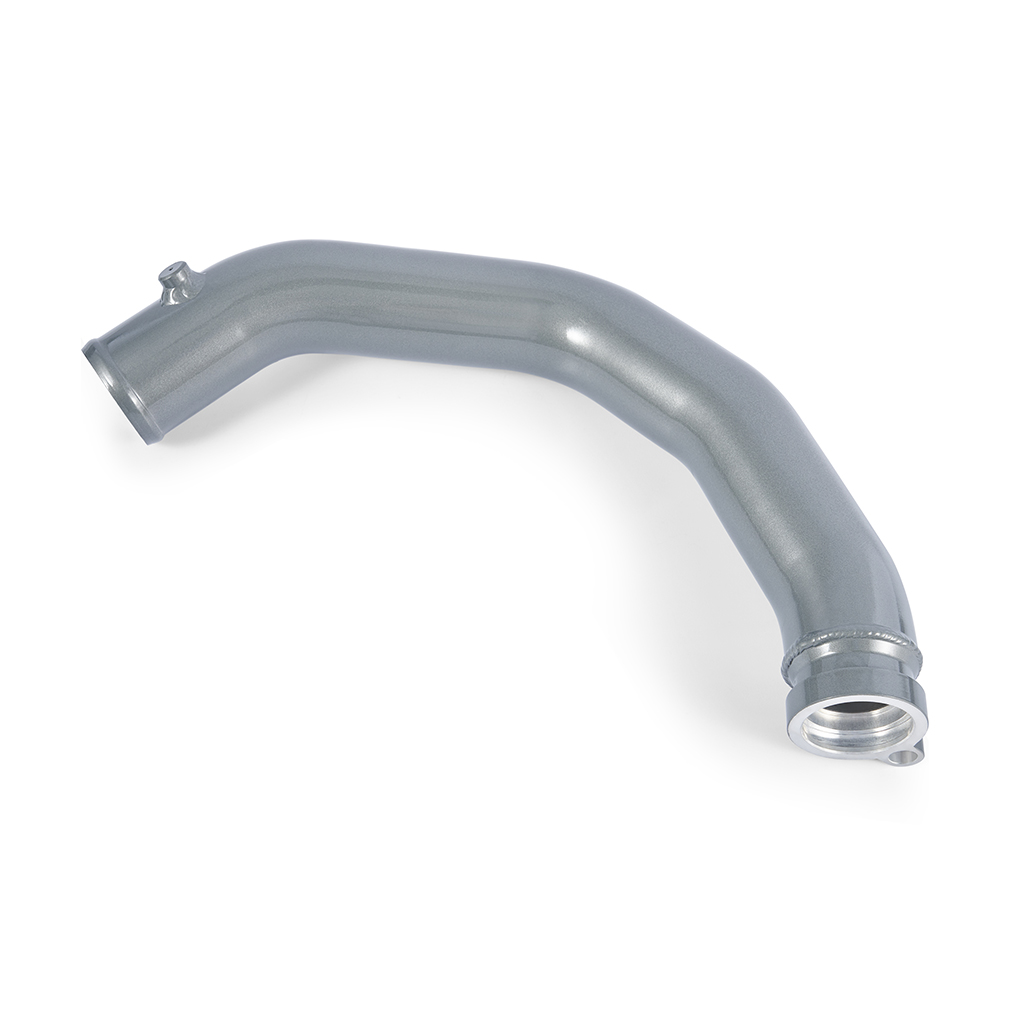

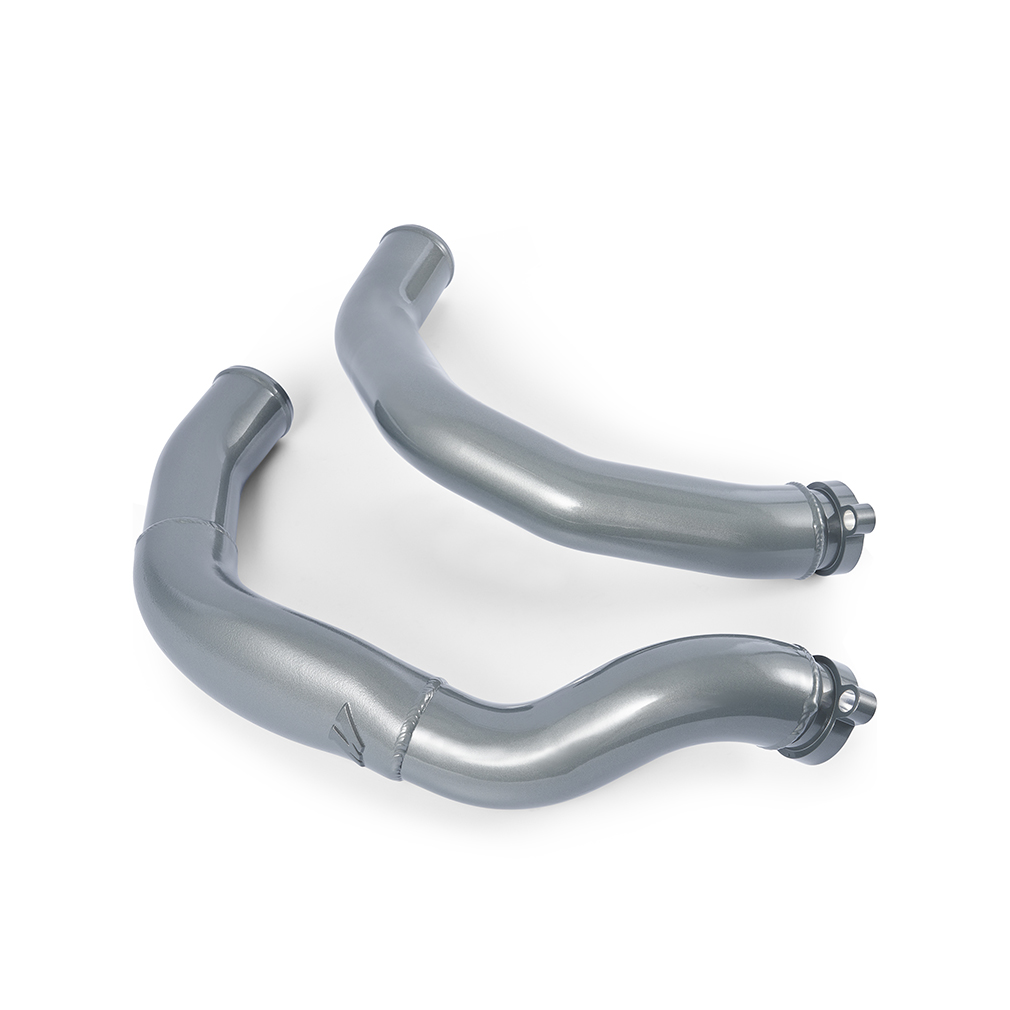

The Mishimoto 2015+ BMW F8X M3/M4 Charge Pipe Kit (MMICP-F80-15CLRG) is built specifically to replace the factory charge pipes on your S55-equipped F80/F82/F83/F87, and this particular kit arrives finished in Lime Rock Gray to match your F8X’s exterior paint. Where the stock plastic-welded pipes are prone to splitting or bursting under boost, Mishimoto’s full aluminum, TIG-welded construction is engineered to keep the pressure sealed and the power flowing.
Forced induction platforms like the S55 depend on a tight, uninterrupted path from turbo to intercooler, and any boost leak in the induction system robs your engine of the pressure it was designed to make. This charge pipe kit addresses that weak point in the forced induction system with a more uniform pipe shape for optimal airflow, a unique cast midsection engineered for a precise fit between the engine and air intake, and a bung built in for straightforward methanol injection integration. It’s a durable upgrade to your induction engine hardware that keeps performance induction reliable without sacrificing factory-style fitment.
Vehicle Applications
This Mishimoto charge pipe kit is a direct fit for the 2015-2018 BMW M3 Sedan, the 2015-2020 BMW M4 Coupe and Convertible, the 2016 BMW M4 GTS Coupe, the 2019-2020 BMW M4 CS Coupe, and the 2019-2020 BMW M2 Competition, covering the F80, F82, F83, and F87 chassis codes.
Features
- Full aluminum, TIG-welded construction for durability
- Mandrel-bent pipes for a more uniform, less restrictive path from turbo to intercooler
- Unique cast midsection for precise fitment between engine and air intake
- Includes a bung for simple methanol injection integration
- Matte black silicone couplers for a secure, stock-style connection to the intercooler
- Powder coated finish, color matched to Lime Rock Gray
- Includes worm gear clamps for a secure seal
- Covered by the Mishimoto Lifetime Warranty
- Patent No. US D971,261 S
Specifications
- Pipe Material: Aluminum
- Pipe Color/Finish: Powder Coated, Lime Rock Gray
- Pipe Bend Type: Mandrel
- Pipe Quantity: 2
- Coupler Material: Silicone
- Coupler Color: Black
- Clamps Included: Yes
- Clamp Type: Worm Gear
- Clamp Quantity: 4
- CARB EO Number: D-759-13

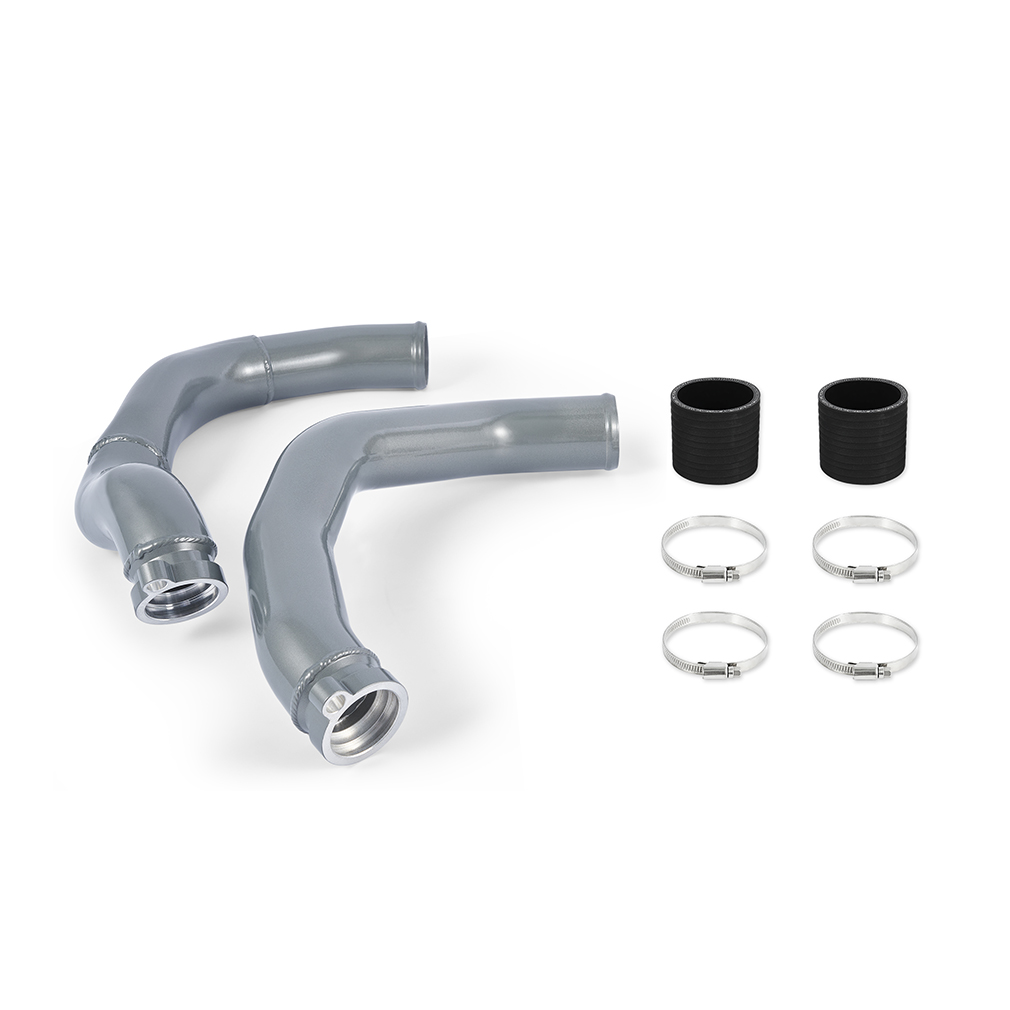

- Includes: (2) Charge Pipes, (2) Silicone Couplers, (4) Worm Gear Clamps, (1) CARB EO Sticker, Mishimoto Lifetime Warranty
- Chassis Codes: F80, F82, F83, F87
Frequently Asked Questions
What vehicles does this Mishimoto charge pipe kit fit?
It is a direct fit for the 2015-2018 BMW M3 Sedan, 2015-2020 BMW M4 Coupe and Convertible, 2016 BMW M4 GTS Coupe, 2019-2020 BMW M4 CS Coupe, and 2019-2020 BMW M2 Competition, covering the F80, F82, F83, and F87 chassis codes.
What color is this specific charge pipe kit?
This kit (MMICP-F80-15CLRG) is powder coated and color matched to Lime Rock Gray. Mishimoto notes that color-matched products may vary slightly from your vehicle’s color due to factors like heat, sun fade, and age.
What is included with this charge pipe kit?
The kit includes two charge pipes, two silicone couplers, four worm gear clamps, one CARB EO sticker, and the Mishimoto Lifetime Warranty.
What material are the charge pipes made from?
The charge pipes are constructed from full aluminum with TIG-welded seams for durability.
Are there any installation notes for this kit?
Mishimoto recommends 22 in-lbs (2.5NM) of torque for all worm gear clamps, with an operating range of 18-27 in-lbs (2-3NM) and a maximum of 27 in-lbs (3NM). Mishimoto also advises checking the condition of the OEM O-rings before installation and replacing them with OEM spec O-rings (BMW part number 11617848448) as needed.
Does this kit include a CARB EO number?
Yes, this kit carries CARB EO Number D-759-13.
