Description
The Mishimoto 2015+ BMW F8X M3/M4 Charge Pipe Kit (MMICP-F80-15CAW) replaces the factory plastic-welded charge pipes that are prone to splitting at the turbo or bursting along the seam, delivering a full-aluminum, TIG-welded charge pipe system built specifically for the S55-powered F80/F82/F83/F87 chassis. Available color matched to your choice of 12 OEM colors or classic black, this forced induction upgrade keeps your engine bay as sharp as your BMW’s exterior while eliminating a common boost-leak failure point.
Built for drivers who rely on a dependable forced induction system, this charge pipe kit is designed to deliver optimal airflow with a more uniform shape from turbo to intercooler without sacrificing factory fitment. A unique cast midsection ensures a perfect connection between engine and air intake, while a built-in bung allows for simple integration of methanol injection for those developing their induction system further. Each pipe wears durable, automotive-grade paint matched to your BMW’s factory color, and the included matte black silicone couplers and worm gear clamps provide a secure, stock-style connection to the intercooler. Whether you’re keeping things stock-appearance or refining a more aggressive forced induction setup, this Mishimoto charge pipe kit reinforces the pressurized path between turbo and intercooler while adding a finishing touch of style.
Vehicle Applications
This charge pipe kit is a direct fit for the 2015-2018 BMW M3, the 2015-2020 BMW M4 (Coupe and Convertible), the 2016 BMW M4 GTS, the 2019-2020 BMW M4 CS, and the 2019-2020 BMW M2 Competition, covering the F80, F82, F83, and F87 chassis codes.
Features

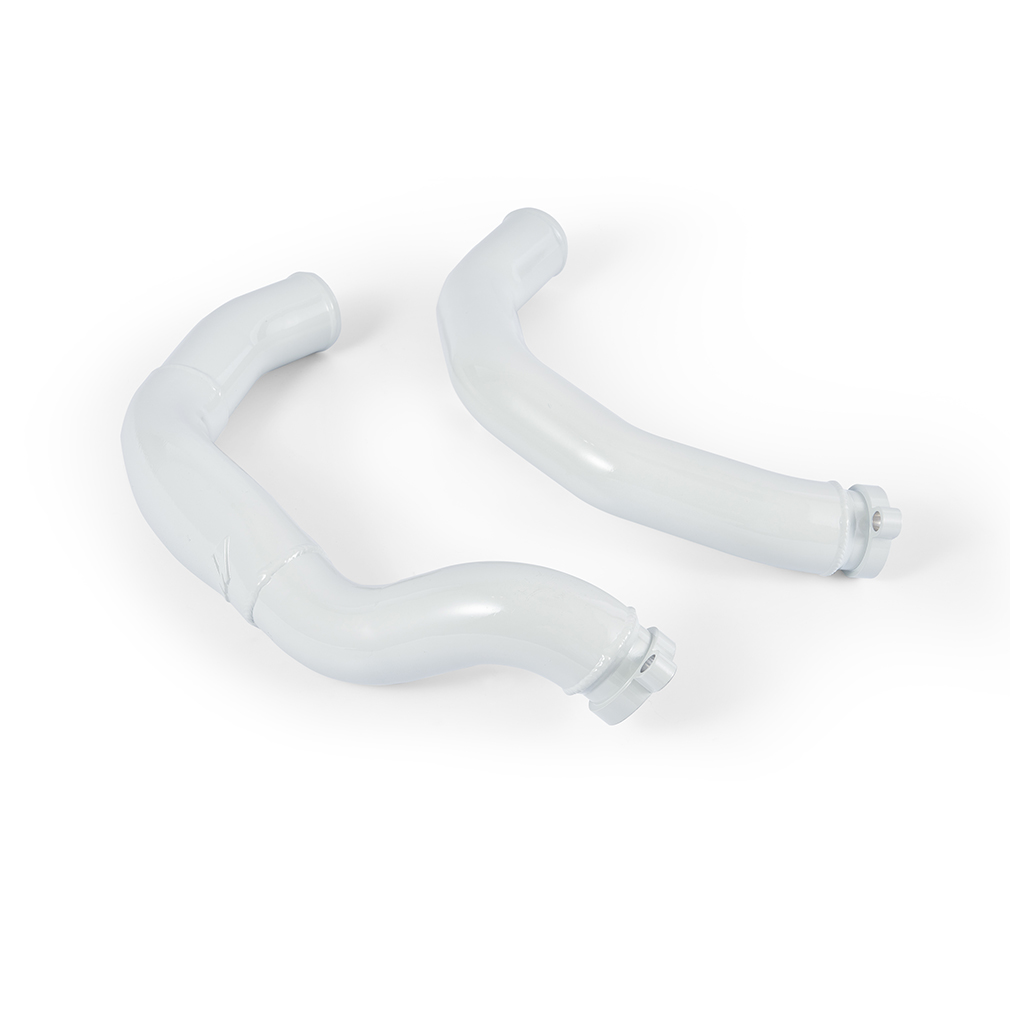

- Full aluminum, TIG-welded construction for maximum durability
- Color matched to your choice of 12 OEM colors or classic black
- Unique cast midsection for perfect fitment between engine and air intake
- Includes bung for simple integration of methanol injection
- Designed for optimal airflow
- Includes matte black silicone couplers for a secure, stock-style connection to the intercooler
- Mandrel-bent pipe construction
- Worm gear clamps included
- Patent No. US D971,261 S
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Pipe Material: Aluminum

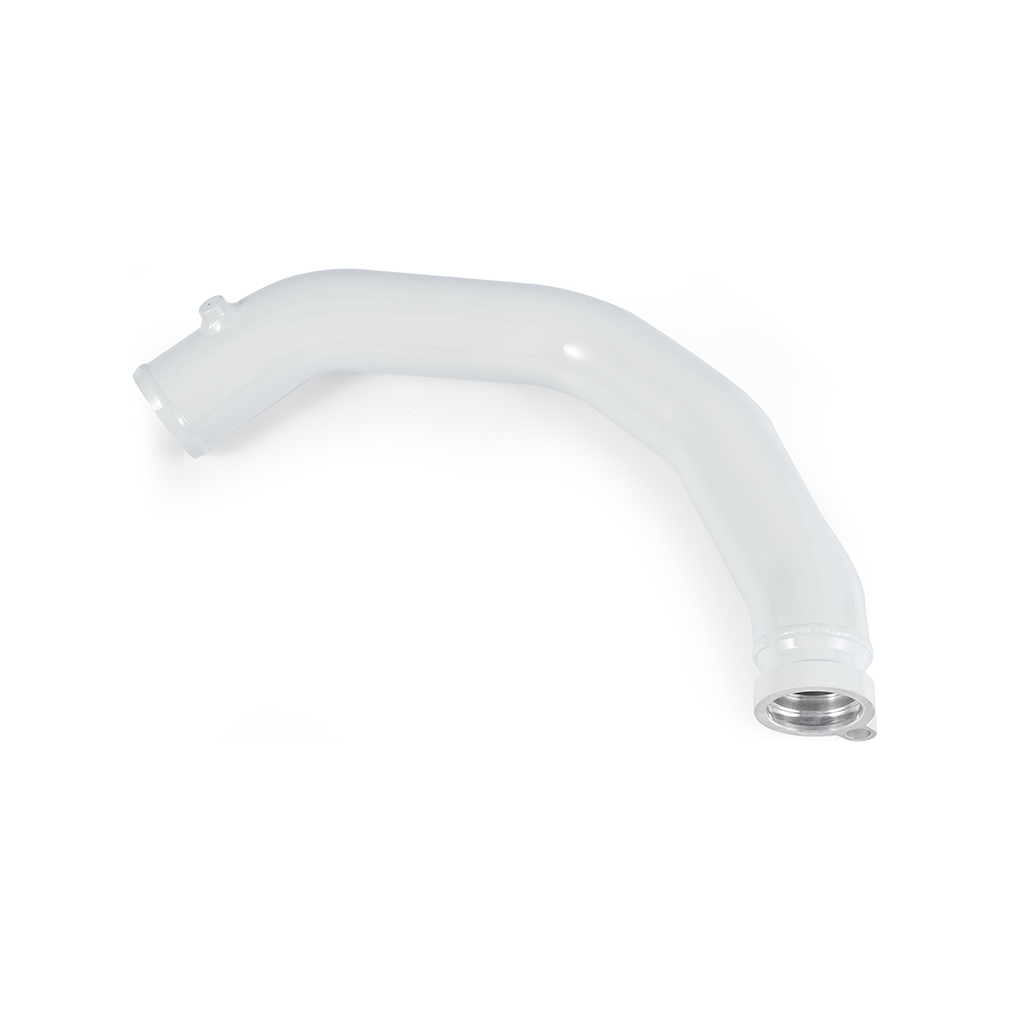

- Pipe Color: Natural (color-matched paint available in 12 OEM colors; example shown: Alpine White)
- Finish: Powder Coated
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Chassis Codes: F80, F82, F83, F87
- CARB EO Number: D-759-13

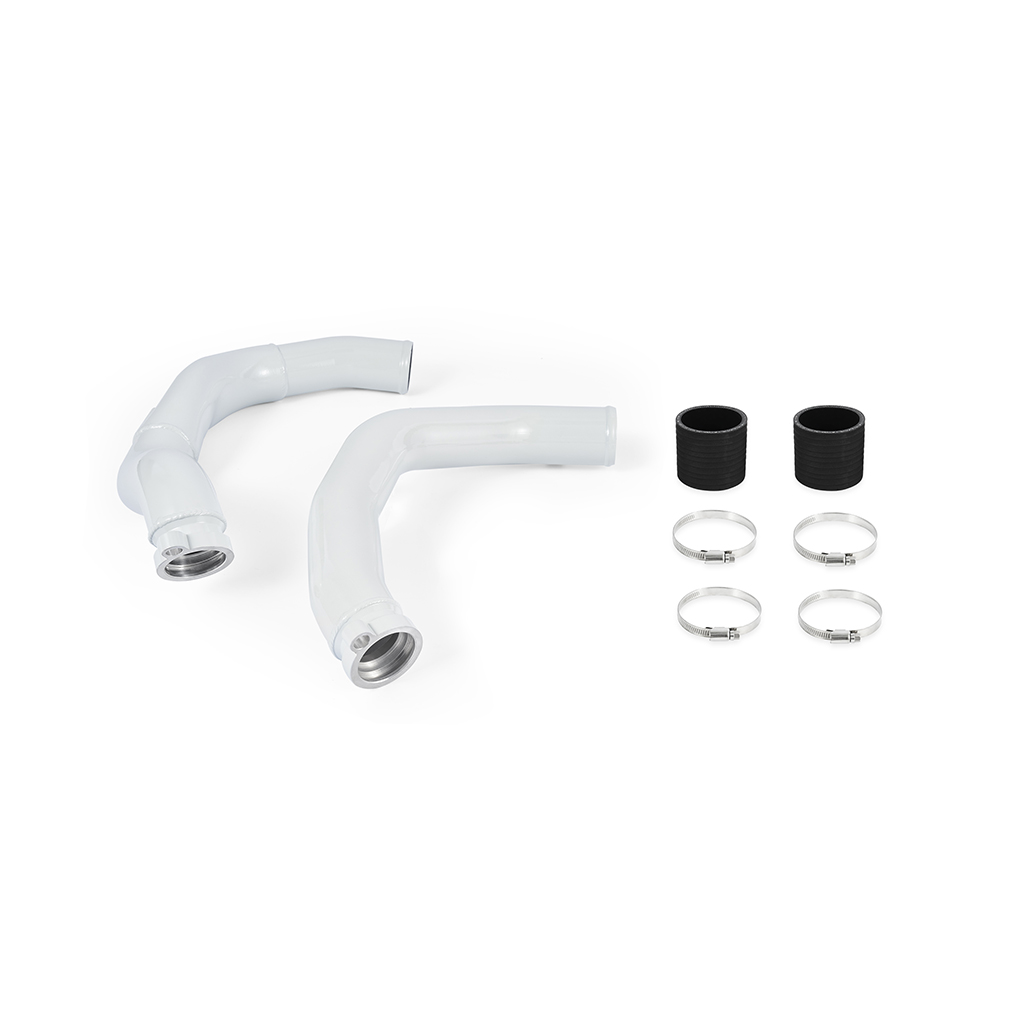

- Kit Includes: (2) Charge Pipes, (2) Silicone Couplers, (4) Worm Gear Clamps, (1) CARB EO Sticker, Mishimoto Lifetime Warranty
- Installation Note: 22 in-lbs (2.5NM) recommended torque for all worm gear clamps; operating range 18-27 in-lbs (2-3NM); do not exceed the maximum torque rating of 27 in-lbs (3NM)
- Tech Note: Check condition of OEM O-rings before installation and replace with OEM spec O-rings as needed (BMW part number 11617848448); color-matched products may vary slightly from vehicle color due to heat, sun fade, and age
Frequently Asked Questions
Which BMW models fit the Mishimoto MMICP-F80-15CAW charge pipe kit?
This kit fits the 2015-2018 BMW M3, the 2015-2020 BMW M4 Coupe and Convertible, the 2016 BMW M4 GTS, the 2019-2020 BMW M4 CS, and the 2019-2020 BMW M2 Competition, covering chassis codes F80, F82, F83, and F87.
What is the Mishimoto charge pipe kit made of?
The charge pipes are constructed from full aluminum with TIG-welded joints, using a mandrel pipe bend type for a secure boost channel.
Can I get the charge pipes color matched to my car?
Yes, the charge pipes can be color matched to your choice of 12 OEM colors or classic black. Note that color-matched products may vary slightly from your vehicle’s color due to factors like heat, sun fade, and age.
What hardware is included with this charge pipe kit?
The kit includes (2) charge pipes, (2) silicone couplers, (4) worm gear clamps, (1) CARB EO sticker, and the Mishimoto Lifetime Warranty.
Does this charge pipe kit support methanol injection?
Yes, the charge pipes include a bung for simple integration of methanol injection.
What torque should be used on the included clamps?
A torque of 22 in-lbs (2.5NM) is recommended for all worm gear clamps, which have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
