Description
The Mishimoto MMICP-WRX-22MWBK is a purpose-built forced induction charge pipe kit engineered specifically for the 2022+ Subaru WRX, replacing the factory’s restrictive plastic hot-side pipe with a TIG-welded aluminum unit finished in micro-wrinkle black powder coat. This isn’t a generic induction system add-on — it’s a direct-fit intercooler pipe designed around the WRX’s FA24F turbocharged 2.4L engine, complete with an integrated CNC-machined quick disconnect for the turbo connection.
Forced induction platforms live and die by how efficiently boosted air moves through the system, and Mishimoto’s approach to this charge pipe targets exactly that bottleneck. By opening up the interior of the pipe, this forced induction charge pipe kit delivers a 21 percent reduction in airflow restriction compared to the stock piece, giving your WRX’s induction system more headroom to build and hold boost. The all-aluminum, mandrel-bent construction is built to handle repeated high boost pressure cycles without the cracking or ballooning that can plague OEM plastic charge pipes over time, while the included silicone coupler and stainless worm gear clamps keep every connection sealed tight under load.
Vehicle Applications
This charge pipe kit is a direct fit for the 2022–2024 Subaru WRX Base, as well as the 2022–2026 Subaru WRX GT, Limited, Premium, Sport, and Sport-tech trims. It is engineered around the FA24F 2.4L turbocharged four-cylinder engine and the VB chassis code used across these model years.
Features
- Direct fit for 2022+ Subaru WRX models
- Reduces airflow restriction for improved forced induction airflow potential

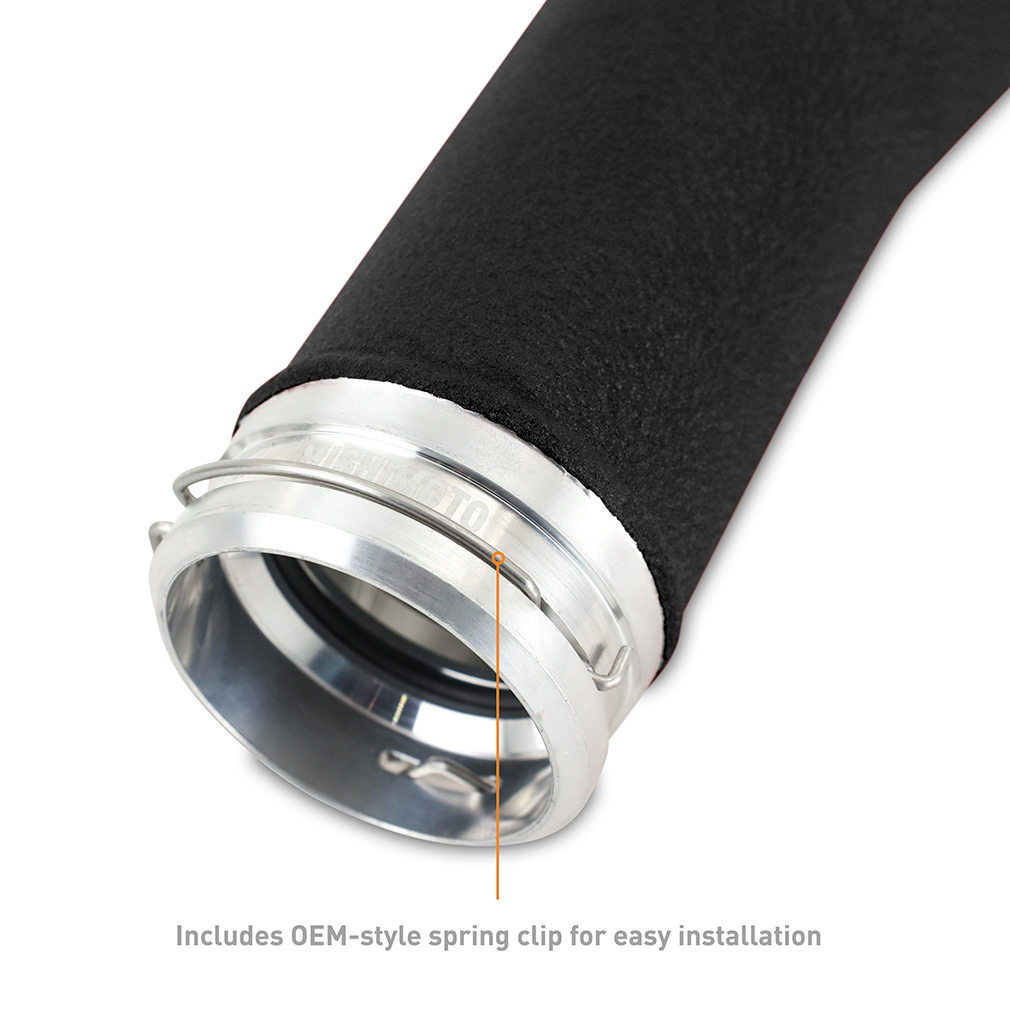

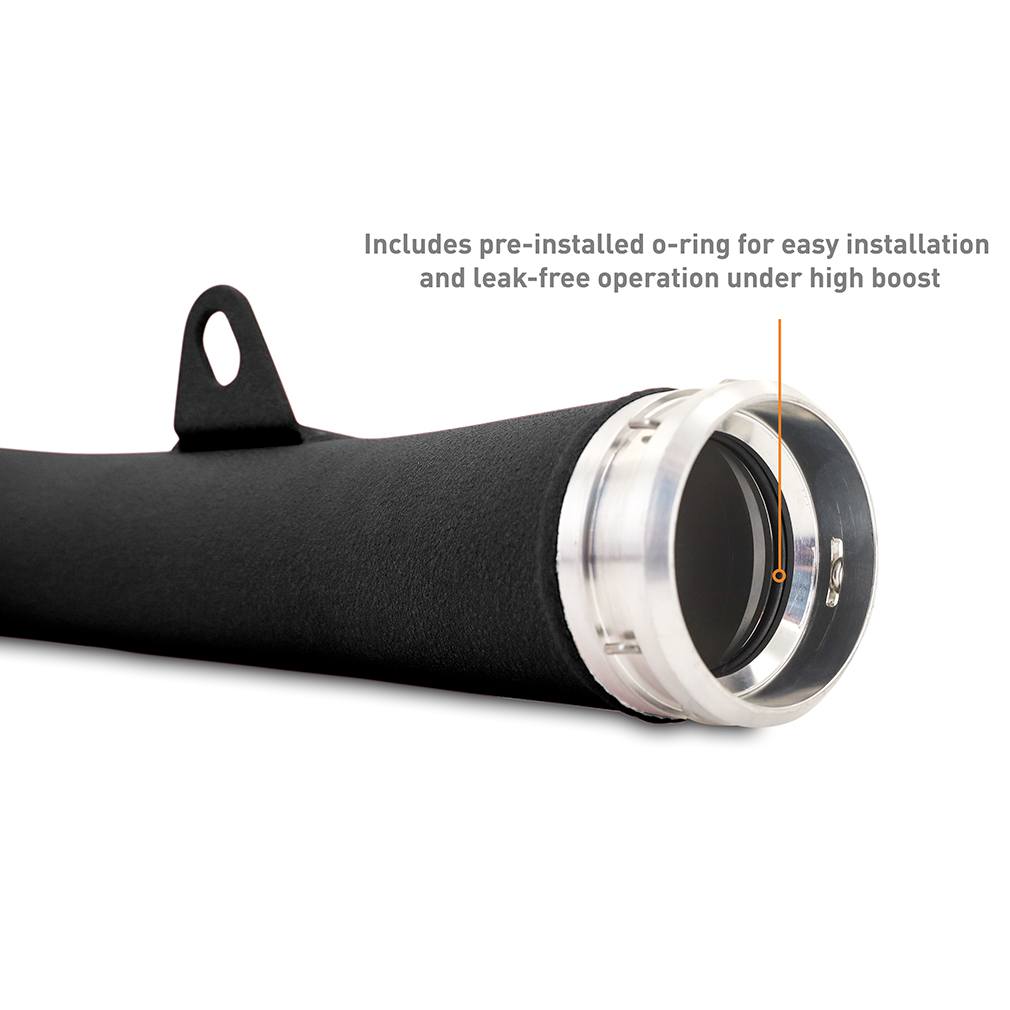

- CNC-machined quick disconnect with included O-ring for leak-free operation at the turbo connection

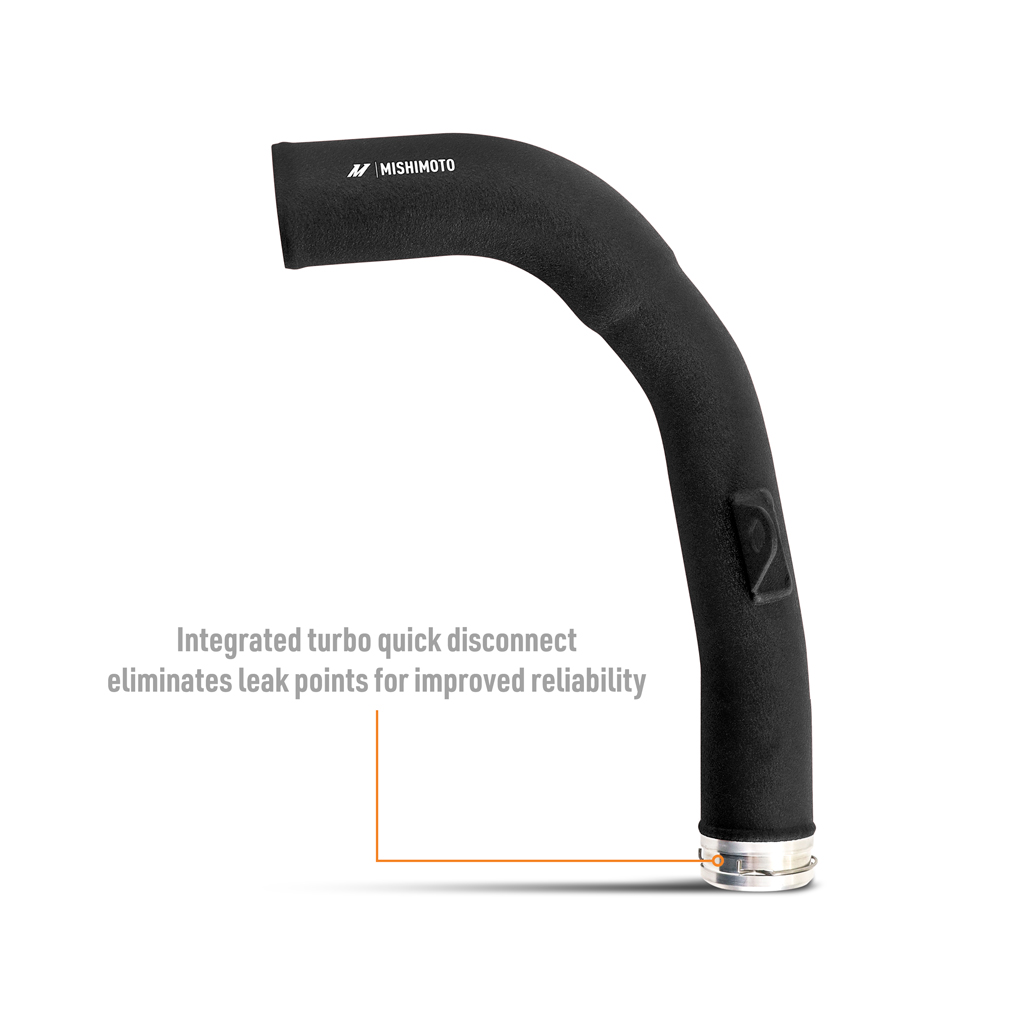

- Integrated turbo quick disconnect eliminates additional leak points for improved reliability
- All-aluminum, TIG-welded, mandrel-bent construction for durability and flow
- Available in micro-wrinkle black or wrinkle red powder coat to match your engine bay
- Includes black silicone coupler and stainless steel worm gear clamps for a secure connection
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-WRX-22MWBK
- Product Type: Forced Induction
- Pipe Material: Aluminum
- Pipe Color / Finish: Black, Powder Coated
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Hot Side Pipe Inside Diameter: 2.5 in
- Cold Side Pipe Inside Diameter: 2.5 in
- Pipe Diameter: 2.75 in
- Pipe Length: 21.74 in
- Overall Length: 21.55 in
- Overall Width: 4.26 in
- Overall Height: 9.22 in
- Applications: Subaru WRX I4 2.4L Turbo 2022+
- Engine Code: FA24F
- Chassis Code: VB

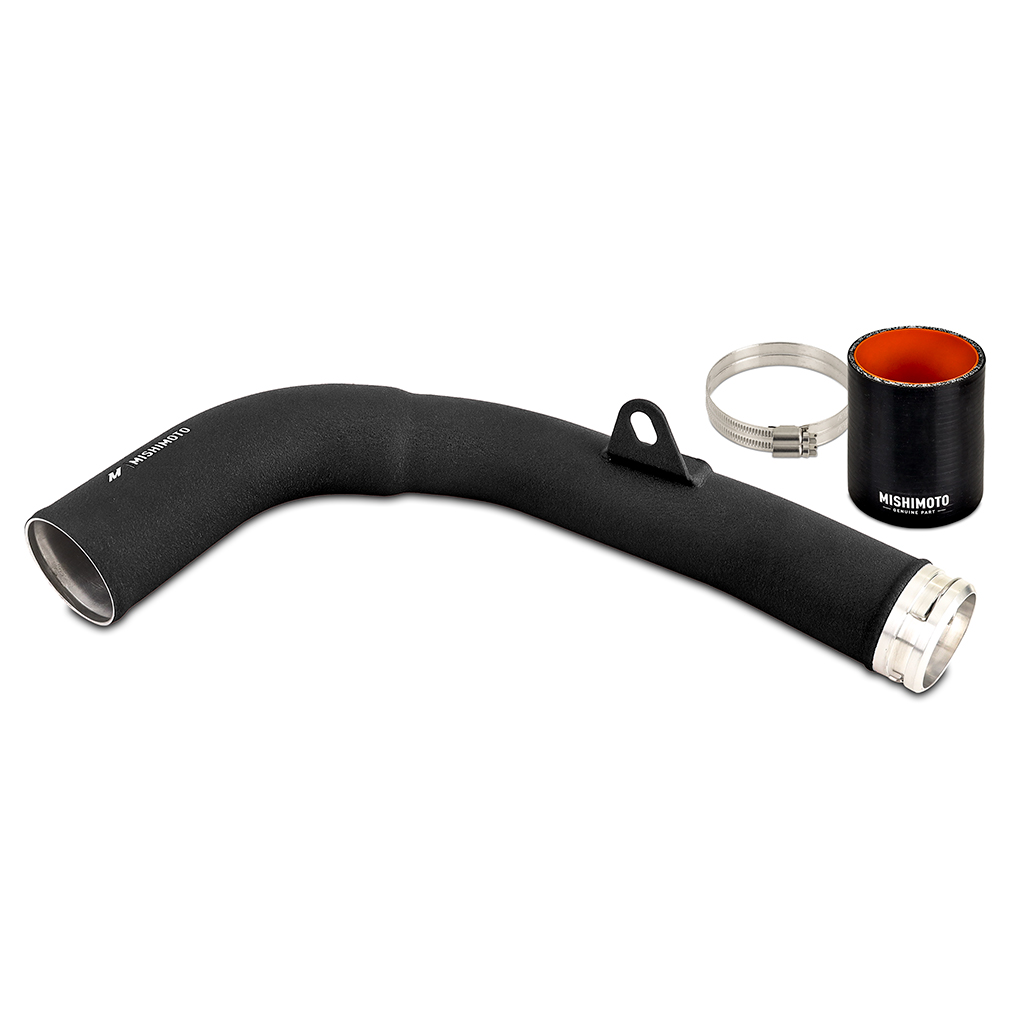

- Includes: (1) Hot-Side Intercooler Pipe, (1) Silicone Coupler, (2) Stainless Steel Worm Gear Clamps, (1) Assembly Guide Notecard, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which vehicles does the Mishimoto MMICP-WRX-22MWBK charge pipe kit fit?
This kit is a direct fit for the 2022–2024 Subaru WRX Base and the 2022–2026 Subaru WRX GT, Limited, Premium, Sport, and Sport-tech trims, built around the FA24F 2.4L turbocharged engine and VB chassis.
What material is the charge pipe made from?
The pipe is constructed from aluminum with a mandrel-bent design and a black powder-coated finish.
How much does this charge pipe reduce airflow restriction compared to the stock pipe?
According to Mishimoto, this charge pipe kit provides a 21 percent reduction in airflow restriction compared to the factory plastic pipe.
What is included with the Mishimoto WRX charge pipe kit?
The kit includes one hot-side intercooler pipe, one silicone coupler, two stainless steel worm gear clamps, and an assembly guide notecard, backed by the Mishimoto Lifetime Warranty.
Is a quick disconnect included for the turbo connection?
Yes, the pipe features an integrated CNC-machined quick disconnect with an included O-ring for a leak-free connection at the turbo.
What are the pipe diameters on this charge pipe?
The hot side and cold side pipe inside diameters are both 2.5 inches, with an overall pipe diameter of 2.75 inches.
