Description

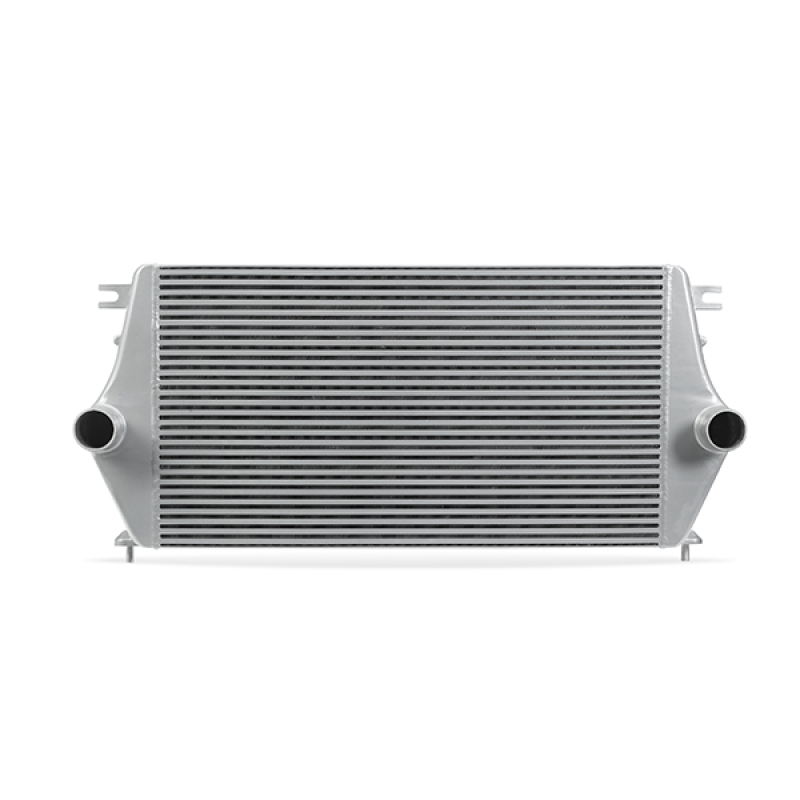

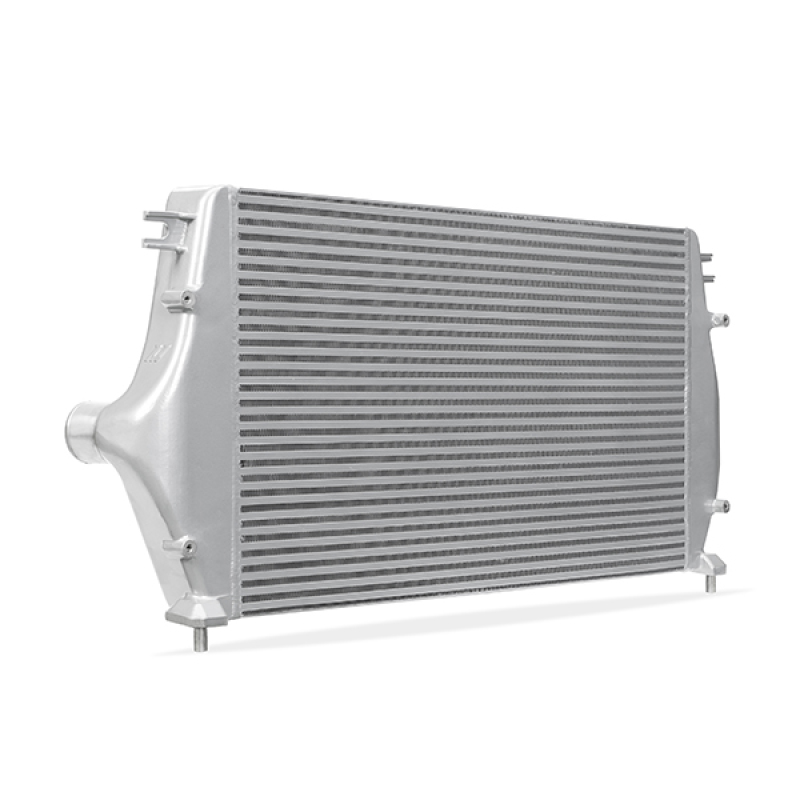

The Mishimoto MMINT-XD-16SL is a direct-fit performance intercooler engineered specifically for the 2016-2019 Nissan Titan XD 5.0 Cummins, built with a dense bar-and-plate core and cast aluminum end tanks to handle increased boost demands. This forced induction upgrade delivers a 42-percent increase in core volume and a 45-percent increase in external fin surface area over the factory intercooler, giving your Titan XD the cooling capacity to support sustained boost pressure without the excess heat soak that plagues stock setups.
As the heart of any forced induction system, the intercooler determines how efficiently compressed air is cooled before it reaches the cylinders. Mishimoto designed this performance induction intercooler with larger-than-factory outlets to improve flow, pairing the core with silicone boots that feature Mishimoto’s DuraCore technology. This synthetic inner-layer material resists heat, pressure, fuel, and oil far better than standard silicone, helping prevent the leaks and blow-outs that can develop in a hard-working induction system. Secured by Mishimoto’s signature Constant-Tension T-Bolt Clamps, every connection point is built to hold steady under real-world boost, reducing stress on the turbo and helping extend its life whether your Titan XD is running stock or has been modified for more output.
Vehicle Applications
This intercooler is a specific fit for the 2016-2019 Nissan Titan XD, covering the S, SV, SL, PRO-4X, and Platinum Reserve trims across all model years from 2016 through 2019. It is designed for trucks equipped with the 5.0 Cummins engine (engine code IS-V) and is compatible with the Mishimoto Performance Aluminum Radiator for owners upgrading additional cooling components at the same time.
Features
- Cast aluminum end tanks paired with a dense bar-and-plate core for durability and airflow
- 42-percent increase in core volume over the stock intercooler
- 45-percent increase in external fin surface area over stock

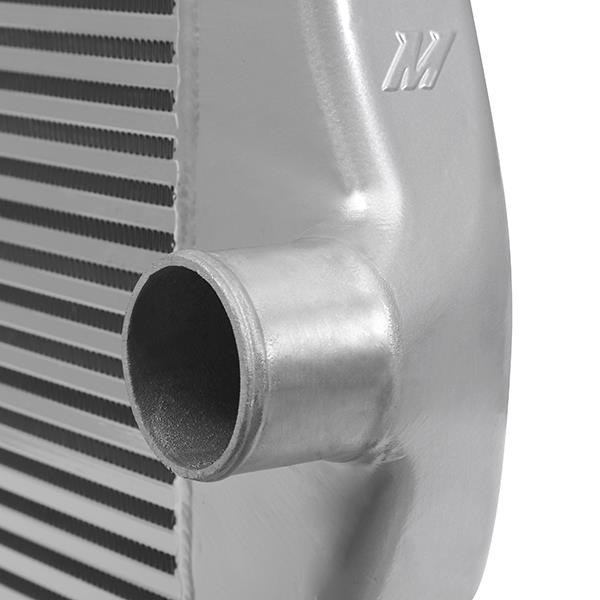

- Larger-than-factory outlets for increased flow

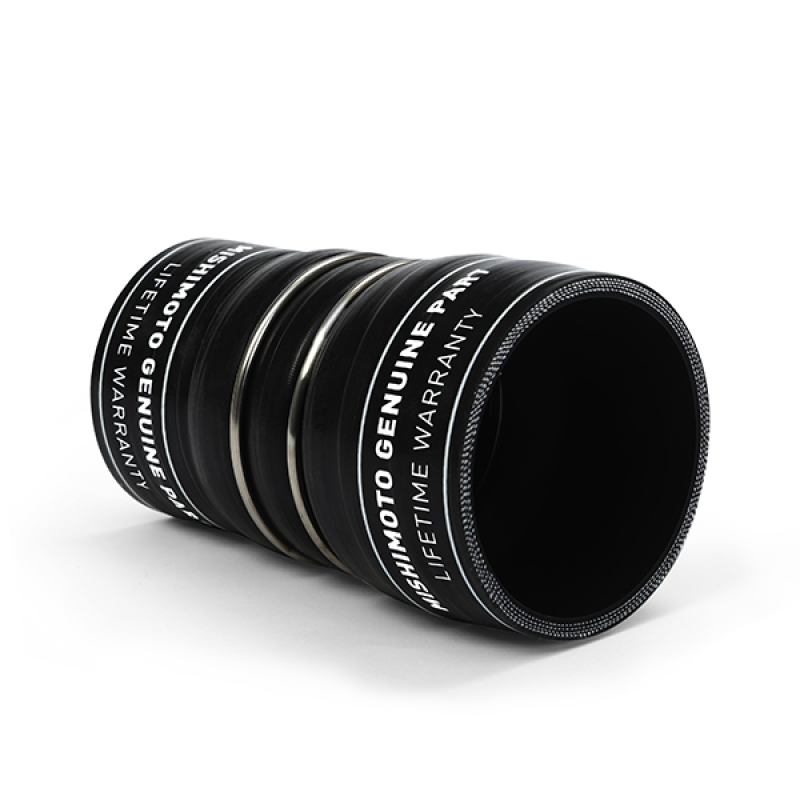

- Includes two silicone boots with Mishimoto DuraCore technology for resistance to heat, pressure, fuel, and oil
- Includes four Constant-Tension T-Bolt Clamps for consistent, reliable holding power
- Two aluminum spacers included for installation with the stock radiator
- Reduces turbo stress and helps extend turbo life
- Fits with the Mishimoto Performance Aluminum Radiator

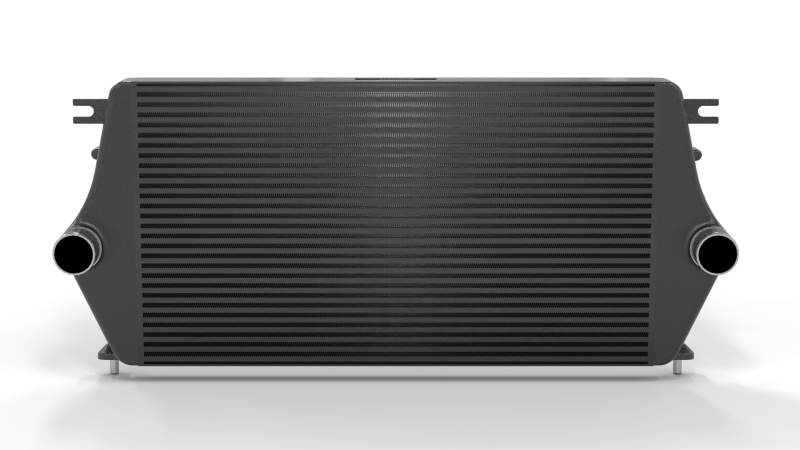

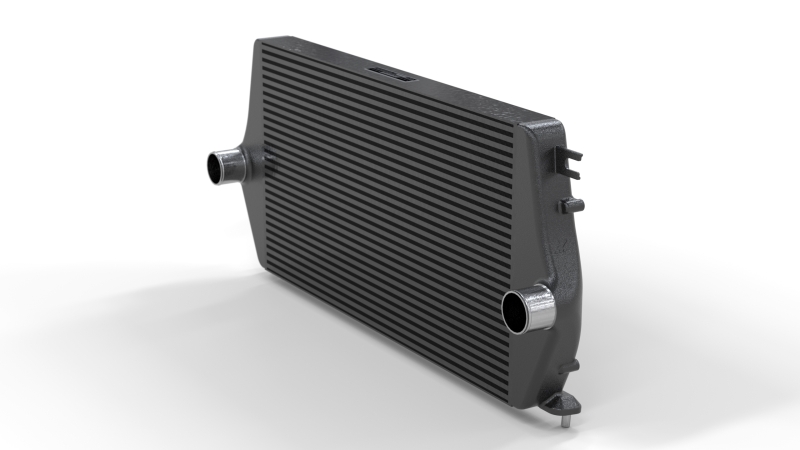

- Available in Sleek Silver or Stealth Black
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-XD-16SL
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Silver
- Overall Length: 42 in
- Overall Height: 19 in
- Core Height: 19 in
- Core Length: 35 in
- Grade Type: Performance
- Fitment: Vehicle-Specific
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Engine Codes: IS-V
- Applications: 2016-2019 Nissan Titan XD 5.0 Cummins

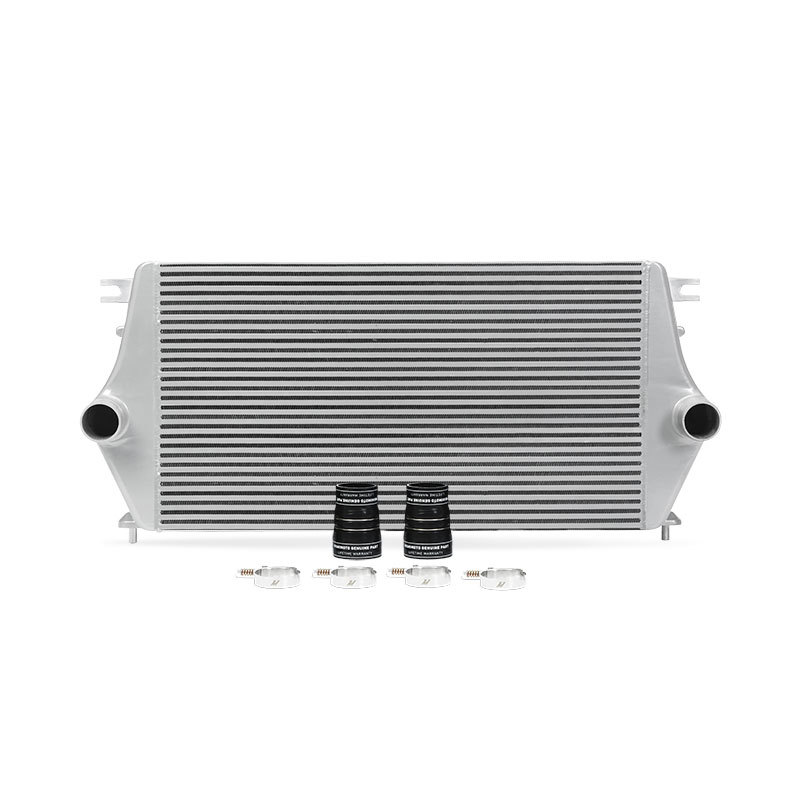

- Includes: (1) Mishimoto Intercooler, (2) Aluminum Spacers, (2) Silicone Boots with DuraCore Technology, (4) Constant-Tension T-Bolt Clamps, Mishimoto Lifetime Warranty
- Installation Torque: 27 in-lbs (3NM) recommended for T-bolt clamps; operating range 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
What vehicles fit the Mishimoto MMINT-XD-16SL intercooler?
It fits 2016-2019 Nissan Titan XD S, SV, SL, PRO-4X, and Platinum Reserve trims equipped with the 5.0 Cummins engine.
What is DuraCore technology?
DuraCore is the synthetic material that forms the innermost layer of Mishimoto’s silicone boots, offering superior resistance to heat, pressure, fuel, and oil compared to normal silicone, which helps prevent leaks and blow-outs.
What’s included with this intercooler?
The kit includes one Mishimoto intercooler, two aluminum spacers, two silicone boots with DuraCore technology, four Constant-Tension T-Bolt Clamps, and the Mishimoto Lifetime Warranty.
What color options are available?
This intercooler is offered in Sleek Silver or Stealth Black.
What torque should be used on the T-bolt clamps?
Mishimoto recommends 27 in-lbs (3NM), with an operating range of 18-35 in-lbs (2-4NM); do not exceed a maximum of 35 in-lbs (4NM).
Can this intercooler be installed with a stock radiator?
Yes, two aluminum spacers are included specifically for installing the intercooler alongside the stock radiator.
