Description

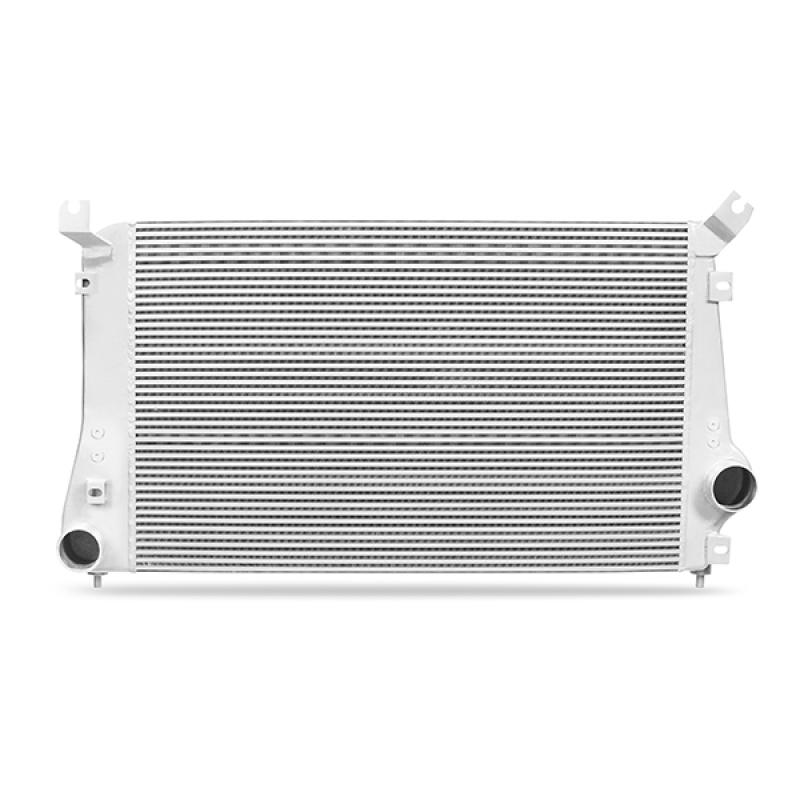

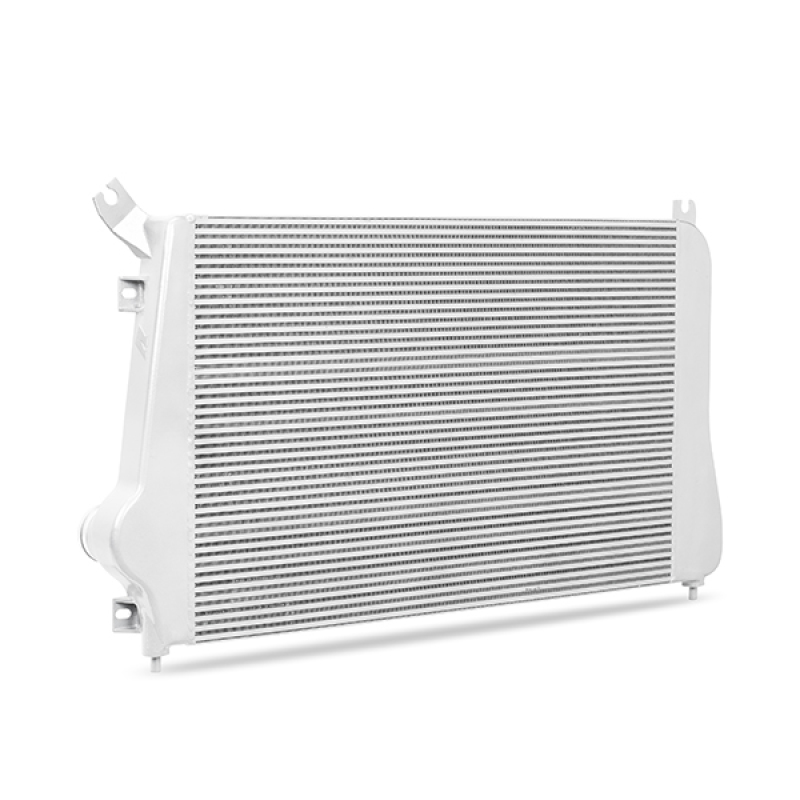

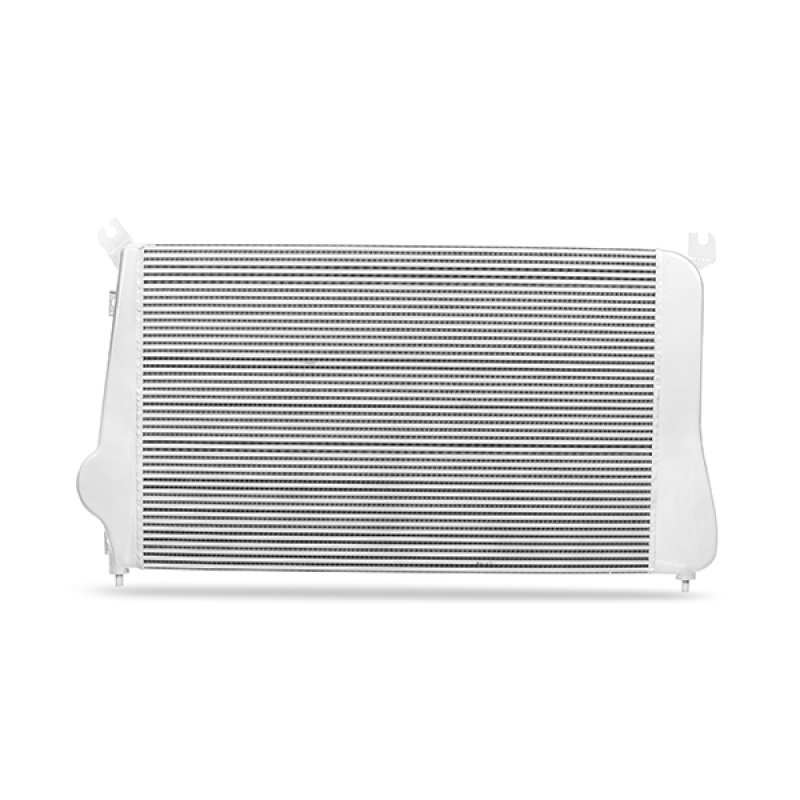

The Mishimoto MMINT-DMAX-11SL is a Sleek Silver, direct-fit forced induction intercooler engineered specifically for the 2011-2016 Chevrolet and GMC 6.6L Duramax LML. Built around a bar-and-plate core with cast aluminum end tanks, it replaces the factory unit with a dramatically larger core designed to move more air and shed more heat under load. This isn’t a universal induction system bolt-on afterthought — it’s a Duramax-specific piece from Mishimoto’s forced induction lineup, built to protect the engine investment underneath the hood.
High intake and exhaust gas temperatures can rob a diesel of performance and, over time, put real stress on internal components. As a performance induction upgrade, this intercooler delivers a 101-percent increase in core volume and a core that’s 73-percent thicker than the factory piece, giving the induction engine more surface area to cool compressed air before it reaches the cylinders. Inside the hot-side end tank, an air diverter reduces turbulence and spreads airflow evenly across the core, which in turn helps reduce turbo stress and extend turbo life. Whether the truck is running stock power or has been built up, this forced induction core is designed to support substantial boost pressure while keeping intake air temperatures and EGTs in check.
Vehicle Applications
This Mishimoto intercooler is a specific fit for 2011-2016 Chevrolet Silverado 2500 HD and 3500 HD trucks equipped with the 6.6L Duramax LML, covering WT, LT, and LTZ trims across the full 2011-2016 range, plus the High Country trim added for 2015-2016. It also fits the GMC Sierra 2500 HD and 3500 HD with the 6.6L Duramax LML, including Denali, SLE, and SLT trims from 2011-2016, WT trim from 2011-2014, and the Base trim introduced for 2015-2016.
Features
- Direct fit for 2011-2016 Chevrolet/GMC 6.6L Duramax LML trucks
- 101-percent increase in core volume over the factory intercooler
- Bar-and-plate core is 73-percent thicker than the factory core
- All-aluminum cast end tanks for durability
- Air diverter in the hot-side end tank reduces turbulence and evenly distributes airflow across the core
- Reduces turbo stress and helps extend turbo life
- Improves airflow and lowers intake air temperatures
- Available in Sleek Silver and Stealth Black finishes
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Overall Length: 45.7 in
- Overall Width: 5.3 in
- Overall Height: 26.2 in
- Core Length: 36.14 in
- Core Height: 23.01 in
- Core Thickness: 2.72 in
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Silver
- Inlet Tank Material: Aluminum
- Grade Type: Performance
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Fit Type: Specific
- Includes: (1) Mishimoto Intercooler, (4) M6 x 1.0 x 20 Bolts & Washers, (2) M8 x 1.25 x 35 Bolts & Washers, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-DMAX-11SL fit?
It is a specific fit for 2011-2016 Chevrolet Silverado 2500 HD and 3500 HD (WT, LT, LTZ, and High Country trims from 2015-2016) and 2011-2016 GMC Sierra 2500 HD and 3500 HD (Denali, SLE, SLT trims 2011-2016, WT trim 2011-2014, and Base trim 2015-2016) equipped with the 6.6L Duramax LML.
What color is this intercooler?
This version is Sleek Silver. Mishimoto also offers this intercooler in a Stealth Black finish.
What is the core made of and what type is it?
It uses a bar-and-plate core made of aluminum, paired with all-aluminum cast end tanks.
How much larger is this core compared to the factory intercooler?
It features a 101-percent increase in core volume and is 73-percent thicker than the factory Duramax LML intercooler core.
What is included with the Mishimoto MMINT-DMAX-11SL?
It includes (1) Mishimoto Intercooler, (4) M6 x 1.0 x 20 bolts and washers, (2) M8 x 1.25 x 35 bolts and washers, and the Mishimoto Lifetime Warranty.
Does the air diverter design help protect the turbo?
Yes, the air diverter in the hot-side end tank reduces turbulence and evenly distributes airflow across the core, which helps reduce turbo stress and extend turbo life.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
