Description
The Mishimoto MMINT-DMAX-11KBK is a purpose-built forced induction intercooler kit engineered specifically for the 2011-2016 Chevrolet and GMC 6.6L Duramax LML. Tired of high EGTs and a factory intercooler system that can’t keep pace, Mishimoto answered with a bar-and-plate core that delivers a 101-percent increase in core volume and a core that is 73-percent thicker than the factory unit, backed by a Mishimoto Lifetime Warranty.
This forced induction upgrade replaces the restrictive factory induction system with mandrel-bent, polished aluminum piping — 3.5-inch on the cold side and 3.0-inch on the hot side — that eliminates tight factory bends and adds 42-percent more internal volume than the stock intercooler piping. An air diverter built into the hot-side end tank reduces turbulence and evenly distributes airflow across the core, so the induction engine feeding your Duramax runs cooler and more consistently at any power level. Because the kit is a direct, specific-fit performance replacement, it installs without requiring additional tuning, while lower air-charge temperatures and improved airflow help reduce turbo stress and extend turbo life.
Vehicle Applications
This Mishimoto intercooler kit is a direct fit for 2011-2016 Chevrolet Silverado 2500 HD and 3500 HD, including WT, LT, and LTZ trims across all those years, plus High Country trims for 2015-2016. It is equally suited to 2011-2016 GMC Sierra 2500 HD and 3500 HD SLE, SLT, and Denali trims, GMC Sierra WT trims for 2011-2014, and GMC Sierra Base trims for 2015-2016 — all equipped with the 6.6L Duramax LML engine.
Features
- Direct fit for 2011-2016 Chevrolet/GMC 6.6L Duramax LML

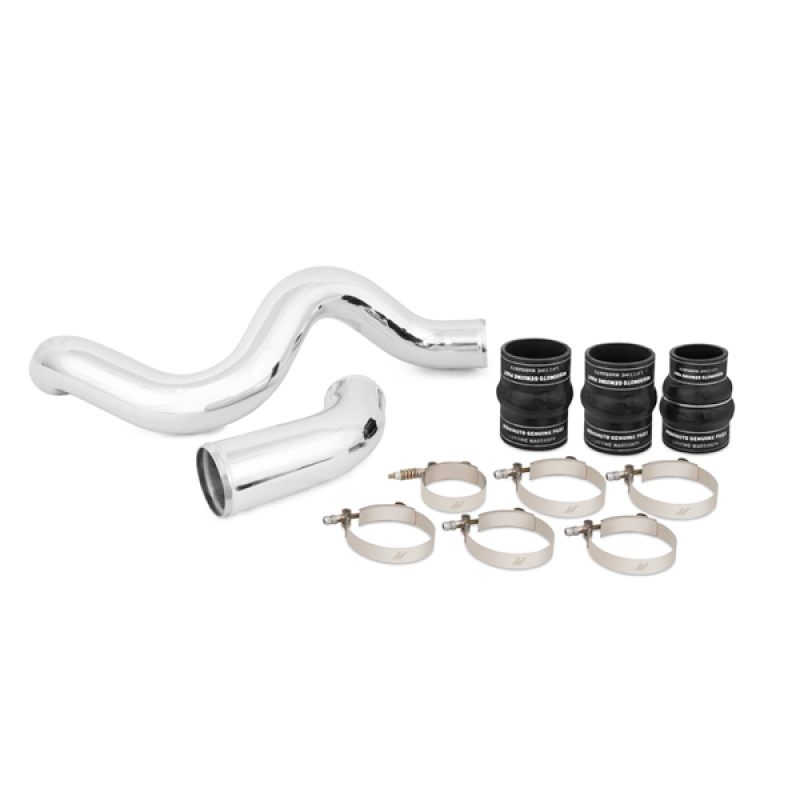

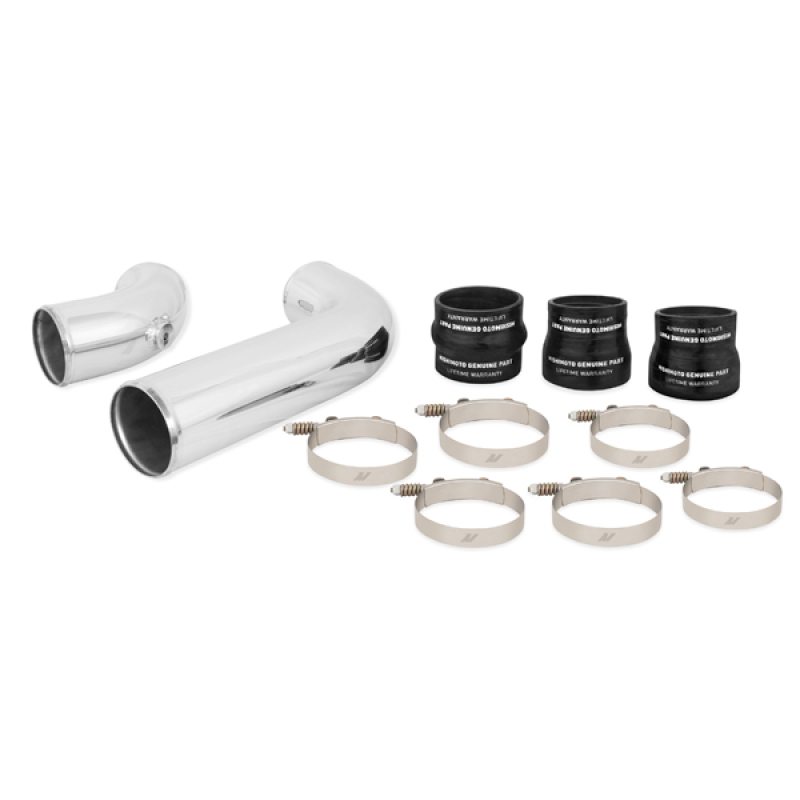

- Includes hot-side and cold-side intercooler pipes and boots

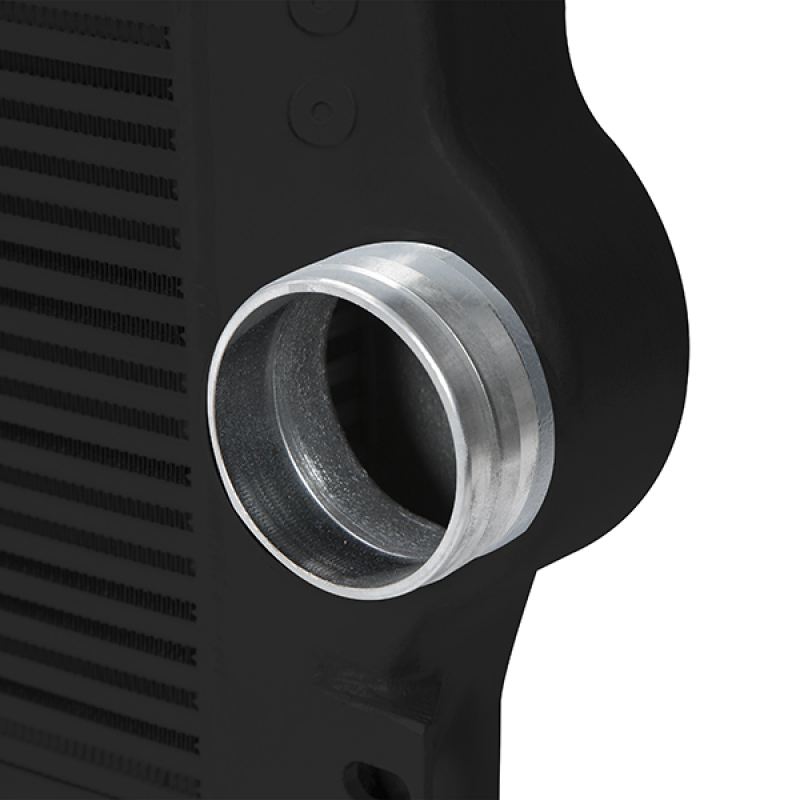

- All-aluminum cast end tanks
- 3.5-in cold-side and 3.0-in hot-side mandrel-bent aluminum polished pipes eliminate restrictive bends
- 101-percent increase in core volume
- Bar-and-plate core is 73-percent thicker than factory
- Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
- 42-percent more internal volume than factory intercooler piping
- Does not require additional tuning
- Reduces turbo stress and extends life
- Available in Sleek Silver and Stealth Black
- Includes Mishimoto Silicone Boots with DuraCore technology and Mishimoto Constant-Tension T-Bolt Clamps
- Provides improved airflow and lowers intake air temperatures
- Backed by the Mishimoto Lifetime Warranty

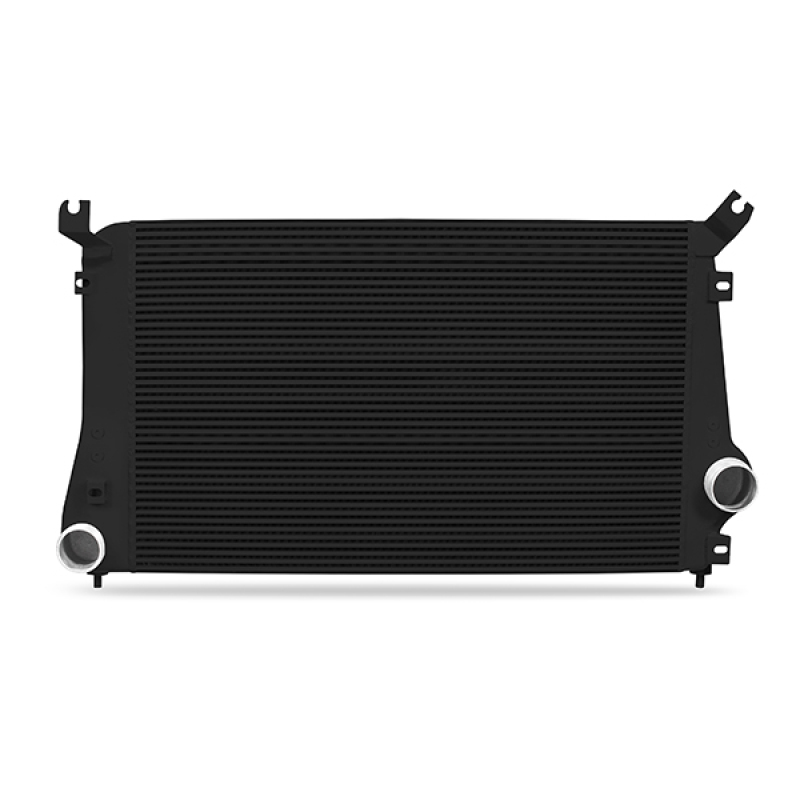

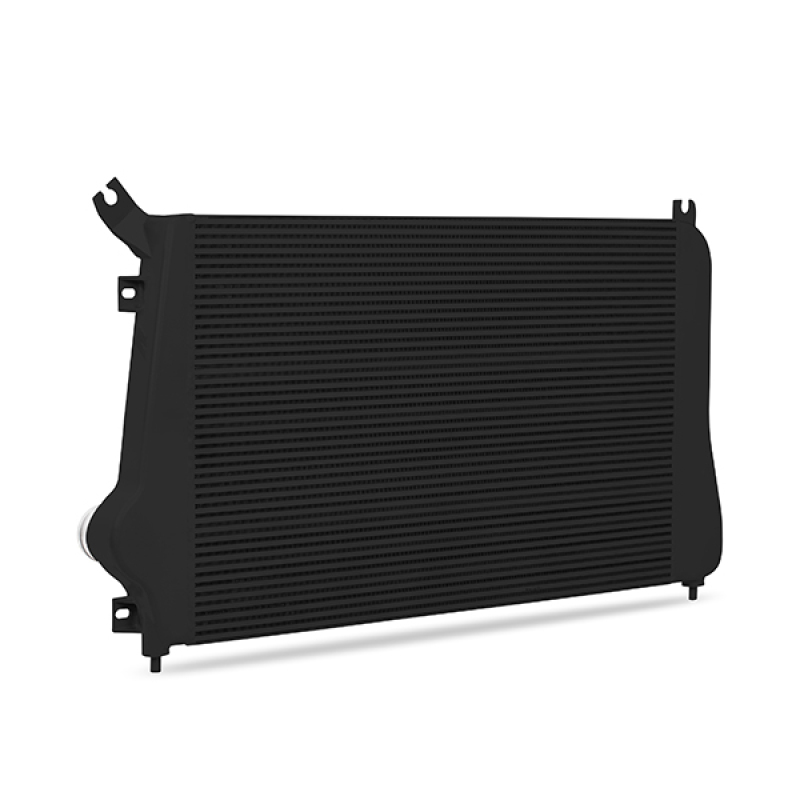

Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 23.01 in
- Core Length: 36.14 in
- Core Thickness: 2.72 in
- Core Color: Black
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Overall Width: 5.3 in
- Overall Height: 26.2 in
- Overall Length: 45.7 in
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-DMAX-11KBK forced induction intercooler kit fit?
It is a direct fit for 2011-2016 Chevrolet Silverado 2500 HD and 3500 HD (WT, LT, LTZ, and 2015-2016 High Country) and 2011-2016 GMC Sierra 2500 HD and 3500 HD (SLE, SLT, Denali, 2011-2014 WT, and 2015-2016 Base), all equipped with the 6.6L Duramax LML engine.
Does this intercooler kit require additional tuning after installation?
No, this kit does not require additional tuning.
What color options are available for this Mishimoto intercooler?
The intercooler is available in Sleek Silver and Stealth Black.
What is included with the Mishimoto Duramax intercooler kit?

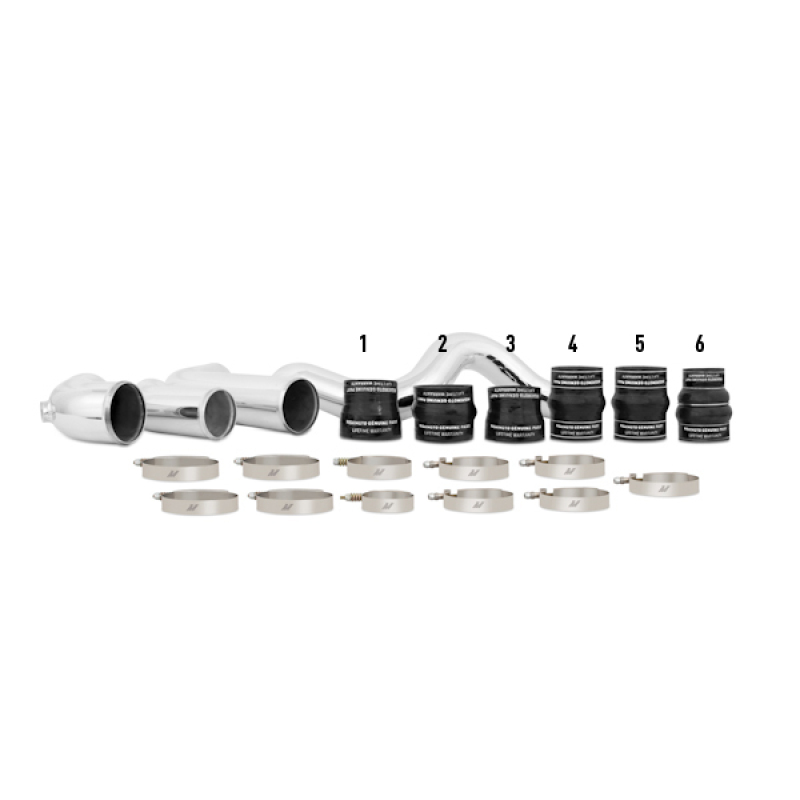

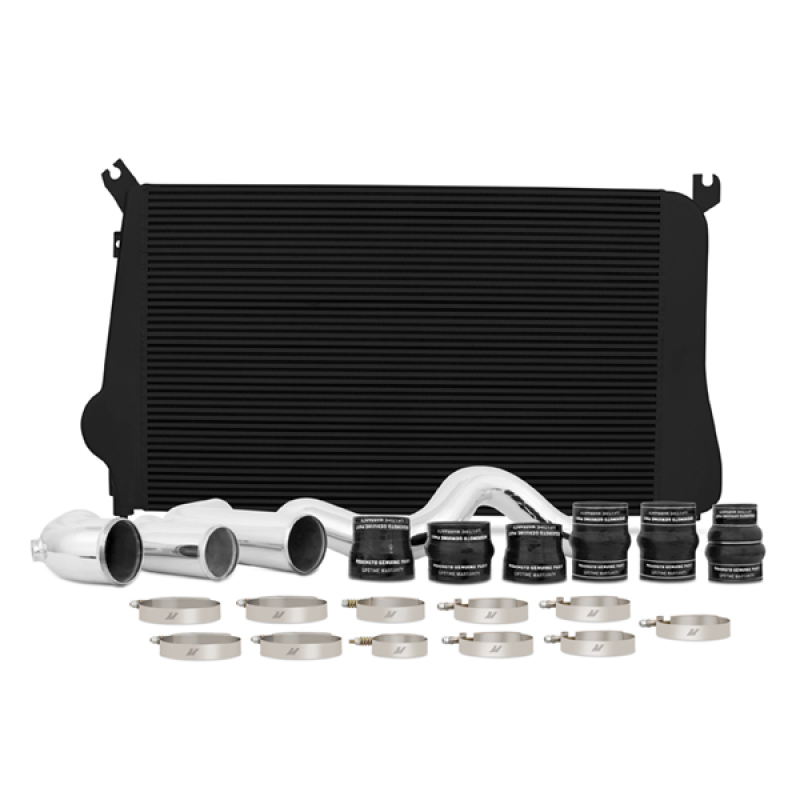

The kit includes (1) Mishimoto Intercooler, (1) Aluminum Intercooler Pipe with AIT Sensor Bung, (3) additional Aluminum Intercooler Pipes, (6) Silicone Boots with DuraCore Technology, (12) Constant-Tension T-Bolt Clamps, (2) Aluminum Mishimoto M Logo Badges, (4) M6 x 1.0 x 20 Bolts & Washers, (2) M8 x 1.25 x 35 Bolts & Washers, and the Mishimoto Lifetime Warranty.
How much bigger is the core compared to the factory intercooler?
The bar-and-plate core provides a 101-percent increase in core volume and is 73-percent thicker than the factory intercooler.
What is the pipe diameter on this intercooler piping kit?
The kit uses 3.5-inch cold-side and 3.0-inch hot-side mandrel-bent aluminum polished pipes.
