Description

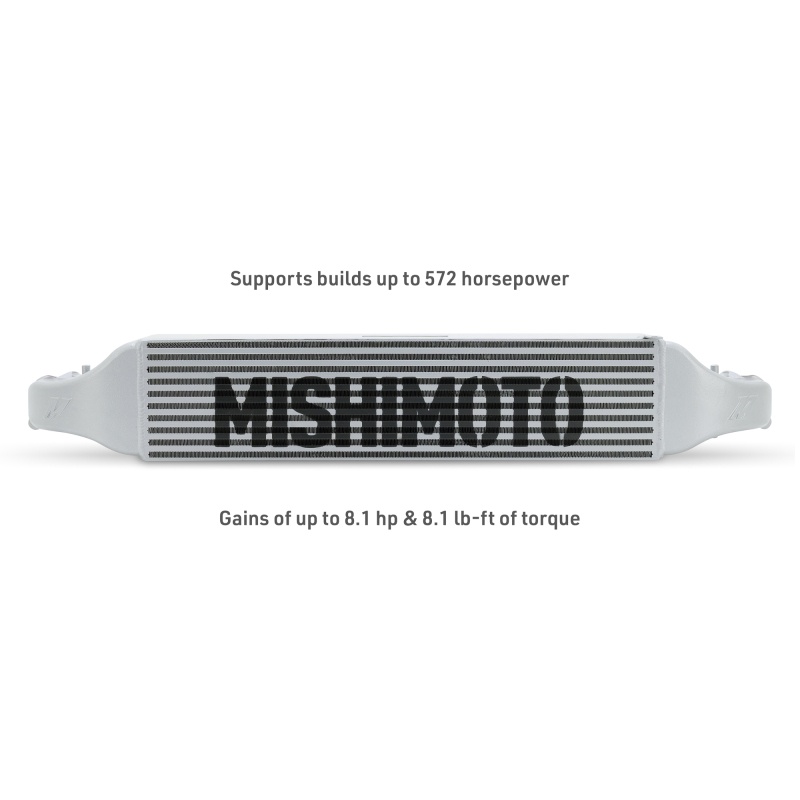

The Mishimoto Performance Intercooler Kit, part number MMINT-CIV-22KSLWRD, is a Forced Induction upgrade engineered specifically for the 1.5-liter turbocharged L15B7/L15CA engine found in the FE1-chassis platform. Built around a bar-and-plate core, cast aluminum end tanks, and high-flow aluminum piping, this complete kit is designed to deliver gains of up to 8.1 horsepower and 8.1 lb-ft of torque over the stock intercooler setup, all while dropping average outlet temperatures by 18.1°F compared to factory.
As a dedicated performance induction system, this kit replaces the restrictive factory intercooler and piping with hardware that increases hot-side flow area by 103% and cold-side flow area by 75%, alongside a 146% increase in core volume versus the OEM unit. The result is a forced induction system built to reduce heat soak and maintain consistent power delivery, whether you’re daily driving or lapping a track. Removing the OEM resonator also sharpens induction sound under boost, while a pre-drilled 1/8-inch NPT sensor port on the cold-side pipe lets you add auxiliary sensors or gauges as your build evolves. The kit is rated to support builds up to 572 horsepower, giving Civic, Integra, and CR-V owners room to grow their forced induction turbo setups over time.
Vehicle Applications
This intercooler kit is a specific-fit part engineered for the 2022–2024 Honda Civic EX, EX-L, Sport Touring, and Touring, the 2022–2026 Honda Civic Si, and the 2023–2026 Acura Integra A-Spec and Base. It also fits the 2023–2026 Honda CR-V EX, EX-L, and LX. All of these applications share the L15B7/L15CA 1.5-liter turbocharged engine on the FE1 chassis platform.
Features
- Gains of up to 8.1 horsepower and 8.1 lb-ft of torque over stock
- Average outlet temperatures run 18.1°F cooler than stock for consistent performance and reduced heat soak
- 146% increase in core volume compared to stock for greater cooling capacity

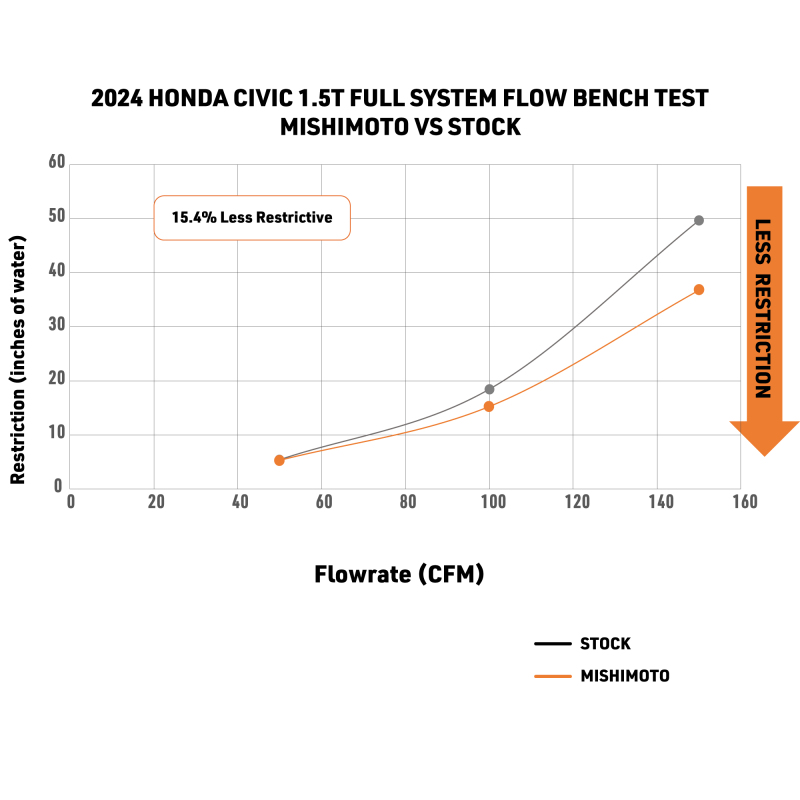

- High-flow aluminum piping increases flow by 103% on the hot side and 75% on the cold side
- Removes the OEM resonator for a sharper, more aggressive induction sound under boost
- Cast aluminum end tanks and welded aluminum construction paired with wire-reinforced, 5-layer DuraCoreâ„¢ silicone couplers

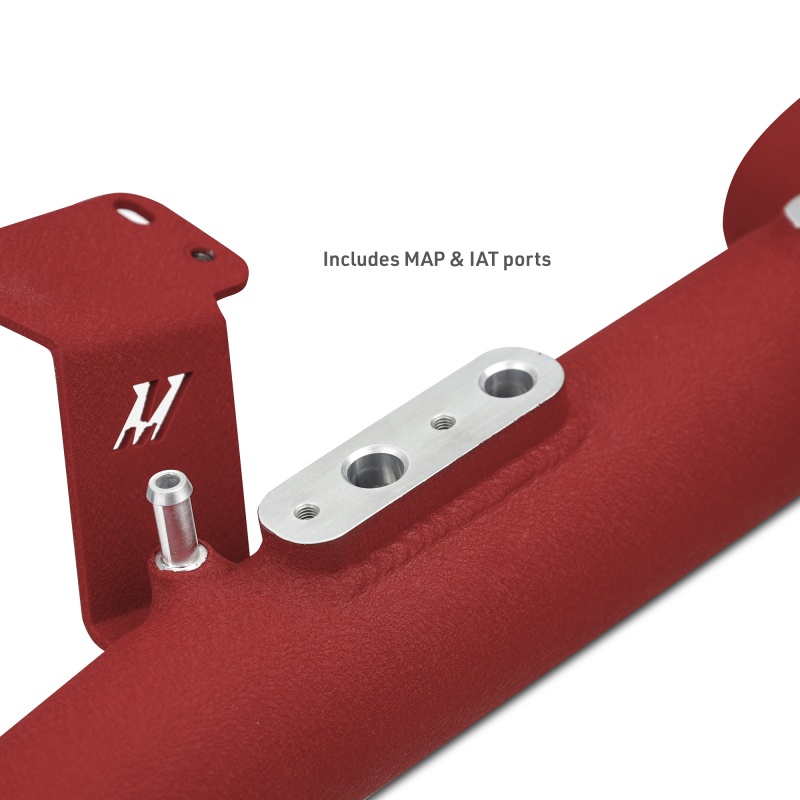

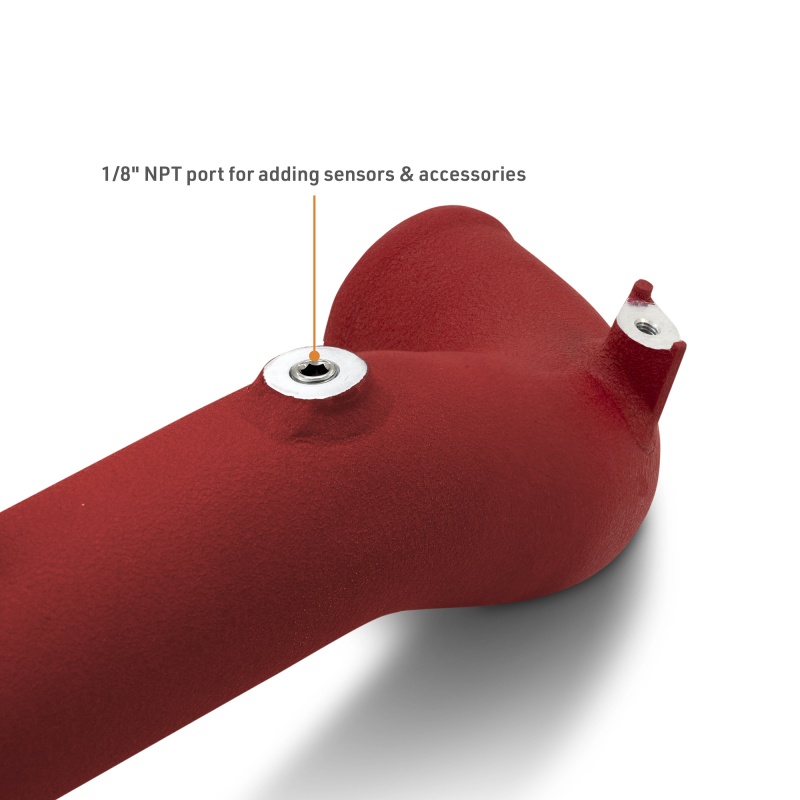

- Pre-drilled 1/8-inch NPT sensor port on the cold-side pipe for auxiliary sensors or gauges
- Plug-and-play installation with no cutting required and full compatibility with stock ducting
- Rated to support builds up to 572 horsepower

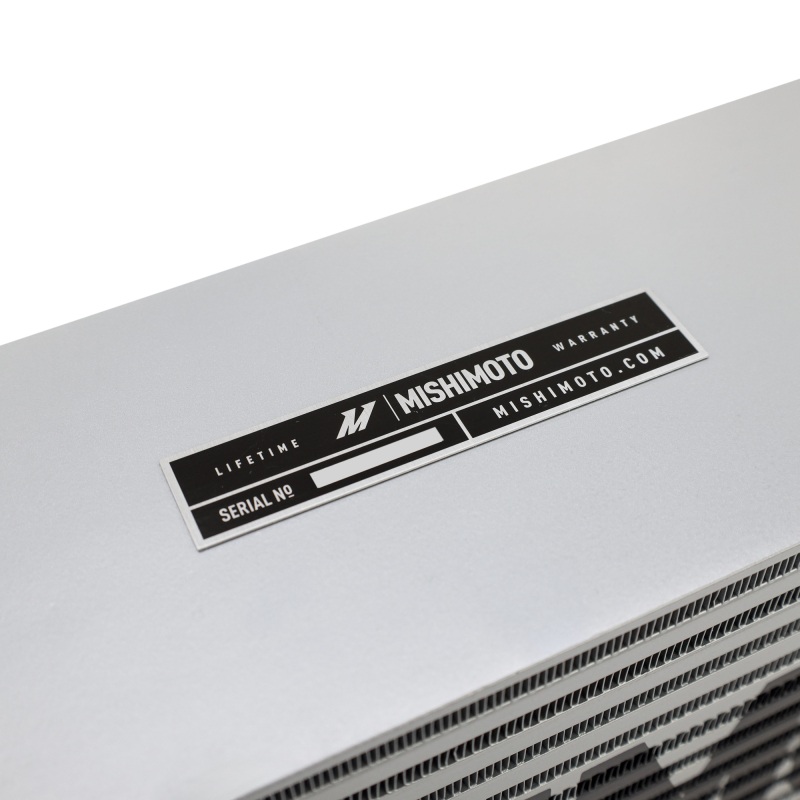

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-CIV-22KSLWRD
- Product Type: Forced Induction
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Silver
- Core Length: 26 in
- Core Thickness: 4.5 in
- Inlet Diameter: 2.1 in
- Outlet Diameter: 2.1 in
- Hot Side Pipe Inside Diameter: 2.1 in
- Cold Side Pipe Inside Diameter: 2.1 in
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Red
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 100 PSI
- Maximum Horsepower: 570 HP
- Overall Width: 5.9 in
- Overall Height: 6.1 in
- Overall Length: 39.8 in
- Engine Codes: L15B7/L15CA
- Chassis Code: FE1
- Fit Type: Specific
- Grade Type: Performance

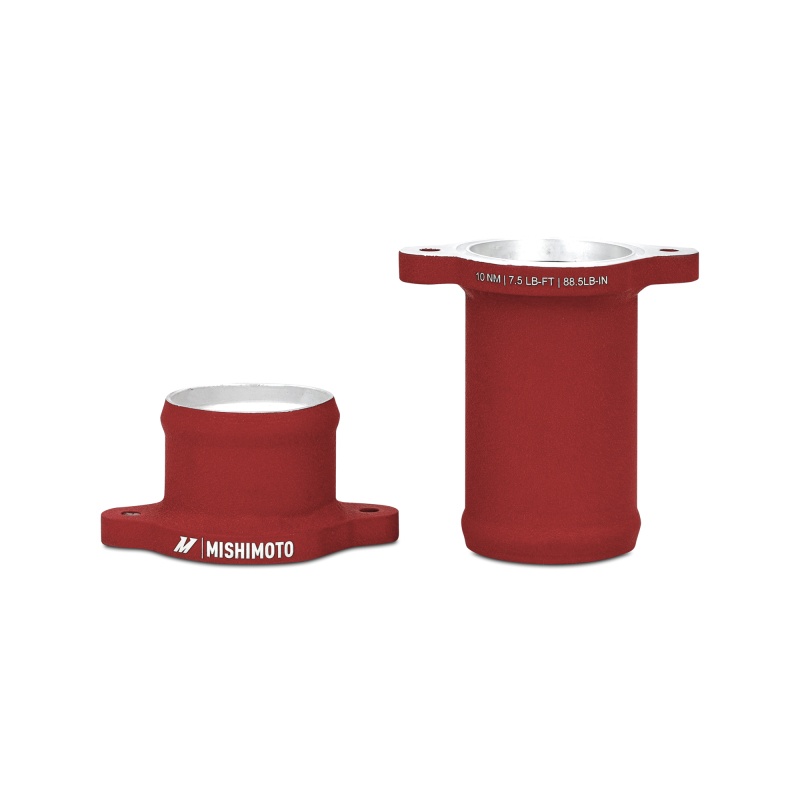

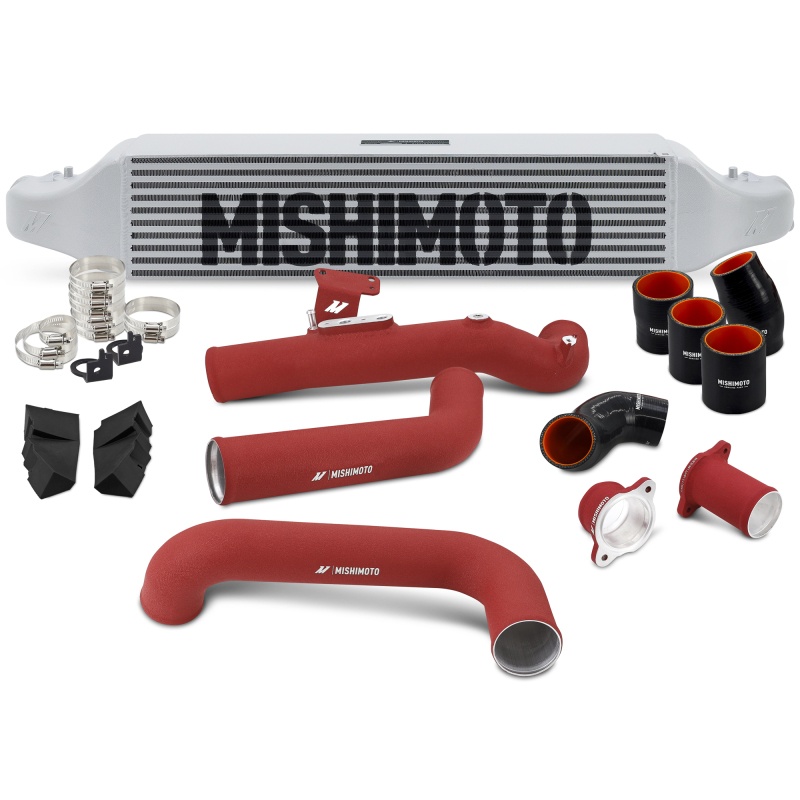

- Includes: (1) Mishimoto Performance Intercooler, (2) Intercooler Adapters, (2) Mounting Brackets, Intercooler Ducting, Mishimoto Intercooler Piping, (5) Silicone Couplers, Mounting Hardware, Trim Removal Tool, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles fit the Mishimoto MMINT-CIV-22KSLWRD intercooler kit?
It fits the 2022–2024 Honda Civic EX, EX-L, Sport Touring, and Touring, the 2022–2026 Honda Civic Si, the 2023–2026 Acura Integra A-Spec and Base, and the 2023–2026 Honda CR-V EX, EX-L, and LX, all equipped with the L15B7/L15CA 1.5-liter turbocharged engine.
How much power can this intercooler kit add?
Mishimoto states gains of up to 8.1 horsepower and 8.1 lb-ft of torque over stock, along with average outlet temperatures 18.1°F cooler than stock.
What horsepower level does this kit support?
This kit is rated to support builds up to 572 horsepower, with a listed Maximum Horsepower specification of 570 HP and a maximum boost pressure of 100 PSI.
Does installation require cutting of factory parts?
No, this is a plug-and-play kit that includes all necessary couplers and hardware, and it is fully compatible with the stock ducting.
What is included in the kit?
The kit includes (1) Mishimoto Performance Intercooler, (2) Intercooler Adapters, (2) Mounting Brackets, Intercooler Ducting, Mishimoto Intercooler Piping, (5) Silicone Couplers, Mounting Hardware, and a Trim Removal Tool.
What warranty comes with this kit?
This kit is backed by the Mishimoto Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
