Description
The Mishimoto MMICP-EVO-01URD is a polished aluminum forced induction intercooler pipe kit purpose-built for the Mitsubishi Lancer Evolution 7/8/9, finished with striking red silicone couplers. Every pipe in this kit is mandrel bent and fitted with bead-rolled ends, a construction detail engineered specifically to stop leaks and coupler disconnection under boost. This is a dedicated charge-piping upgrade, not a generic clamp-on hose, and it carries CARB EO Number D-759 for 2003-2006 model years.
As part of Mishimoto’s forced induction lineup, this intercooler pipe kit replaces the factory rubber charge piping with a more capable induction system built for high-horsepower applications. The polished aluminum pipes resist the heat cycling and pressure spikes that stress a stock induction setup, while the included silicone couplers offer greater heat and pressure tolerance than the OEM rubber they replace. Whether the goal is force induction reliability for a daily-driven Evolution or consistent airflow for a stripped and caged time attack build, tightening up the charge air path with performance induction components like these helps preserve turbo spool and overall airflow efficiency. Because the pipes are also sold separately, owners can tailor the induction system to their build without buying the full kit.
Vehicle Applications
This Mishimoto forced induction pipe kit is designed to fit the Mitsubishi Lancer Evolution from 2003 through 2006, including the Evolution MR and Evolution RS for the 2005-2006 model years, as well as the 2006 Evolution SE. Fitment and CARB compliance for this kit are specific to these 2003-2006 model year Evolutions.
Features

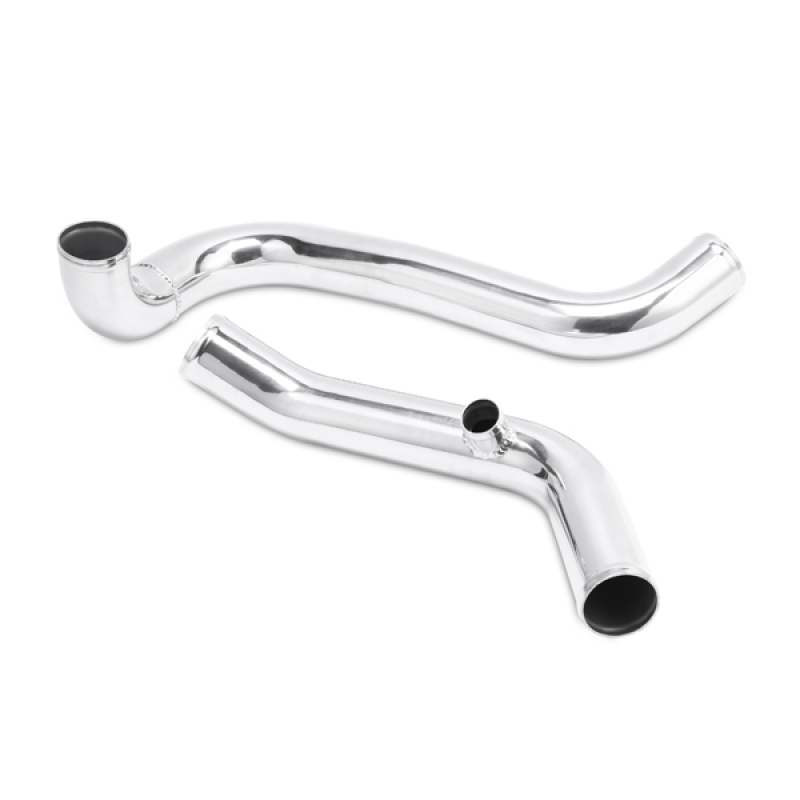

- Mandrel bent, polished aluminum intercooler pipes for a smooth, high-flow induction system
- Bead-rolled pipe ends help prevent leaks and coupler disconnection under boost

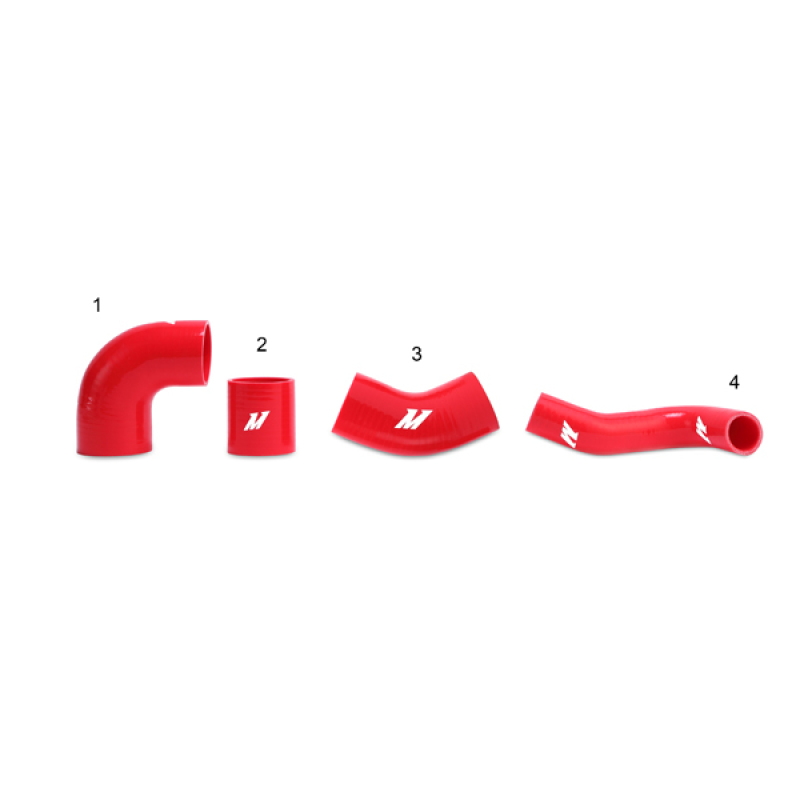

- Red silicone couplers offer increased heat and pressure tolerance versus stock rubber couplers
- T-bolt clamps included for a secure, leak-resistant seal at every connection
- CARB compliant under EO Number D-759 for 2003-2006 model years
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-EVO-01URD
- Product Type: Forced Induction
- Pipe Material: Aluminum
- Pipe Finish/Color: Polished
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Red
- Clamp Type: T-Bolt
- Clamps Included: Yes

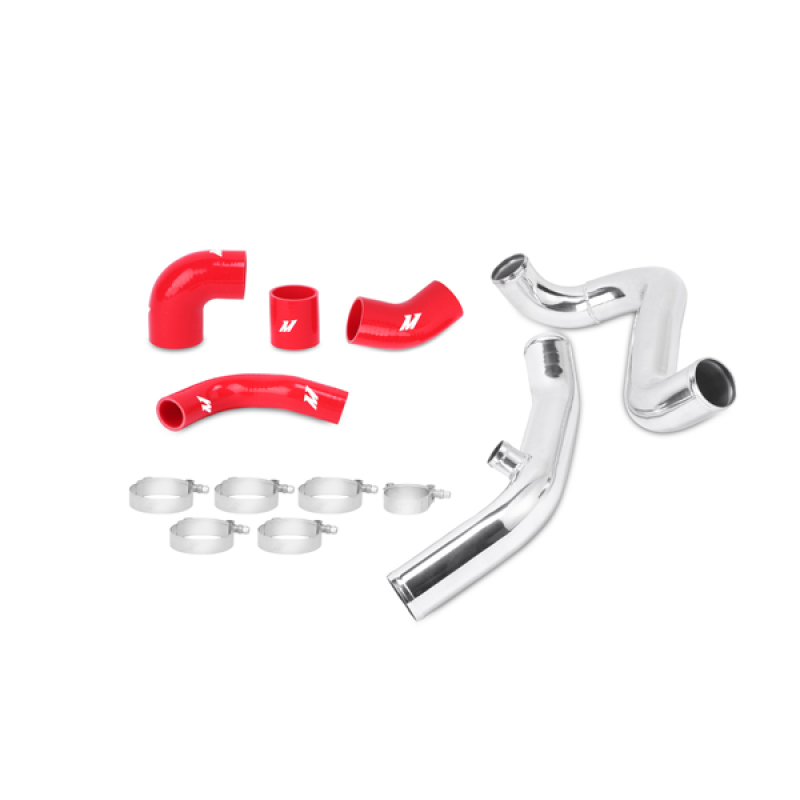

- Kit Includes: (2) Performance Aluminum Intercooler Pipes, (4) Silicone Couplers, (6) T-Bolt Clamps, (1) CARB Sticker, Mishimoto Lifetime Warranty
- CARB EO Number: D-759 (2003-2006 model years only)
- Recommended Clamp Torque: 27 in-lbs (3NM); operating range 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
Which vehicles does this Mishimoto intercooler pipe kit fit?
It is designed for the 2003-2006 Mitsubishi Lancer Evolution, including the 2005-2006 Evolution MR and Evolution RS, and the 2006 Evolution SE.
What material are the pipes made from?
The pipes are mandrel bent, polished aluminum with bead-rolled ends.
What color are the couplers on this kit?
This kit uses red silicone couplers, which offer greater heat and pressure tolerance than the stock rubber couplers.
What is included in the kit?
The kit includes two performance aluminum intercooler pipes, four silicone couplers, six T-bolt clamps, one CARB sticker, and the Mishimoto Lifetime Warranty.
Is this kit CARB compliant?
Yes, it is CARB compliant under EO Number D-759 for 2003-2006 model years only.
Can the pipes be purchased separately from the full kit?
Yes, the Mishimoto Evolution 7/8/9 intercooler pipes are available for purchase separately or as a complete kit.
