Description

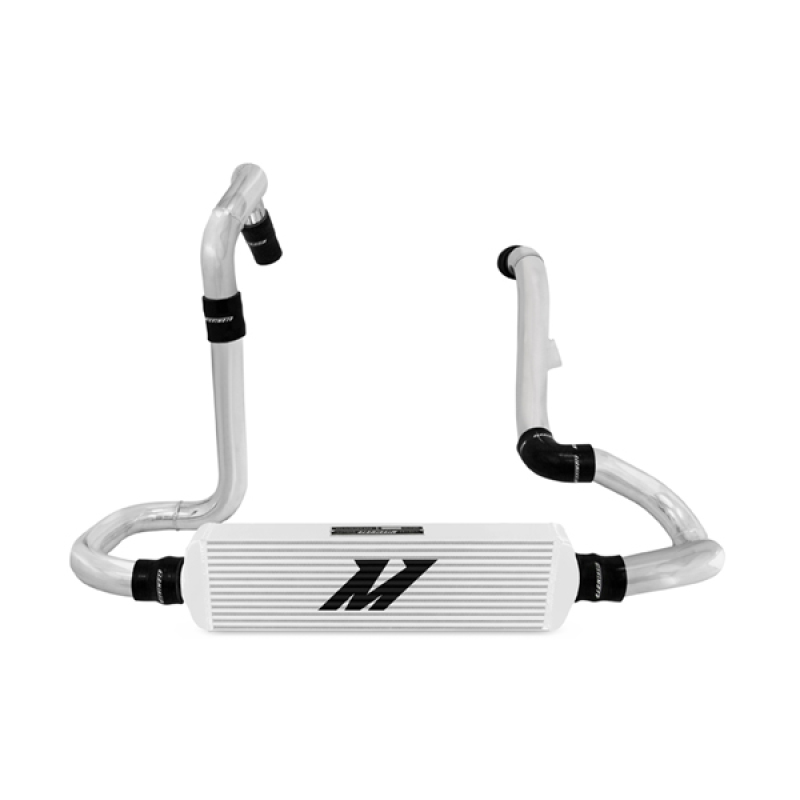

The Mishimoto Race Intercooler Kit, part number MMINT-GEN4-10RSL, is a direct-fit forced induction upgrade engineered specifically for the 2010-2012 Hyundai Genesis Coupe 2.0T. Tested on one of the most powerful 2.0T Genesis Coupes in the world, this kit was proven to significantly reduce intake temperatures and improve overall cooling efficiency. Built from durable 6061 aluminum with cast end tanks and a 3.75-inch thick core, it delivers a massive increase in core volume and flow while still supporting vehicles up to 500HP.
As a complete forced induction system, this kit swaps out restrictive factory piping for a full set of aluminum charge pipes, silicone couplers, and t-bolt clamps that work together to move more air through the engine’s induction system with less pressure loss. The bar-and-plate core and smooth cast end tanks are engineered for optimal cooling and airflow, giving a performance induction setup the capacity it needs to keep charge temperatures in check under sustained boost. Because it’s a specific, direct-fit unit, it bolts up alongside all OEM equipment and any other Mishimoto Genesis Coupe products already installed, and unlike many aftermarket coolers, it requires no crash bar modification to fit. Every kit is backed by the Mishimoto lifetime warranty.
Vehicle Applications
This intercooler kit is a specific fit for the 2010-2012 Hyundai Genesis Coupe 2.0T, and it covers the same 2010-2012 span for the 2.0T GT, 2.0T Premium, and 2.0T R-Spec trims, plus the 2010 Genesis Coupe 2.0T Track. Per Mishimoto’s tech specs, this kit is intended for manual transmission vehicles, and it does not fit with the factory air dam or the front factory splash shield.
Features
- Direct fit for 2010-2012 Hyundai Genesis Coupe 2.0T
- 3.75-in thick bar-and-plate core with strategic core composition for optimal cooling and minimal pressure loss
- Smooth cast end tanks allow the best possible airflow in and out of the intercooler
- Lightweight, mandrel-bent aluminum pipes eliminate restrictive bends in the stock piping
- No modifications to the front bumper or removal of the crash bar are necessary
- Includes all necessary couplers, brackets, and accessories, including hose clamps
- Powder coated silver aluminum pipes and black silicone couplers
- Compatible with all OEM equipment and other Mishimoto Genesis Coupe products
- Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum (6061)
- Core Construction: Bar-and-Plate
- End Tank Construction: Cast Aluminum
- Intercooler Type: Air-to-Air
- Core Height: 7.2 in
- Core Length: 22 in
- Core Thickness: 3.15 in
- Overall Width: 3.75 in
- Overall Height: 7.5 in
- Overall Length: 29.5 in
- Inlet Diameter: 2.5 in
- Outlet Diameter: 2.5 in
- Pipe Material: Aluminum, Powder Coated, Silver
- Coupler Material: Silicone, Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 40 PSI
- Weight: 18.7 lbs
- CARB EO Number: D-759
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-GEN4-10RSL intercooler kit fit?
This kit is a specific fit for the 2010-2012 Hyundai Genesis Coupe 2.0T, including the 2.0T GT, 2.0T Premium, and 2.0T R-Spec trims for 2010-2012, and the 2010 Genesis Coupe 2.0T Track. It is intended for manual transmission vehicles.
Does installing this intercooler kit require crash bar or bumper modifications?
No, this kit does not require any crash bar modifications or removal, and no modifications to the front bumper are necessary.
What horsepower and boost levels does this intercooler kit support?
The kit was tested to support vehicles up to 500HP and has a maximum boost pressure rating of 40 PSI.
What is included with the Mishimoto Race Intercooler Kit?

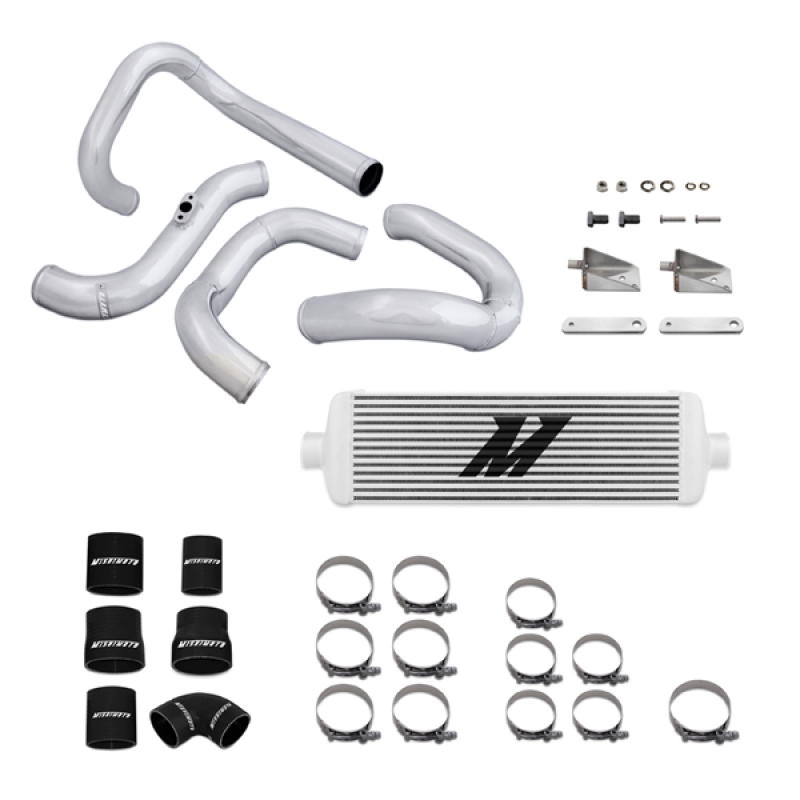

The kit includes one Mishimoto J Line Intercooler (Black or Silver), four aluminum pipes, silicone couplers, t-bolt clamps, and the Mishimoto Lifetime Warranty.
Will this intercooler kit work with the factory air dam or splash shield?
No, according to Mishimoto’s tech specs, this kit does not fit with the factory air dam or the front factory splash shield.
What warranty comes with this Mishimoto intercooler kit?
This kit includes the Mishimoto Lifetime Warranty.
