Description

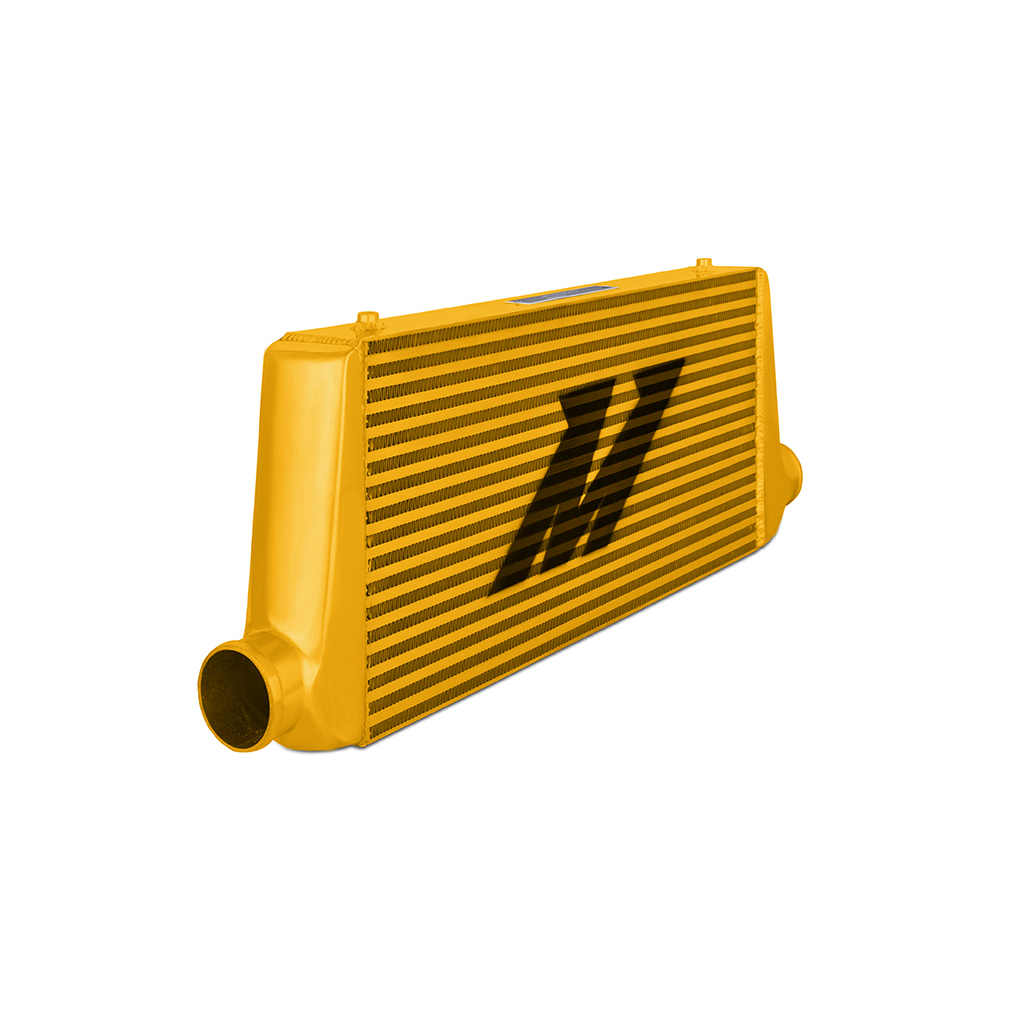

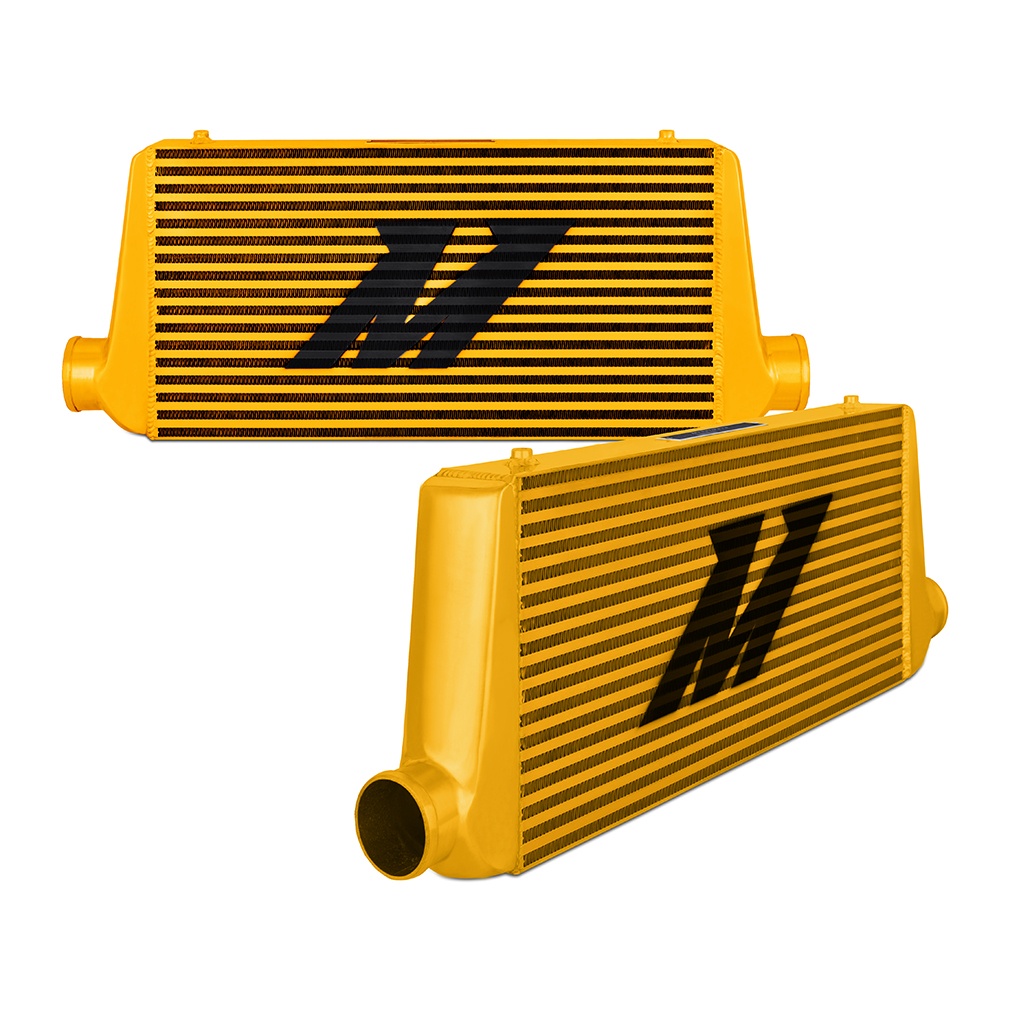

The Mishimoto Gold S-Line Intercooler, part number MMINT-USG, is a forced induction cooling core built with a Bar-and-Plate design and finished in a distinctive Gold core color. For a personalized touch, only one side of the intercooler carries the Mishimoto logo, so you can choose how it faces in your engine bay.
Built for drivers running a turbocharged or supercharged forced induction system, this intercooler is constructed from precision TIG-welded 6061 aircraft-quality aluminum for durability under boost. As a component of a forced induction system, its job is to pull heat out of compressed intake air before it reaches the engine, helping lower induction air temperatures so the induction engine can make the most of the boost it’s generating. Whether you’re upgrading a factory forced induction turbo setup or building out a dedicated performance induction system, the Gold S-Line core is engineered as a Performance-grade component with robust, one-piece cast aluminum end tanks designed to withstand high boost pressures.
Vehicle Applications
The Mishimoto Gold S-Line Intercooler MMINT-USG is designed for supercharged and turbocharged vehicles that rely on a forced induction turbo or force induction setup for added performance. It is a Specific-fit intercooler featuring four M8 x 1.25 threaded mounting points, giving installers flexibility when integrating it into a forced induction system.
Features
- Durable bar-and-plate core provides superior heat transfer while effectively reducing air intake temperatures (AITs)
- Robust, one-piece cast aluminum end tanks withstand high boost pressures
- Core and inlet design engineered to support optimal flow and volume for high-horsepower forced induction applications
- Four M8 x 1.25 threaded mounting points
- Constructed from durable 6061 aluminum
- Precision TIG-welded joints won’t crack under pressure
- Male inlet and outlet fittings for straightforward connection into your induction system
- Only one side features the Mishimoto logo
- Backed by the Mishimoto Lifetime Warranty
- Includes (1) Mishimoto Intercooler with Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-USG
- Type: Bar-and-Plate
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Gold
- Overall Length: 31 IN
- Overall Height: 12 IN
- Core Height: 12 IN
- Core Length: 23 IN
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Maximum Recommended Horsepower: 800
- Maximum Recommended Boost Pressure: 32 PSI
Frequently Asked Questions
What is the part number for the Mishimoto Gold S-Line Intercooler?
The part number is MMINT-USG.
What core design does this intercooler use?
It uses a Bar-and-Plate core design, which is also listed as its Core Type.
What is the maximum recommended horsepower and boost pressure for this intercooler?
It has a maximum recommended horsepower of 800 and a maximum recommended boost pressure of 32 PSI.
What material is the Mishimoto Gold S-Line Intercooler made from?
It is constructed from precision TIG-welded 6061 aircraft-quality aluminum, with an aluminum core and aluminum inlet tank material.
Does the intercooler have the Mishimoto logo on both sides?
No, only one side of the intercooler features the Mishimoto logo.
What is included with the Mishimoto Gold S-Line Intercooler?
It includes (1) Mishimoto Intercooler backed by the Mishimoto Lifetime Warranty.
