Description

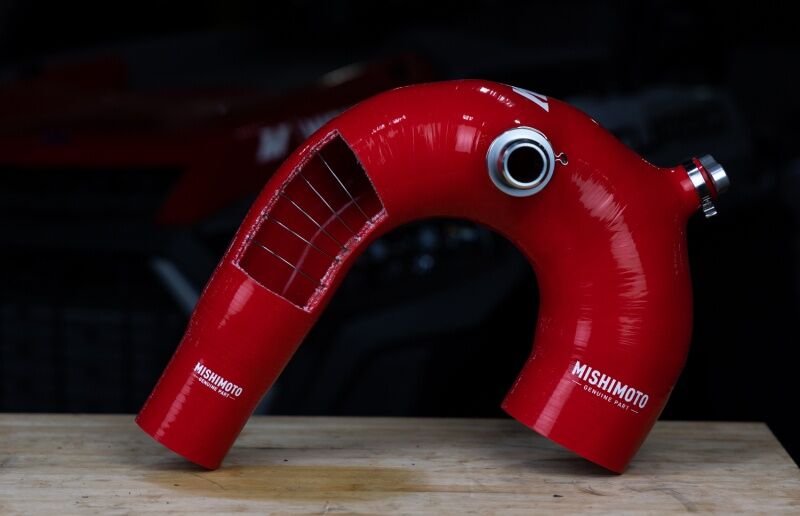

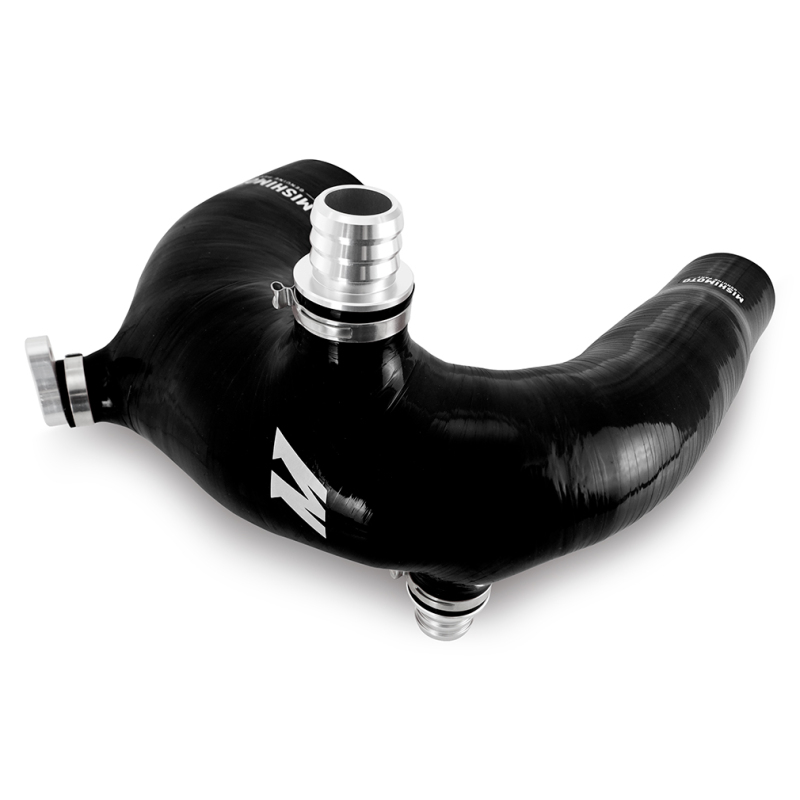

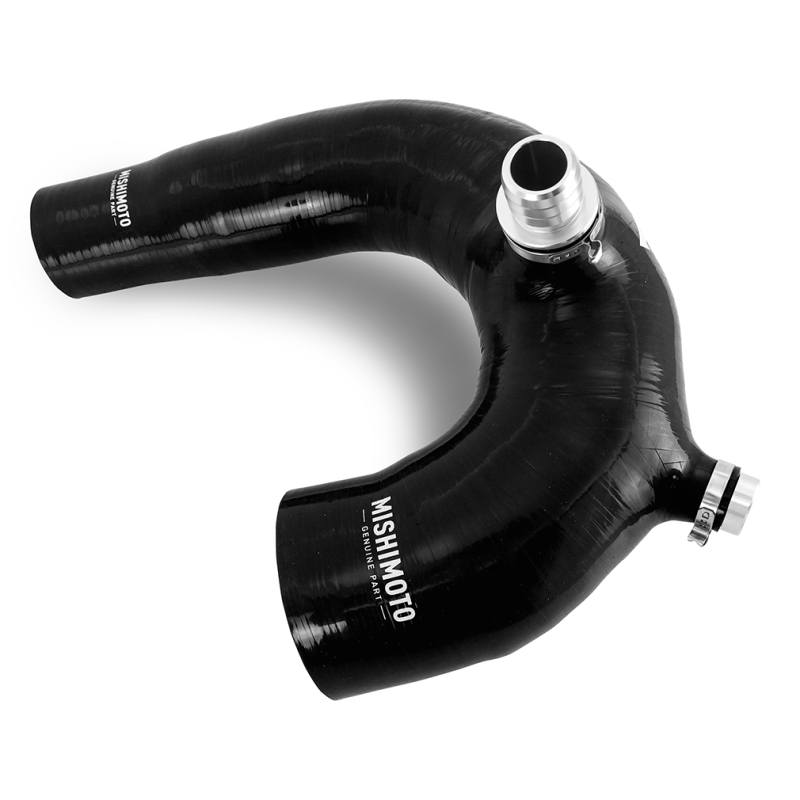

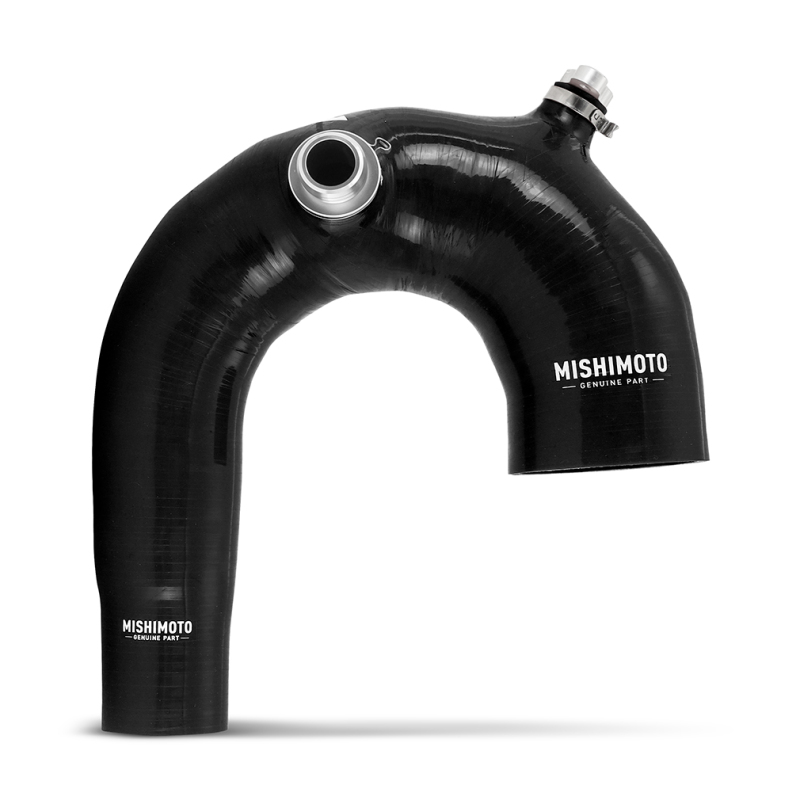

The Mishimoto Silicone Intake J-Tube, part number MMHOSE-RZR-16AIBK, is a direct-fit replacement for the factory plastic accordion-style intake tube found on turbocharged Polaris RZR XP models. Built from four layers of silicone reinforced with embedded steel wire and heat-resistant fibers, this black intake j-tube gives boosted air a smoother, straighter path from the airbox to the turbocharger while standing up to racing, trail riding, mud bogging, rock crawling, and dune jumping.

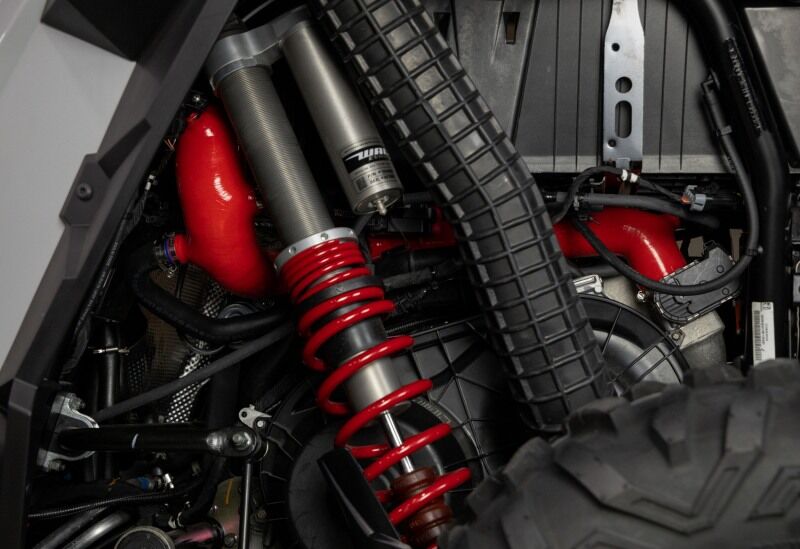

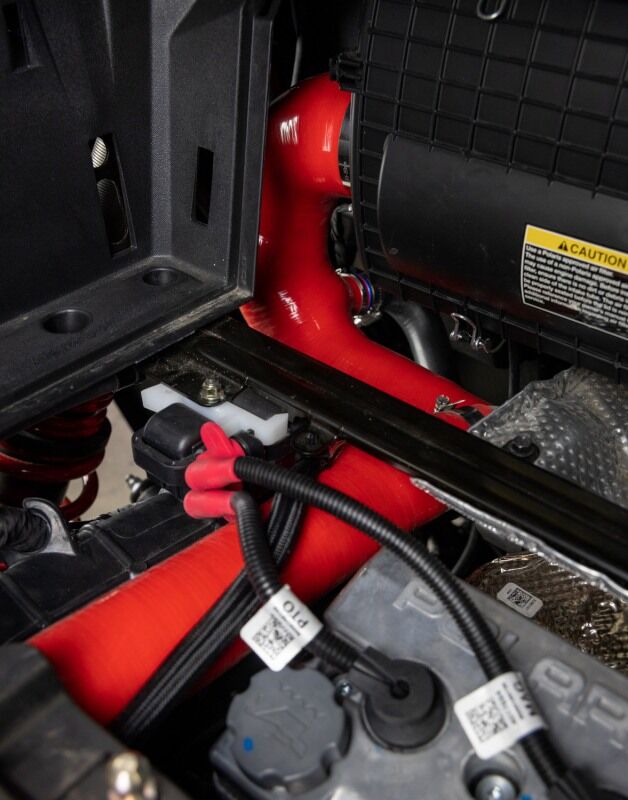

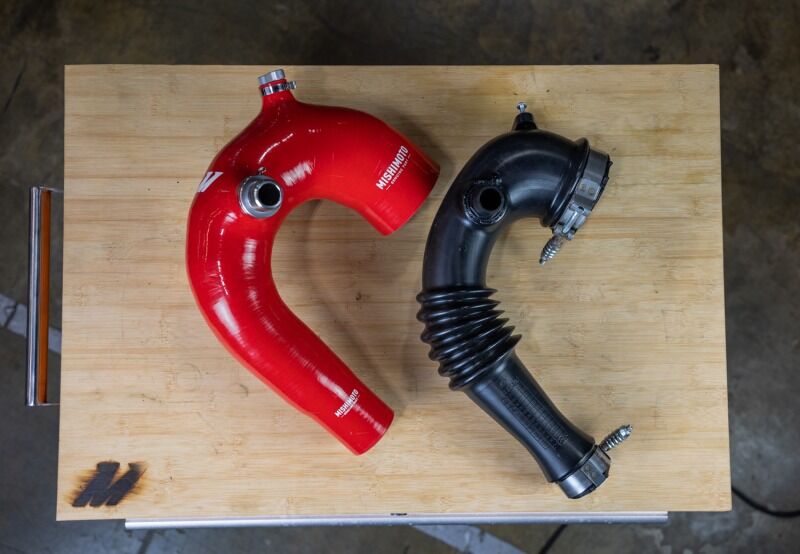

As a core piece of your RZR’s air intake system, this silicone intake j-tube is designed to reduce turbulence compared to the factory plastic accordion tube, which can translate into a cleaner airflow path into the turbo. Silicone construction also offers better heat rejection than plastic and creates a more positive seal at every connection point, helping keep dust, dirt, and trail debris out of the intake system. The steel wire reinforcement inside the silicone walls lets the j-tube hold its shape under boost while still flexing enough to absorb bumps and vibration on rough terrain. It connects directly to the factory airbox and turbocharger and arrives with CNC-machined barbed hose fittings for the crankcase breather tube and bypass valve recirculation tube, plus a CNC-machined pressure sensor port, all preinstalled. Vehicles running a vent-to-atmosphere blow-off valve can use the included recirculation tube block-off cap.
Vehicle Applications
This Mishimoto Silicone Intake J-Tube is a specific fit for 2016-2024 Polaris RZR XP Turbo models. Coverage spans the 2016-2017 RZR XP Turbo EPS and RZR XP 4 Turbo EPS, the 2018 RZR XP Turbo EPS and RZR XP 4 Turbo EPS DYNAMIX Edition and Fox Edition, the 2018-2020 RZR XP Turbo S (including the 2020 RZR XP Turbo S Velocity), and the 2019-2020 RZR XP 4 Turbo S (including the 2020 RZR XP 4 Turbo S Velocity). It also fits the 2019-2021 RZR XP 4 Turbo and 2020-2021 RZR XP Turbo, as well as the 2021 RZR Turbo S, RZR Turbo S Lifted Lime LE, RZR Turbo S Velocity, RZR Turbo S4, RZR Turbo S4 Lifted Lime LE, and RZR Turbo S4 Velocity.
Features
- Direct fit for 2016-2024 Polaris RZR XP Turbo

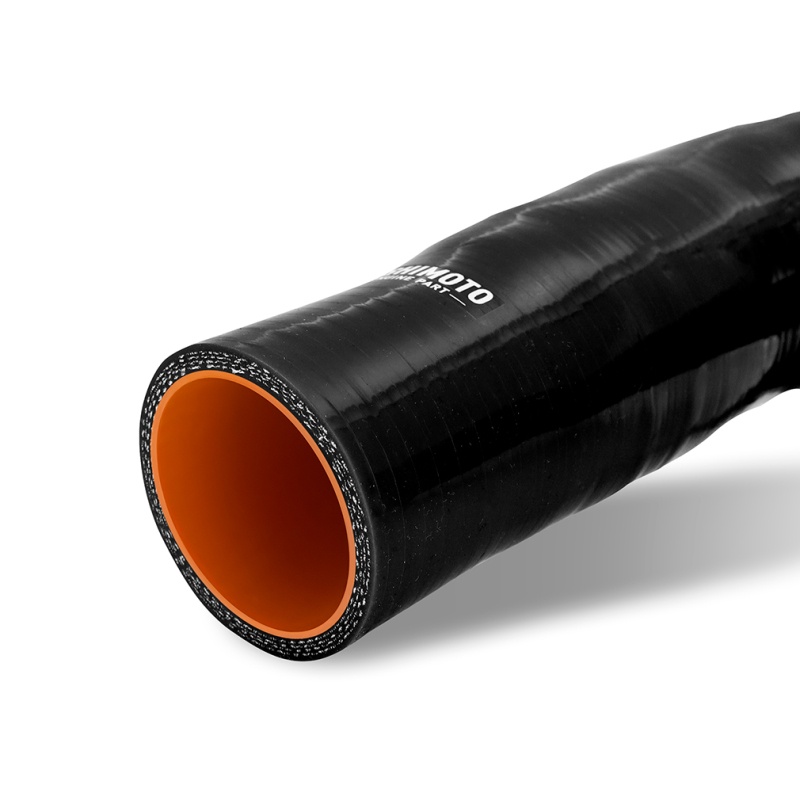

- Constructed from four-layer silicone with embedded steel wire reinforcement and heat-resistant fibers
- Smooth airflow path reduces turbulence compared to the factory plastic accordion intake
- Performance and durability upgrade for stock or modified vehicles
- Silicone seals tightly at connection points, helping keep dust, dirt, and debris out of the intake
- Improved heat and pressure tolerance versus factory plastic construction

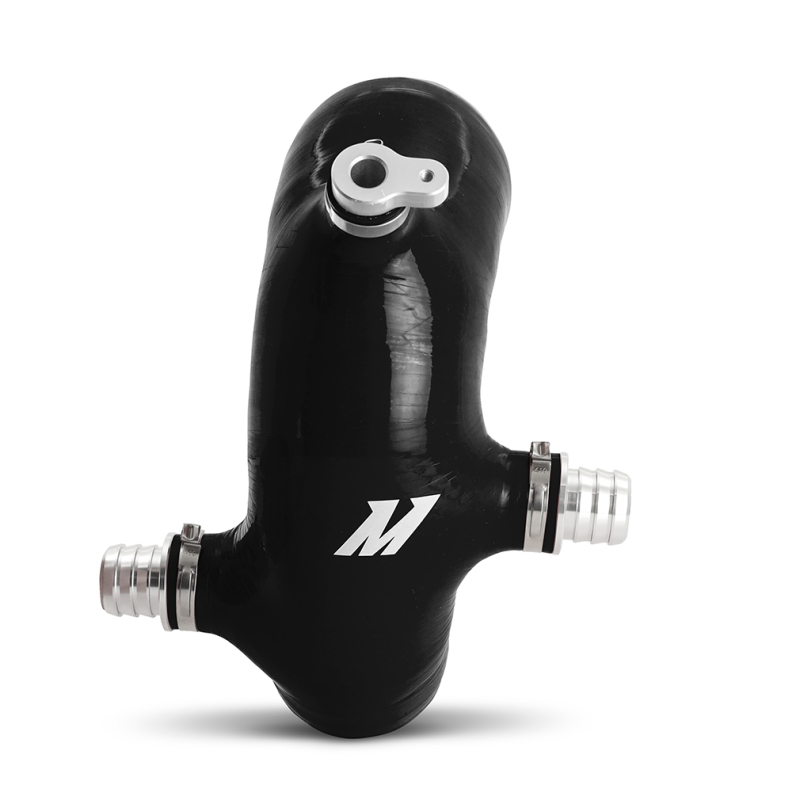

- Preinstalled CNC-machined pressure sensor port
- Preinstalled CNC-machined barbed hose fittings for crankcase breather and bypass valve recirculation tubes
- Works with factory or aftermarket blow-off valve, including vent-to-atmosphere setups via included block-off cap
- Includes all clamps and hardware needed for installation
- Can be combined with the Mishimoto Silicone Charge Tube for a complete intake setup
- Available in black, blue, and red; this listing is black
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Hose Material: Silicone
- Hose Color: Black
- Maximum Temperature Rating: 330°F
- Clamps Included: Yes
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Applications: 2016-2024 Polaris RZR XP Turbo

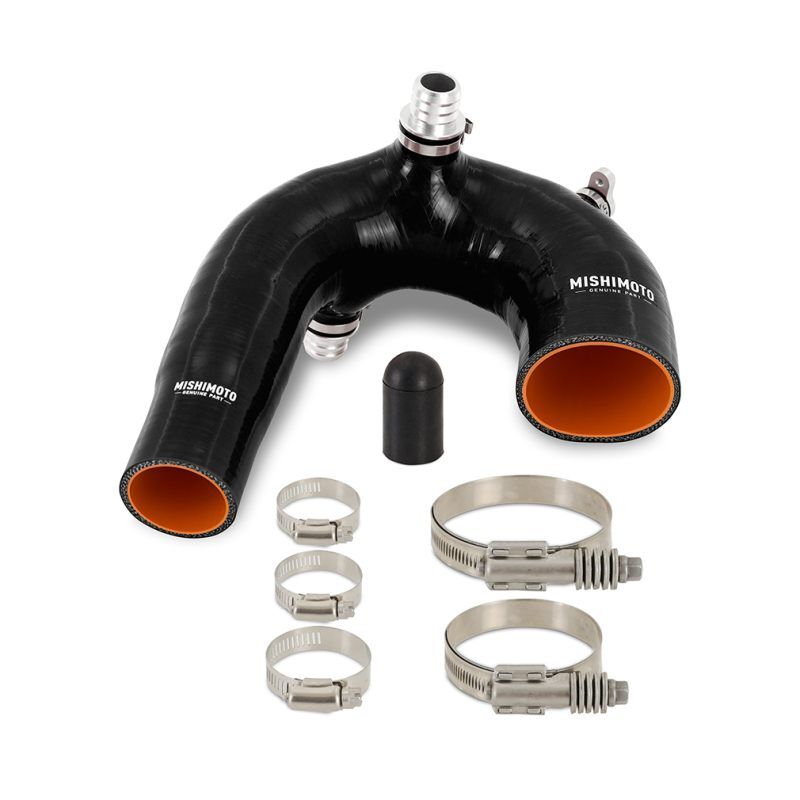

- Purchase Includes: (1) Mishimoto Silicone Intake J-Tube, Recirculation Port Block-off Cap, Clamps and Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto Silicone Intake J-Tube (MMHOSE-RZR-16AIBK) fit?
It is a specific fit for 2016-2024 Polaris RZR XP Turbo models, including the RZR XP Turbo EPS, RZR XP 4 Turbo EPS, DYNAMIX and Fox Editions, RZR XP Turbo S, RZR XP 4 Turbo S, RZR XP 4 Turbo, RZR XP Turbo, and the 2021 RZR Turbo S and Turbo S4 lineup with their Velocity and Lifted Lime LE variants.
What is the intake j-tube made of?
It is constructed from four layers of silicone with embedded steel wire reinforcement and heat-resistant fibers.
What temperature is the j-tube rated for?
It carries a maximum temperature rating of 330°F.
Does it work with a vent-to-atmosphere blow-off valve?
Yes, a recirculation tube block-off cap is included for vehicles using a vent-to-atmosphere blow-off valve.
What is included when I purchase this j-tube?
The package includes (1) Mishimoto Silicone Intake J-Tube, a recirculation port block-off cap, clamps and hardware, and the Mishimoto Lifetime Warranty.
What color options are available for this intake j-tube?
It is available in black, blue, and red; this specific listing is the black version.
