Mishimoto Heavy-Duty 17-Row Bar-and-Plate Fluid Cooler

Description

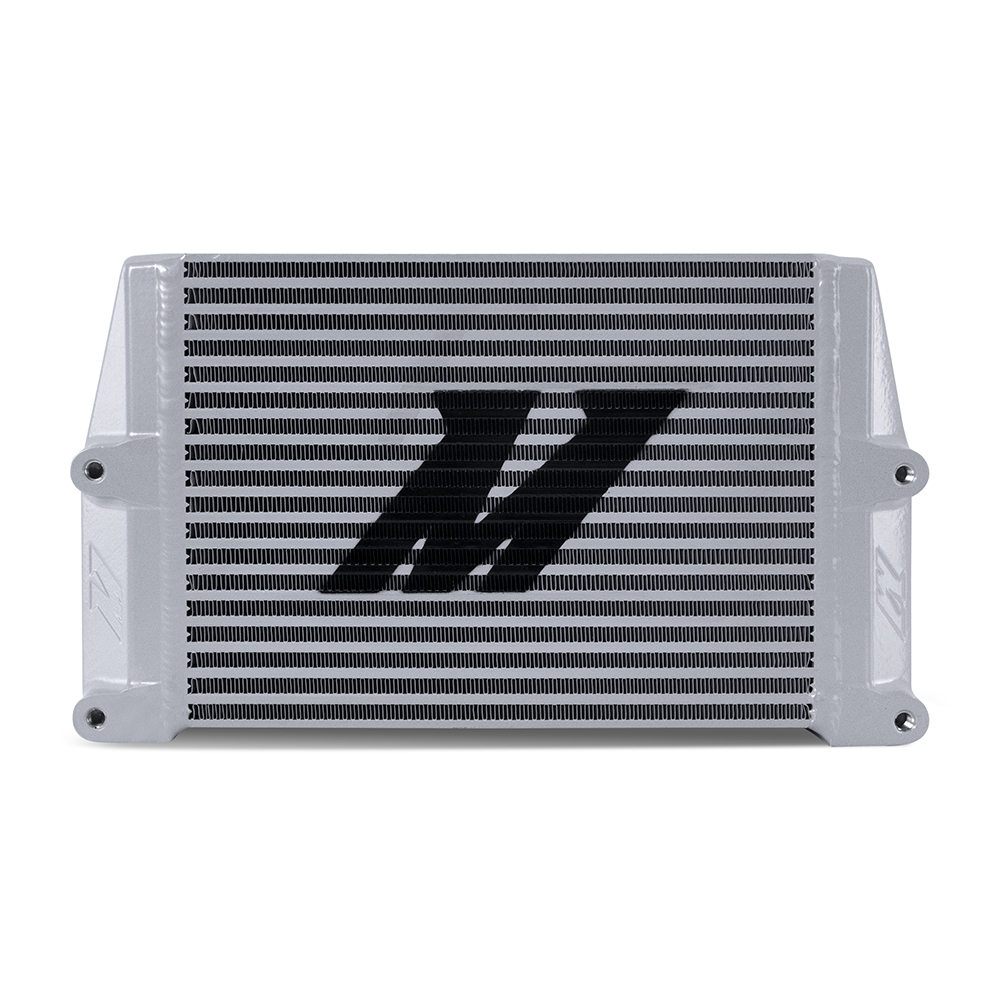

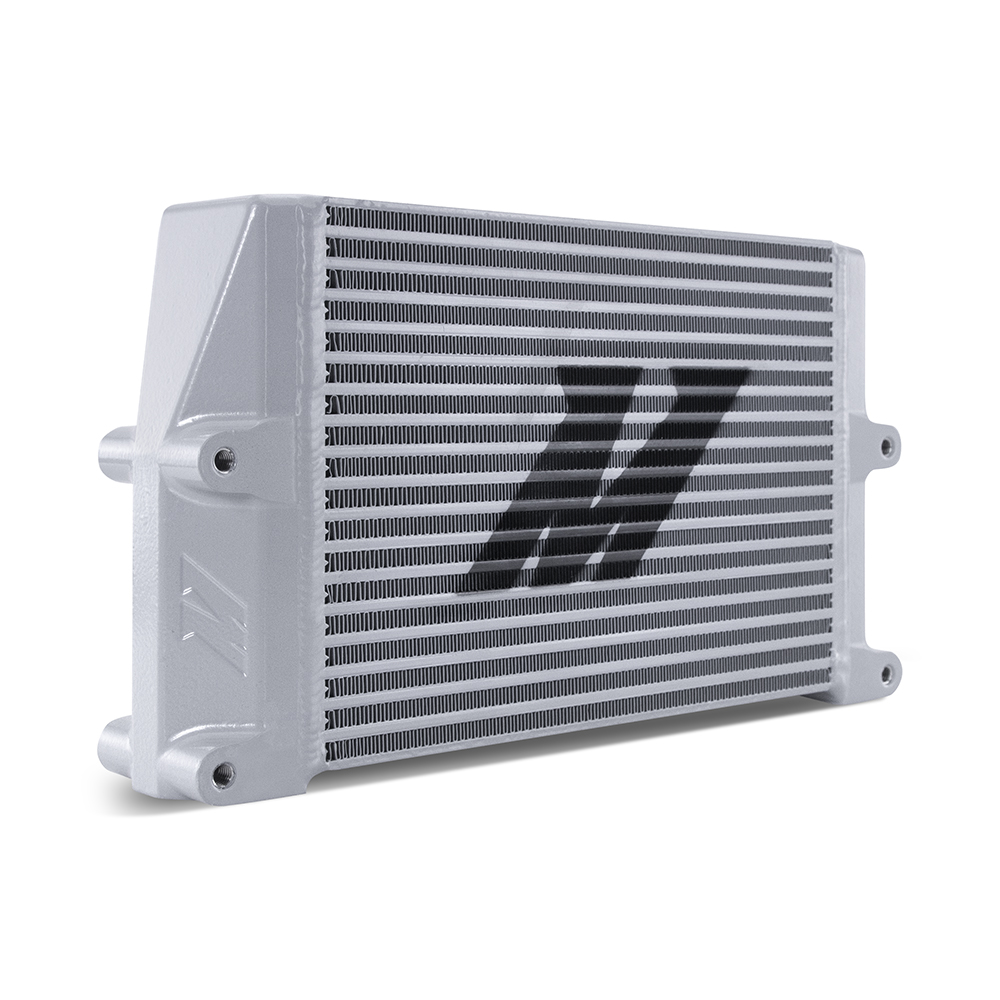

The Mishimoto MMOC-SSO-10SL is a heavy-duty, 17-row bar-and-plate fluid cooler built for street, track, or trail builds that demand serious thermal control. With a 10-inch-long, 7.5-inch-tall, 2.5-inch-thick core and a 1.4-quart fluid capacity, this cooler is engineered to keep oil, coolant, or transmission fluid running cool even in the most extreme situations. It’s available with a silver powder coat finish, and this listing covers the silver version.

As a true mishimoto cooler for high-performance builds, this unit works as a mishimoto oil cooler, a mishimoto transmission cooler, or a general-purpose mishimoto trans cooler depending on how you plumb it in. Turbulated fins inside the bar-and-plate core circulate fluid evenly across the entire core surface, so you get the full benefit of the cooler’s size rather than wasted capacity. Large -16 ORB ports on the inlet and outlet allow for high flow rates, making this a strong option as a mishimoto universal transmission fluid cooler or mishimoto oil cooler kit component for demanding cooling applications, whether that’s a performance daily driver or a dedicated racing setup.

Vehicle Applications

This Mishimoto fluid cooler is a universal-fit unit designed for any high-performance application rather than a specific make or model. Because it mounts using eight M8 flush mounting points with steel threaded inserts, it can be secured to a custom bracket and installed wherever additional oil, coolant, or transmission fluid cooling is needed in a build.

Features

• Universal fit for any high-performance application
• Large 17-row core measures 10 in long x 7.5 in tall x 2.5 in thick for ample cooling
• 1.4-quart fluid capacity for increased cooling potential
• Bar-and-plate core construction for extreme durability and cooling
• Turbulated fins circulate fluid throughout the core for even, efficient cooling

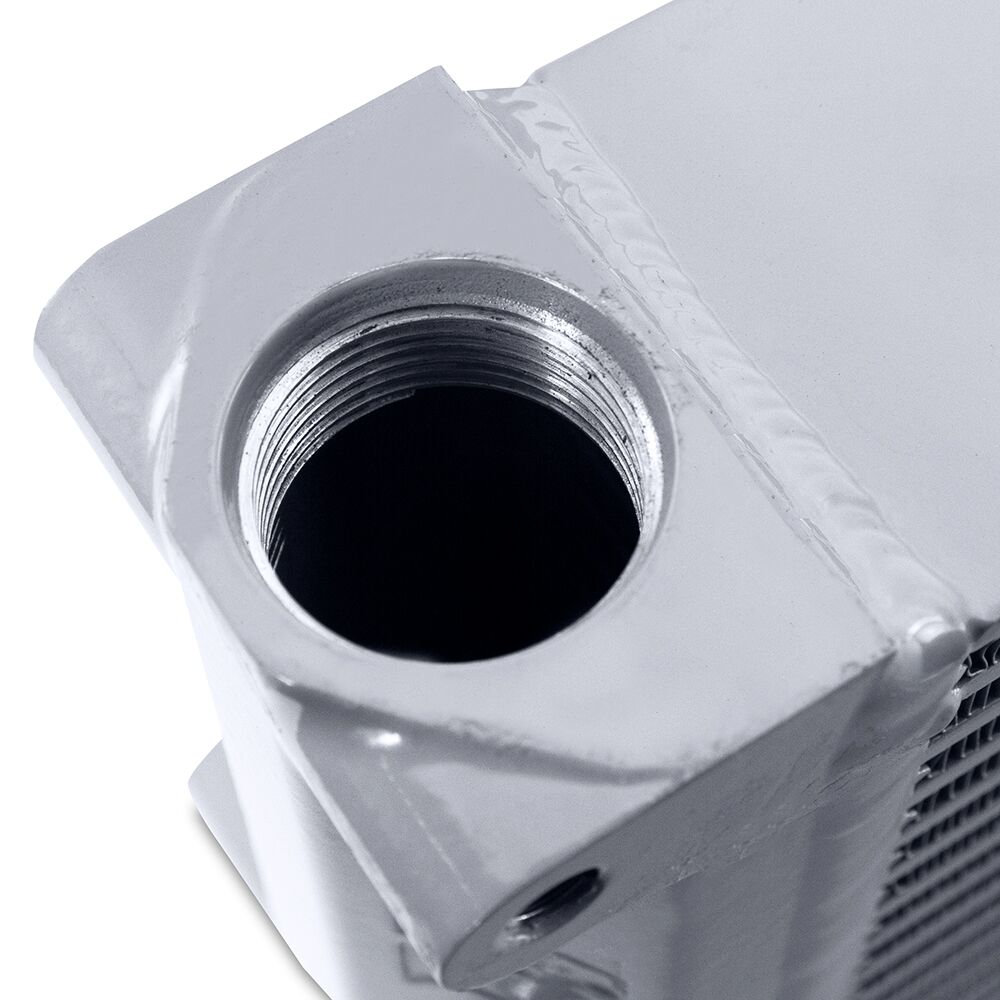

• -16 ORB threaded inlet and outlet for high flow and versatility
• Cast-aluminum end tanks precision TIG welded to the core for maximum durability
• Eight M8 flush mounting holes with steel threaded inserts secure the cooler to any custom bracket
• Same-side inlet and outlet for easy line routing
• Available in silver or black powder coat

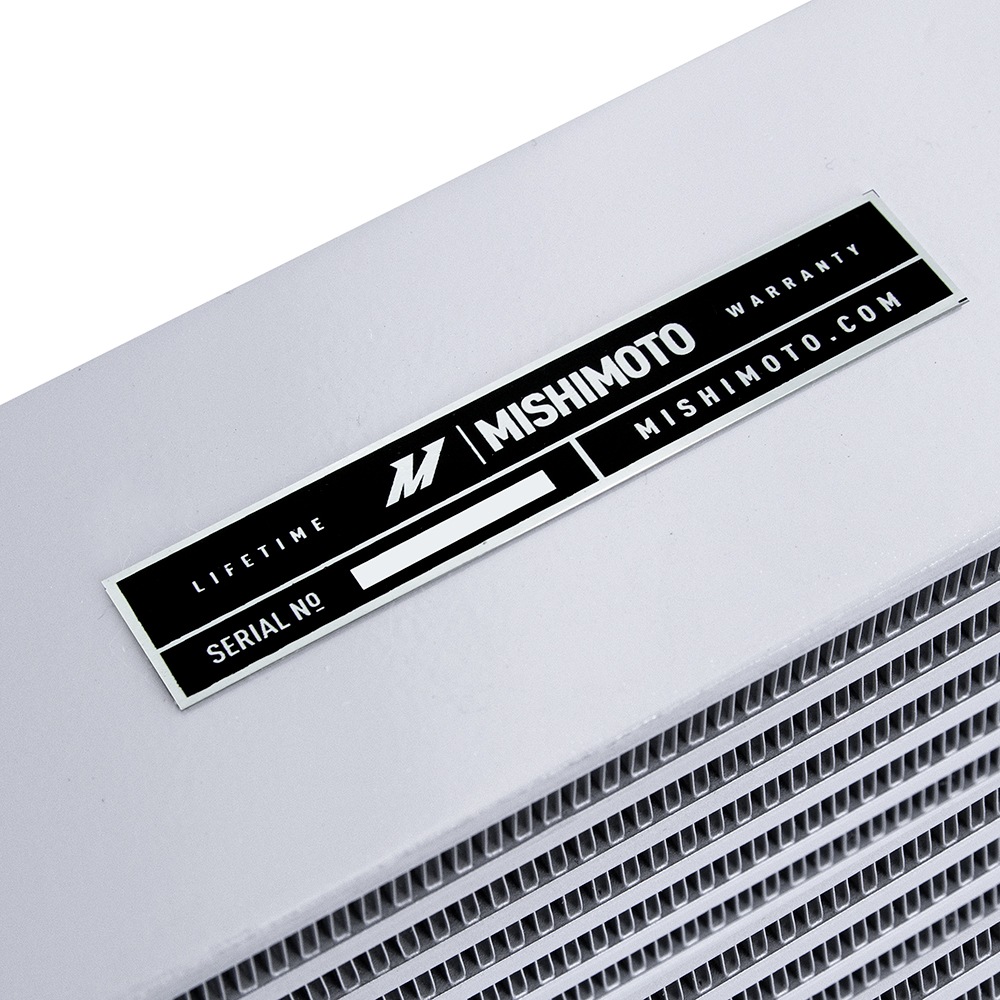

• Backed by the Mishimoto Lifetime Warranty

Specifications

• Brand: Mishimoto
• Part Number: MMOC-SSO-10SL
• Finish/Core Color: Silver
• Core Type: Bar-and-Plate
• Core Row Quantity: 17
• Core Height: 7.79 in
• Core Width: 10.47 in
• Core Thickness: 2.55 in
• Fluid Capacity: 1.4 quart
• Overall Length: 13.85 in
• Overall Width: 2.55 in
• Overall Height: 7.79 in
• Inlet/Outlet Fitting: -16 ORB
• Inlet/Outlet Fitting Type: AN Flare, Male
• Inlet/Outlet Outside Diameter: 1.313 in
• Grade Type: Performance
• Includes: Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler, Mishimoto Lifetime Warranty
