Description

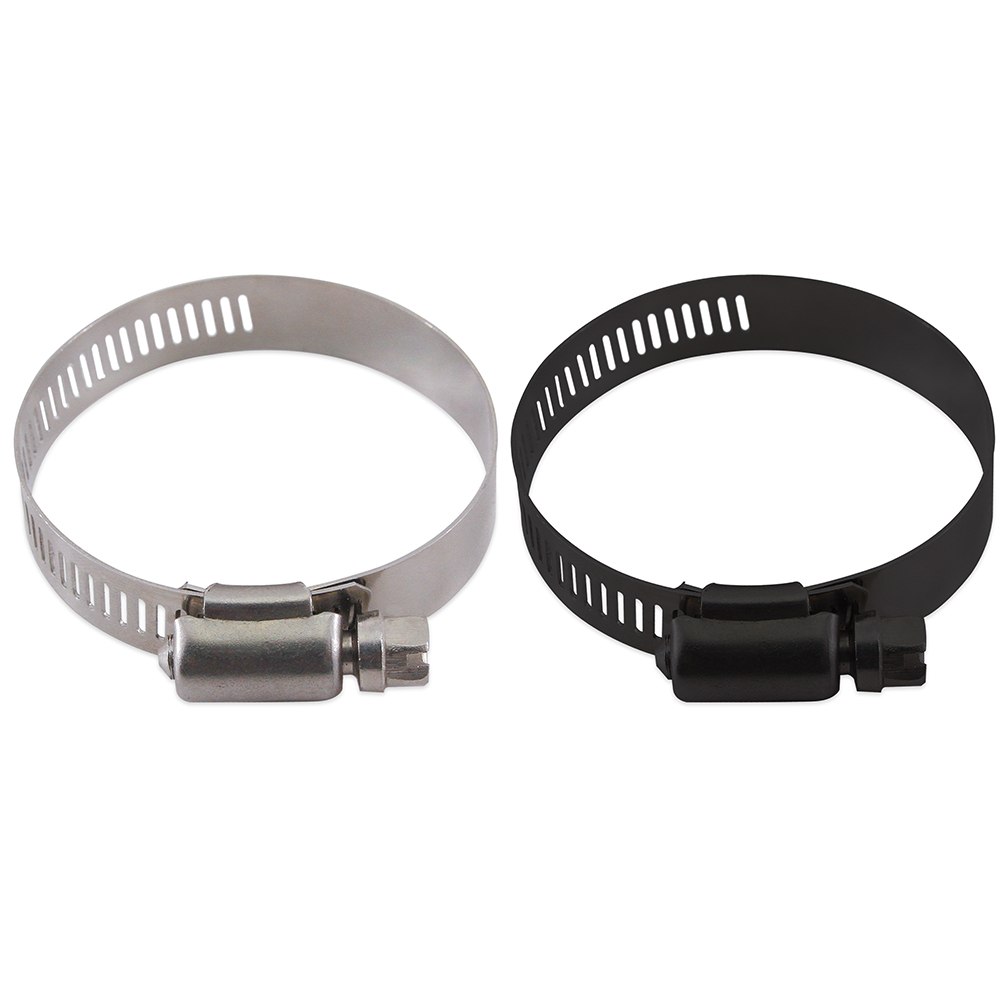

The Mishimoto MMCLAMP-WG-32HTBK is a black-finished, stainless steel high-torque worm gear clamp engineered to secure hoses, couplers, and pipes ranging from 0.71 to 1.26 inches (18mm to 32mm) in outer diameter. Sold in a pack of ten, this Mishimoto Fabrication component is built for shops and enthusiasts who need a reliable, repeatable clamping solution across a wide range of fabrication and hose-routing projects.
Each clamp uses a worm gear design that allows for quick, controlled tightening, making installation straightforward whether you’re securing a single coupler or working through a full set of ten. The stainless steel band and steel spring are rated to a recommended tightening torque of 35 in-lbs (4 NM), and because the clamp is reusable, it can be removed and reinstalled as hoses or couplers are serviced. Stainless steel construction is intended to resist corrosion longer than zinc-plated alternatives, helping the clamp maintain a tight seal over time in demanding underhood or fabrication environments. Like other Mishimoto products, this high-torque worm gear clamp is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
As a universal Fabrication clamp rather than a vehicle-specific part, the Mishimoto MMCLAMP-WG-32HTBK is not tied to a particular make, model, or year. Instead, it is designed to clamp any hose, coupler, or pipe with an outer diameter between 0.71 and 1.26 inches (18mm to 32mm), making it suitable for vacuum lines, intake pipes, and similar hose connections wherever that size range is needed. This flexibility means the clamp can be used across a wide variety of builds and applications that fall within its stated diameter range.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 0.71 to 1.26 inches (18mm to 32mm)
- Worm gear design for quick and easy tightening
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Sold in packs of 10
- Also available in natural or gold finish
- Reusable design allows removal and reinstallation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-WG-32HTBK
- Product Type: Fabrication
- Clamp Style: High-Torque Worm Gear Clamp
- Material: Stainless Steel
- Spring Material: Steel
- Color: Black
- Finish: Plain
- Grade Type: Premium
- Minimum Diameter: 0.71 in (18mm)
- Maximum Diameter: 1.26 in (32mm)
- Band Width: 0.5 in
- Recommended Tightening Torque: 35 in-lbs (4 NM)
- SAE Size: 22
- SAE Number: 12
- Reusable: Yes
- Includes: (10) Mishimoto High-Torque Worm Gear Clamps, Mishimoto Lifetime Warranty
Frequently Asked Questions
What sizes does this Mishimoto worm gear clamp fit?
This clamp secures pipes, couplers, and hoses with an outer diameter from 0.71 to 1.26 inches (18mm to 32mm).
What material is the MMCLAMP-WG-32HTBK made from?
It is made from stainless steel, with a steel spring, and is finished in black.
How many clamps come in a pack?
This product is sold in a pack of 10 Mishimoto High-Torque Worm Gear Clamps.
What is the recommended tightening torque?
The recommended tightening torque is 35 in-lbs (4 NM).
Is this clamp reusable?
Yes, the clamp is designed to be reusable.
Does this clamp come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
