Description

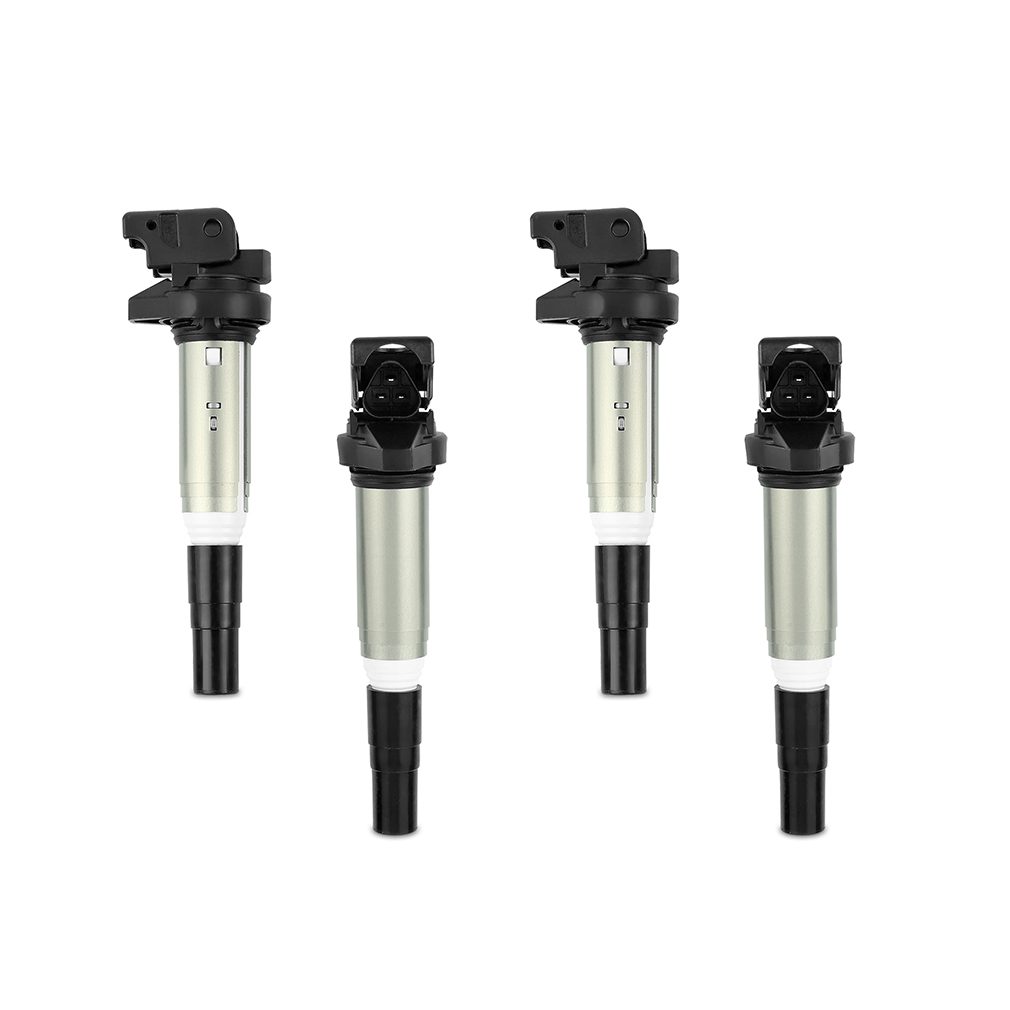

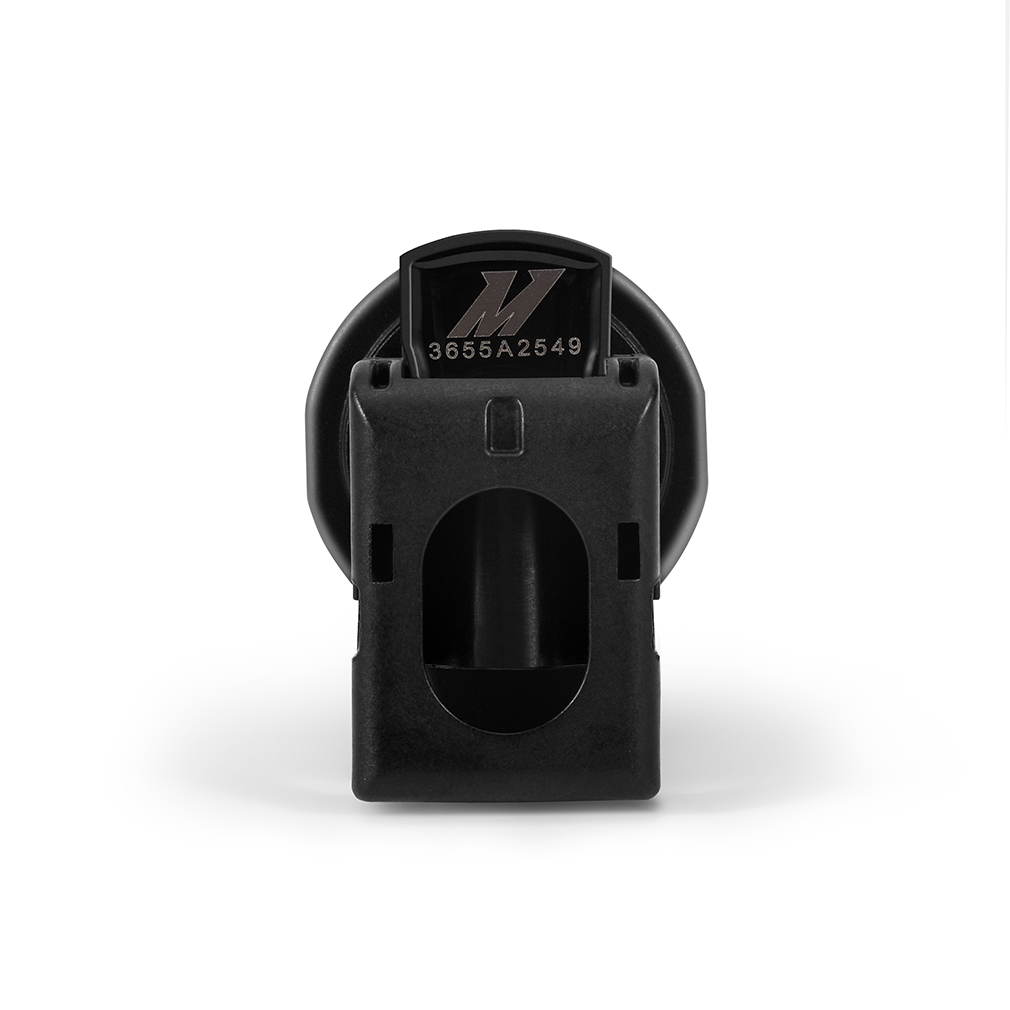

The Mishimoto MMIG-BMW-02 is a black, pencil-style ignition coil engineered specifically for BMW vehicles running the M54, N20, N52, N54, N55, N62, S54, or S62 engine. Built with a phenolic resin outer shell and a precision lower boot pre-lubricated with dielectric grease, this coil is designed and tested to meet or exceed OEM BMW performance specifications, making it a straightforward Stage 0 upgrade before you move on to bigger performance modifications.
Weak spark from a tired factory ignition coil can cause misfiring under load and spark blow-out under boost, robbing your BMW of the smooth, responsive power it should have. This Mishimoto ignition coil refreshes the ignition system, delivering improved engine startup, a smoother idle, and restored performance once paired with a fresh set of spark plugs. The phenolic resin frame resists high underhood temperatures, while the durable rubber boot creates a barrier against moisture, oil, and debris in the plug well, protecting against spark plug contamination whether your BMW is stock or already modified. It’s an ideal replacement for a worn or defective factory ignition coil, and it’s available as this single coil or in sets of four, six, or eight, each backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This is a specific-fit ignition coil covering a wide span of BMW vehicles from 2002 through 2019 built around the M54, N20, N52, N54, N55, N62, S54, and S62 engines. Coverage spans the 1 Series lineup, including the 128i (2008-2013), 135i (2008-2013), 135is (2013), 1 Series M (2011), and M135i (2013-2016); the 2 Series, including the 220i, 228i, 228i xDrive, 235i, M235i, M235i xDrive, and M2 (2016-2019); the 3 Series, including the 320i, 320i xDrive, 325i, 325Ci, 325xi, 328i, 328i xDrive, 328i GT xDrive, 330i, 330Ci, 330xi, 335i, 335i xDrive, 335is, 335xi, and M3 (2002-2006); the 4 Series, including the 420i, 428i, 428i xDrive, 428i Gran Coupe, 428i xDrive Gran Coupe, 435i, 435i xDrive, 435i Gran Coupe, and 435i xDrive Gran Coupe; the 5 Series, including the 525i, 528i, 528i xDrive, 530i, 535i, 535i xDrive, 535i GT, 535i GT xDrive, 545i, and M5 (2002-2003); the 6 Series, including the 640i, 640i xDrive, 640i Gran Coupe, and 640i xDrive Gran Coupe, plus the 645Ci; the 7 Series, including the 740i, 740Li, 740Li xDrive, 745i, and 745Li; the X1, X3, X4, X5 (including X5 M), and X6 (including X6 M) crossovers; and the Z3, Z4, and Z8 roadsters.
Features
- Direct fit for most BMW models 2002-2022
- High-quality replacement coils available in full sets or single units
- Designed and tested to meet or exceed OEM BMW performance specifications
- Improves engine startup, idle, and restores performance
- Refreshes ignition system ensuring strong spark for stock and modified vehicles
- Durable rubber boot provides barrier against moisture, oil, and debris
- High-quality phenolic resin outer shell ensures longevity in high temperature environments
- Pre-lubricated boots with dielectric grease ensures optimal corrosion resistance
- Mishimoto Lifetime Warranty
Specifications
- Part Number: MMIG-BMW-02
- Length: 6.89 in
- Overall Height: 2.04 in
- Color: Black
- Terminal Type: Blade
- Connector Gender: Female
- Terminal Gender: Female
- Ignition Type: Standard
- Coil Type: Pencil Coil
- Coil Wire Included: No
- Oil Filled: No
- Fit Type: Specific
- Grade Type: Standard Replacement
- Engine Codes: M54, N20, N52, N54, N55, N62, S54, S62
- Option Purchased: Single Coil (also available as sets of 4, 6, or 8)
- Includes (Single Coil option): (1) BMW Ignition Coil, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the part number for this Mishimoto BMW ignition coil?
This ignition coil is Mishimoto part number MMIG-BMW-02.
Which BMW engine codes does this ignition coil fit?
This coil is designed for BMW engines with the codes M54, N20, N52, N54, N55, N62, S54, and S62.
Does this coil include a spark plug wire?
No, a coil wire is not included with this ignition coil.
What warranty comes with this ignition coil?
This ignition coil is backed by the Mishimoto Lifetime Warranty.
Can I buy this ignition coil as a set instead of a single unit?
Yes, these coils are available as a single coil or in sets of four, six, or eight, and this listing covers the single coil option.
What is the outer shell of the coil made from?
The coil’s primary frame is constructed from phenolic resin for durability in high temperature environments.
