Description

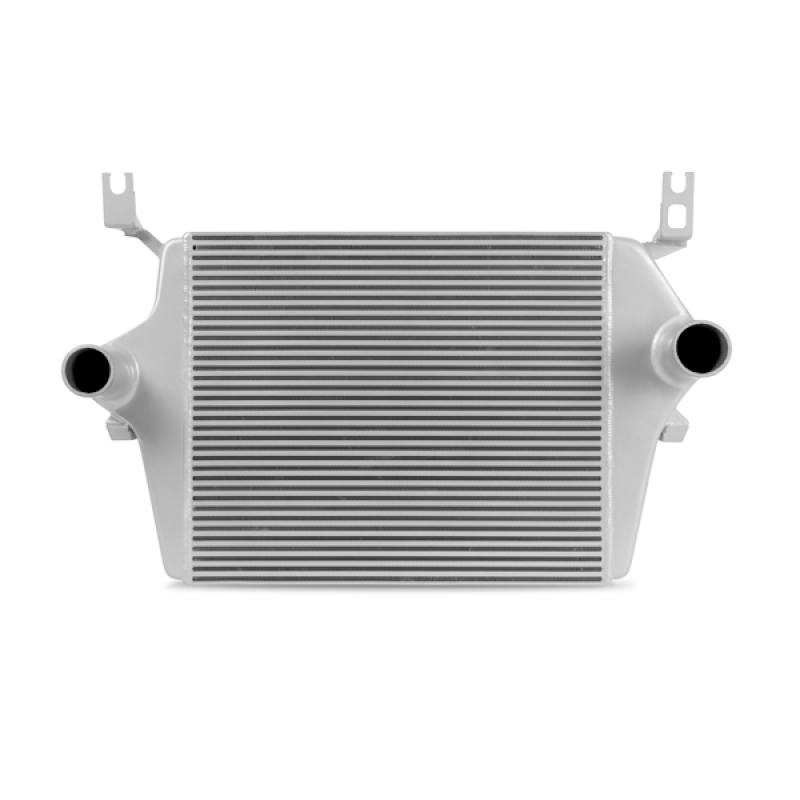

The Mishimoto MMINT-F2D-03KSL is a purpose-built forced induction intercooler kit engineered specifically for the 2003-2007 Ford 6.0L Powerstroke. It pairs a thicker bar-and-plate core with mandrel-bent aluminum intercooler piping to move more air with less restriction, and it comes packaged with every hose, boot, and clamp needed to install the complete forced induction system.
This performance induction upgrade increases core volume by 32.5 percent over the factory unit, and its 3.35-inch bar-and-plate core is 33 percent thicker than stock, working together to improve airflow, substantially lower air charge temperatures, and reduce EGTs at any power level. The 3.0-inch mandrel-bent aluminum polished pipes eliminate restrictive factory bends, while cast aluminum end tanks are strategically designed for optimal airflow, including an air diverter in the hot-side end tank that reduces turbulence and evenly distributes air across the core. By keeping charge air cooler and flowing more efficiently, this induction system also helps reduce turbo stress and extend turbo life, making it a smart force induction upgrade whether the truck is stock or built for more power.
Vehicle Applications
This kit is a specific fit for the Ford 6.0L Powerstroke lineup. On the Ford Excursion, it covers the Eddie Bauer, Limited, and XLT trims from 2003-2005 and the XLS trim from 2004-2005. On the Ford F-250 Super Duty, it fits the Harley-Davidson Edition and King Ranch trims from 2004-2007 along with the Lariat, XL, and XLT trims from 2003-2007. The Ford F-350 Super Duty is covered on the Harley-Davidson Edition for 2004-2007 and on the King Ranch, Lariat, XL, and XLT trims for 2003-2007. Ford F-450 Super Duty coverage includes the Base trim for 2003-2004 and the Lariat, XL, and XLT trims for 2003-2007, while the Ford F-550 Super Duty is covered across the Base, Lariat, XL, and XLT trims for 2003-2007. Note that this kit will not fit vehicles equipped with dual alternators, and it replaces the factory intercooler inlet pipes carrying part numbers C3Z-6K769-AA (2005-2007) and 6C3Z-6K769-B (2003-2004).
Features
- Direct fit for the 2003-2007 Ford 6.0L Powerstroke

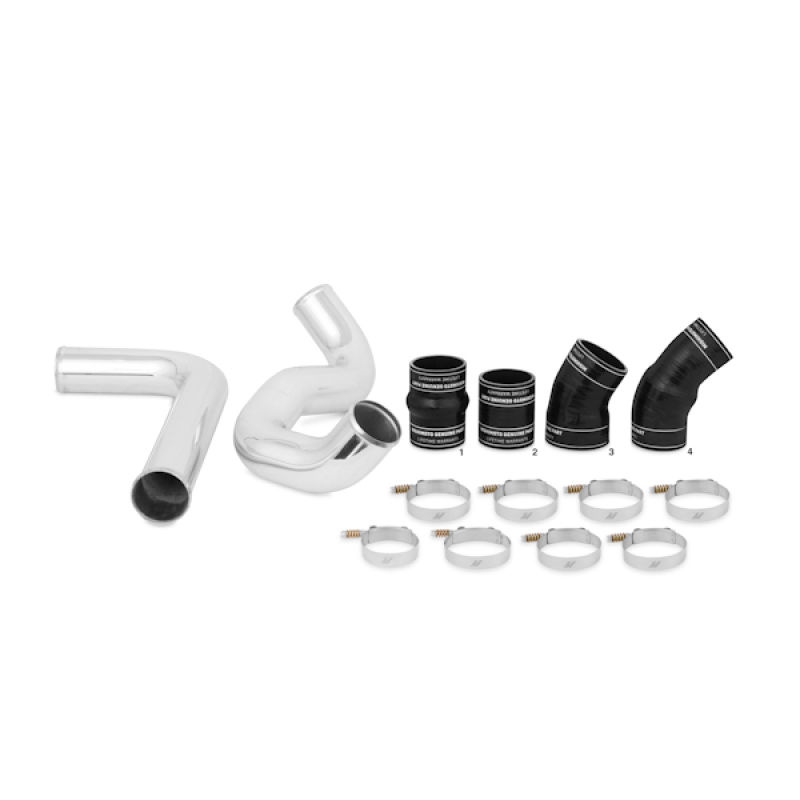

- Includes hot-side and cold-side intercooler pipes and boots
- 3.35-inch bar-and-plate core is 33 percent thicker than factory
- 3.0-inch mandrel-bent aluminum polished pipes eliminate restrictive bends
- 32.5 percent increase in core volume over stock

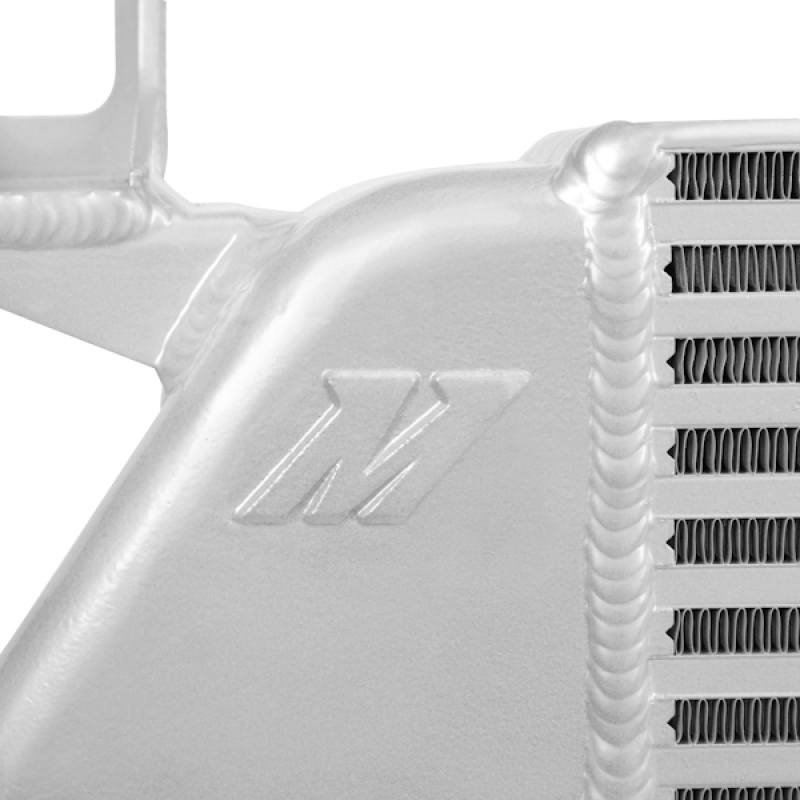

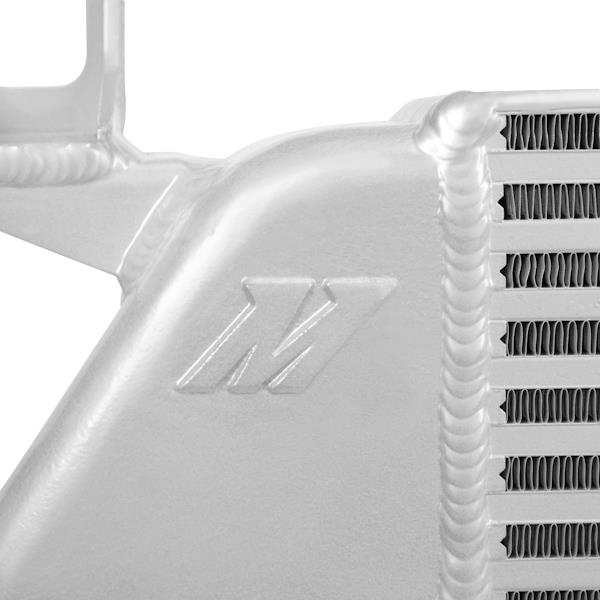

- End tanks strategically designed for optimal airflow
- Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across the core
- Reduces turbo stress and extends turbo life
- Available in Sleek Silver and Stealth Black

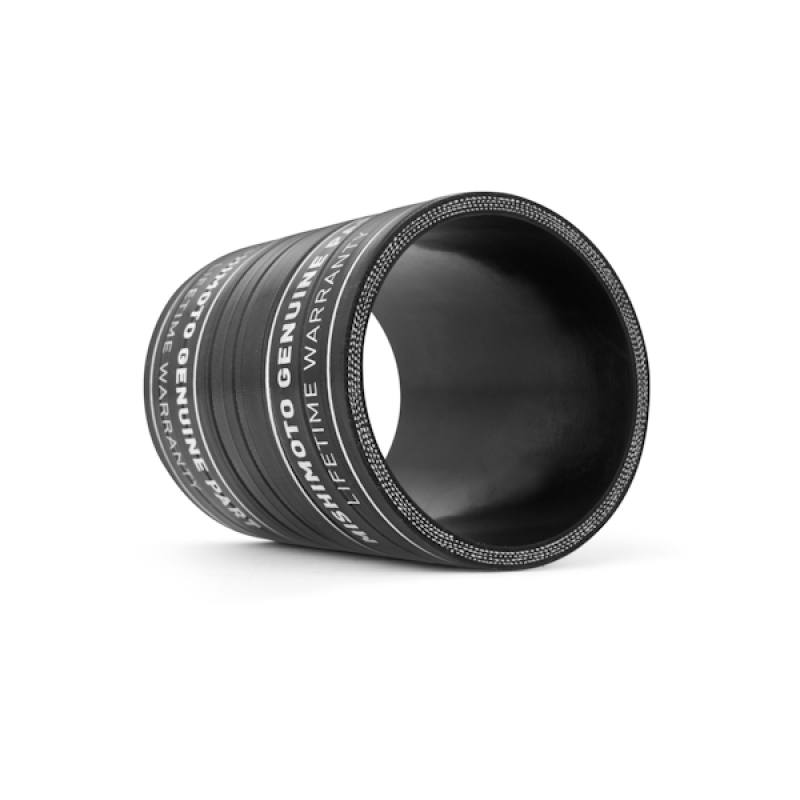

- Includes Mishimoto Silicone Boots with DuraCore technology and Constant-Tension T-bolt Clamps
- Provides improved airflow and lowers intake air temperatures

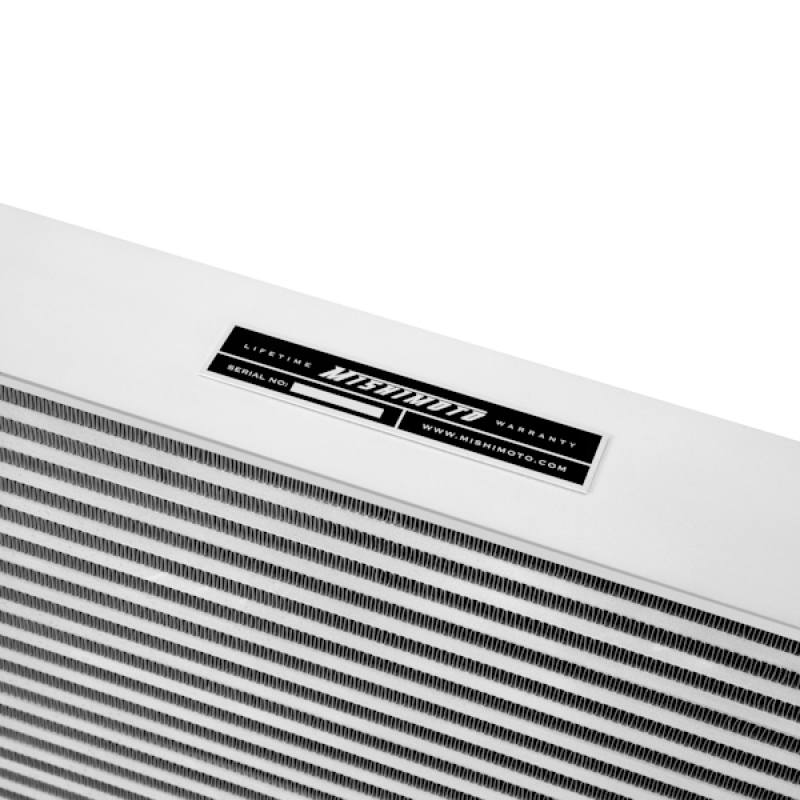

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 21.54 in
- Core Thickness: 3.35 in
- Core Length: 25.75 in
- Core Color: Silver
- Inlet Diameter: 3.25 in
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Silver
- Pipe Finish: Powder Coated
- Hot Side Pipe Inside Diameter: 3.25 in
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Overall Width: 7.5 in
- Overall Height: 25.2 in
- Overall Length: 38.5 in
- Universal or Specific Fit: Specific

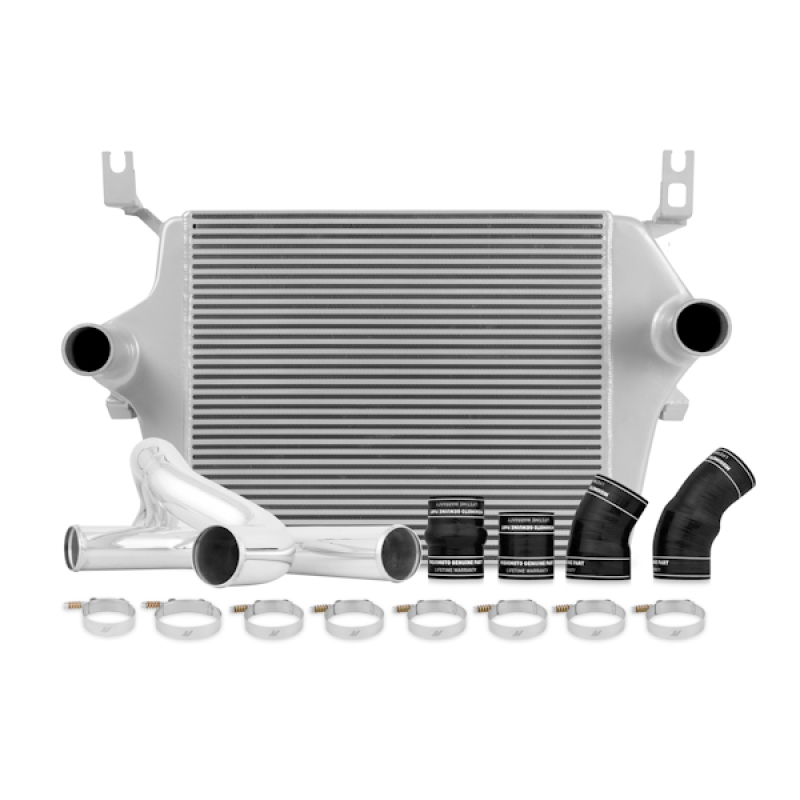

- Kit Includes: (1) Mishimoto Intercooler, (2) Aluminum Intercooler Pipes, (4) Silicone Boots with DuraCore Technology, (8) Constant-Tension T-Bolt Clamps, (2) Aluminum Mishimoto M Logo Badges, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-F2D-03KSL intercooler kit fit?
It is a specific fit for the 2003-2007 Ford 6.0L Powerstroke, covering the Excursion (Eddie Bauer, Limited, XLT 2003-2005; XLS 2004-2005), F-250 Super Duty (Harley-Davidson Edition and King Ranch 2004-2007; Lariat, XL, XLT 2003-2007), F-350 Super Duty (Harley-Davidson Edition 2004-2007; King Ranch, Lariat, XL, XLT 2003-2007), F-450 Super Duty (Base 2003-2004; Lariat, XL, XLT 2003-2007), and F-550 Super Duty (Base, Lariat, XL, XLT 2003-2007).
What comes in the box?
The kit includes one Mishimoto intercooler, two aluminum intercooler pipes, four silicone boots with DuraCore technology, eight constant-tension T-bolt clamps, two aluminum Mishimoto M logo badges, and the Mishimoto Lifetime Warranty.
Will this kit fit a 6.0L Powerstroke with dual alternators?
No, this kit will not fit vehicles equipped with dual alternators.
What factory parts does this kit replace?
This kit replaces the factory intercooler inlet pipes, part numbers C3Z-6K769-AA on 2005-2007 trucks and 6C3Z-6K769-B on 2003-2004 trucks.
What color options are available?
The Mishimoto intercooler is available in Sleek Silver and Stealth Black.
Is this intercooler kit covered by a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
