Description
The Mishimoto MMINT-CIV-16KBKWRD Performance Intercooler Kit is a Patent Pending, direct-fit forced induction upgrade built specifically for the L15B7-powered tenth-generation Honda Civic. Finished in this Black Intercooler, Red Piping configuration, it replaces the factory tube-and-fin core and plastic end tanks with an all-aluminum, bar-and-plate intercooler engineered to tame the heat generated by Honda’s turbocharged induction system.
Every Mishimoto forced induction component in this kit is designed to work together as a complete induction system upgrade. The intercooler core sees a 102-percent increase in volume and a 97-percent increase in fin surface area over the factory unit, which helps drop outlet air temperatures by 20°F on the stock tune and up to 42°F once a performance tune is added. The core’s optimized design targets maximum cooling efficiency with minimal pressure drop, so the improved induction force translates into real, usable gains: up to 4 hp and 8 ft-lbs of torque on stock tuning, and as much as 11 hp and 9 ft-lbs of torque with a tune. The piping side of the kit gets the same performance induction treatment, ditching the factory plastic-and-rubber setup for mandrel-bent aluminum piping and 5-layer, fiber-embedded silicone couplers, with hot- and cold-side diameters increased from 42mm to 55mm — a 30-percent size increase — and reduced bend angles for a more direct, higher-flow path through the forced induction system.
Vehicle Applications
This kit is a direct fit for the 2016-2021 Honda Civic 1.5T and 2017-2020 Civic Si, covering the L15B7 engine across FC1, FC3, FK4, and FK7 chassis codes. Trim coverage includes the Civic DX (2016-2020), LX and EX (2016-2021), EX-L (2016-2021), Touring (2016-2021), EX-T and LX-P (2016-2018), Turbo (2016-2017), Turbo Plus (2017-2020), Coupe and SE (2018), i-Style (2018-2021), Si (2017-2020), Sport and Sport Touring (2017-2021), and Sport Plus (2019-2020).
Features
- Direct fit for the 2016-2021 Honda Civic 1.5T and Si
- Patent Pending all-aluminum, bar-and-plate core construction
- 102-percent increase in core volume and 97-percent increase in fin surface area over the stock intercooler
- Drops outlet air temperatures by 20°F on the stock tune and up to 42°F with performance tuning
- Optimal core design for maximum cooling efficiency with minimal pressure drop
- Adds up to 4 hp and 8 ft-lbs of torque on stock tuning, up to 11 hp and 9 ft-lbs of torque with a tune
- Mandrel-bent aluminum hot- and cold-side piping for increased durability
- Piping increased in size by 30 percent (42mm to 55mm) for increased flow capacity, ideal for tuned applications
- 5-layer, fiber-embedded silicone couplers with included hose clamps
- Reduced bend angles for more direct, efficient airflow
- Includes stock piping adapter kit, Mishimoto intercooler piping adapter kit, and shrouding kit
- Includes CARB EO sticker (CARB EO Number D-759-12) and mounting hardware
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-CIV-16KBKWRD
- Color Option: Black Intercooler, Red Piping
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Color: Black
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Intercooler Type: Air-to-Air
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Red
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Fit Type: Specific
- Weight: 19 lbs
- Engine Code: L15B7
- Chassis Codes: FC1, FC3, FK4, FK7
- CARB EO Number: D-759-12
- Installation Torque: 27 in-lbs (3NM) recommended for T-bolt and constant-tension T-bolt clamps, with an operating range of 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
Frequently Asked Questions
Which Honda Civic models fit the Mishimoto MMINT-CIV-16KBKWRD intercooler kit?
This kit is a direct fit for the 2016-2021 Honda Civic 1.5T and 2017-2020 Civic Si, covering trims such as DX, LX, EX, EX-L, EX-T, LX-P, Touring, Turbo, Turbo Plus, Coupe, SE, i-Style, Sport, Sport Touring, and Sport Plus, using the L15B7 engine on FC1, FC3, FK4, and FK7 chassis codes.
What is the core construction of this intercooler?
The intercooler uses an all-aluminum, bar-and-plate core construction with cast aluminum end tanks, replacing the factory tube-and-fin core and plastic end tanks.
How much do outlet air temperatures drop with this kit?
The Mishimoto intercooler drops outlet air temperatures by 20°F over the stock intercooler on the stock tune, and by up to 42°F once a performance tune is added.
What power gains can I expect from this intercooler kit?
The kit adds up to 4 hp and 8 ft-lbs of torque on stock tuning, with the potential for up to 11 hp and 9 ft-lbs of torque once a performance tune is applied.
What is included with this Mishimoto intercooler kit?

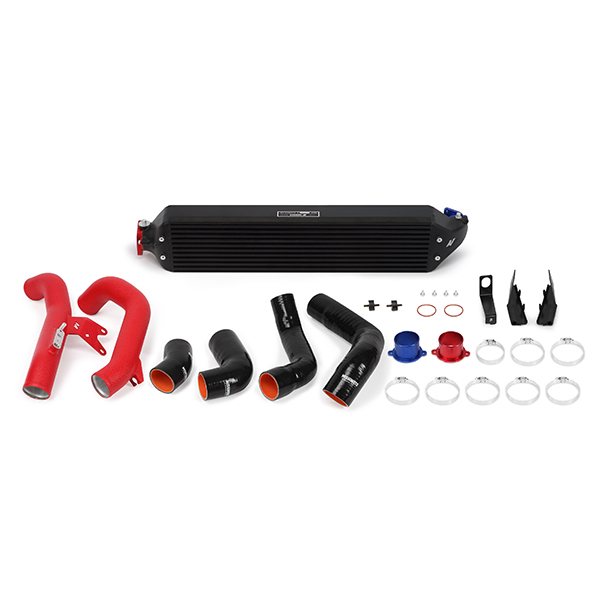

The kit includes (1) Mishimoto Intercooler, (2) Mandrel-Bent Intercooler Pipes, (4) Silicone Couplers, (1) Stock Piping Adapter Kit, (1) Mishimoto Intercooler Piping Adapter Kit, (1) Shrouding Kit, (1) CARB EO Sticker, mounting hardware, and the Mishimoto Lifetime Warranty.
Is this intercooler kit CARB legal?
Yes, it is issued under CARB EO Number D-759-12.
