Description
The Mishimoto MMINT-MUS4-15KWSL is a purpose-built bar-and-plate performance intercooler engineered specifically for the 2015-2023 Ford Mustang EcoBoost, delivering a 58-percent larger core and a 35 F (19.45 C) reduction in intake air temperature without requiring any modification to the vehicle. Because turbocharged 4-cylinder engines generate extremely hot charge air quickly and stock tube-and-fin intercoolers heat soak easily, Mishimoto designed this direct-fit unit to keep intake air temperatures consistently low run after run.
This kit brings a genuine forced induction upgrade to the Mustang’s induction system by pairing a high-efficiency intercooler core with matched hot-side and cold-side intercooler pipes, letting owners of a turbocharged induction engine update the entire charge-air path in one install. With a 25-percent increase in internal core volume and a 165-percent increase in external fin surface area, this performance induction upgrade is engineered to sustain cooling capacity under repeated hard pulls, whether on track or aggressive street driving, while the cast, CFD-tested end tanks and in-tank air diverter keep airflow moving efficiently through the forced induction system.
Vehicle Applications
This intercooler is a specific-fit part designed for the 2015-2023 Ford Mustang EcoBoost and Ford Mustang EcoBoost Premium, built on the S550 chassis with the 2.3L EcoBoost engine. It mounts in the factory intercooler location, working with the stock active grille shutters and avoiding airflow blockage to the radiator and AC condenser.
Features
- Direct fit for the 2015-2023 Ford Mustang EcoBoost, no modification required
- 35 F (19.45 C) reduction in intake air temperature
- 58-percent increase in core size
- 25-percent increase in internal core volume and 165-percent increase in external fin surface area
- Replaces hot-side and cold-side intercooler pipes and couplers
- Cast end tanks with an in-tank air diverter provide optimal flow through the intercooler
- Stock mounting location prevents airflow blockage to the radiator and AC condenser
- Installs in under 2 hours without removing the front bumper cover
- Retains stock active grille shutters for ideal aerodynamics when cooling demands are lower

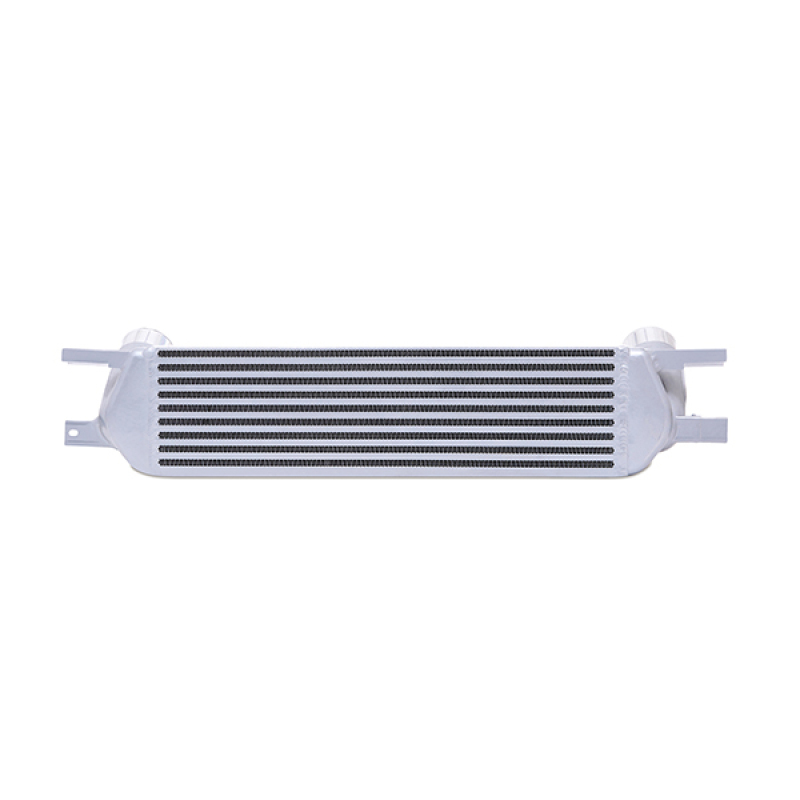

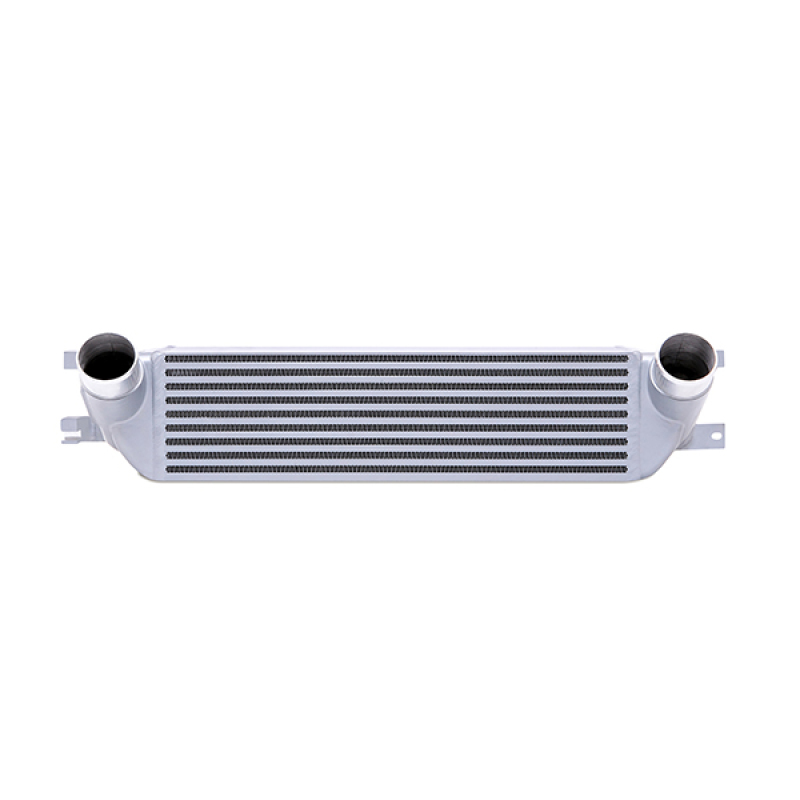

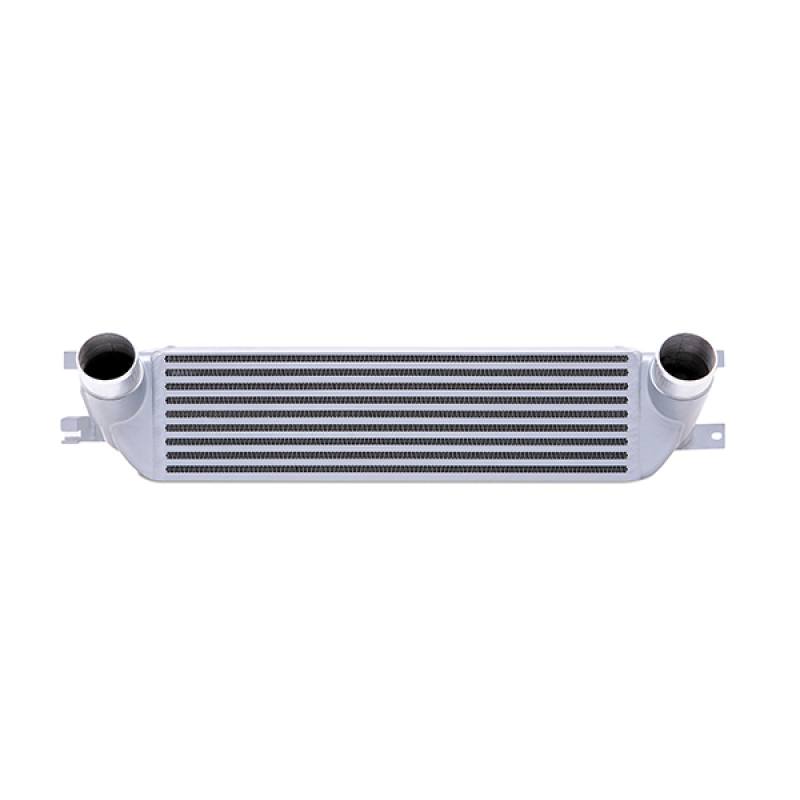

- Bar-and-plate core construction with all-aluminum, TIG-welded end tanks

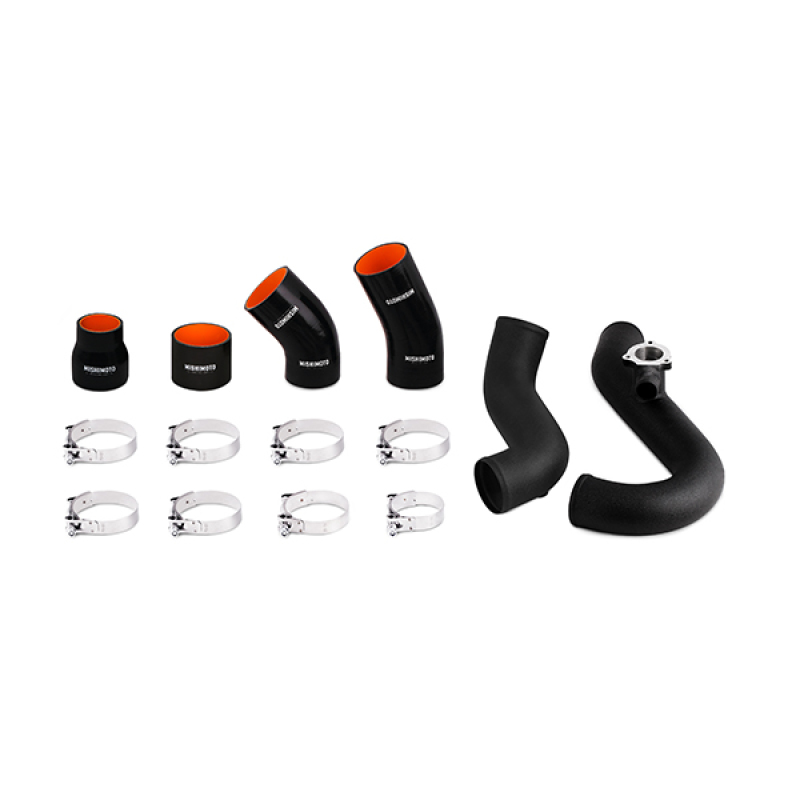

- 2.5-in hot-side and 2.75-in cold-side mandrel-bent aluminum piping eliminates restrictive bends
- CNC-machined BPV flange on the hot-side pipe allows quick installation of stock or stock-style BPVs
- Four-layer silicone couplers with heat-resistant embedded fibers
- Stainless steel T-bolt clamps for consistent, reliable holding power
- Intercooler available in Stealth Black or Sleek Silver finish; pipes available in polished silver or wrinkle black finish
Specifications
- Brand: Mishimoto
- Part Number: MMINT-MUS4-15KWSL
- Intercooler Type: Air-to-Air
- Core Construction: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Silver
- Core Height: 5.75 in
- Core Thickness: 2.76 in
- Core Length: 21.06 in
- Inlet Diameter: 2.56 in
- Outlet Diameter: 2.56 in
- Hot Side Pipe Inside Diameter: 2.56 in
- Cold Side Pipe Inside Diameter: 2.56 in
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Overall Height: 6.8 in
- Overall Length: 30.3 in
- Maximum Horsepower: 550
- Universal or Specific Fit: Specific
- Grade Type: Performance
- Chassis Codes: S550
- Engine Codes: 2.3L EcoBoost
- CARB EO Number: D-759-23

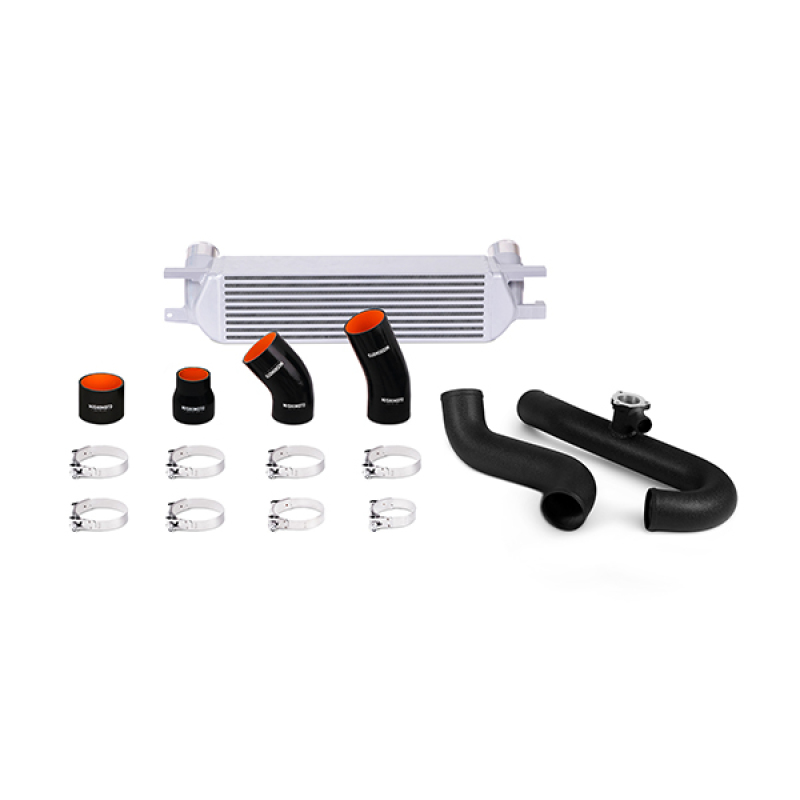

- Includes: (1) Mishimoto Intercooler, (1) Aluminum Pipe w/ CNC-Machined NPT Bung, (1) Aluminum Pipe w/ CNC-Machined BPV Flange, (4) Silicone Couplers, (1) 2.0-in T-bolt Clamp, (4) 2.75-in T-bolt Clamps, (3) 3.0-in T-bolt Clamps, (1) M6 x 1.0 x 20mm Flange Bolt, (1) M4 x 0.7 x 12mm Button Head Bolt, (1) M4 Lock Washer, (1) MAP Sensor O-Ring, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-MUS4-15KWSL intercooler fit?
This intercooler is a specific fit for the 2015-2023 Ford Mustang EcoBoost and Ford Mustang EcoBoost Premium, built on the S550 chassis with the 2.3L EcoBoost engine.
How much does this intercooler reduce intake air temperature?
Mishimoto states this intercooler provides a 35 F (19.45 C) reduction in intake air temperature.
Does installing this intercooler require any modification to the Mustang?
No. It is a direct-fit unit that requires no modification and installs in under 2 hours without removing the front bumper cover. It also retains the stock active grille shutters and mounts in the stock location to avoid blocking airflow to the radiator and AC condenser.
What is included in the kit?
The kit includes the Mishimoto intercooler, an aluminum pipe with a CNC-machined NPT bung, an aluminum pipe with a CNC-machined BPV flange, four silicone couplers, one 2.0-in T-bolt clamp, four 2.75-in T-bolt clamps, three 3.0-in T-bolt clamps, an M6 x 1.0 x 20mm flange bolt, an M4 x 0.7 x 12mm button head bolt, an M4 lock washer, a MAP sensor O-ring, and the Mishimoto Lifetime Warranty.
Can this intercooler retain the stock blow-off valve (BPV)?
Yes, the hot-side pipe features a CNC-machined BPV flange that allows for quick installation of a stock or stock-style BPV.
What is the maximum horsepower rating for this intercooler?
Mishimoto lists a maximum horsepower rating of 550 for this intercooler.
