Description
The Mishimoto Intercooler Mounting Hardware Kit, part number MMINT-MTKT-M8, is a purpose-built hardware set for builders who have moved past off-the-shelf brackets and are fabricating their own intercooler mounting solutions. Rather than a fixed bracket, this kit hands you the pieces — 4 stainless steel M8 bolts, 4 rubber bushings, and 4 bushing inserts — needed to create a proper rubber-isolated mount on hardware you design yourself.
Custom builds in the forced induction world rarely follow a template, and this hardware kit exists to bridge that gap between a fabricated bracket and a secure, vibration-dampened intercooler installation. By pairing the included bushings and bushing inserts with your own mounting tabs, you gain a rubber bushing mounting setup normally reserved for factory-style hardware, even on a totally custom chassis or engine swap. It’s a small kit with an outsized role in any forced induction system build, giving fabricators the flexibility to mount an intercooler securely without sourcing mismatched bolts, bushings, and inserts separately. The kit is classified as a Performance grade product and is designed to work specifically with Mishimoto’s own universal intercooler lineup.
Vehicle Applications
This is a universal intercooler mounting hardware kit designed to fit with Mishimoto M-Line, R-Line, S-Line, and G-Line Universal Intercoolers. Because it is intended for custom fabrication rather than a specific vehicle, it is suited to any project running one of these Mishimoto universal intercooler cores, from engine swaps to one-off forced induction builds where a factory mounting bracket simply doesn’t exist.
Features
- Universal intercooler mounting hardware kit

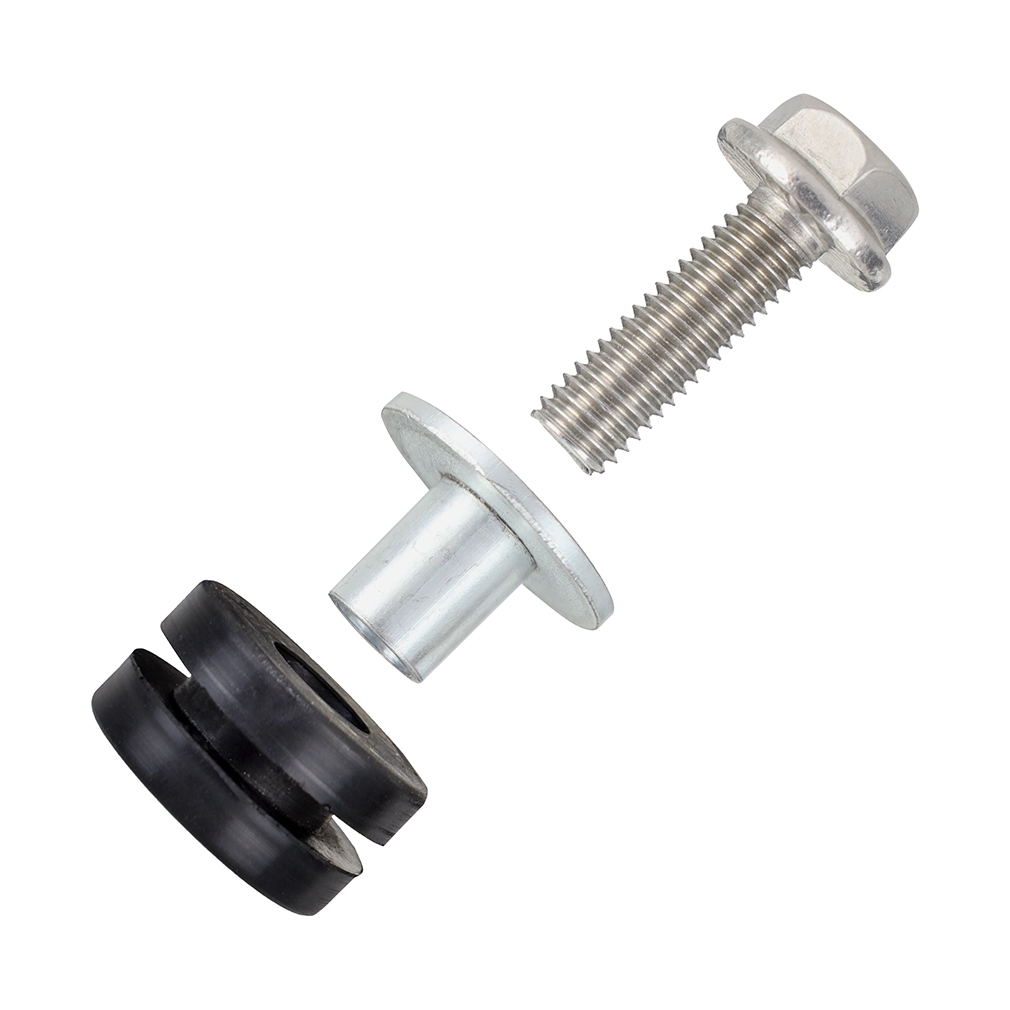

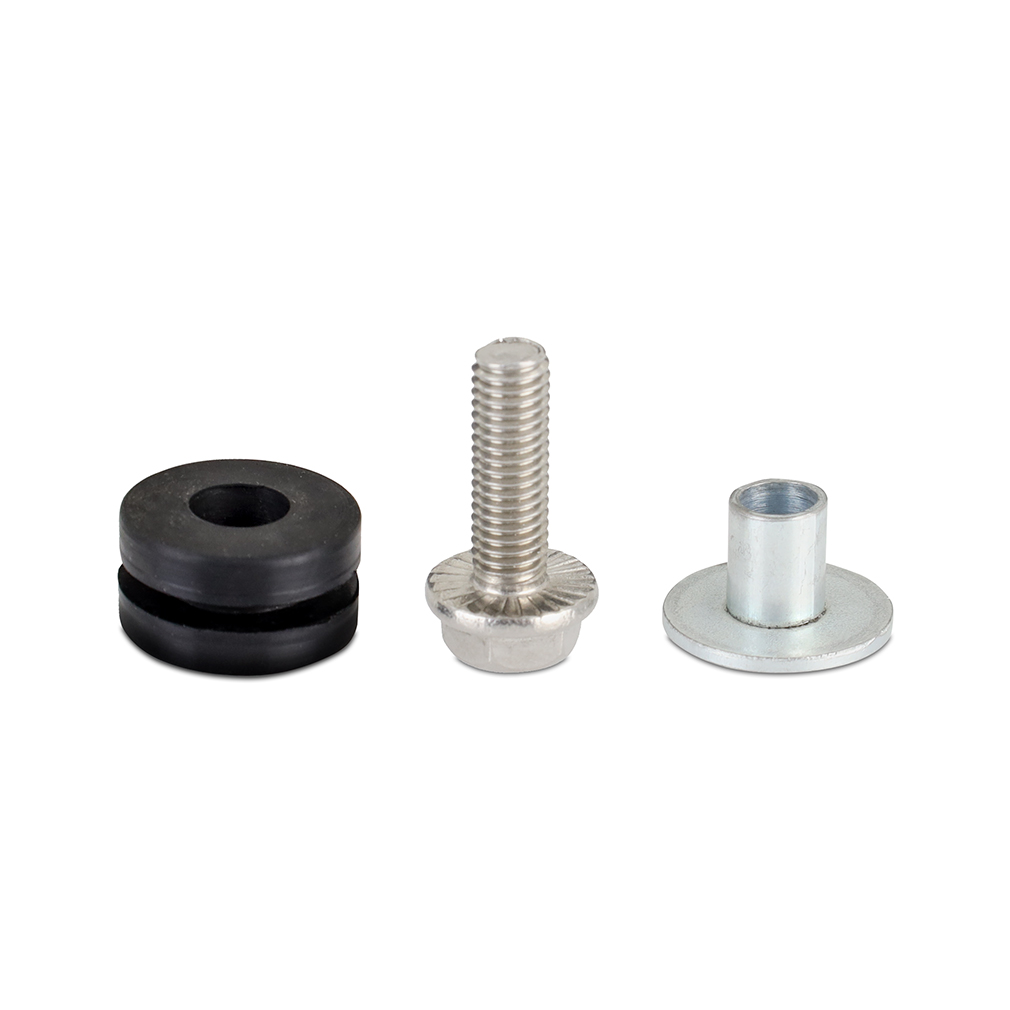

- Includes 4 stainless steel M8 bolts, 4 bushings, and 4 bushing inserts
- Fits with Mishimoto M-Line, R-Line, S-Line, and G-Line Universal Intercoolers

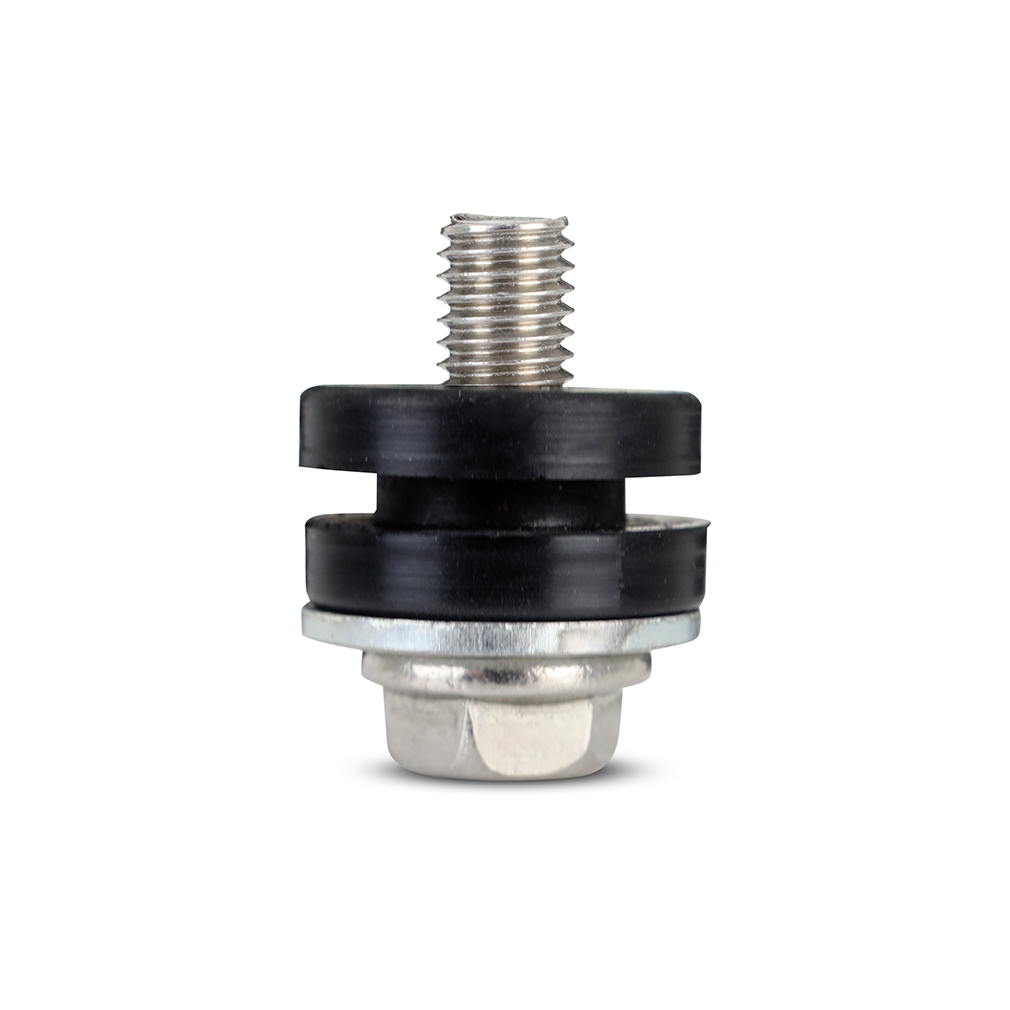

- Allows you to utilize rubber bushing mounts with your own custom fabricated brackets
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-MTKT-M8
- Product Type: Forced Induction
- Grade Type: Performance
- Includes: (4) M8 Bolts, (4) Bushings, (4) Bushing Inserts, Mishimoto Lifetime Warranty
- Required hole size for grommet: 5/8-inch
- Maximum material thickness: 1/8-inch
- Warranty: Mishimoto Lifetime Warranty
Frequently Asked Questions
What does the Mishimoto Intercooler Mounting Hardware Kit include?
The kit includes 4 M8 stainless steel bolts, 4 rubber bushings, and 4 bushing inserts, plus the Mishimoto Lifetime Warranty.
What intercoolers does the MMINT-MTKT-M8 kit fit?
It is designed to fit with Mishimoto M-Line, R-Line, S-Line, and G-Line Universal Intercoolers.
Can this hardware kit be used with custom fabricated brackets?
Yes, it allows you to utilize a rubber bushing mounting setup even with your own custom mounting brackets.
What hole size and material thickness does this kit require?
The required hole size for the grommet is 5/8-inch, with a maximum material thickness of 1/8-inch.
Is this kit covered by a warranty?
Yes, it comes with the Mishimoto Lifetime Warranty.
