Description
The Mishimoto Intercooler and Pipe Kit (MMINT-MUS4-24KBKP) is a direct-fit bar-and-plate intercooler and pipe upgrade purpose-built for the 2024+ Ford Mustang EcoBoost. This Black Cooler / Polished Pipes configuration swaps in a larger core with cast aluminum end tanks in the stock location and pairs it with high-flow aluminum hot-side and cold-side pipes, giving this factory-look forced induction upgrade a standout, no-tune power gain.
As a dedicated forced induction system component, this Mishimoto intercooler and pipe kit works within your Mustang’s induction system to pull heat out of compressed air before it reaches the engine, supporting the factory forced induction turbo hardware rather than replacing it. The bar-and-plate core sees a 60% increase in core volume over stock, while oversized 2.44-inch inlets and outlets, a diverter plate for even air distribution, foam sealing strips, and a custom-formed air deflector work together to maximize airflow through the core and reduce noise and vibration. Mishimoto states this performance induction upgrade can deliver gains of up to 12 hp and 11 ft-lbs of torque on a stock tune, with charged-air outlet temperatures reduced by up to 60°F, plus a pre-drilled NPT port for auxiliary sensors or data logging.
Vehicle Applications

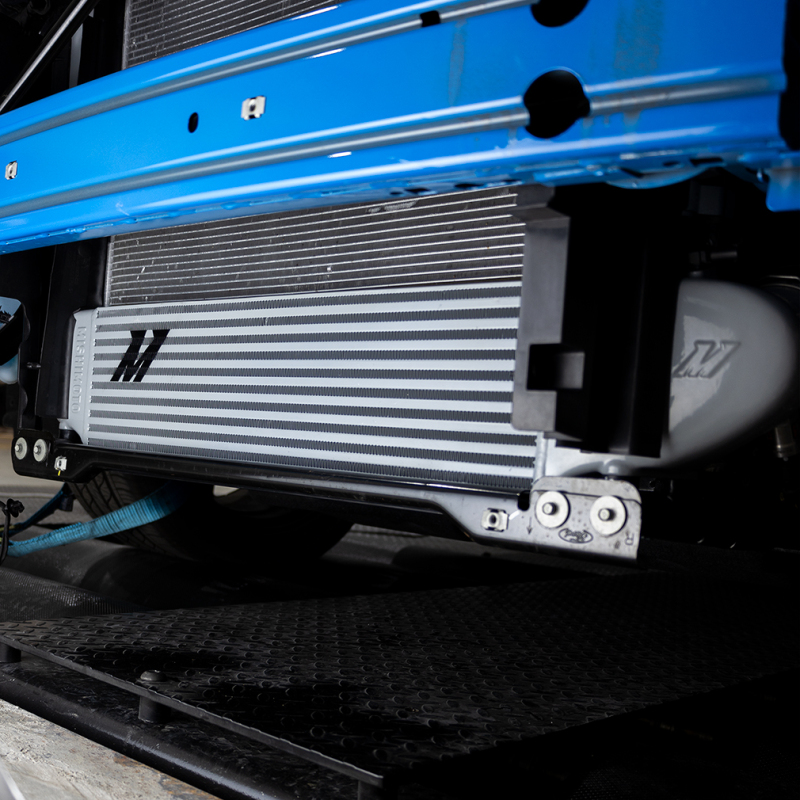

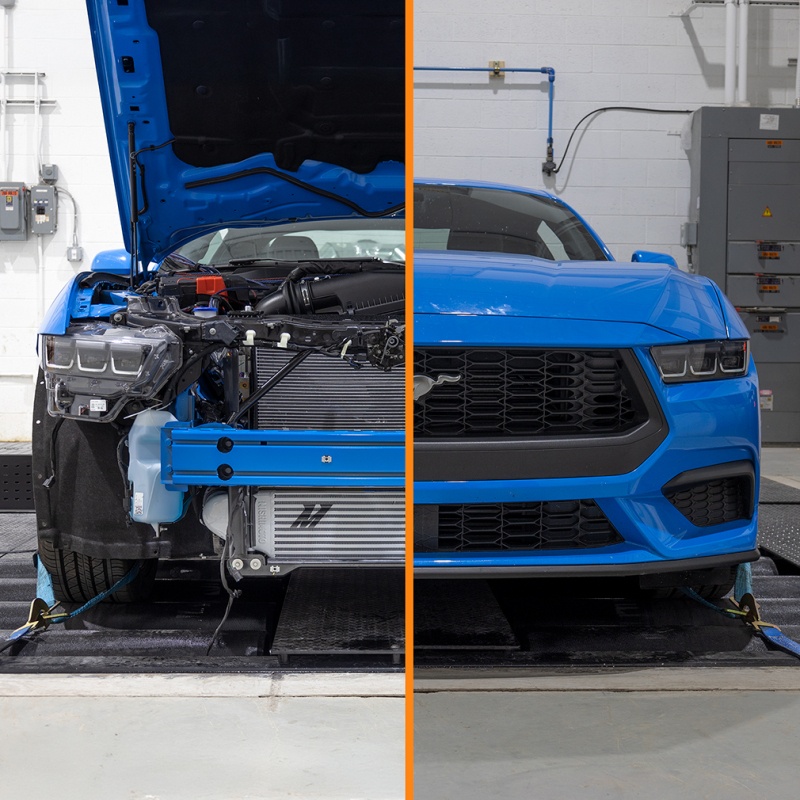

This kit is a specific-fit part engineered for the 2024–2026 Ford Mustang EcoBoost and Mustang EcoBoost Premium, built on the S650 chassis and equipped with the 2.3L EcoBoost I4 engine. It is not a universal forced induction turbo kit — fitment is limited to this exact platform and year range.
Features

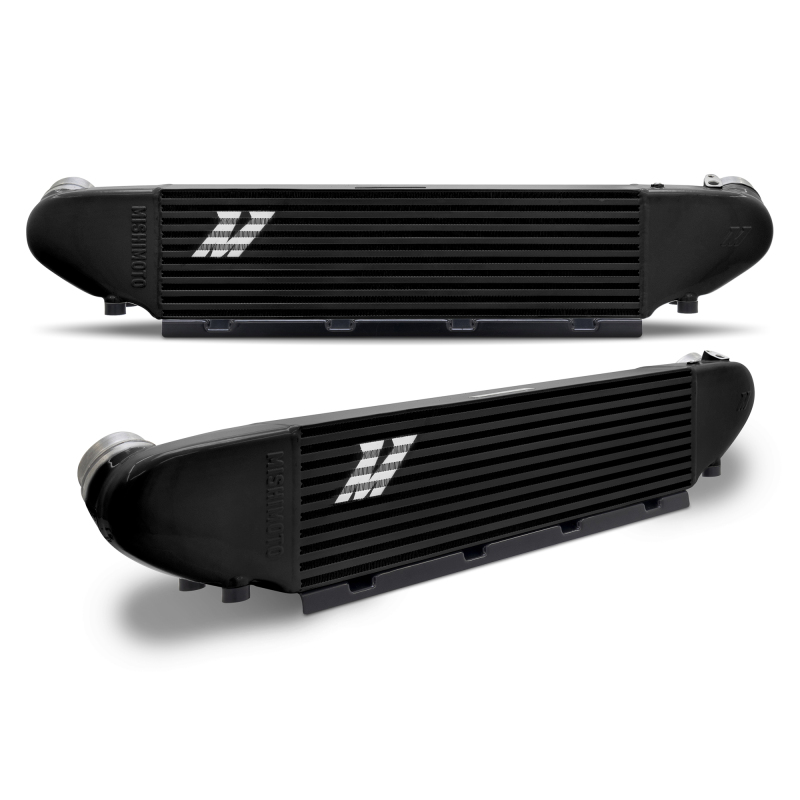

- Bar-and-plate core with cast aluminum end tanks delivers a 60% increase in core volume over stock while retaining the factory mounting location
- Oversized 2.44-inch inlets and outlets improve flow, with a diverter plate in the hot-side end tank for even air distribution
- Foam sealing strips and a custom-formed air deflector maximize airflow through the core and reduce noise and vibration

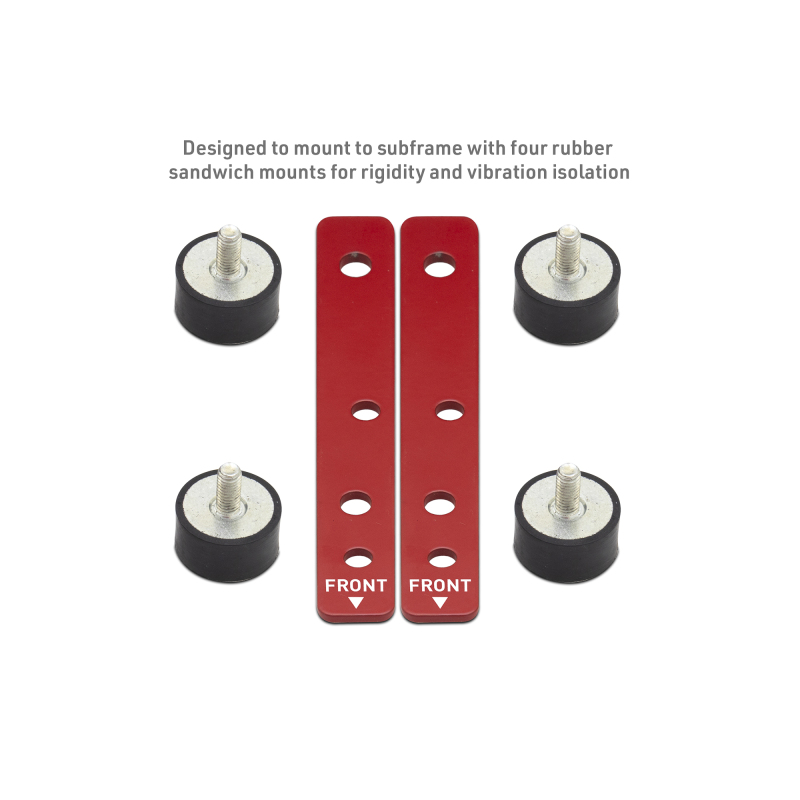

- Four EPDM rubber sandwich mounts isolate vibration and add rigidity, mounting to the subframe
- Gains of up to 12 hp and 11 ft-lbs of torque possible on a stock tune, with charged-air outlet temperatures reduced by up to 60°F
- Cast turbo outlet elbow integrates the blow-off valve seat and retains factory harness clipping points for a clean install

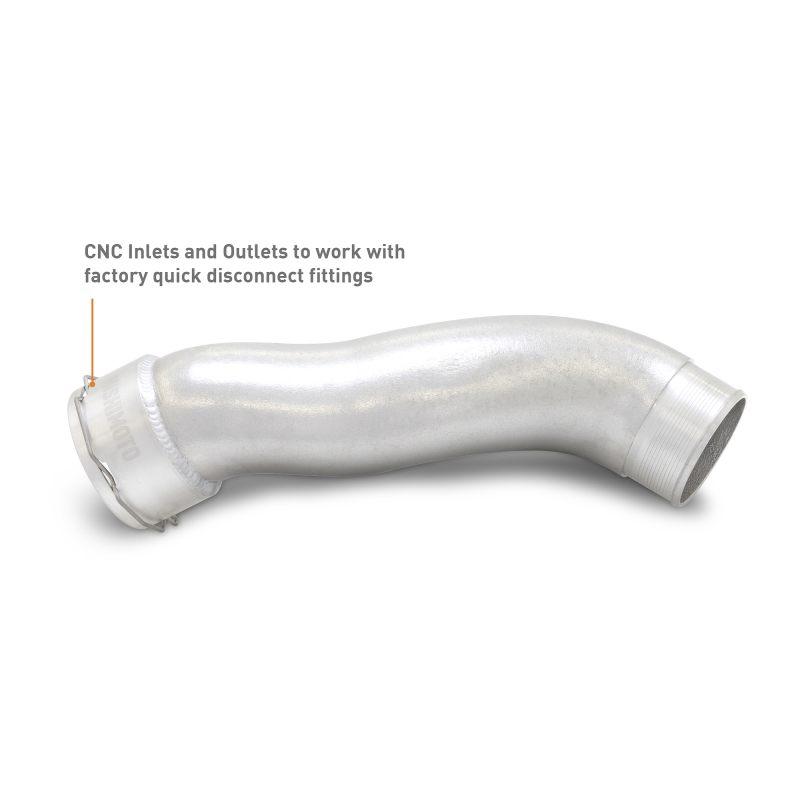

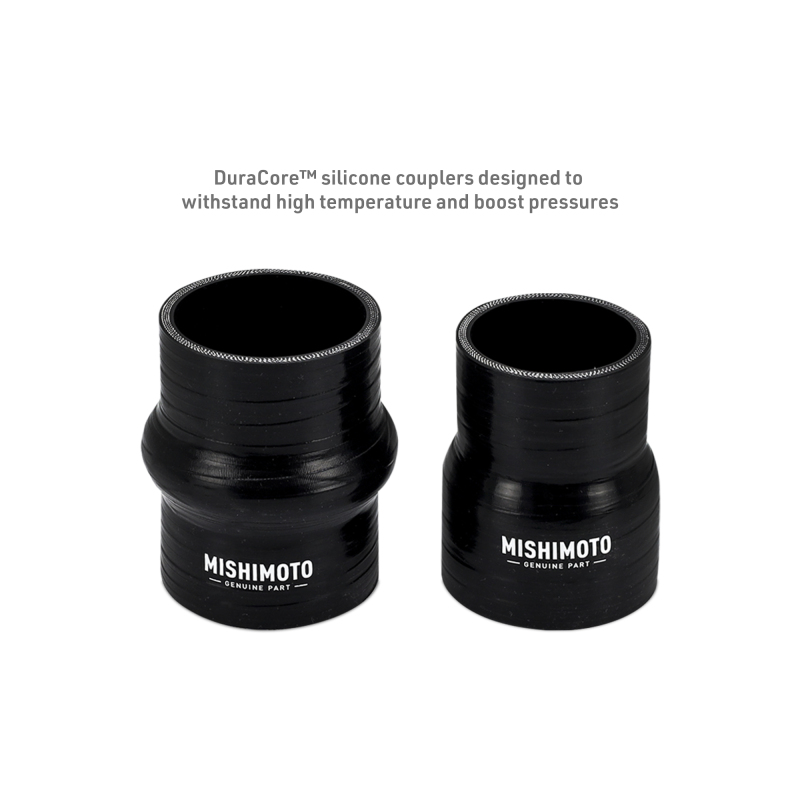

- CNC-machined quick-disconnect fittings, DuraCoreâ„¢ silicone couplers, and high-torque worm-gear clamps for secure, high-flow connections
- ID-matched transition coupler on the cold side for smooth airflow into the intercooler

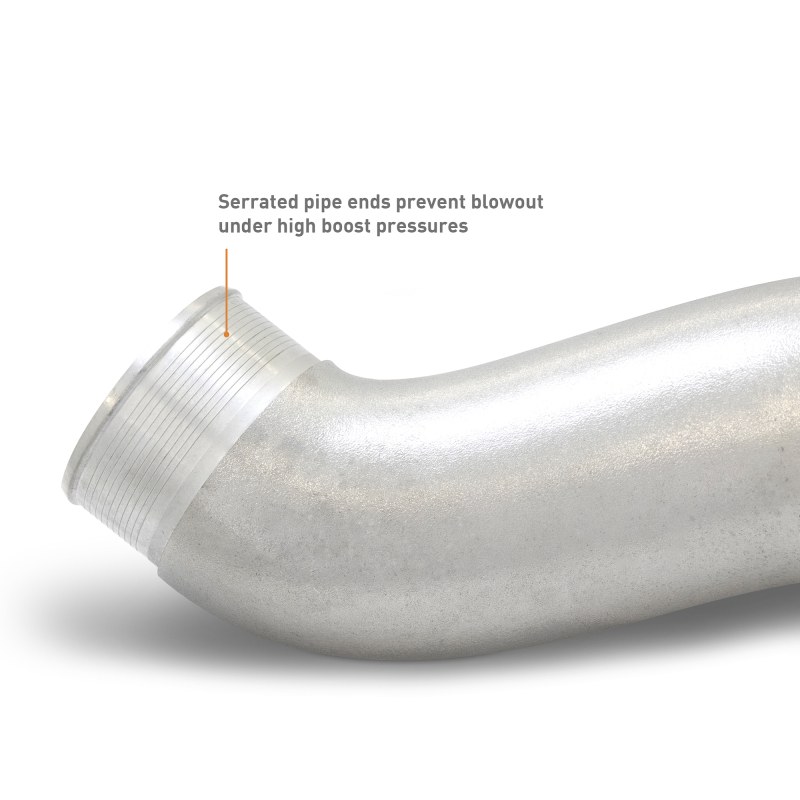

- Cast end sections on both pipes provide a smooth transition for maximum airflow and precise fitment
- Extra clearance allows compatibility with the Mishimoto performance radiator

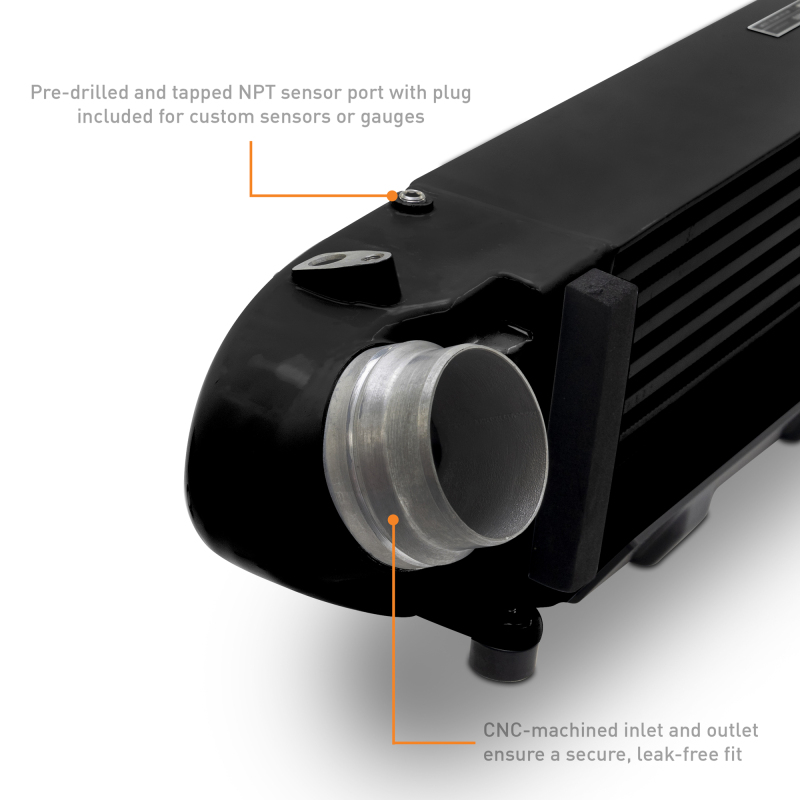

- Pre-drilled NPT port for auxiliary sensors or data logging
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Core Height: 6.08 in
- Core Thickness: 3.54 in
- Core Length: 22.83 in
- Core Color: Black
- Intercooler Type: Air-to-Air
- Inlet/Outlet Diameter: 2.44 in
- Hot Side Pipe Inside Diameter: 2.44 in
- Cold Side Pipe Inside Diameter: 2.44 in
- Pipe Material: Aluminum
- Pipe Color: Polished
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Overall Length: 35.7 in
- Overall Width: 5.3 in
- Overall Height: 6.5 in
- Weight: 17 lbs
- Maximum Horsepower: 526 hp
- Maximum Boost Pressure: 50 PSI
- Grade Type: Performance
- Fit Type: Specific
Frequently Asked Questions
What vehicles fit the Mishimoto MMINT-MUS4-24KBKP intercooler and pipe kit?
This kit is a specific-fit part for the 2024–2026 Ford Mustang EcoBoost and Mustang EcoBoost Premium, equipped with the 2.3L EcoBoost I4 engine on the S650 chassis.
Does this intercooler kit require a tune?
No. Mishimoto states gains of up to 12 hp and 11 ft-lbs of torque are possible with no tuning required on a stock tune.
What is the maximum horsepower and boost this intercooler supports?

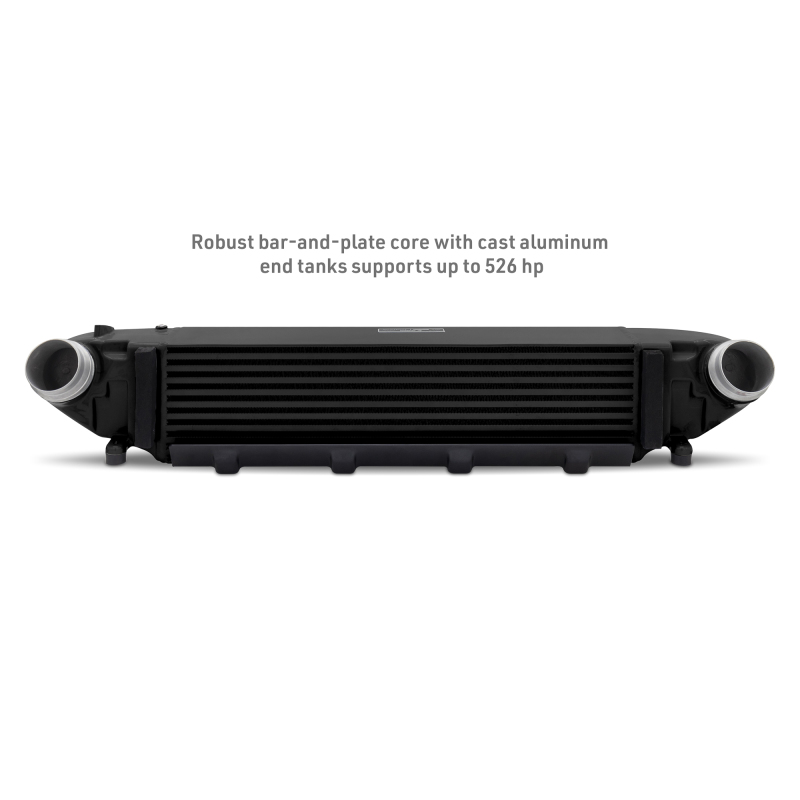

The kit’s bar-and-plate core with cast aluminum end tanks supports up to 526 hp and a maximum boost pressure of 50 PSI.
What finishes are available for this kit?
This kit (MMINT-MUS4-24KBKP) comes with a Black core and Polished pipes; Mishimoto also offers the intercooler in silver or black and the pipes in polished or wrinkle black finishes.

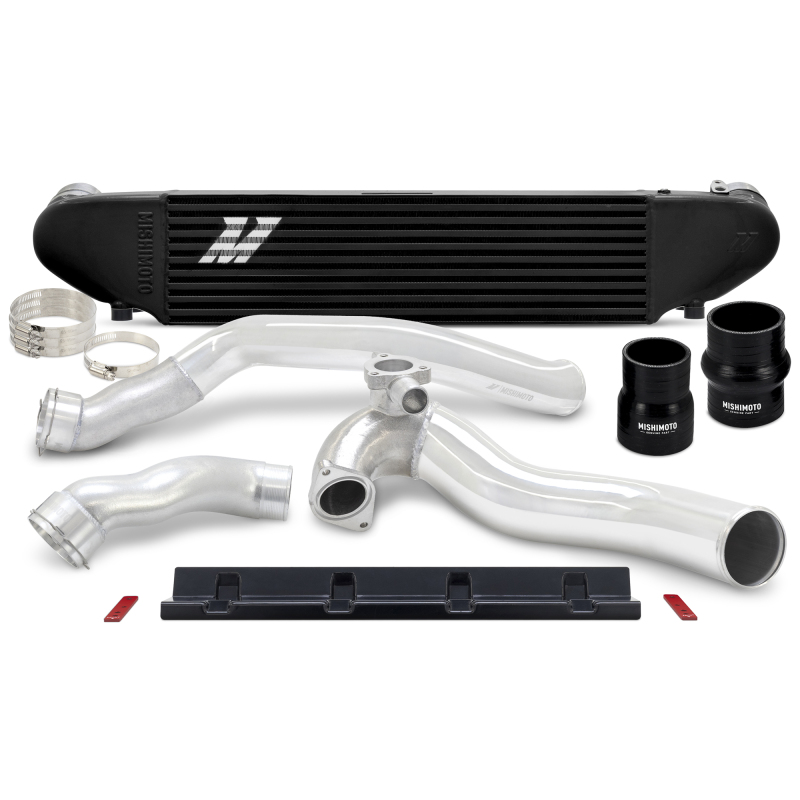

What is included with the Mishimoto Intercooler and Pipe Kit?
The kit includes one Mishimoto Performance Intercooler, one Deflector Panel Kit, one Bracket Kit, two Hot Side Pipes, one Cold Side Pipe, two DuraCore couplers, four spring clamps, two O-rings, three buttonhead locking bolts, a tree clip zip tie, and the Mishimoto Lifetime Warranty.
How much does the intercooler and pipe kit reduce intake temperatures?
According to Mishimoto, the kit reduces charged-air temperatures at the outlet by up to 60°F.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
