Description
The Mishimoto Intercooler Pipe Kit (MMICP-MK7-15KP) replaces the restrictive factory charge piping on the MK7-platform hot hatch with a forced induction system engineered for higher boost. Instead of plastic and rubber sections prone to bends and degradation, this kit swaps in mandrel-bent aluminum pipe and heat-resistant 5-layer silicone couplers, and it’s offered here in a polished finish to match a cleaned-up engine bay.
Mishimoto built this kit to correct the core weaknesses of the stock induction system: too many bends, a narrow bore, and materials that break down under sustained boost. By straightening the path and increasing the average pipe diameter, the kit delivers a 30-percent increase in flow over stock components and a 10-percent increase in average diameter over the factory piping, improving reliability of the forced induction system when running higher boost or an aftermarket tune. The result is a sturdier, longer-lasting connection between the turbo and intercooler that’s built to handle the demands of a performance induction setup.
Vehicle Applications
This intercooler pipe kit is designed around the MK7, 8V, and FV chassis codes and covers a wide span of Volkswagen and Audi turbocharged models. On the Volkswagen side, it fits Golf GTI trims from 2015 through 2021, Golf R trims from 2015 through 2019, and select Golf trims (including S, SE, SportWagen, TSi, and Wolfsburg Edition) from 2017 through 2021. On the Audi side, it fits A3 and S3 trims from 2015 through 2020, along with TT trims from 2015 through 2021 and TTS trims from 2016 through 2021. Note that this kit is compatible with the EA888 Gen3 engine paired with a manual or 6-speed DSG transmission only; the hot-side intercooler piping may not fit properly on vehicles equipped with a 7-speed DSG.
Features
- 30-percent increase in flow over stock components
- 10-percent increase in average diameter over stock piping
- Increases reliability under high boost conditions

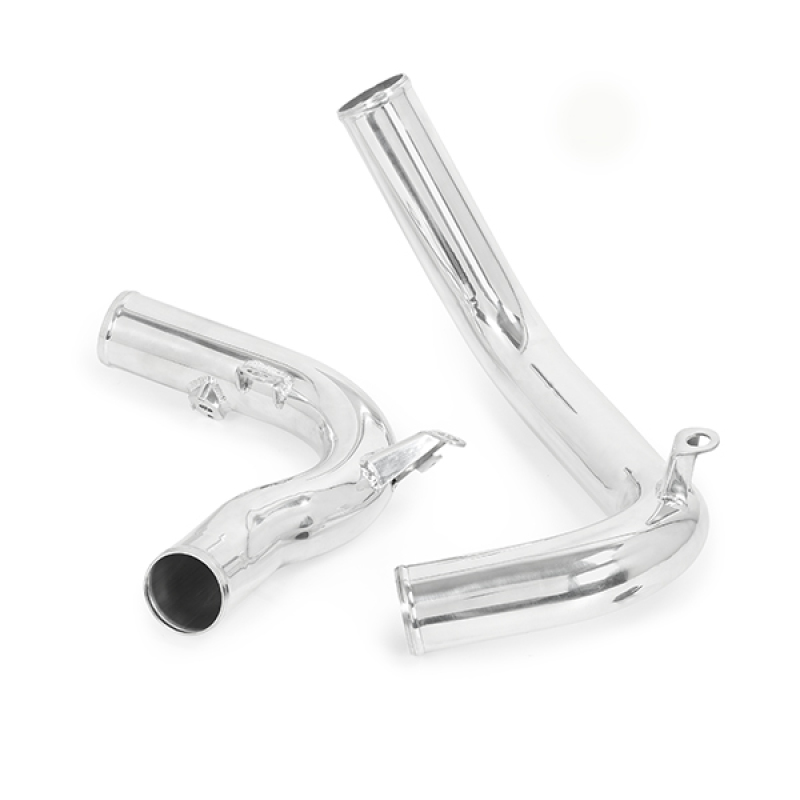

- Mandrel-bent aluminum piping

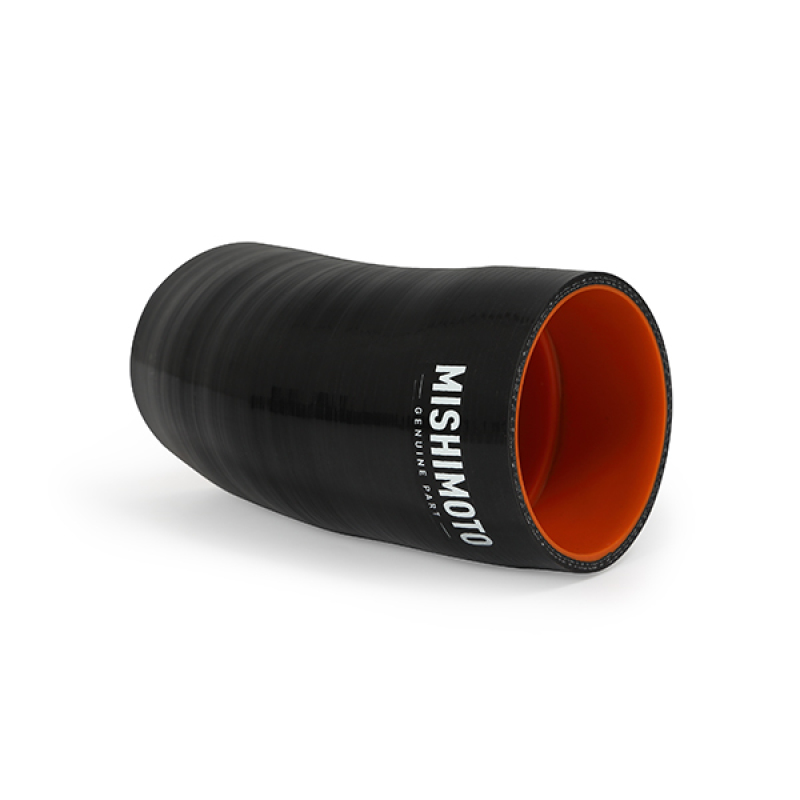

- Durable 5-layer silicone couplers
- Available in polished or wrinkle black finishes

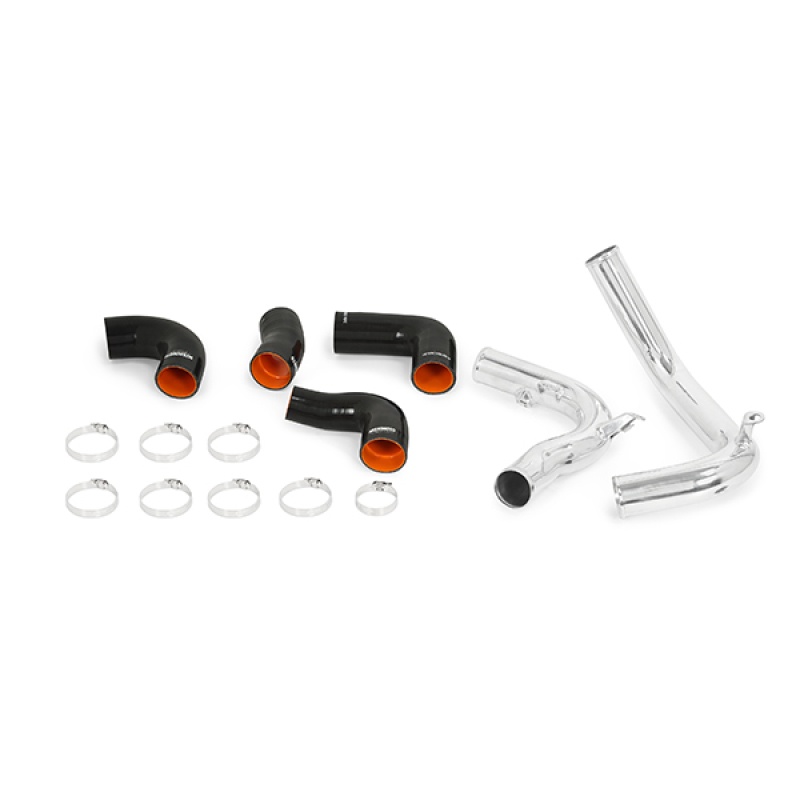

- Includes (1) hot-side intercooler pipe, (1) cold-side intercooler pipe, (4) silicone couplers, and (8) high-torque worm gear hose clamps
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-MK7-15KP
- Product Type: Forced Induction
- Pipe Material: Aluminum
- Pipe Color: Polished
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Chassis Codes: MK7, 8V, FV
- Listed Applications: 2015-2021 Volkswagen Golf TSI, 2015-2021 Volkswagen GTI, 2015-2021 Volkswagen Golf R, 2013-2021 Audi A3/S3, 2014-2021 Audi TT/TTS
- Installation Note: 27 in-lbs (3NM) recommended for T-bolt and constant-tension T-bolt clamps; operating range is 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM)
- Compatibility Note: Compatible with the EA888 Gen3 engine and manual or 6-speed DSG transmissions only; hot-side piping may not fit properly on vehicles with 7-speed DSG
Frequently Asked Questions
How much of an airflow increase does the Mishimoto MK7 Intercooler Pipe Kit provide?
According to Mishimoto, this kit delivers a 30-percent increase in flow over the stock components, along with a 10-percent increase in average diameter over the factory piping.
What materials are used in this intercooler pipe kit?
The kit uses mandrel-bent aluminum piping paired with durable 5-layer silicone couplers to create a sturdy, long-lasting connection to and from the intercooler.
What’s included with the Mishimoto MK7 Intercooler Pipe Kit?
The kit includes one hot-side intercooler pipe, one cold-side intercooler pipe, four silicone couplers, eight high-torque worm gear hose clamps, and the Mishimoto Lifetime Warranty.
Is this kit compatible with 7-speed DSG transmissions?
This kit is compatible with the EA888 Gen3 engine and manual or 6-speed DSG transmissions only. The hot-side intercooler piping may not fit properly on vehicles equipped with 7-speed DSG transmissions.
What finish options are available for this kit?
Mishimoto offers this MK7 Intercooler Pipe Kit in a polished or wrinkle black finish; this listing is for the polished finish.
Which vehicles does this intercooler pipe kit fit?
It fits Volkswagen Golf GTI trims from 2015-2021, Golf R trims from 2015-2019, select Golf trims from 2017-2021, Audi A3 and S3 trims from 2015-2020, Audi TT trims from 2015-2021, and Audi TTS trims from 2016-2021, built around the MK7, 8V, and FV chassis codes.
