Description

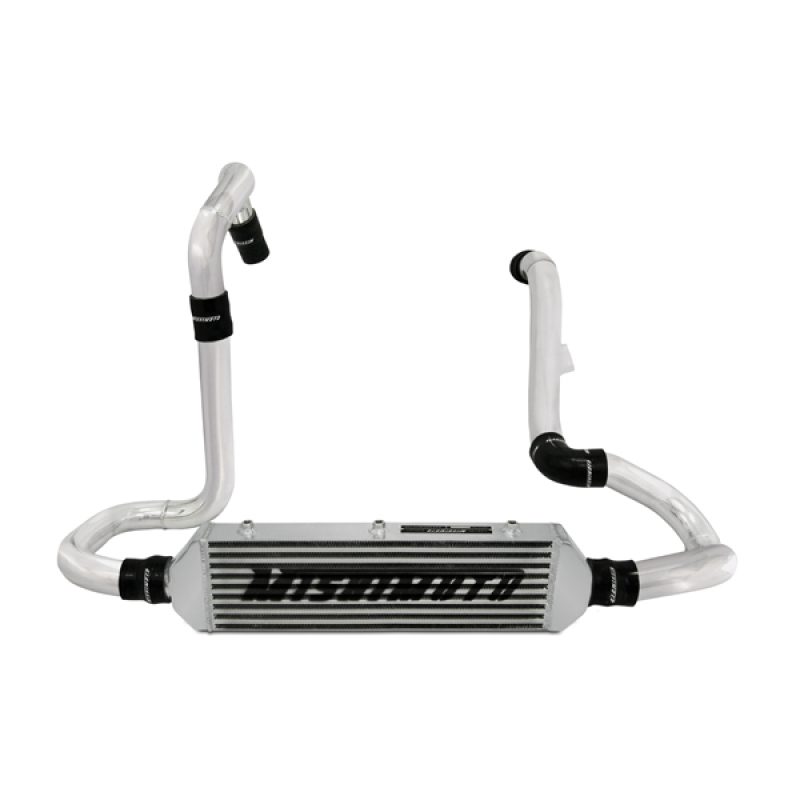

The Mishimoto MMINT-GEN4-10SL is a purpose-built forced induction upgrade engineered specifically for the 2010-2012 Hyundai Genesis Coupe 2.0T, replacing an OEM intercooler setup that simply was not designed to handle higher boost. This complete intercooler and piping kit pairs a bar-and-plate aluminum core with a full run of mandrel-bent aluminum charge piping, silicone couplers, and t-bolt clamps for a true direct bolt-on installation.
Because OEM intercoolers are not built for the demands of a modified turbocharged engine, this Mishimoto forced induction system is designed to reduce intake temperatures and increase overall cooling efficiency, supporting a safe increase in horsepower. As a performance induction upgrade, the kit retains OEM fitment, so there is no need to modify the front bumper or remove the crash bar as is common with other aftermarket induction system kits. Smooth cast end tanks improve airflow in and out of the intercooler, while the lightweight aluminum piping eliminates the restrictive bends found in the stock piping. The kit is also compatible with both the OEM radiator and the Mishimoto Hyundai Genesis Aluminum Radiator, and for a cleaner look, only one side of the intercooler carries the Mishimoto logo.
Vehicle Applications
This Mishimoto intercooler and piping kit is a specific fit for the 2010-2012 Hyundai Genesis Coupe 2.0T, including the 2.0T GT, 2.0T Premium, and 2.0T R-Spec trims for model years 2010-2012, as well as the 2.0T Track trim for 2010. Note that this item is for manual transmission vehicles only, and it does not fit with the factory air dam or the front factory splash shield.
Features
- Direct fit for 2010-2012 Hyundai Genesis Coupe 2.0T
- Bar-and-plate aluminum intercooler core with cast aluminum end tanks for optimized airflow

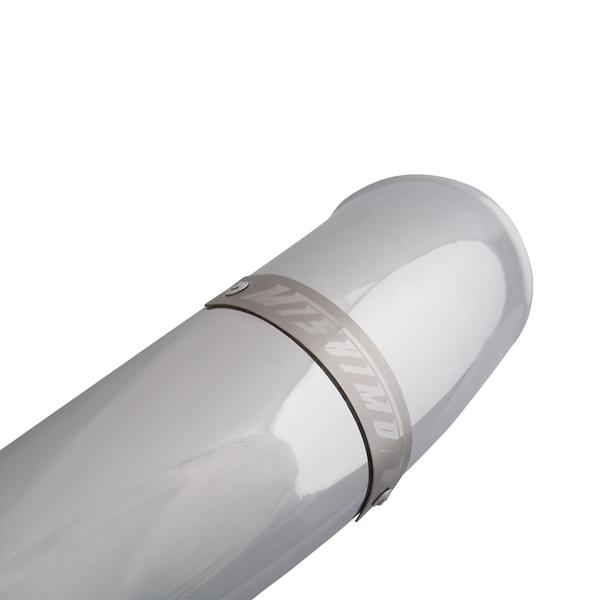

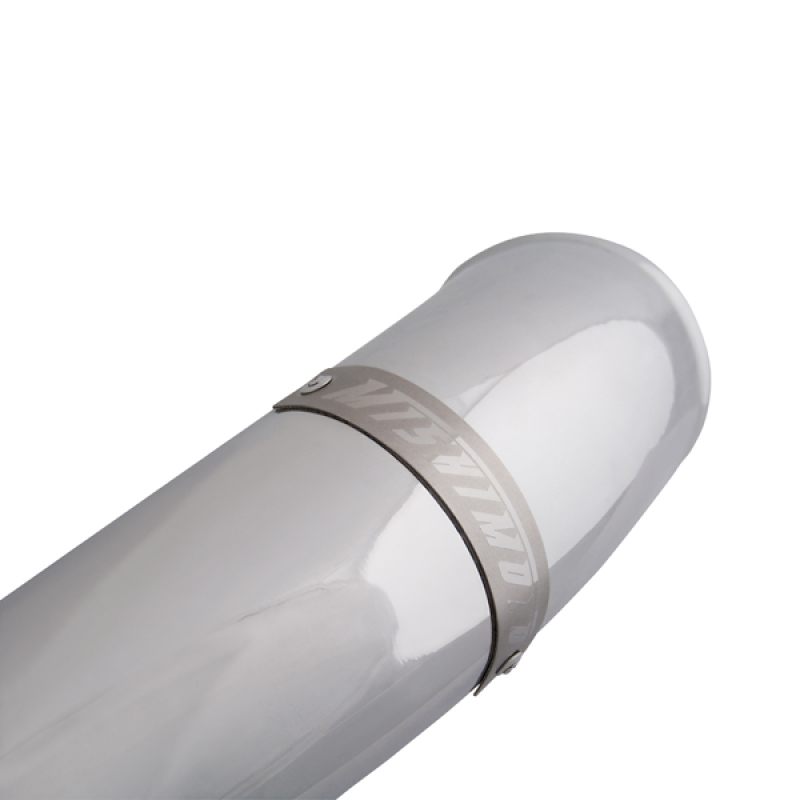

- Lightweight, mandrel-bent aluminum charge piping eliminates restrictive bends found in stock piping
- No modifications to the front bumper or removal of the crash bar are necessary

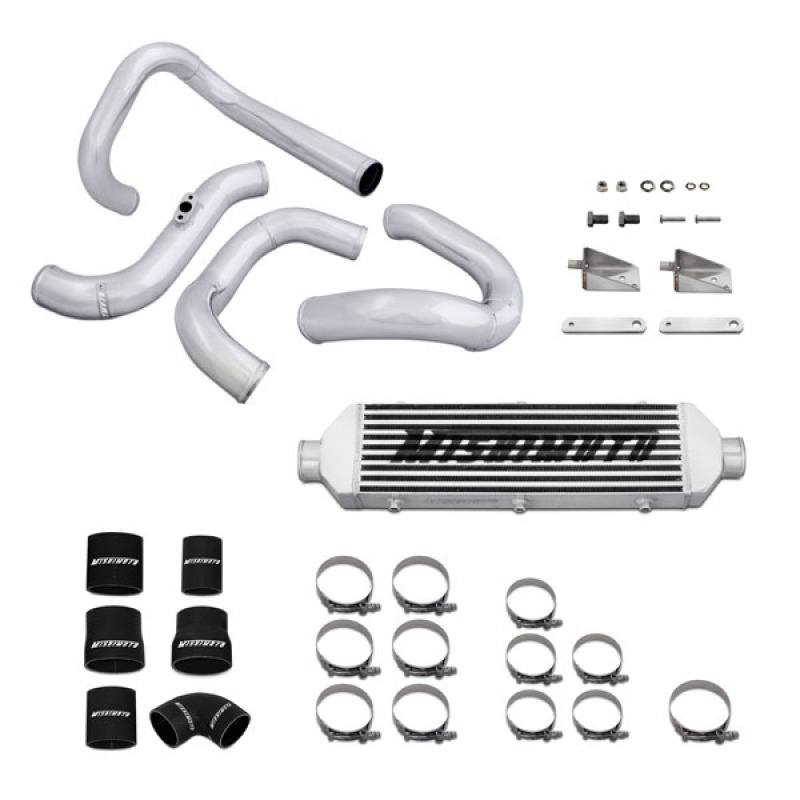

- Includes all necessary silicone couplers, t-bolt clamps, brackets, and accessories for a complete install
- Intercooler available in Sleek Silver, Stealth Black, or Bold Gold
- Compatible with the OEM radiator as well as the Mishimoto Hyundai Genesis Aluminum Radiator
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core material: Aluminum
- Core construction: Bar-and-plate
- Core color: Silver
- Core height: 6.25 in
- Core length: 20.5 in
- Core thickness: 3.35 in
- Intercooler type: Air-to-air
- End tank construction: Cast
- End tank material: Aluminum
- Inlet diameter: 2.5 in
- Outlet diameter: 2.5 in
- Pipe material: Aluminum
- Pipe color: Silver
- Pipe finish: Powder coated
- Coupler material: Silicone
- Coupler color: Black
- Hose clamps included: Yes
- Maximum boost pressure: 22 PSI
- Grade type: Performance
- Fit type: Specific
- Overall width: 2.5 in
- Overall height: 7.5 in
- Overall length: 28 in
- CARB EO Number: D-759
Frequently Asked Questions
What vehicles does this Mishimoto intercooler and piping kit fit?
It is a specific fit for the 2010-2012 Hyundai Genesis Coupe 2.0T, including the 2.0T GT, 2.0T Premium, and 2.0T R-Spec trims for 2010-2012, and the 2.0T Track trim for 2010.
Does installing this kit require modifying the front bumper?
No. The kit retains OEM fitment, so no modifications to the front bumper or removal of the crash bar are necessary.
What is the maximum boost pressure this intercooler kit supports?
The maximum boost pressure is 22 PSI.
What type of core does the Mishimoto intercooler use?
It uses a bar-and-plate aluminum core with cast aluminum end tanks in an air-to-air design.
Will this kit work with an automatic transmission Genesis Coupe?
This item is for manual transmission vehicles only, and it does not fit with the factory air dam or front factory splash shield.
What color options are available for this intercooler?
The intercooler is available in Sleek Silver, Stealth Black, or Bold Gold.
