Description
The Mishimoto MMINT-GEN4-10G is a gold bar-and-plate Z Line intercooler and piping kit engineered specifically for the 2010-2012 Hyundai Genesis Coupe 2.0T. Unlike many aftermarket forced induction upgrades that demand front bumper surgery and crash bar removal, this kit is built to retain OEM fitment for a genuinely direct bolt-on installation. Only one side of the intercooler carries the Mishimoto logo, keeping the finished look clean on the vehicle.
Stock intercooler and piping setups simply weren’t designed for the added boost that comes with a modified turbocharged engine, and this Mishimoto forced induction system addresses that shortfall directly. By pairing a larger bar-and-plate aluminum core with a complete induction system of mandrel-bent aluminum charge piping, the kit reduces intake temperatures and improves overall cooling efficiency, supporting a safe increase in horsepower. As a performance induction upgrade, it’s rated for use up to 22 PSI of boost pressure, giving tuners a meaningful step up over the factory core while keeping the installation straightforward with included t-bolt clamps and silicone couplers.
Vehicle Applications
This intercooler and piping kit is a specific fit for the 2010-2012 Hyundai Genesis Coupe 2.0T, including the 2.0T GT, 2.0T Premium, and 2.0T R-Spec trims, as well as the 2010 Genesis Coupe 2.0T Track. It is designed for manual transmission vehicles and does not fit with the factory air dam or the front factory splash shield. The kit is also compatible with both the OEM radiator and the Mishimoto Hyundai Genesis Aluminum Radiator.
Features
- Direct fit for 2010-2012 Hyundai Genesis Coupe 2.0T
- Smooth cast end tanks allow the best possible airflow in and out of the intercooler
- Lightweight, mandrel-bent, aluminum pipes eliminate restrictive bends found in the stock piping
- No modifications to the front bumper or removal of the crash bar are necessary
- Includes all necessary couplers, brackets, and accessories for a complete forced induction upgrade
- Intercooler available in Sleek Silver, Stealth Black, or Bold Gold; this kit features the gold finish
- Bar-and-plate core construction with an air-to-air intercooler type for efficient cooling
- Fits with the OEM radiator as well as the Mishimoto Hyundai Genesis Aluminum Radiator
- Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 6.25 in
- Core Length: 20.5 in
- Core Thickness: 3.35 in
- Inlet Diameter: 2.5 in
- Outlet Diameter: 2.5 in
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum (Cast construction)
- Pipe Material: Aluminum, Powder Coated finish, Gold color
- Coupler Material: Silicone, Black color
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 22 PSI
- Overall Height: 7.5 in
- Overall Length: 28 in
- Overall Width: 2.5 in
- Grade Type: Performance
- Fit Type: Specific
- CARB EO Number: D-759
Frequently Asked Questions
What vehicles does this Mishimoto intercooler and piping kit fit?
This kit is a specific fit for the 2010-2012 Hyundai Genesis Coupe 2.0T, 2.0T GT, 2.0T Premium, and 2.0T R-Spec trims, as well as the 2010 Genesis Coupe 2.0T Track. It is designed for manual transmission vehicles.
Do I need to modify my front bumper or remove the crash bar to install this kit?
No. This Mishimoto intercooler and piping kit retains OEM fitment, so no modifications to the front bumper or removal of the crash bar are necessary.
What is the intercooler core made of and what type is it?
The intercooler uses a bar-and-plate aluminum core and is an air-to-air intercooler type, with cast aluminum end tanks.
What color is this specific intercooler kit?
Mishimoto offers this Z Line intercooler in Sleek Silver, Stealth Black, or Bold Gold; this listing is the gold-finished version with gold pipes.
What is included with the kit?

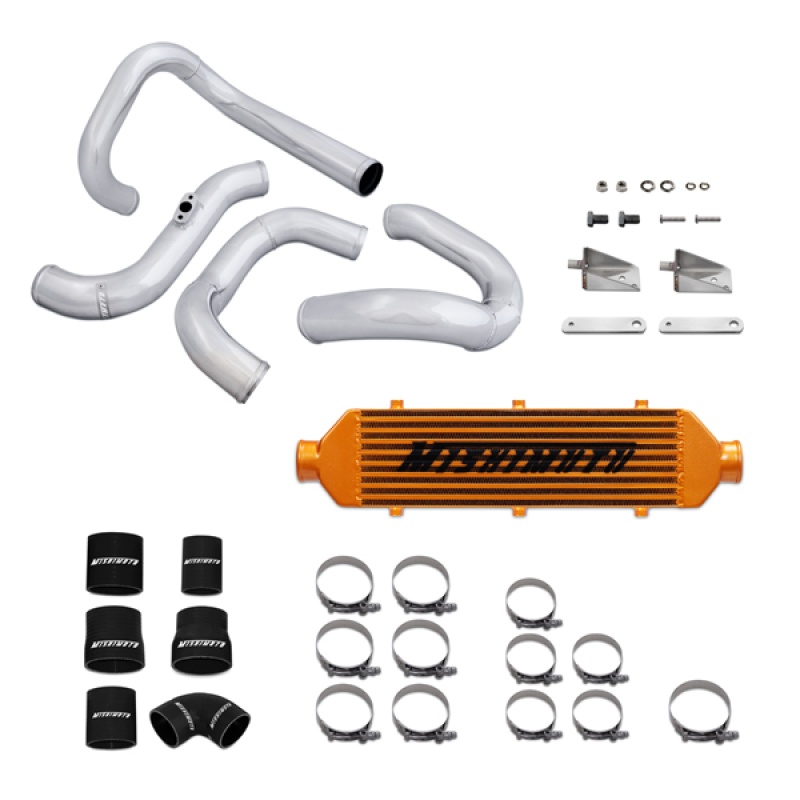

The kit includes the Mishimoto Z Line intercooler, a complete set of aluminum charge piping, t-bolt clamps, and silicone couplers needed for direct bolt-on installation.
What is the maximum boost pressure this intercooler is rated for?
This intercooler and piping kit is rated for a maximum boost pressure of 22 PSI.
