Description

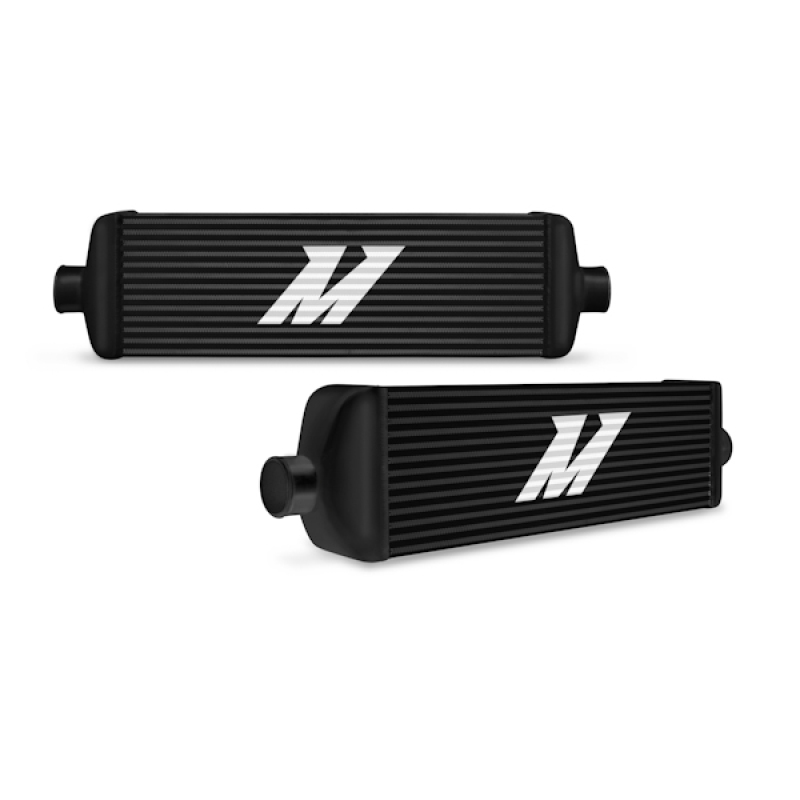

The Mishimoto J-Line Intercooler (MMINT-UJB) is a compact, high-capacity front-mount intercooler engineered to handle up to 500 horsepower without demanding the front-end real estate of a full-size core. Mishimoto tested the J-Line on the highest-horsepower Hyundai Genesis Coupe in the world, proving that this smaller cooler can pack a big punch even under serious boost. Built from 6061 aluminum and TIG welded to perfection, the J-Line is engineered for enthusiasts who need forced induction cooling performance without sacrificing clearance.
As a dedicated forced induction upgrade, the J-Line intercooler relies on a bar-and-plate core to maximize heat transfer, effectively reducing intake air temperatures so your engine’s induction system can make consistent power run after run. Its compact footprint makes it a smart choice for a forced induction system on cars with limited front-end space, since in most instances the J-Line allows you to run more power while preventing you from having to remove your crash bar – a rare compromise in the world of performance induction. Whether you’re chasing a modest bump in output or building toward the 500HP ceiling this core is engineered for, the J-Line’s bar-and-plate design and 2.5-inch inlet and outlet are built to deliver the flow and volume that serious forced induction setups demand.
Vehicle Applications
The Mishimoto J-Line Intercooler is a universal front-mount intercooler designed for cars with limited front-end space. It was tested on the highest-horsepower Hyundai Genesis Coupe in the world, demonstrating its ability to support significant power increases while, in most instances, allowing owners to retain their factory crash bar.
Features
- Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs

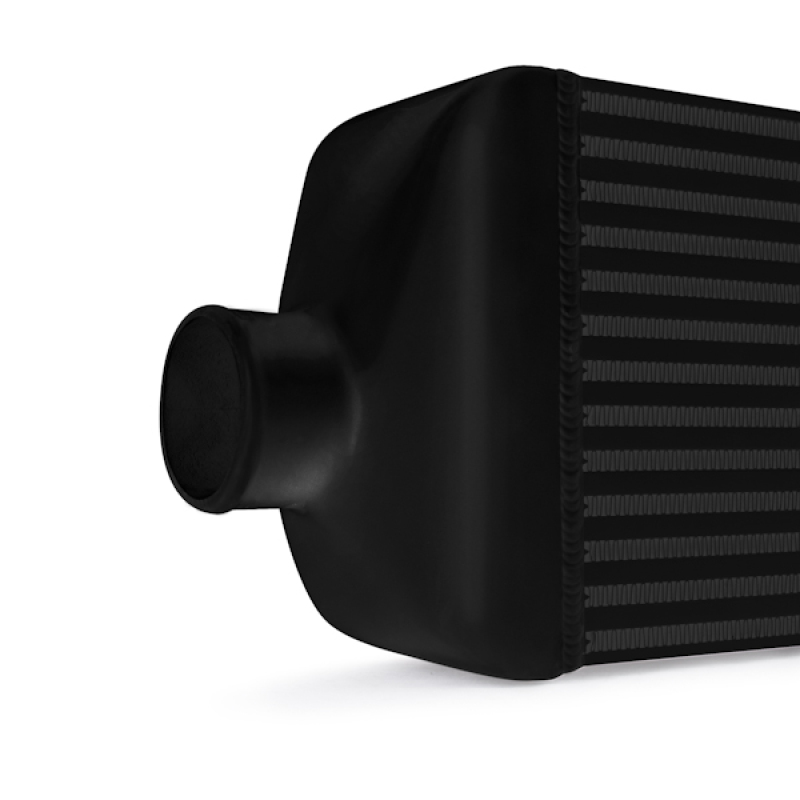

- Robust, one-piece cast aluminum end tanks withstand high boost pressures
- Large 3.75-in thick core and 2.5-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
- Constructed with 6061 aluminum and TIG welded to perfection
- Available in Sleek Silver, Stealth Black, or Bold Gold
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Black
- Grade Type: Performance
- Overall Length: 29.5 in
- Overall Width: 3.75 in
- Overall Height: 7.5 in
- Core Length: 22 in
- Core Height: 7.2 in
- Core Thickness: 3.5 in
- Inlet Outside Diameter: 2.5 in
- Outlet Outside Diameter: 2.5 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Universal or Specific Fit: Specific
- Maximum Recommended Horsepower: 500
- Maximum Recommended Boost Pressure: 40 PSI
- Weight: 18.7 lbs
- Includes: (1) Mishimoto Intercooler, (2) M12X1.25-14 Bolts, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the maximum horsepower the Mishimoto J-Line Intercooler can support?
The J-Line Intercooler is engineered to handle up to 500 horsepower.
What core design does the J-Line Intercooler use?
It uses a bar-and-plate core made from aluminum.
What vehicle was the J-Line Intercooler tested on?
Mishimoto tested the J-Line on the highest-horsepower Hyundai Genesis Coupe in the world.
What’s included with the Mishimoto J-Line Intercooler (MMINT-UJB)?
It includes (1) Mishimoto Intercooler, (2) M12X1.25-14 Bolts, and the Mishimoto Lifetime Warranty.
What is the maximum recommended boost pressure for this intercooler?
The maximum recommended boost pressure is 40 PSI.
What colors is the J-Line Intercooler available in?
It’s available in Sleek Silver, Stealth Black, or Bold Gold.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
