Description

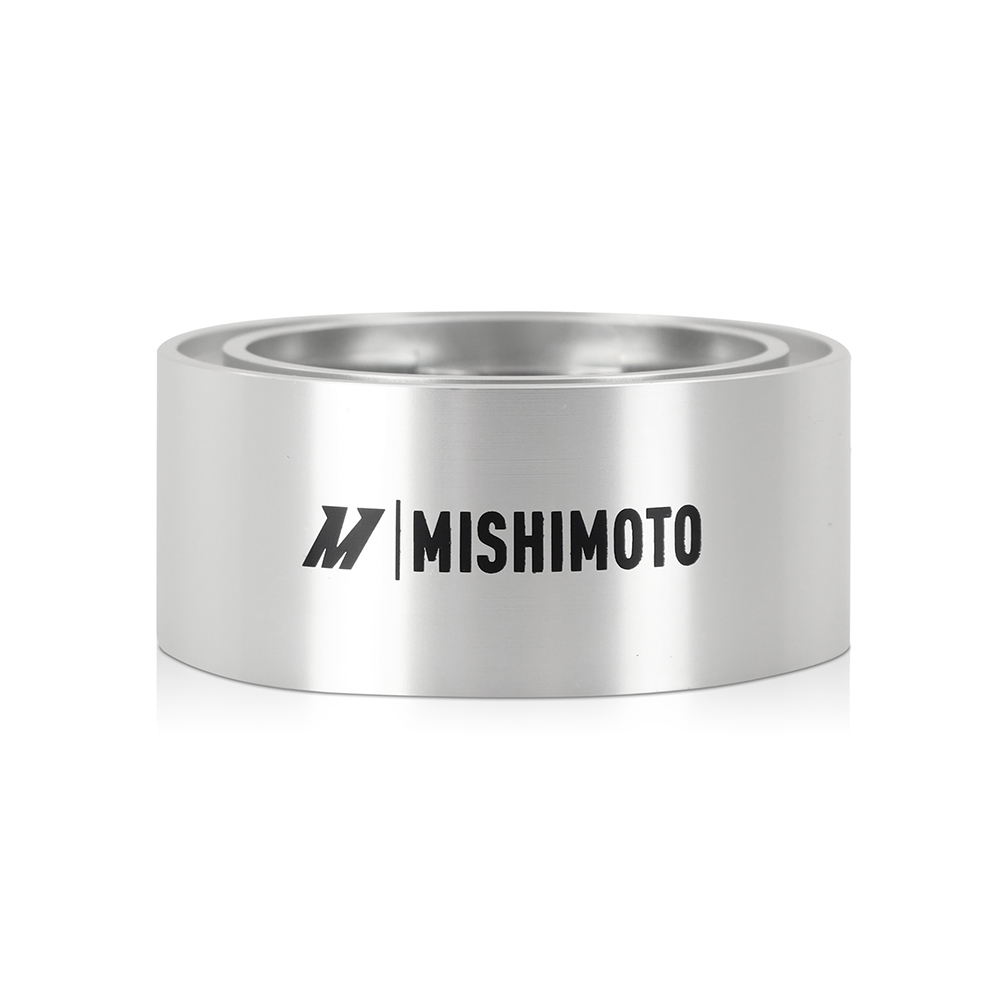

The Mishimoto MMOC-SPC32-M22SL is a billet 6061 CNC-machined aluminum oil filter spacer built specifically for the M22 x 1.5 oil filter thread size. It solves a very specific problem: engines with recessed or hard-to-reach oil filter landings that leave no room for an oil cooler sandwich plate. By adding 1.25 inches of additional clearance, this spacer opens up the space needed to run a sandwich plate without fighting chassis components or engine bay obstructions.
Beyond simple clearance, this Mishimoto oil filter spacer pulls double duty as an accessory port hub. It incorporates two pressurized 1/8-in NPT ports that can accept probes, sensors, sending units, or pressurized oil feeds, making it a practical solution for anyone adding an oil pressure gauge or sourcing an oil feed for a turbocharger install. It can be run on its own for the added ports alone, or paired with a sandwich plate when both clearance and extra fittings are needed. A stainless-steel center bolt and a nitrile O-ring are used to keep the connection sealed, while an anodized silver finish is applied over the aluminum body for corrosion resistance.
Vehicle Applications
This spacer is built around the M22 x 1.5 oil filter thread size, one of the most common oil filter thread patterns found on modern engines, making it a fitment-friendly option for builders working with a recessed oil filter landing on an engine using this thread size. Because it’s engineered around thread size rather than a single vehicle platform, it’s a flexible solution for engine bays where a sandwich plate needs clearance or where an owner wants to add oil pressure monitoring or a turbo oil feed without an OEM provision for it.
Features
- Constructed from billet 6061 CNC-machined aluminum
- Provides additional filter clearance on engines with recessed oil filter landings
- Robust nitrile O-ring provides a leak-free seal and optimal resistance to degradation
- Includes two 1/8-in NPT ports for adding probes, sensors, sending units, oil feeds, etc.
- Can be installed independently or in conjunction with oil filter sandwich plates
- High-quality CNC-machined stainless-steel oil filter center bolt
- Available for most common oil filter thread sizes

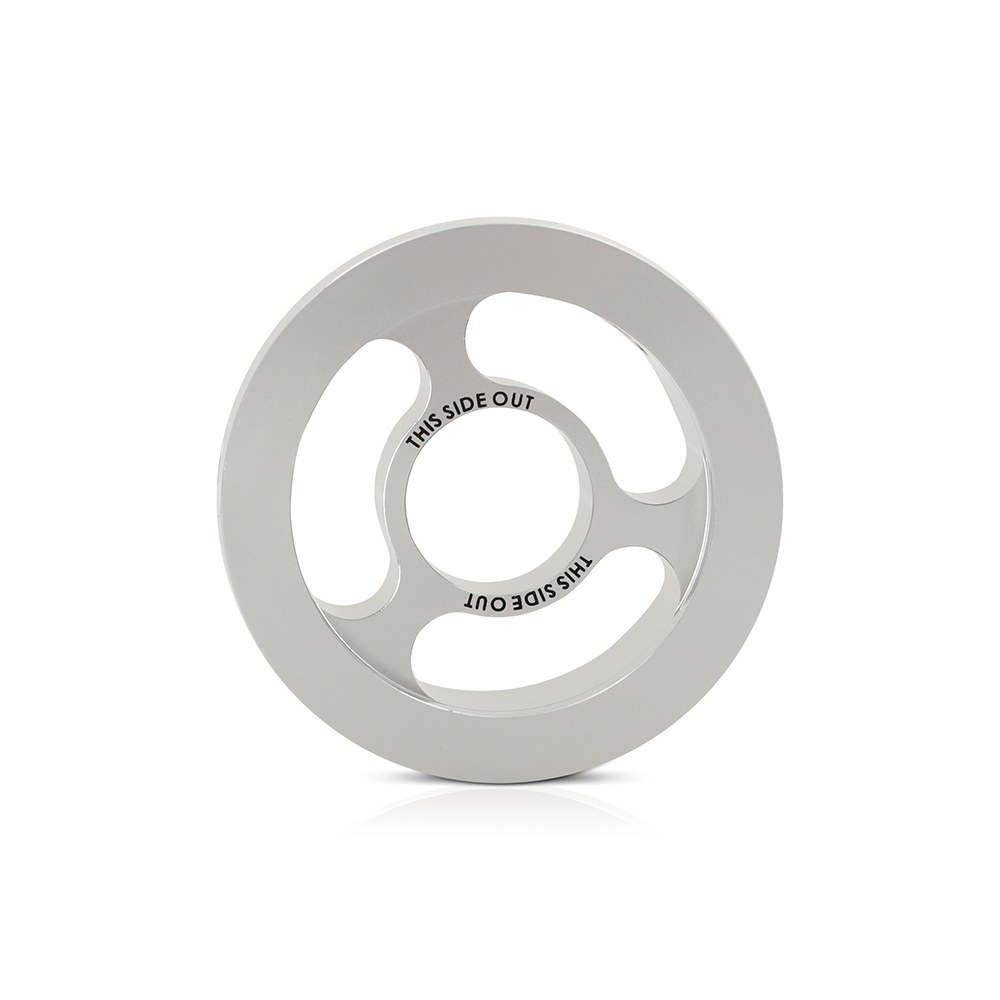

- Internal laser etching indicates mounting direction, simplifying installation
- Durable anodized silver finish resists corrosion
- Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-SPC32-M22SL
- Thread Size: M22 x 1.5
- Overall/Base Height: 1.25 in
- Color: Silver
- Finish: Anodized
- Grade Type: Performance
- Port Size: Two 1/8-in NPT ports

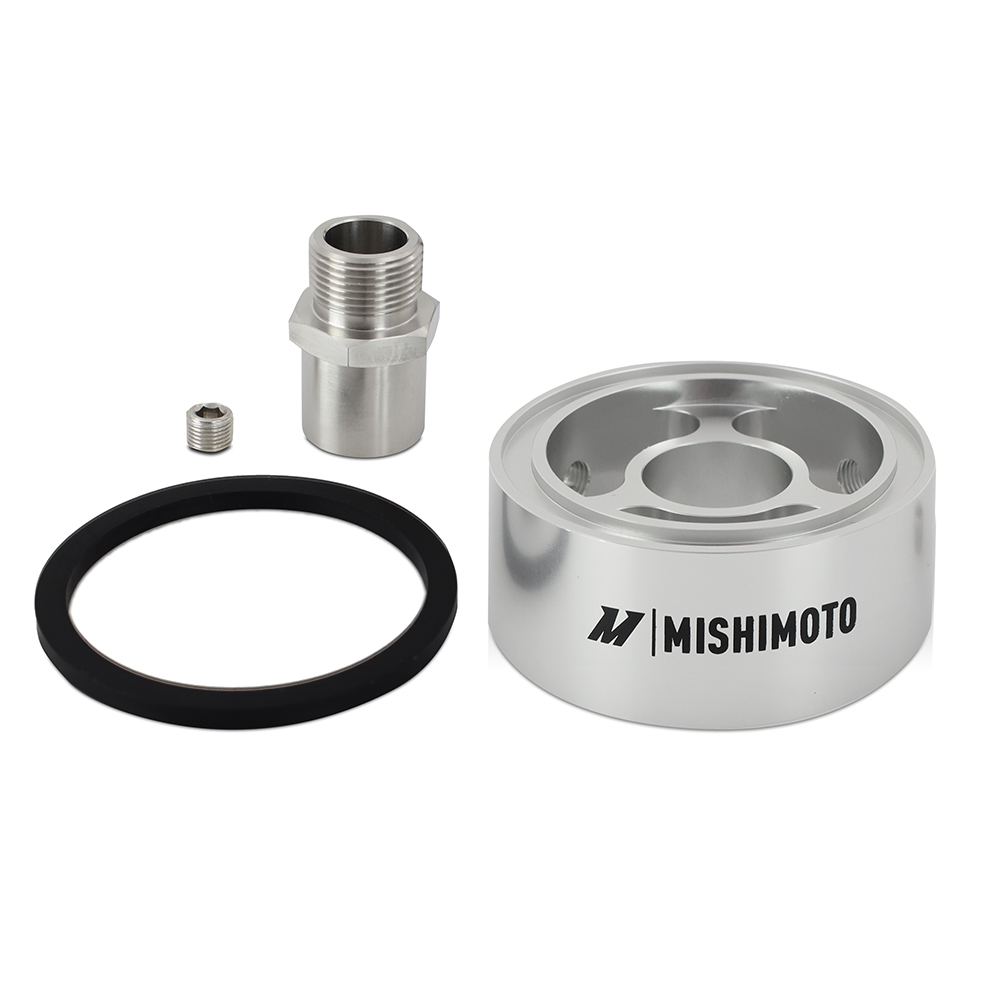

- Includes: CNC-machined 6061 aluminum oil filter spacer, CNC-machined stainless-steel oil filter center bolt, oil filter spacer O-ring, 1/8-in NPT plugs, Mishimoto Lifetime Warranty
Frequently Asked Questions
What does this Mishimoto oil filter spacer do?
It provides 1.25 inches of additional clearance for oil cooler sandwich plates on engines with recessed or inaccessible oil filter landings, and it adds two ports for probes, sensors, or pressurized oil feeds.
What thread size is this spacer designed for?
This spacer is designed for the M22 x 1.5 oil filter thread size.
Can it be installed without a sandwich plate?
Yes, it can be installed independently or in conjunction with oil filter sandwich plates.
What are the two ports used for?
The two pressurized 1/8-in NPT ports can be used for probes, sensors, sending units, or pressurized oil feeds, such as an oil pressure gauge or a turbocharger oil feed. Plugs are included for when the ports aren’t in use.
What is included with this spacer?
It includes the CNC-machined 6061 aluminum oil filter spacer, a CNC-machined stainless-steel oil filter center bolt, an oil filter spacer O-ring, 1/8-in NPT plugs, and the Mishimoto Lifetime Warranty.
Does this spacer come with a warranty?
Yes, it includes the Mishimoto Lifetime Warranty.
