Description

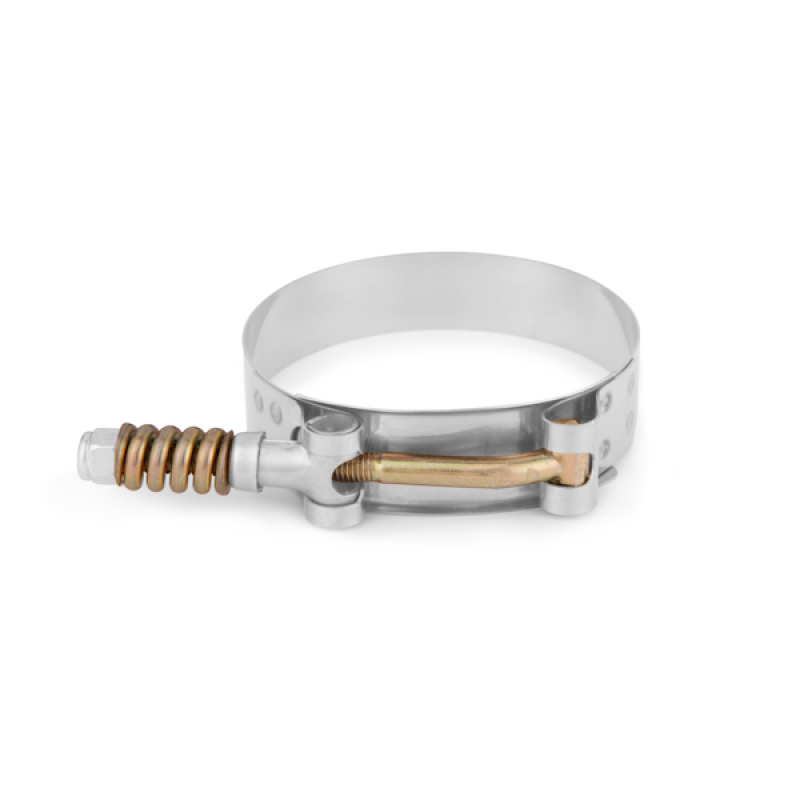

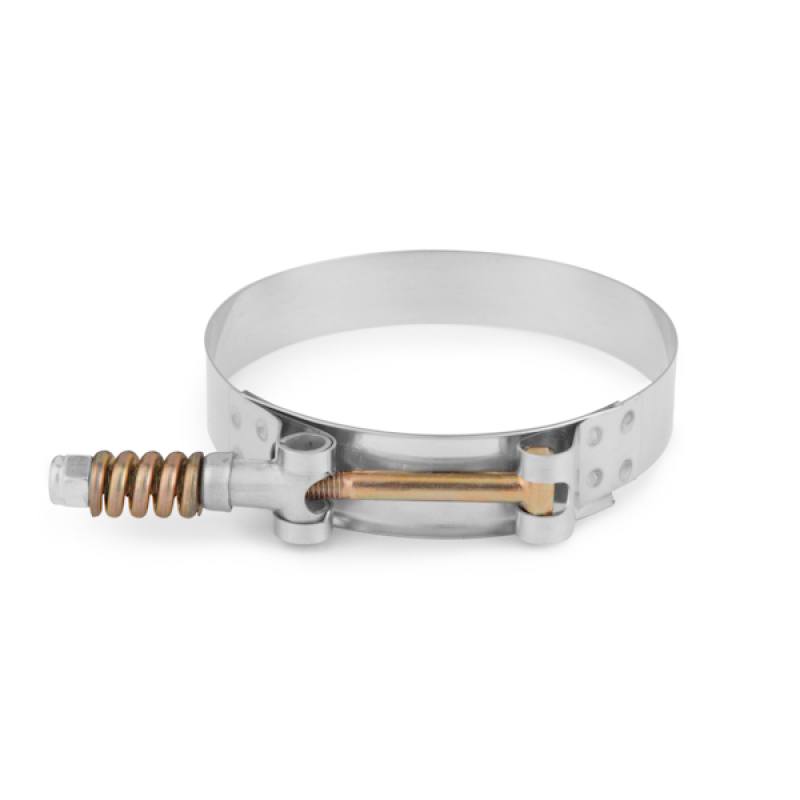

The Mishimoto MMCLAMP-3T is a stainless steel Constant Tension T-Bolt Clamp engineered to secure hoses and couplers ranging from 2.87 to 3.19 inches (73mm to 81mm) in outer diameter. What sets this clamp apart from a standard T-bolt design is the spring built into the adjustment bolt, which allows the clamp to expand and contract with temperature swings while maintaining constant pressure on the connection it protects.
Built as part of Mishimoto’s Fabrication lineup, this T-bolt clamp delivers the superior clamping force that traditional T-bolt clamps are known for, then adds a layer of long-term reliability through its constant tension spring and self-locking nut. The self-locking nut resists loosening from vibration and movement, while the stainless steel construction is designed to resist corrosion for longer than zinc-plated alternatives. Whether you’re fabricating custom piping, securing couplers, or replacing a worn clamp on an existing hose connection, this clamp is built to hold its grip through repeated heat cycling.
Vehicle Applications
This is a universal Fabrication component rather than a vehicle-specific part, so it is not tied to a particular make, model, or year. Instead, it is intended for any application where a hose or coupler with an outer diameter between 2.87 and 3.19 inches (73mm to 81mm) needs a secure, temperature-tolerant clamping solution, making it a versatile choice for builders and fabricators working across a range of setups.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 2.87-in to 3.19-in (73mm-81mm)
- Constant tension spring maintains clamping pressure through a wide range of temperatures
- Included self-locking nut prevents loosening with movement and vibration
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
- Clamps sold individually
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-3T
- Product Type: Fabrication
- Material: Stainless Steel
- Color: Silver
- Finish: Plain
- Clamp Type: T-Bolt
- Grade Type: Premium
- Spring Material: Steel
- Minimum Diameter: 2.87 in
- Maximum Diameter: 3.19 in
- Band Width: 0.75 in
- Recommended Tightening Torque: 27 in-lbs (3 NM)
- Reusable: Yes
- Includes: (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp, Mishimoto Lifetime Warranty
Frequently Asked Questions
What diameter range does the Mishimoto MMCLAMP-3T fit?
This clamp fits hoses and couplers with an outer diameter from 2.87 to 3.19 inches (73mm to 81mm).
What material is the MMCLAMP-3T made from?
It is constructed from stainless steel with a plain finish, and the internal spring is made from steel.
How does the constant tension feature work?
A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts.
What is the recommended tightening torque for this clamp?
The recommended tightening torque is 27 in-lbs (3 NM).
Does this clamp include a locking nut?
Yes, it includes a self-locking nut to prevent loosening from vibration and movement.
Is the Mishimoto MMCLAMP-3T reusable and does it come with a warranty?
Yes, it is listed as reusable and is backed by the Mishimoto Lifetime Warranty.
