Description

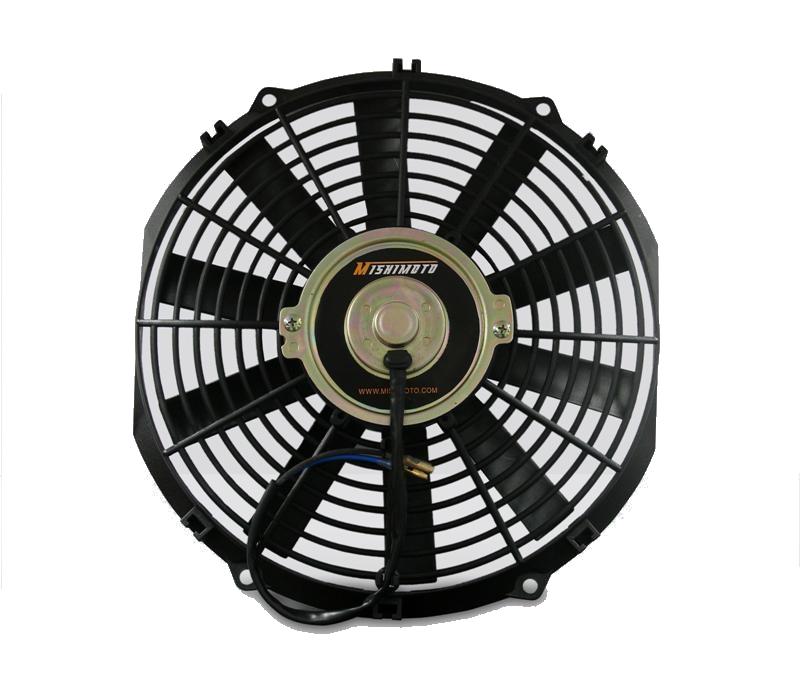

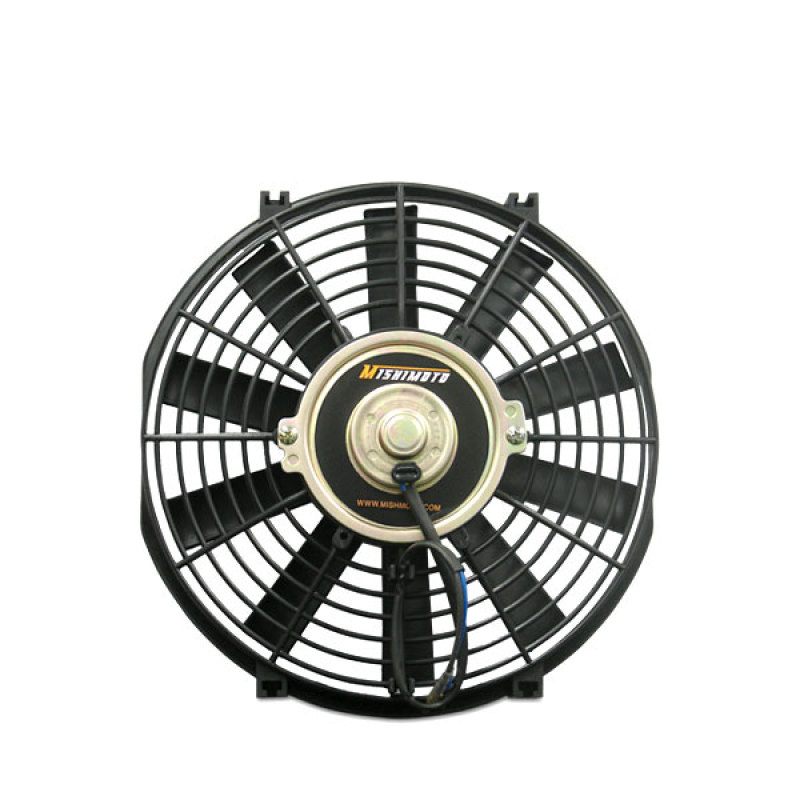

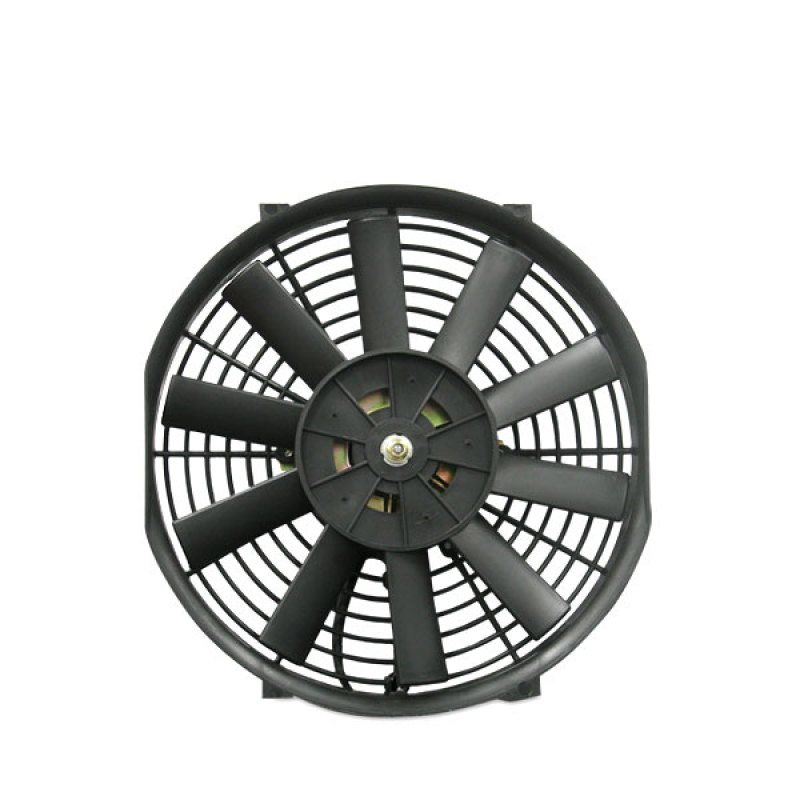

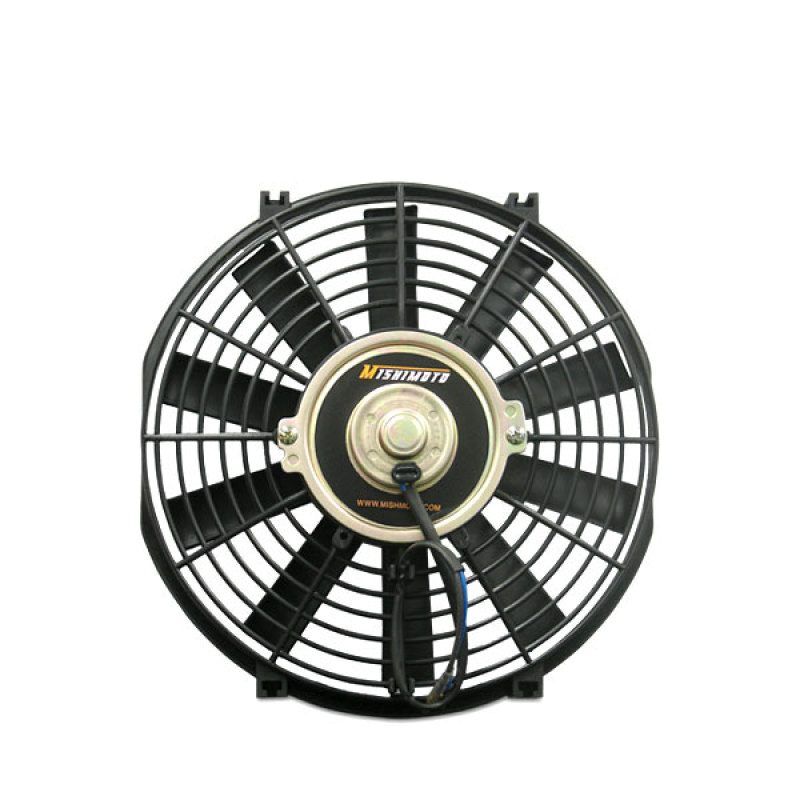

The Mishimoto MMFAN-12 is a 12-inch universal electric cooling fan built to replace an underperforming OEM fan or solve fitment conflicts that pop up when running aftermarket radiators, intercoolers, or other cooling upgrades. Rated to move up to 1150 CFM of airflow at up to 2000 RPM, this Performance-grade fan combines a slim 2.5-inch overall depth with a 10-blade, black plastic, straight-blade design so it can be installed flush against a radiator without eating up extra engine bay space.
As a Mishimoto Cooling product, the MMFAN-12 electric fan is engineered for shops and enthusiasts who need dependable airflow without the bulk of a factory clutch fan. It runs on a 12-volt electrical motor, connects via a female snap-plug terminal, and is easily reversible for use as either a pusher or puller fan, giving installers flexibility when packaging space is tight. The included ABS shroud helps direct airflow through the core, while the Performance-grade mounting bracket simplifies fabrication for custom or universal installs. Because this fan is a universal-fit cooling solution rather than a vehicle-specific part, it pairs well with the Mishimoto universal fan mount kit (MMFAN-MOUNT) for a clean, secure installation.
Vehicle Applications
The Mishimoto MMFAN-12 is designed for universal fitment rather than a single make or model, making it a practical option anywhere an OEM fan needs replacing or where an aftermarket radiator, intercooler, or cooling component creates a clearance issue in the engine bay. Its slim 2.5-inch profile and 12-inch outside diameter allow it to mount flush against a radiator core in a wide range of engine bay layouts, and Mishimoto recommends pairing it with the MMFAN-MOUNT universal fan mount kit for a secure, application-specific installation.
Features
- Delivers up to 1150 CFM of maximum airflow at up to 2000 RPM

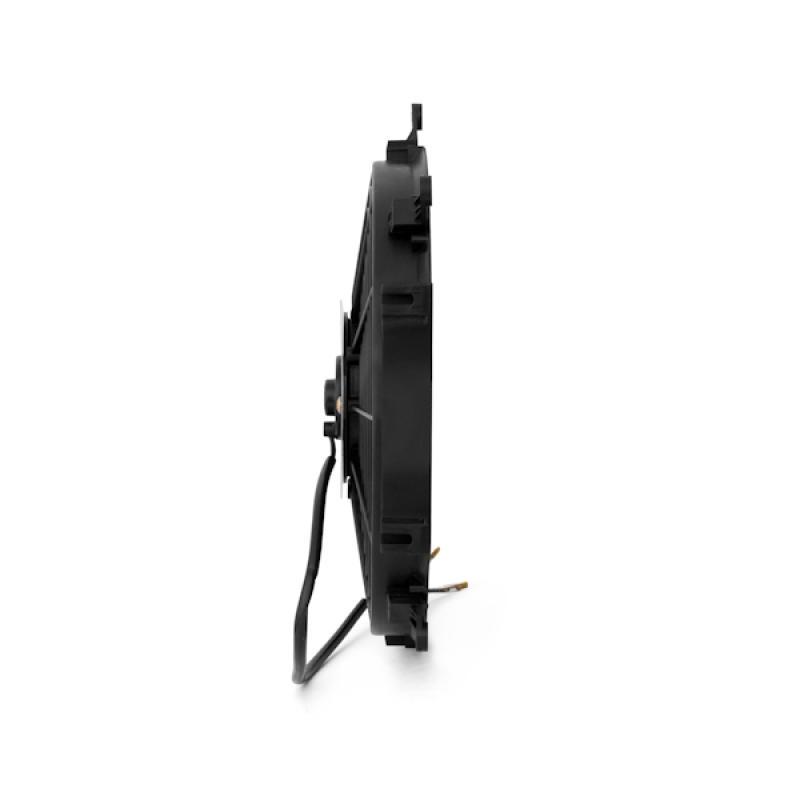

- Slim 2.5-inch overall depth frees up engine bay space
- 12-inch outside diameter with 10 black plastic, straight-style blades
- Reversible design for use as a pusher or puller fan; reversing polarity and physically flipping the blades enables pusher function, though the fan is originally optimized for puller configuration
- 12-volt electric motor included with a female snap-plug terminal wiring connection
- ABS shroud included
- Performance-grade mounting bracket included (mounting hardware not included)
- Draws 12.7 amps at startup and 7.6 amps during running operation
- Backed by the Mishimoto Lifetime Warranty

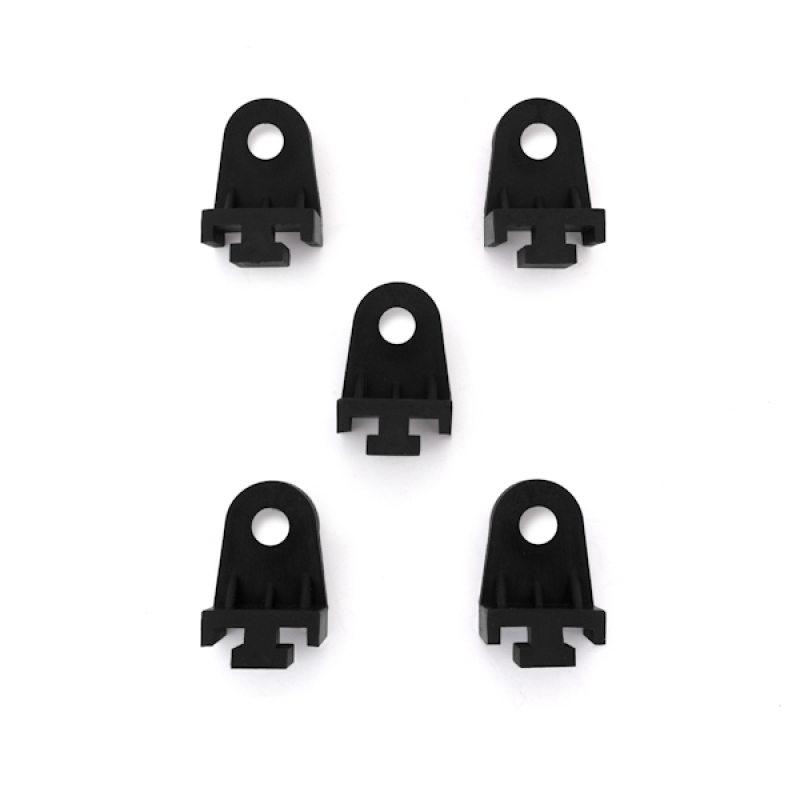

- Includes (1) Mishimoto fan and (5) mounting tabs
Specifications
- Brand: Mishimoto
- Part Number: MMFAN-12
- Product Type: Cooling
- Outside Diameter: 12 in
- Depth: 2.5 in
- Voltage: 12V
- Maximum RPM: 2000
- Maximum CFM: 1150
- Amp Draw (Start): 12.7A
- Amp Draw (Running): 7.6A
- Blade Material: Plastic
- Blade Style: Straight
- Blade Quantity: 10
- Blade Color: Black
- Reversible: Yes
- Airflow Direction (default): Pull
- Wiring Connection: Female Snap-Plug Terminal
- Shroud Material: ABS
- Grade Type: Performance
- Mounting Hardware Included: No
- Mounting Bracket Included: Yes
Frequently Asked Questions
What is the maximum airflow rating of the Mishimoto MMFAN-12 fan?
The Mishimoto MMFAN-12 delivers up to 1150 CFM of maximum airflow at up to 2000 RPM.
Is the Mishimoto MMFAN-12 fan reversible?
Yes, it is reversible. Reversing polarity and physically flipping the fan blades enables pusher functionality, though the fan’s original design is optimized for puller configuration, which may limit performance when used as a pusher.
What is included with the Mishimoto MMFAN-12?
It includes (1) Mishimoto fan, (5) mounting tabs, and the Mishimoto Lifetime Warranty.
Does the MMFAN-12 come with mounting hardware?
No, mounting hardware is not included, though a mounting bracket is included. Mishimoto recommends its universal fan mount kit (MMFAN-MOUNT) for installation.
What type of wiring connection does this fan use?
The fan uses a female snap-plug terminal wiring connection and operates on 12 volts.
What are the amp draw specifications for the MMFAN-12?
The fan draws 12.7 amps at startup and 7.6 amps during running operation.
