Description
The Mishimoto MMFAN-12BL is a 12-inch universal electric cooling fan engineered as a direct upgrade path for OEM units that fall short of airflow demands or that create clearance issues with aftermarket parts. Built with a slim 2.5-inch profile, this fan is designed to sit flush against a radiator core, freeing up valuable space in a tight engine bay. Rated to move up to 1150 CFM, it gives builders a genuinely high-output option in a compact package.
As part of Mishimoto’s Cooling lineup, the MMFAN-12BL brings performance-grade airflow to any build that needs more from its cooling system without sacrificing engine bay space. The 10-blade plastic fan is reversible, so it can be configured for pull or push airflow depending on your setup, though Mishimoto notes the fan is originally optimized in a puller configuration, and reversing polarity along with physically flipping the blades for pusher use may limit performance. Powered by a 12-volt electric motor rated up to 2000 RPM, the fan draws 12.7 amps on startup and 7.6 amps during continuous running, and it connects via a female snap-plug terminal (wiring harness not included). Because this is a universal-fit cooling fan rather than a vehicle-specific component, it can be mounted using the included tabs or, for a more finished installation, Mishimoto’s separately sold universal fan mount kit (P/N: MMFAN-MOUNT).
Vehicle Applications
As a universal electric cooling fan, the MMFAN-12BL is not built around one particular make or model. Instead, it is designed to adapt to virtually any radiator or cooling system that can accommodate a 12-inch diameter, 2.5-inch deep fan. This makes it a practical choice for engine bay builds, aftermarket radiator upgrades, or applications where a factory fan no longer clears surrounding components. For a secure, tailored fit, pair this fan with the Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT), sold separately.
Features
- High-flow design provides up to 1150 CFM of airflow at up to 2000 RPM

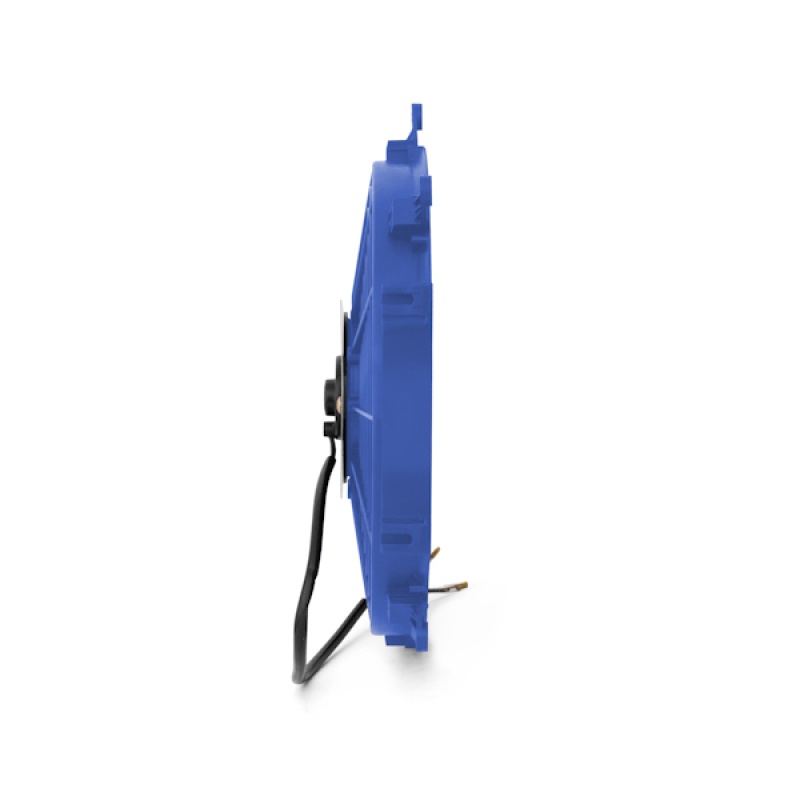

- Slim 2.5-in depth allows the fan to mount flush against a radiator, increasing engine bay clearance

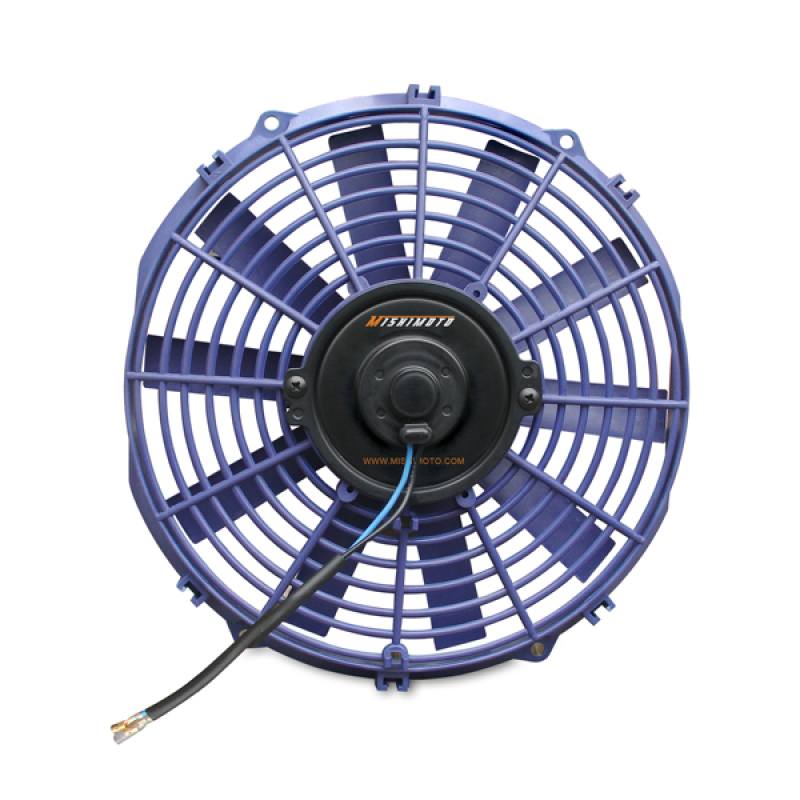

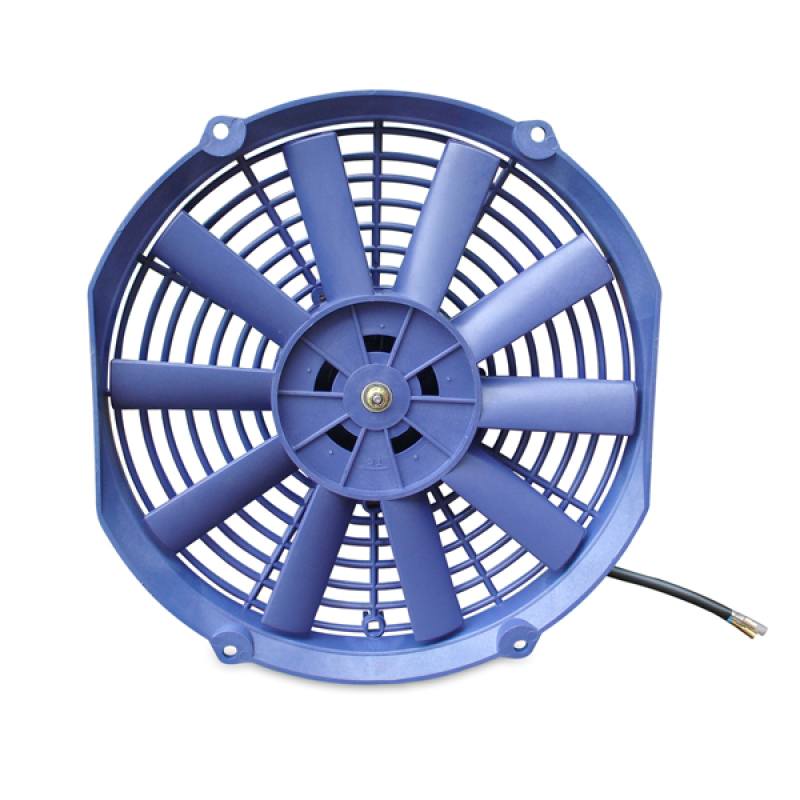

- 12-in outside diameter with 10 straight, blue plastic blades
- Easily reversible for use as a pusher or puller fan
- 12-volt electric motor with female snap-plug terminal wiring connection
- Includes an ABS plastic fan shroud

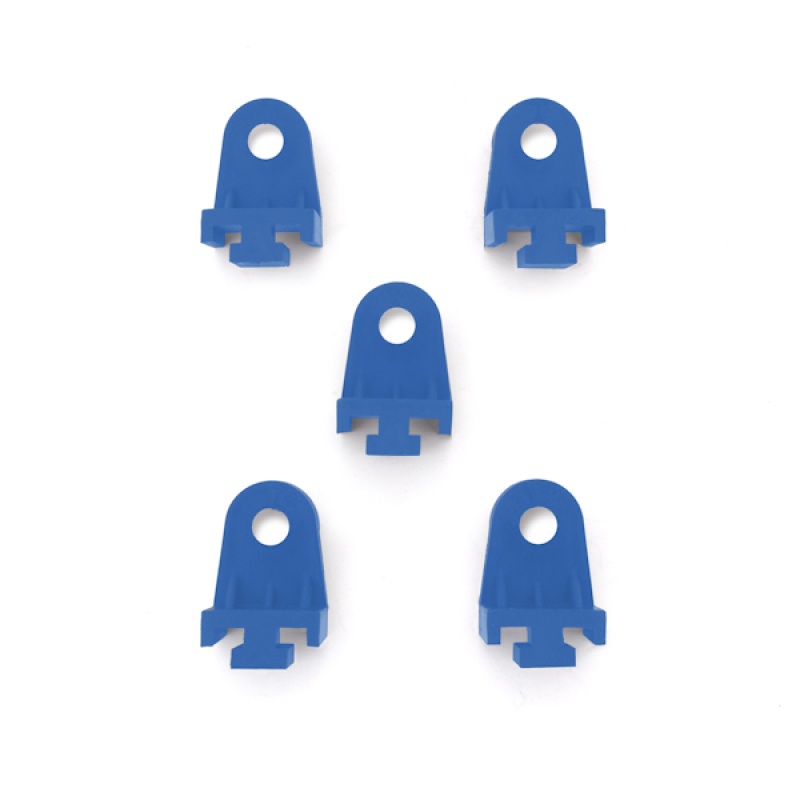

- Includes (1) Mishimoto fan and (5) mounting tabs
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFAN-12BL
- Outside Diameter: 12 in
- Hub Depth: 2.5 in
- Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Blue
- Airflow Direction: Pull
- Maximum CFM: 1150
- Maximum RPM: 2000
- Voltage: 12V
- Amp Draw (Start): 12.7
- Amp Draw (Running): 7.6
- Wiring Connection: Female Snap-Plug Terminal
- Wiring Harness Included: No
- Mounting Hardware Included: No
- Mounting Bracket Included: Yes
- Shroud Included: Yes (ABS plastic)
- Motor Included: Yes
- Electrical or Mechanical: Electrical
- Reversible: Yes
- Grade Type: Performance
- Includes: (1) Mishimoto Fan, (5) Mounting Tabs, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the maximum airflow of the Mishimoto MMFAN-12BL fan?
This fan is rated for up to 1150 CFM of maximum airflow.
Is the Mishimoto MMFAN-12BL fan reversible?
Yes, it is easily reversible for use as a pusher or puller fan, though Mishimoto notes the original design is optimized for puller configuration, and reversing polarity along with physically flipping the blades for pusher use may limit performance.
Does the fan come with mounting hardware?
The fan does not include mounting hardware, but it does include 5 mounting tabs. For universal installation, Mishimoto recommends its separately sold universal fan mount kit (P/N: MMFAN-MOUNT).
What is the voltage and amp draw of this fan?
It operates on 12 volts and draws 12.7 amps at startup and 7.6 amps during continuous running.
Does the MMFAN-12BL include a shroud?
Yes, it includes a fan shroud made of ABS plastic.
What is included with the Mishimoto MMFAN-12BL?
The package includes (1) Mishimoto fan, (5) mounting tabs, and the Mishimoto Lifetime Warranty.
