Description

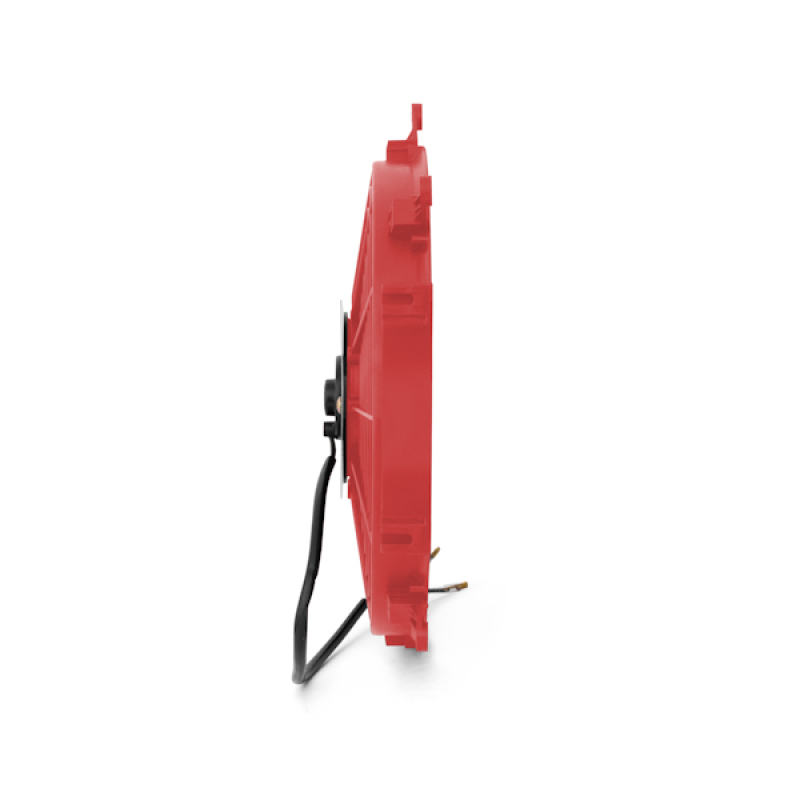

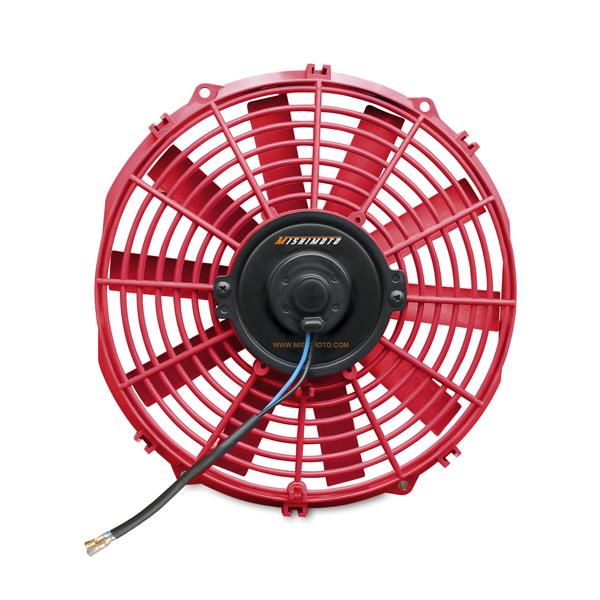

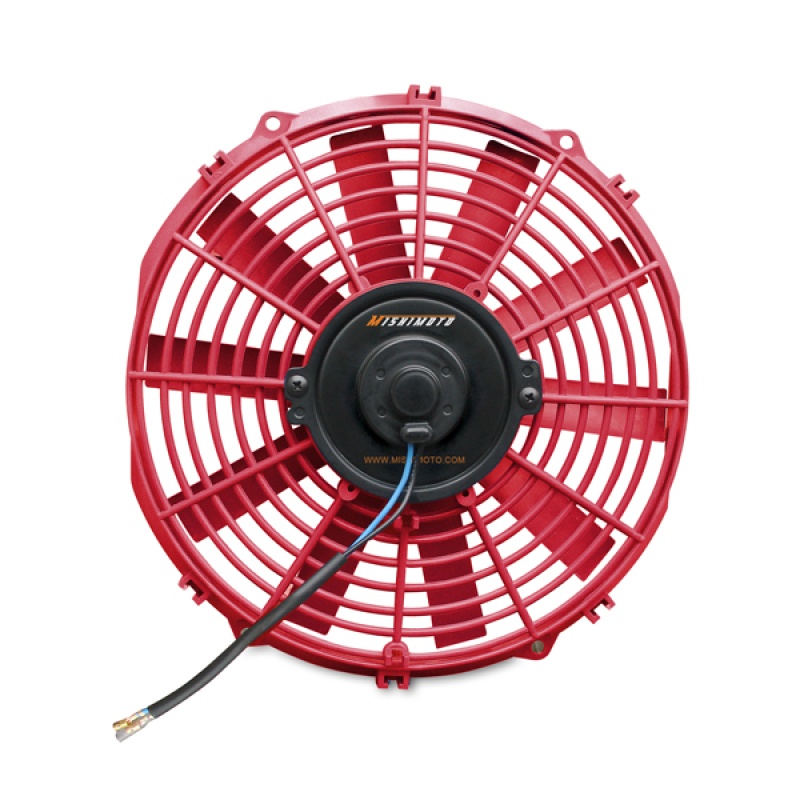

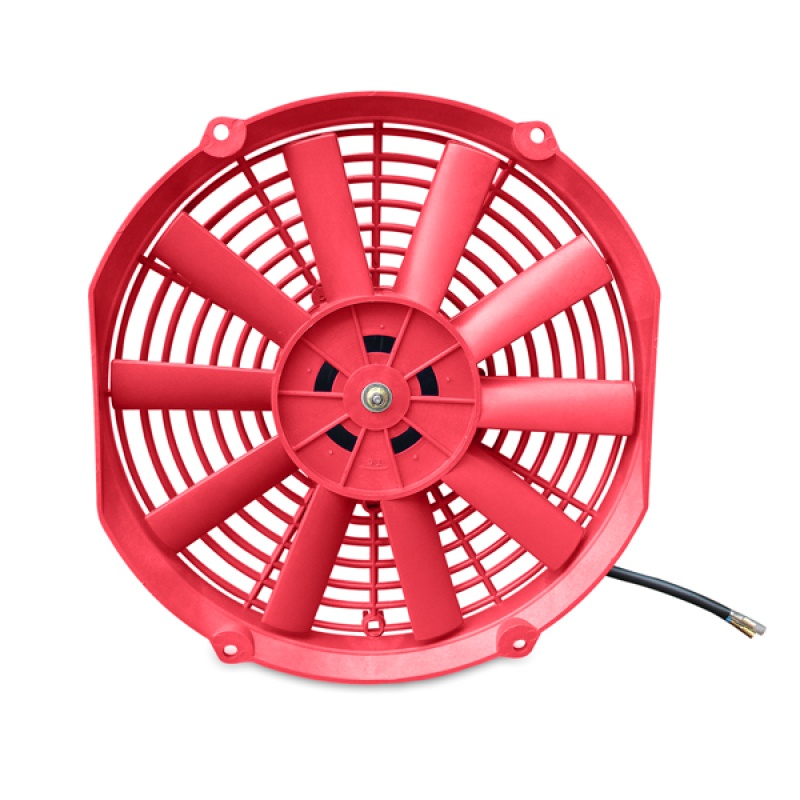

The Mishimoto MMFAN-12RD is a 12-inch universal electric cooling fan engineered as a direct upgrade to a tired or underperforming OEM fan, or as a solution when aftermarket radiators create fitment headaches. Its slim, compact profile lets it mount flush against a radiator core, and its straight red plastic blades are backed by an included ABS shroud for a clean, finished install. With a rated output of 1150 CFM, this Mishimoto fan is built to move serious air without hogging engine bay real estate.
Beyond raw airflow, this Mishimoto cooling fan is designed for flexibility. It’s easily reversible, so it can function as either a puller or a pusher fan depending on your cooling setup, though Mishimoto notes that reversing polarity and physically flipping the blades to run it as a pusher may limit performance versus its original puller-optimized design. The fan runs on 12-volt power, connects via a female snap-plug terminal, and includes its own electric motor, making it a straightforward, self-contained cooling upgrade for anyone building out a custom cooling system, swapping a radiator, or simply replacing a worn factory fan. Mishimoto backs this MMFAN-12RD fan with its Lifetime Warranty.
Vehicle Applications
The MMFAN-12RD is a universal-fit electric cooling fan, meaning it isn’t tied to a single make or model and can be installed on a wide range of vehicle cooling systems where a compact 12-inch puller fan is needed. Because it ships without mounting hardware, Mishimoto recommends pairing it with the Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT) to simplify installation against nearly any radiator. Mishimoto also advises using a fan shroud for optimal operation, and this fan includes one made from ABS plastic.
Features
- High-flow design provides 1150 CFM of maximum airflow
- Universal fitment for broad cooling-system compatibility
- Compact 12-inch diameter with an overall thickness of just 2.5 inches to save engine bay space
- Easily reversible for use as a pusher or puller fan
- Includes an ABS plastic shroud for a finished, protected install
- 10 straight, red plastic fan blades
- Electric motor included; connects via a female snap-plug terminal
- Mishimoto Lifetime Warranty

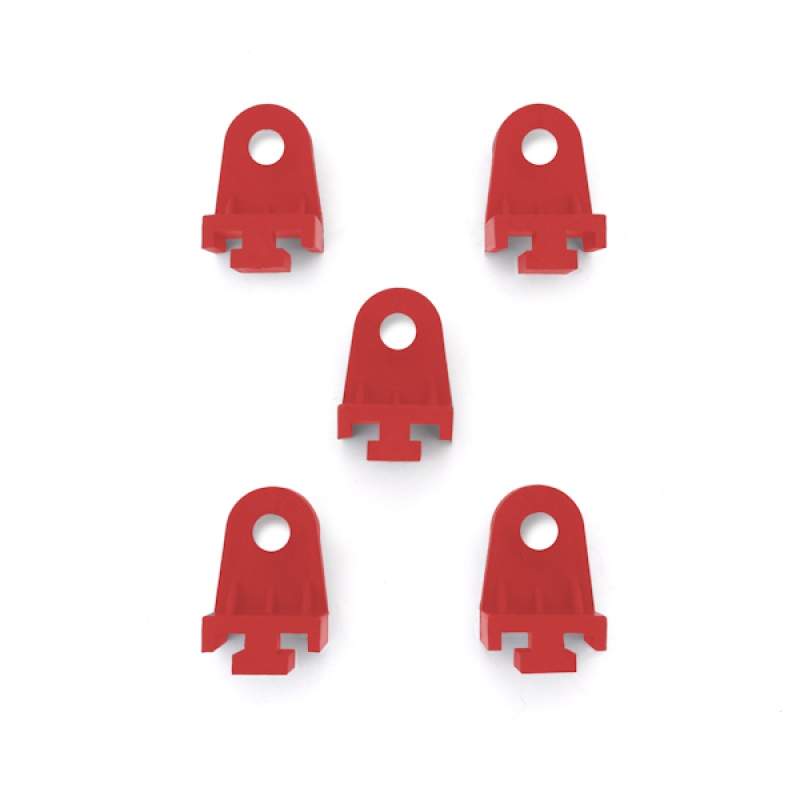

- Includes (1) Mishimoto fan and (5) mounting tabs
Specifications
- Brand: Mishimoto
- Part Number: MMFAN-12RD
- Product Type: Cooling
- Outside Diameter: 12 in
- Hub Depth: 2.5 in
- Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Red
- Reversible: Yes
- Voltage: 12V
- Maximum RPM: 2000
- Maximum CFM: 1150
- Amp Draw (Start): 12.7
- Amp Draw (Running): 7.6
- Airflow Direction: Pull
- Wiring Connection: Female Snap-Plug Terminal
- Wiring Harness Included: No
- Mounting Hardware Included: No
- Mounting Bracket Included: Yes
- Shroud Included: Yes
- Shroud Material: Acrylonitrile Butadiene Styrene (ABS)
- Motor Included: Yes
- Blade Included: Yes
- Control Module Included: No
- Fan Clutch Mounted: No
- Electrical or Mechanical: Electrical
- Grade Type: Performance
Frequently Asked Questions
Can the Mishimoto MMFAN-12RD be used as a pusher fan instead of a puller?
Yes, it is easily reversible for use as a pusher or puller fan. Reversing polarity and physically flipping the fan blades enables pusher functionality, though the fan’s original design is optimized for puller configuration, which may limit performance when reversed.
Does this fan include mounting hardware?
No, mounting hardware is not included, though a mounting bracket is included. Mishimoto recommends using the separately sold Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT) for universal installation.
What is the airflow rating of this fan?
The MMFAN-12RD provides a maximum of 1150 CFM of airflow.
What voltage does this fan run on?
It operates on 12 volts.
Does the fan come with a shroud?
Yes, it includes a shroud made from ABS (Acrylonitrile Butadiene Styrene) plastic, and Mishimoto recommends using a fan shroud for optimal operation.
What is included in the box?
The kit includes (1) Mishimoto fan, (5) mounting tabs, and the Mishimoto Lifetime Warranty.
