Description

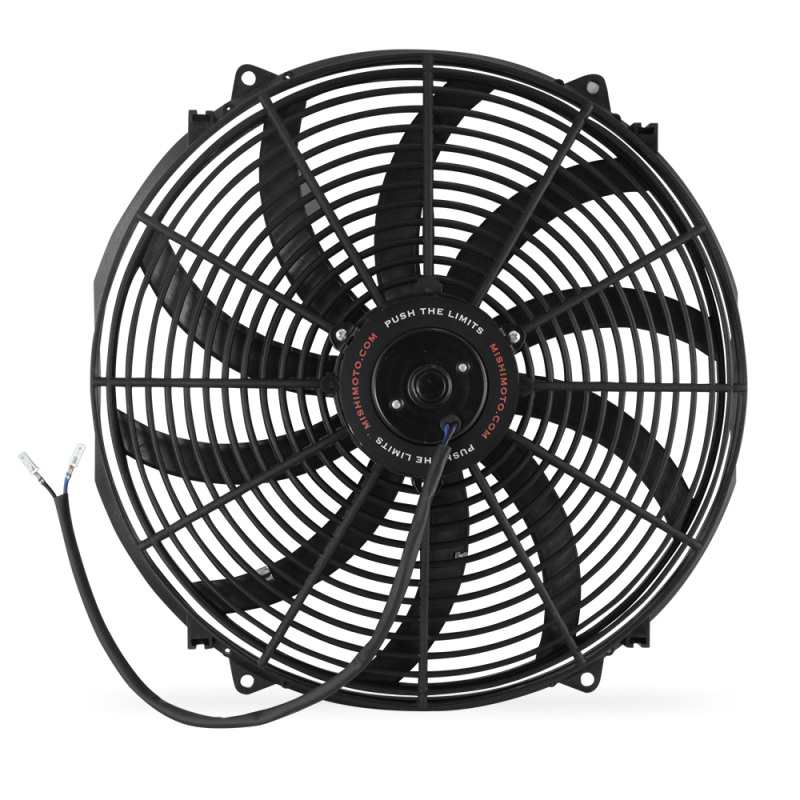

The Mishimoto MMFAN-16C is a 16-inch curved blade electric cooling fan built as a direct upgrade to a restrictive OEM fan or to solve fitment issues that crop up when running aftermarket cooling components. Its slim profile lets it mount flush against a radiator, and its curved black plastic blades are engineered to move serious air without hogging up engine bay space. Backed by the Mishimoto Lifetime Warranty, this fan is designed for enthusiasts who need a compact, high-output cooling fan that just works.
As a purpose-built Cooling upgrade from Mishimoto, the MMFAN-16C is rated to move up to 1860 CFM of airflow at a maximum of 1800 RPM, giving your radiator, oil cooler, or intercooler the airflow it needs when a factory fan falls short. The 12-volt electric motor is reversible, so this Mishimoto cooling fan can be configured for puller or pusher operation depending on your setup — though Mishimoto notes that because the fan’s original design is optimized for puller configuration, reversing polarity and physically flipping the blades to run as a pusher may limit maximum performance. An ABS shroud is included to help direct airflow, and the fan connects via a female snap-plug terminal for straightforward wiring into an existing harness.
Vehicle Applications
The Mishimoto MMFAN-16C is built for universal installation rather than a single make or model, making it a flexible cooling fan option for a wide range of custom and OEM-replacement cooling setups. For a clean, secure universal install, Mishimoto recommends pairing this fan with the Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT), which allows the fan to be mounted to virtually any radiator, oil cooler, or intercooler core. Because it ships as a universal-fit component rather than a vehicle-specific part, it is commonly used when an OEM fan needs replacing or when an aftermarket radiator or cooler creates clearance issues.
Features
- Curved, black plastic fan blades (10 blades total) for efficient airflow
- Reversible motor for use as a puller or pusher fan

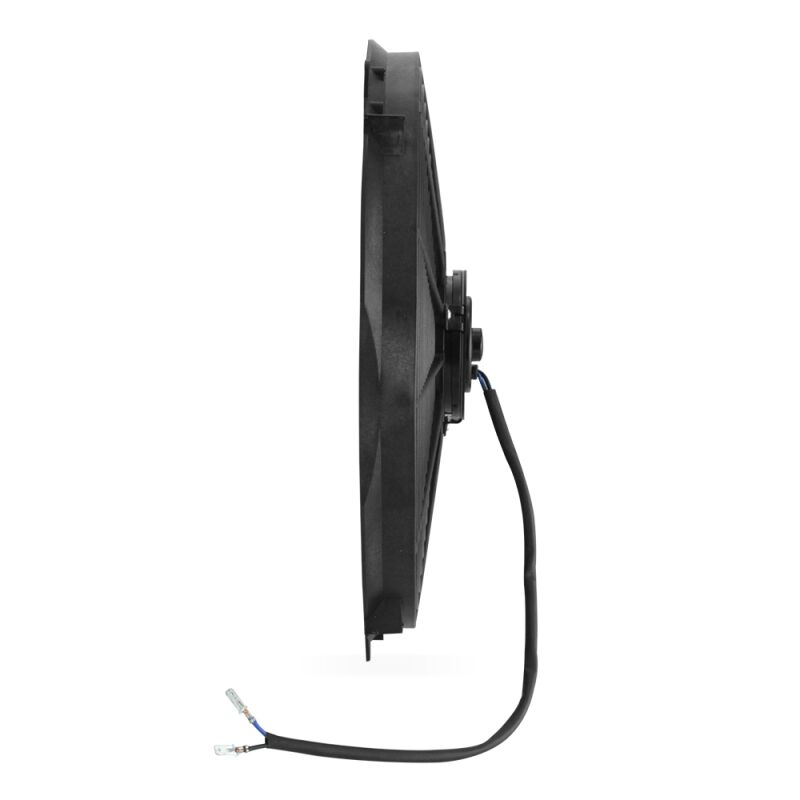

- Slim design mounts flush against a radiator to save engine bay space
- Includes an ABS (Acrylonitrile Butadiene Styrene) shroud to help direct airflow
- 12-volt electric motor included, wired with a female snap-plug terminal connection
- Mounting bracket included; compatible with the Mishimoto universal fan mount kit (MMFAN-MOUNT) for universal installation
- Backed by the Mishimoto Lifetime Warranty

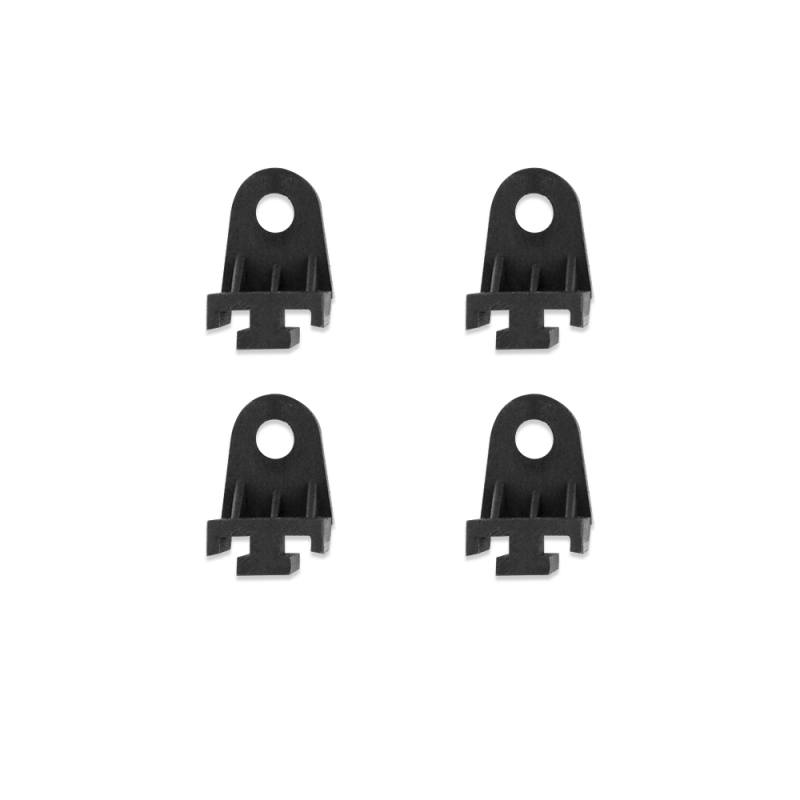

- Includes (1) Mishimoto Fan and (4) Mounting Tabs
Specifications
- Outside Diameter: 16 in
- Hub Depth: 3.2 in
- Maximum RPM: 1800
- Maximum CFM: 1860
- Voltage: 12V
- Amp Draw (Start): 34 amps
- Blade Material: Plastic
- Blade Type: Curved
- Blade Quantity: 10
- Blade Color: Black
- Reversible: Yes
- Airflow Direction: Pull (designed configuration)
- Shroud Included: Yes (ABS material)
- Motor Included: Yes
- Electrical or Mechanical: Electrical
- Wiring Connection: Female Snap-Plug Terminal
- Wiring Harness Included: No
- Control Module Included: No
- Mounting Bracket Included: Yes
- Mounting Hardware Included: No
- Fan Clutch Mounted: No
- Grade Type: Performance
- Includes: (1) Mishimoto Fan, (4) Mounting Tabs, Mishimoto Lifetime Warranty
Frequently Asked Questions
Is the Mishimoto MMFAN-16C reversible?
Yes, it is reversible for use as a puller or pusher fan; however, since the fan’s original design is optimized for puller configuration, reversing polarity and physically flipping the blades to use it as a pusher may limit maximum performance.
What is included with this fan?
The package includes (1) Mishimoto Fan, (4) Mounting Tabs, and the Mishimoto Lifetime Warranty.
Will this fan fit my specific vehicle?
The MMFAN-16C is a universal-fit fan rather than a vehicle-specific part; Mishimoto recommends using the Mishimoto universal fan mount kit (P/N: MMFAN-MOUNT) for installation.
How much airflow does it produce?
It is rated for a Maximum CFM of 1860 and a Maximum RPM of 1800.
Does it include a shroud?
Yes, an ABS (Acrylonitrile Butadiene Styrene) shroud is included.
Are mounting hardware and a wiring harness included?
A mounting bracket is included, but mounting hardware, a wiring harness, and a control module are not included.
