Description

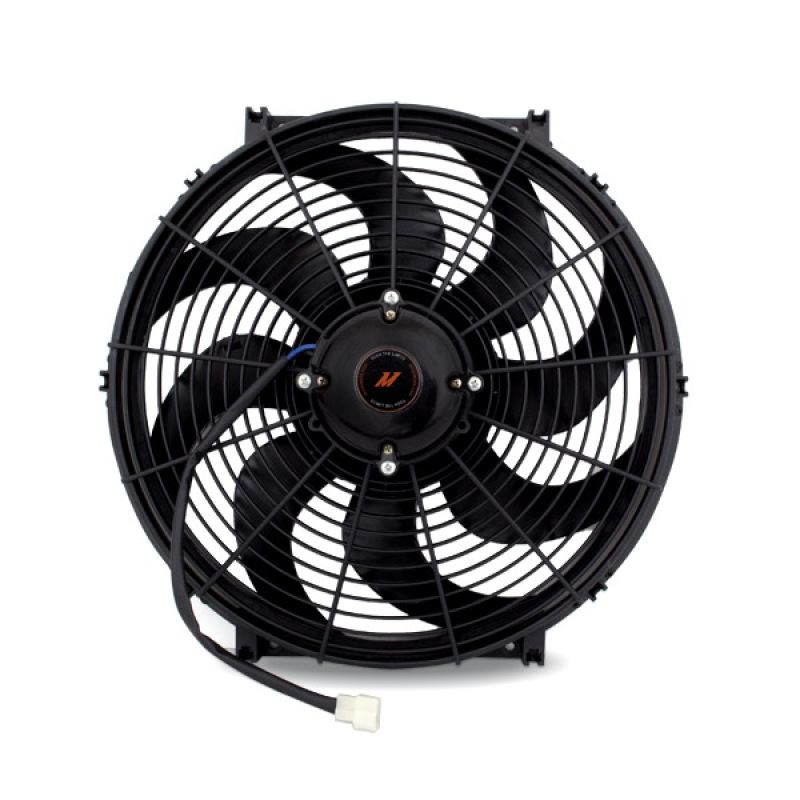

The Mishimoto MMFAN-16HD is a 16-inch Race Line electric cooling fan built for heavy-duty applications where a standard Slim Line fan simply can’t move enough air. Rated to deliver up to 2200 CFM of airflow at a maximum of 2000 RPM, this puller-configured fan still keeps a slim 4.35-inch overall depth so it can fit between the engine and radiator in most applications. It’s the high-output option in the Mishimoto Cooling lineup for anyone who needs serious, no-compromise airflow.

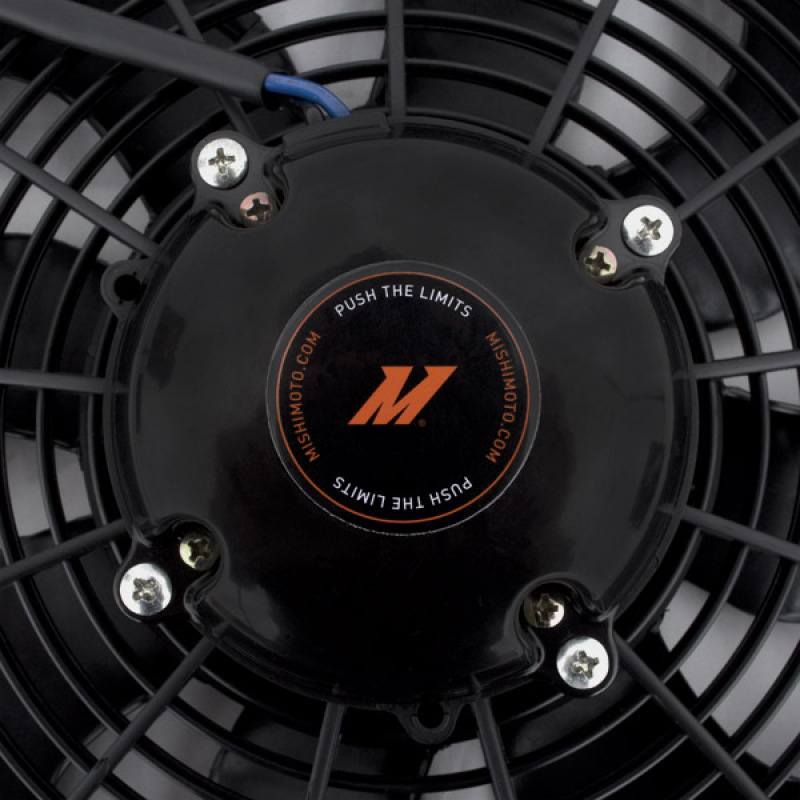

Designed with curved, black plastic fan blades and a 12-volt electric motor, the MMFAN-16HD is built to push maximum air across the largest and most powerful radiators. It ships with an included ABS plastic shroud to help direct airflow efficiently across the core, and Mishimoto notes that using a fan shroud is recommended for optimal operation. The fan connects via a Yazaki tab terminal and pulls an estimated 22.1 amps on startup and roughly 18 amps while running, giving installers a clear picture of the electrical demand before wiring it in. This is a Performance-grade cooling fan meant for builds that have outgrown a factory or slim-profile fan and need genuine high-CFM performance.
Vehicle Applications
The Mishimoto MMFAN-16HD Race Line fan is a universal-fit cooling fan rather than a vehicle-specific part, making it suitable for a wide range of heavy-duty builds where a large-diameter, high-airflow fan is needed in front of the radiator. For a complete universal installation, Mishimoto recommends pairing this fan with the Mishimoto Electric Fan Mounting Kit, and the compact 4.35-inch depth is intended to help it clear tight engine bay space between the radiator and engine in most setups.
Features
- High-flow 16-inch fan provides increased airflow versus slim-line designs
- Delivers up to 2200 CFM of maximum airflow
- Maximum fan speed rated at 2000 RPM

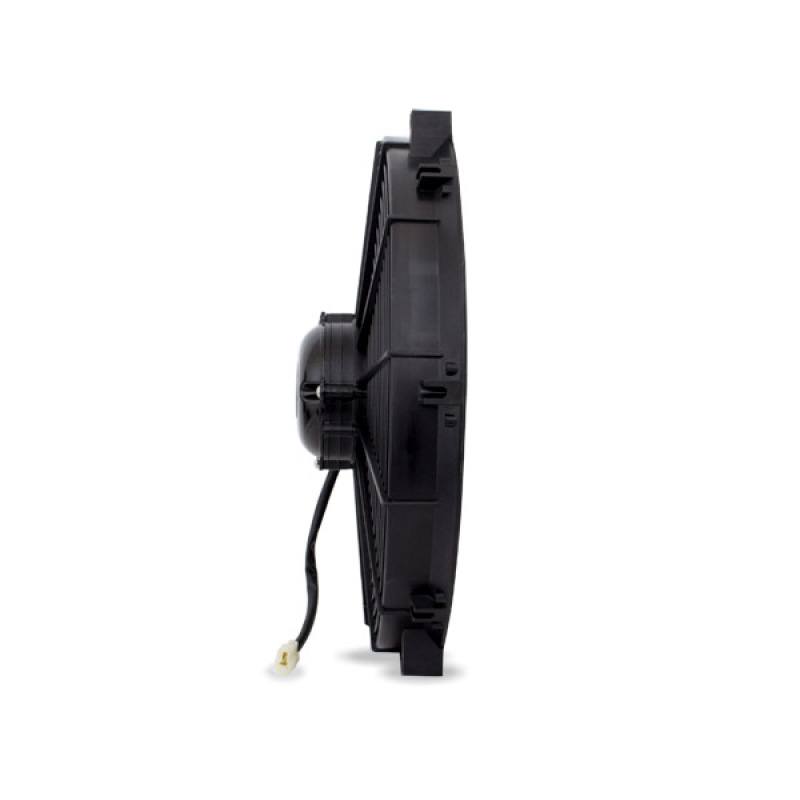

- Compact design with a 16-inch housing diameter and 4.35-inch overall thickness for engine bay clearance
- Curved black plastic fan blades
- Includes ABS plastic shroud
- Electric, 12-volt motor included with blades pre-installed
- Pull-configuration airflow direction with Yazaki tab terminal wiring connection
- Universal fitment; pairs with the Mishimoto Electric Fan Mounting Kit for installation
- Includes (4) Heavy-Duty Plastic Fasteners, (8) Adhesive Foam Protective Pads, (4) Dampening Springs, and (4) Fastener End Connectors
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFAN-16HD
- Outside Diameter: 16 in
- Depth: 4.35 in
- Voltage: 12V
- Maximum CFM: 2200
- Maximum RPM: 2000
- Amp Draw (Start): 22.1
- Amp Draw (Running): 18
- Airflow Direction: Pull
- Blade Material: Plastic
- Blade Type/Style: Curved
- Blade Color: Black
- Blade Included: Yes
- Reversible: No
- Motor Included: Yes
- Shroud Included: Yes
- Shroud Material: Acrylonitrile Butadiene Styrene (ABS)
- Mounting Bracket Included: Yes
- Mounting Hardware Included: No
- Wiring Harness Included: No
- Control Module Included: No
- Fan Clutch Mounted: No
- Electrical or Mechanical: Electrical
- Grade Type: Performance
- Wiring Connection: Yazaki Tab Terminal
Frequently Asked Questions
How much airflow does the Mishimoto MMFAN-16HD Race Line fan provide?
The MMFAN-16HD is rated to provide up to 2200 CFM of maximum airflow, with a maximum fan speed of 2000 RPM.
Will this fan fit between my engine and radiator?
The fan has an overall thickness of 4.35 inches and a 16-inch outside diameter, which Mishimoto designed to be thin enough to fit between the engine and radiator in most applications.
Does the Mishimoto MMFAN-16HD come with a shroud?
Yes, it includes an ABS plastic shroud, and Mishimoto recommends using a fan shroud for optimal operation.
Is the fan reversible for pusher configuration?
The fan is not reversible. Mishimoto notes that reversing polarity can enable pusher functionality, but the original design is optimized for puller configuration, and performance may be limited with long-term effects uncertain in that configuration.
What is included with the Mishimoto MMFAN-16HD fan?
The package includes (1) Mishimoto Fan and a Mounting Kit containing (4) Heavy-Duty Plastic Fasteners, (8) Adhesive Foam Protective Pads, (4) Dampening Springs, and (4) Fastener End Connectors, backed by the Mishimoto Lifetime Warranty.
How is the fan wired and how much current does it draw?
The fan uses a Yazaki tab terminal wiring connection, runs on 12 volts, and draws approximately 22.1 amps on startup and 18 amps while running.
