Description

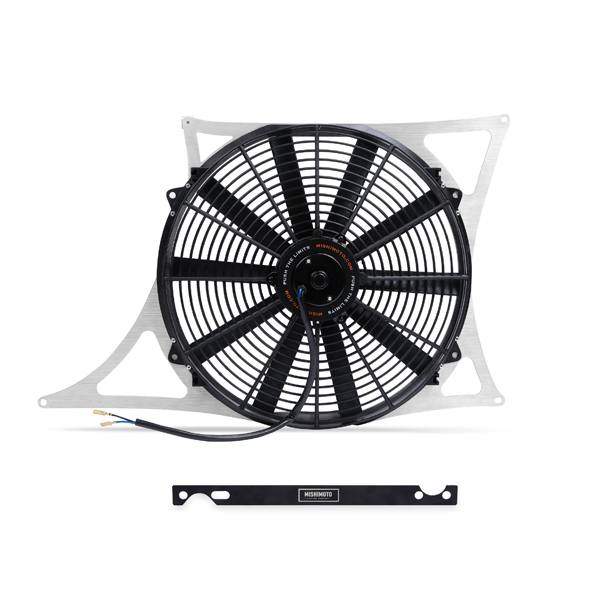

The Mishimoto Performance Aluminum Fan Shroud Kit (MMFS-E46-01K) is purpose-built for the 2001-2006 BMW E46 M3, replacing the notoriously failure-prone factory mechanical clutch fan with a brushed aluminum shroud and a 16-inch high-flow electric fan rated at over 1850 cfm of airflow. It’s a direct-fit cooling upgrade engineered specifically around the S54-powered E46 chassis, not a generic universal fan kit.
By eliminating the parasitic drag of the stock clutch fan, this Mishimoto cooling upgrade frees up measurable power: in-house Dynojet testing recorded a 5 whp gain between 6500-7500 rpm and 1-2 whp gains across a majority of the power band after the factory fan was removed. The 16-inch electric fan mounts in an offset position on the aluminum shroud, which clears space for popular supercharger kits, and the shroud is compatible with both the stock radiator and Mishimoto’s own E46 M3 radiator. For drivers who want more precise thermal management, the kit is available with an optional adjustable fan controller and wiring kit that gives total control over coolant temperatures, including at idle.
Vehicle Applications
This fan shroud kit is a direct fit for the 2001-2006 BMW E46 M3 (chassis code E46, engine code S54). No other years, chassis, or engine platforms are covered by this application.
Features
- Direct fit for the 2001-2006 BMW E46 M3
- Replaces the failure-prone stock mechanical clutch fan
- Includes a 16-inch high-flow electric fan producing over 1850 cfm of airflow
- Dyno-proven gains of up to 5 whp at 6500-7500 rpm and 1-2 whp gains across most of the power band
- Offset fan mounting provides clearance for popular supercharger kits
- Compatible with both stock and Mishimoto radiators

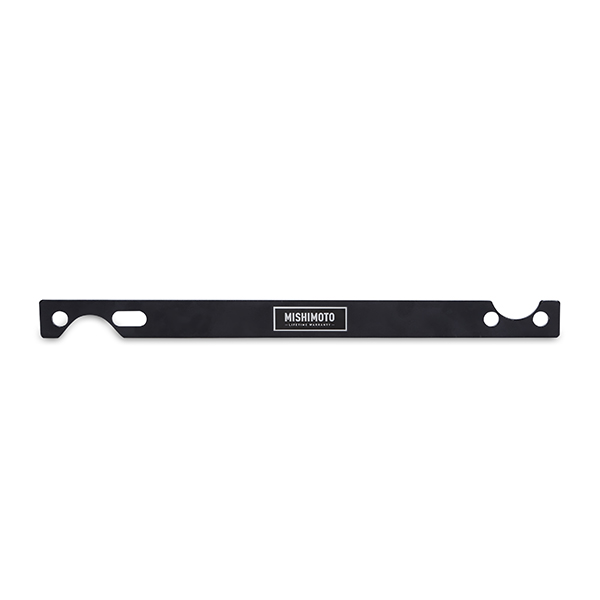

- Includes a fan removal tool for taking off the stock clutch fan
- Brushed aluminum finish on the shroud housing
- Includes all mounting hardware required for installation
- Plug-in electrical fan, aluminum shroud construction
- Optional adjustable fan controller kit (Mishimoto MMFAN-CNTL-U) available for complete coolant temperature control, including NPT and probe-type sensors
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-E46-01K
- Product Type: Cooling
- Shroud Material: Aluminum
- Shroud Color: Silver
- Housing Finish: Brushed Aluminum
- Fan Diameter: 16 in
- Fan Quantity: 1
- Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Maximum Airflow (CFM): 1850
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Motor Included: Yes
- Mounting Hardware Included: Yes
- Height: 16.7 in
- Grade Type: Performance
- Chassis Code: E46
- Engine Code: S54
- Vehicle Application: 2001-2006 BMW E46 M3
- Kit Includes: Aluminum fan shroud, 16-inch Mishimoto slim electric fan, fan removal tool, adjustable relay, push-in radiator temperature probe, 1/8-in NPT temperature sensor, wiring harness, zip ties, wire crimp and terminal connectors, in-line mini fuse holder, 10 AWG and 12 AWG wire, heat shrink, and Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMFS-E46-01K fan shroud kit fit?
This kit is a direct fit for the 2001-2006 BMW E46 M3, which uses the S54 engine and E46 chassis codes.
Does this kit replace the stock mechanical fan?
Yes. The kit completely eliminates the stock, failure-prone mechanical clutch fan and includes a fan removal tool for taking it off.
How much airflow does the included electric fan provide?
The kit includes a 16-inch high-flow electric fan that produces over 1850 cfm of airflow.
Does removing the factory clutch fan improve power?
Mishimoto’s in-house Dynojet testing showed a 5 whp gain from 6500-7500 rpm and 1-2 whp gains over a majority of the power band after removing the factory clutch fan.
Will this shroud work with an aftermarket radiator?
Yes, the fan shroud mounts directly to both the stock radiator and Mishimoto radiators.
Is a fan controller included?
An adjustable fan controller and wiring kit is available as an option on this kit, providing total control over coolant temperatures, including at idle.
