Description

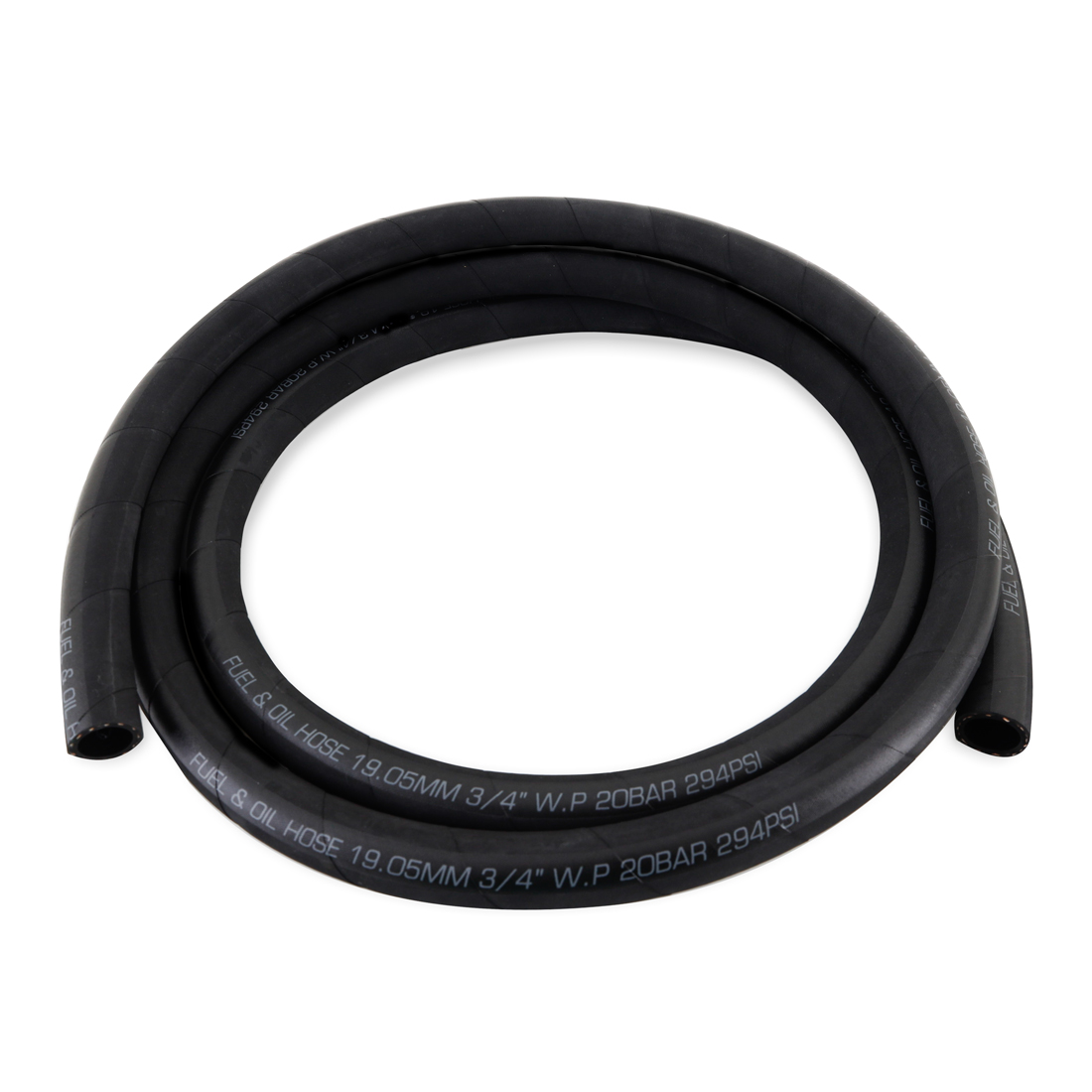

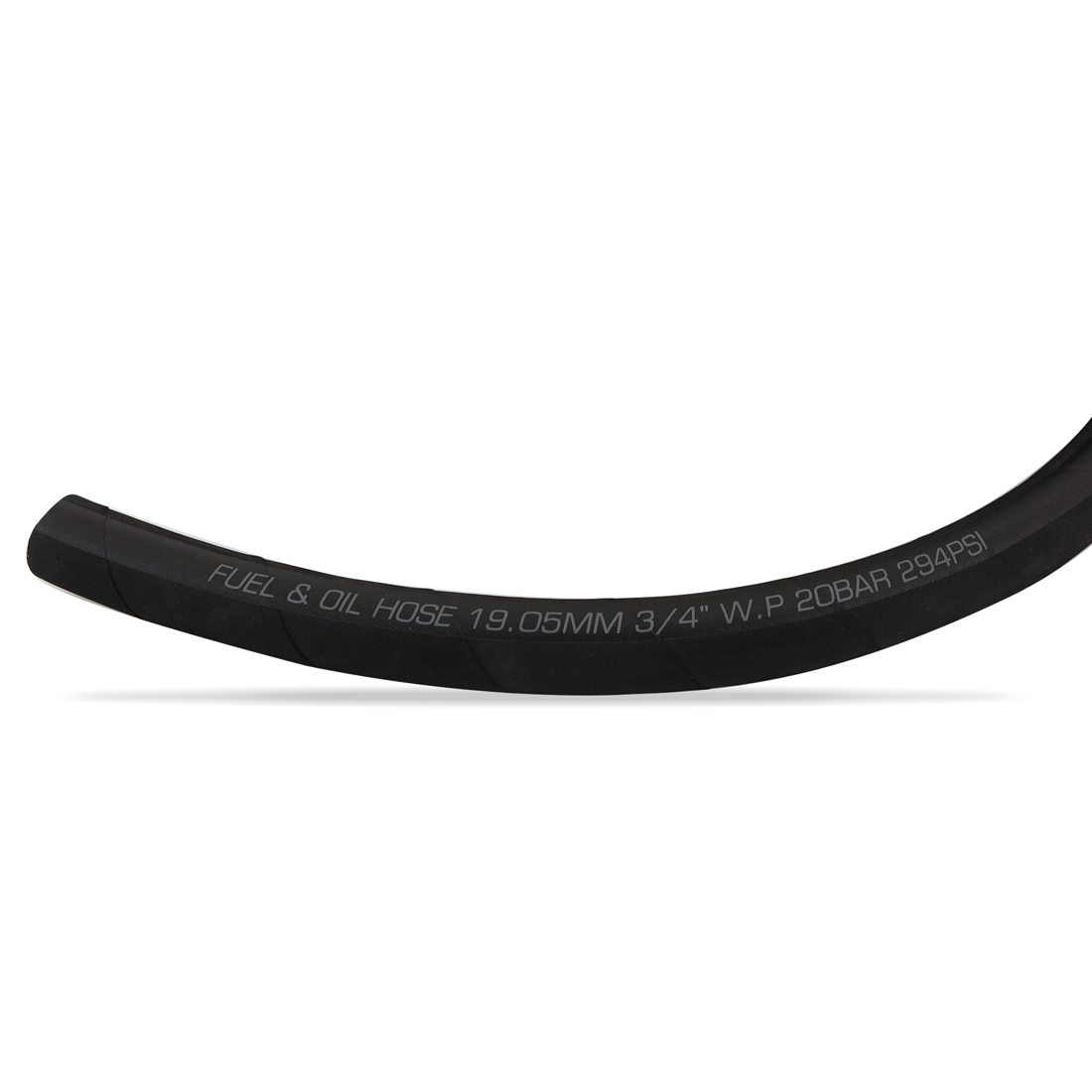

The Mishimoto MMHOSE-PL-12-240 is a -12AN push-lock hose supplied in a 20 ft length, purpose-built for shops and DIY builders who need to fabricate reliable custom lines without a crimping machine. Constructed from chemical-resistant nitrile and CPE, this Mishimoto Fabrication hose is engineered to handle a broad mix of fluids in one flexible, easy-to-cut length.
Because it uses a push-lock design, this hose installs onto compatible push-lock fittings with minimal tooling, making it a fast option for custom fuel, oil, coolant, and air routing on a wide range of vehicles and equipment. The nitrile and CPE construction resists petroleum fuels, ethanol, oil, and coolant, and Mishimoto rates the line for use up to 290 PSI and temperatures from -40F to 257F (-40C to 125C), giving fabricators confidence across street, track, and shop applications. In low-temperature, low-pressure setups the push-lock connection doesn’t require clamps, though Mishimoto notes that clamps are required whenever the application exceeds 140F or 60 PSI, with 7/8″ to 1″ ear clamps recommended for those conditions.
Vehicle Applications
As a Fabrication-category product, this Mishimoto push-lock hose isn’t tied to a single make or model; it’s designed to be cut and routed into custom fuel, oil, coolant, or air lines on whatever vehicle or project the builder is working on. Its compatibility with gasoline, E85, lubricants, oil, coolant, and air makes it a flexible choice for engine bay plumbing, turbo and oil-cooler lines, and other fabrication tasks where a dependable -12AN line is needed.
Features
- Push-lock hose allows you to create custom lines with minimal tooling
- Maximum operating pressure of 290 PSI
- Operating temperature range of -40F to 257F (-40C to 125C)
- Compatible with petroleum fuels, ethanol, oil, coolant, or air
- Push-lock design does not require clamps in low-pressure/low-temp applications
- Available in sizes from -4AN to -12AN and 10 ft or 20 ft lengths

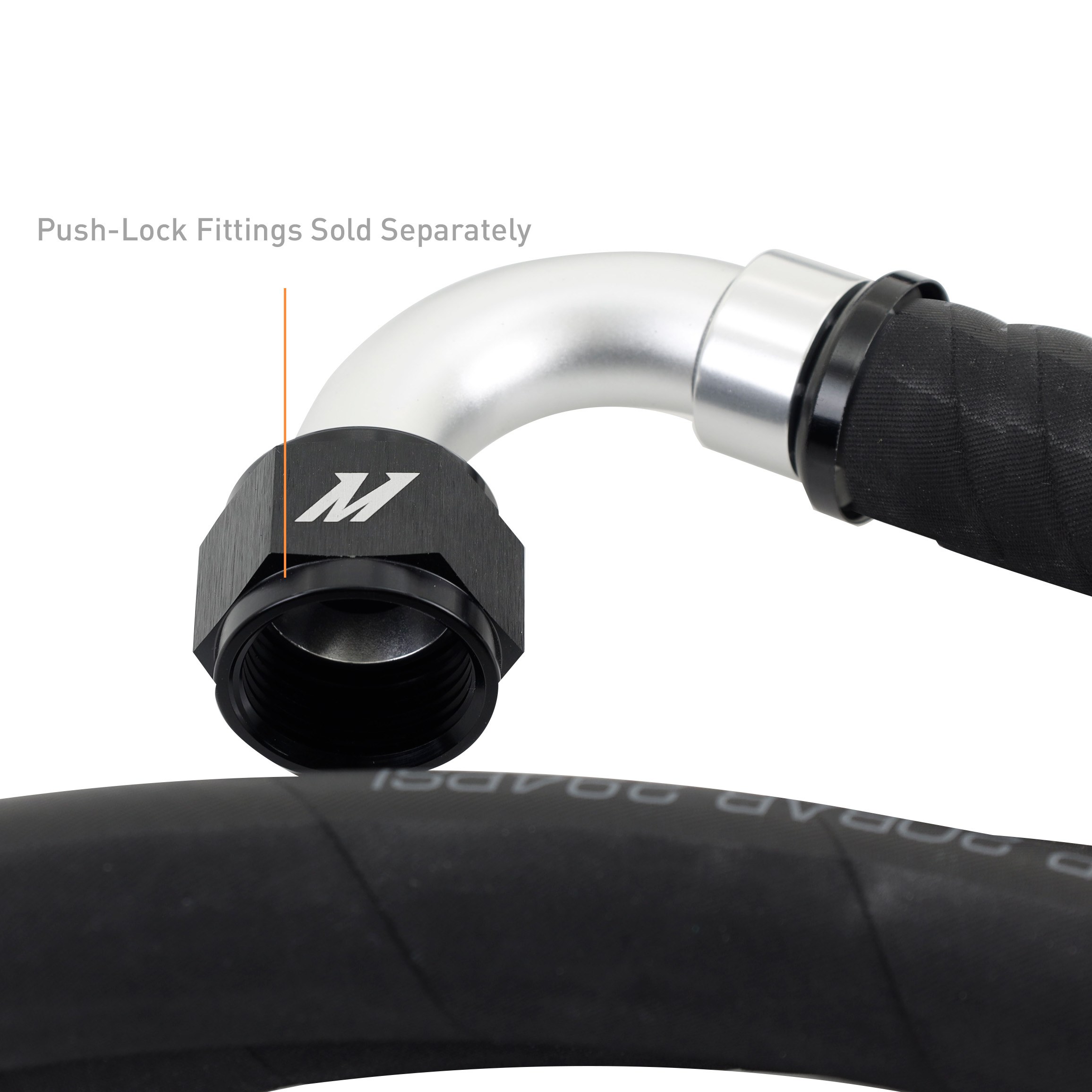

- Compatible with Mishimoto Push-Lock Fittings
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Part Number: MMHOSE-PL-12-240
- Length option: 20 ft
- Inlet: 19.05mm
- Outlet: 19.05mm
- Max Fluid Temperature: 257F
- Max Fluid Pressure: 290 PSI
- Compatible Fluids: Gasoline, E85, Lubricants, Oil, Coolant, Air
- Tech Note: Clamps must be used for applications exposed to temperatures over 140F or pressures over 60 PSI – 7/8″ to 1″ ear clamps recommended
- Purchase Includes: (1) Push Lock Hose – Mishimoto Lifetime Warranty
Frequently Asked Questions
What size and length is the MMHOSE-PL-12-240?
This Mishimoto push-lock hose is a -12AN size supplied in a 20 ft length.
What is this push-lock hose made from?
It is constructed from chemical-resistant nitrile and CPE, making it suitable for a wide variety of applications.
What fluids is this hose compatible with?
It is compatible with gasoline, E85, lubricants, oil, coolant, and air.
What are the pressure and temperature ratings?
The hose is rated for pressures up to 290 PSI and temperatures between -40F and 257F (-40C to 125C).
Do I need clamps with this push-lock hose?
Clamps are not required in low-temperature/low-pressure applications, but Mishimoto states that clamps must be used for applications exposed to temperatures over 140F or pressures over 60 PSI, with 7/8″ to 1″ ear clamps recommended.
What warranty covers this hose?
Like all Mishimoto products, this push-lock hose is backed by the Mishimoto Lifetime Warranty.
