Description
The Mishimoto MMICP-F2D-11KBK is a complete hot-side and cold-side intercooler pipe and boot kit engineered specifically for the 2011+ 6.7L Powerstroke. Built from mandrel-bent, polished aluminum, this forced induction upgrade replaces the factory piping’s restrictive bends with smoother, more efficient pathways for boosted air. It’s a purpose-built forced induction system component designed to work alongside your factory turbo setup rather than replace it.
By eliminating the factory pipe’s tight bends, this Mishimoto forced induction pipe kit improves airflow and helps unlock gains in power and EGT management on the 6.7L Powerstroke. The kit’s CNC-machined quick-disconnect flanges and IAT sensor housing were designed by Mishimoto’s engineers to make installation straightforward, with the manufacturer noting an install time of less than two hours. Because the kit retains all factory emissions components and doesn’t require a tuner, it’s a straightforward way to upgrade forced induction airflow without disrupting the rest of the induction system or emissions compliance. Reliability comes from the included Mishimoto silicone boots built with DuraCore technology, an inner-layer synthetic material that resists heat, pressure, fuel, and oil better than standard silicone, extending boot life and helping prevent leaks or blowouts. Mishimoto Constant-Tension T-bolt clamps back up every connection with accurate, consistent holding power.
Vehicle Applications
This intercooler pipe and boot kit is a direct fit for the 6.7L Powerstroke-equipped Ford Super Duty lineup. On the F-250 Super Duty, it fits the King Ranch, Lariat, XL, and XLT trims from 2011-2016, the Base trim for 2015-2016, the FX4 trim for 2011-2014, and the Platinum trim for 2013-2016. On the F-450 Super Duty, coverage includes the Base, King Ranch, Lariat, XL, and XLT trims for 2011-2016 along with the Platinum trim for 2013-2016. The F-550 Super Duty is covered on the Base, Lariat, XL, and XLT trims for 2011-2016. The F-350 Super Duty Platinum trim is covered for 2013-2016. This kit pairs well with the Mishimoto 6.7L Powerstroke Performance Primary Radiator.
Features
- Direct-fit hot-side and cold-side intercooler pipe and boot kit for the 2011-2016 6.7L Powerstroke
- Mandrel-bent, polished aluminum pipes eliminate restrictive factory bends
- Designed to improve airflow, power, and EGTs
- CNC-machined factory-style quick-disconnect flanges and IAT sensor housing for a faster install
- Includes Mishimoto silicone boots with DuraCore technology for added heat, pressure, fuel, and oil resistance
- Includes Mishimoto Constant-Tension T-bolt clamps for consistent holding power
- Retains all factory emissions components; no tuner required
- Manufacturer notes install time of less than two hours
- Backed by the Mishimoto Lifetime Warranty
- Improved with an O-ring and spring clip on both the hot- and cold-side pipes
Specifications
- Brand: Mishimoto
- Part Number: MMICP-F2D-11KBK
- Product Type: Forced Induction
- Finish: Polished
- Pipe Material: Aluminum
- Pipe Color: Polished
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: T-Bolt
- Clamps Included: Yes
- CARB EO Number: D-759-4

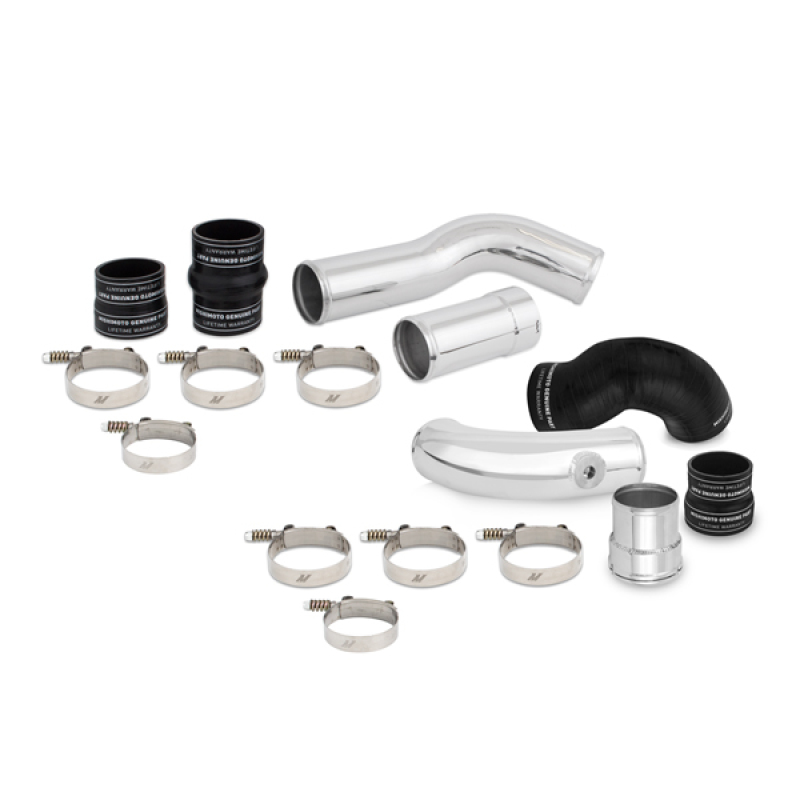

- Kit Includes: (2) Aluminum Intercooler Pipes w/ CNC Quick-Disconnect Flange, O-Ring, and Spring Clip; (1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing; (1) Aluminum Intercooler Pipe; (4) Silicone Boots with DuraCore Technology; (8) Constant-Tension T-Bolt Clamps; (2) Aluminum Mishimoto M Logo Badges; Mishimoto Lifetime Warranty
Frequently Asked Questions
What does the Mishimoto MMICP-F2D-11KBK kit include?
It includes two aluminum intercooler pipes with CNC quick-disconnect flanges, O-rings, and spring clips; one aluminum pipe with a CNC IAT sensor housing; one additional aluminum pipe; four silicone boots with DuraCore technology; eight Constant-Tension T-bolt clamps; two aluminum Mishimoto M logo badges; and the Mishimoto Lifetime Warranty.
Which vehicles does this intercooler pipe and boot kit fit?
It is a direct fit for the 6.7L Powerstroke-equipped Ford F-250 Super Duty (King Ranch, Lariat, XL, XLT 2011-2016; Base 2015-2016; FX4 2011-2014; Platinum 2013-2016), F-450 Super Duty (Base, King Ranch, Lariat, XL, XLT 2011-2016; Platinum 2013-2016), F-550 Super Duty (Base, Lariat, XL, XLT 2011-2016), and F-350 Super Duty Platinum (2013-2016).
Do I need a tuner to install this kit?
No. This intercooler pipe and boot kit is direct fit, retains all factory emissions components, and does not require the use of a tuner.
How long does installation take?
According to Mishimoto, the CNC-machined quick-disconnect flanges and IAT sensor housing allow for an easy install in less than two hours.
What is DuraCore technology?
DuraCore is the synthetic material that makes up the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, it offers superior resistance to heat, pressure, fuel, and oil, which helps extend boot life and prevent leaks or blowouts.
What materials are the pipes and boots made from?
The pipes are constructed of mandrel-bent aluminum with a polished finish, and the boots are made of black silicone featuring DuraCore technology.
