Description

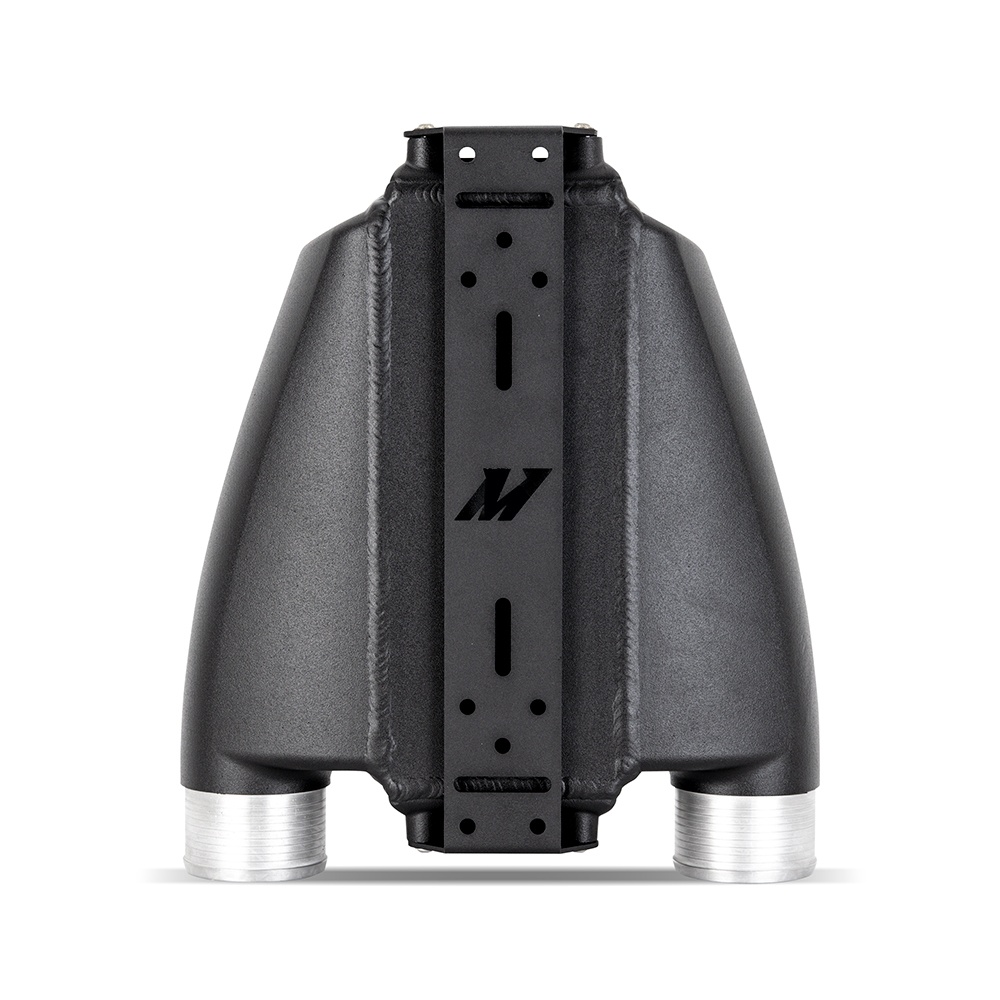

The Mishimoto MMINT-A2W-DP-2 is a purpose-built air-to-water intercooler engineered around a bar-and-plate aluminum core, cast-aluminum end tanks, and a same-side inlet/outlet layout rated to handle up to 1000 horsepower and 100 psi of boost. This isn’t a generic charge cooler — it’s part of Mishimoto’s dedicated forced induction lineup built specifically to bring liquid-to-air cooling efficiency into demanding performance projects.
Air-to-water intercooling has grown in popularity because it delivers compact, consistent cooling that helps combat heat soak and reduce detonation compared to bulkier setups, and the MMINT-A2W-DP-2 puts that performance induction technology into a tight, high-strength package. Its 5mm-thick cast-aluminum end tanks are custom engineered for smooth airflow and are professionally TIG-welded to the core, giving the whole assembly a pressure tolerance suited to serious boost. CNC-machined ribbed inlet and outlet couplers grip intercooler piping securely, while ORB coolant ports built into the core simplify plumbing your forced induction system. A sturdy steel mounting bracket rounds out the package, making this intercooler a practical core component for anyone assembling a custom induction system rather than relying on a stock-style unit.
Vehicle Applications
The MMINT-A2W-DP-2 is listed as a specific-fit component rather than a shared, one-size-fits-all part, making it best suited to custom forced induction builds and engine swap projects rather than a direct bolt-on across a broad range of factory vehicles. No specific make, model, or engine platform is designated for this intercooler in Mishimoto’s documentation, so it is intended to be integrated into a tailored air-to-water charge-cooling system capable of supporting builds up to 1000 horsepower and 100 psi of boost.
Features
- Highly efficient air-to-water design delivers effective cooling in a compact package
- Bar-and-plate aluminum core built for durability and efficient heat transfer

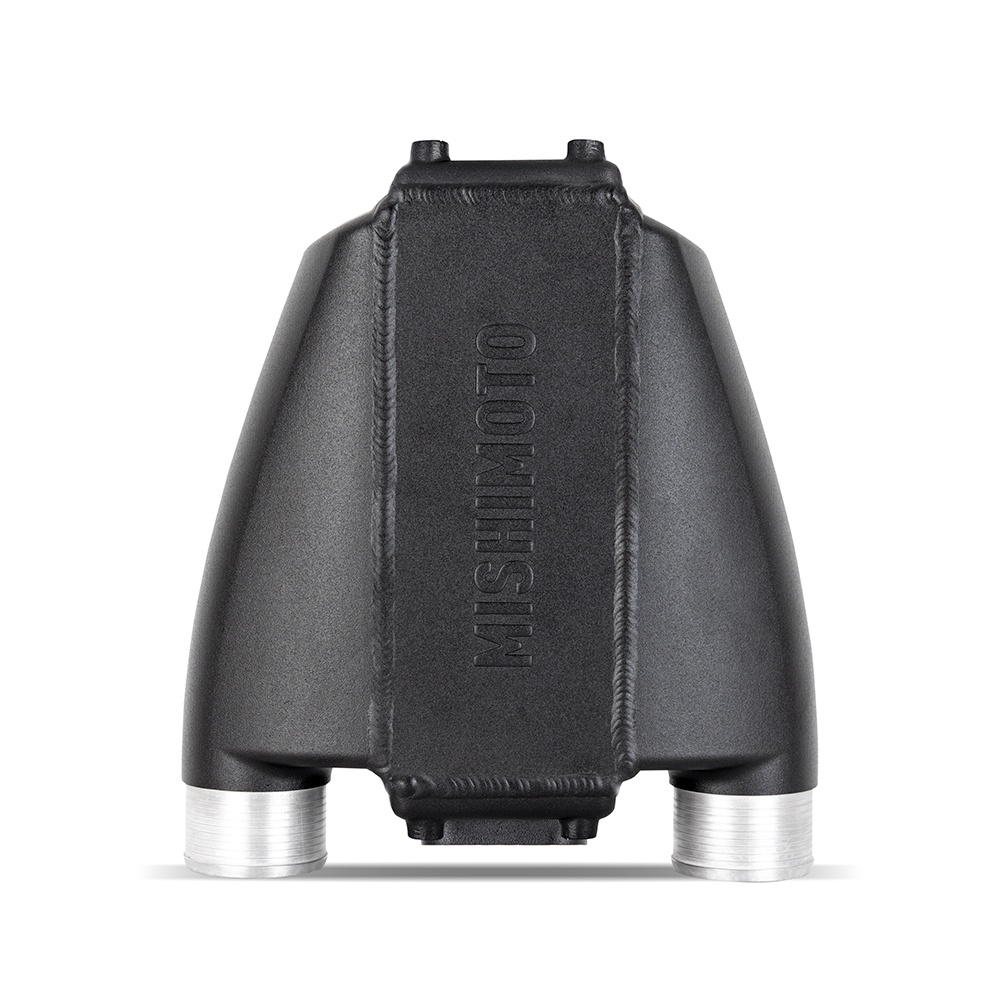

- Cast-aluminum end tanks custom engineered to yield superb airflow and durability
- All-aluminum, professionally TIG-welded construction
- CNC-machined ribbed inlet/outlet couplers for secure piping connections

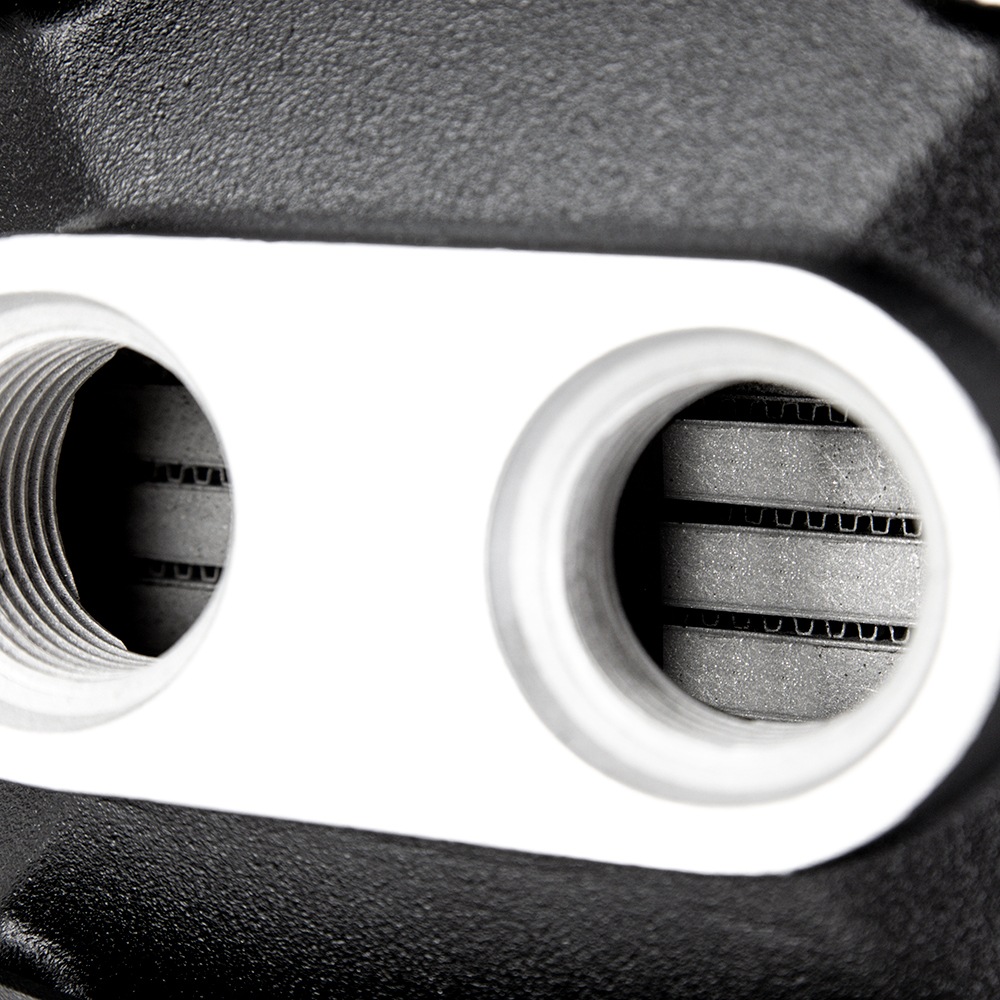

- ORB coolant ports built into the core for streamlined plumbing
- Includes a robust 1/8-inch thick steel mounting bracket and hardware

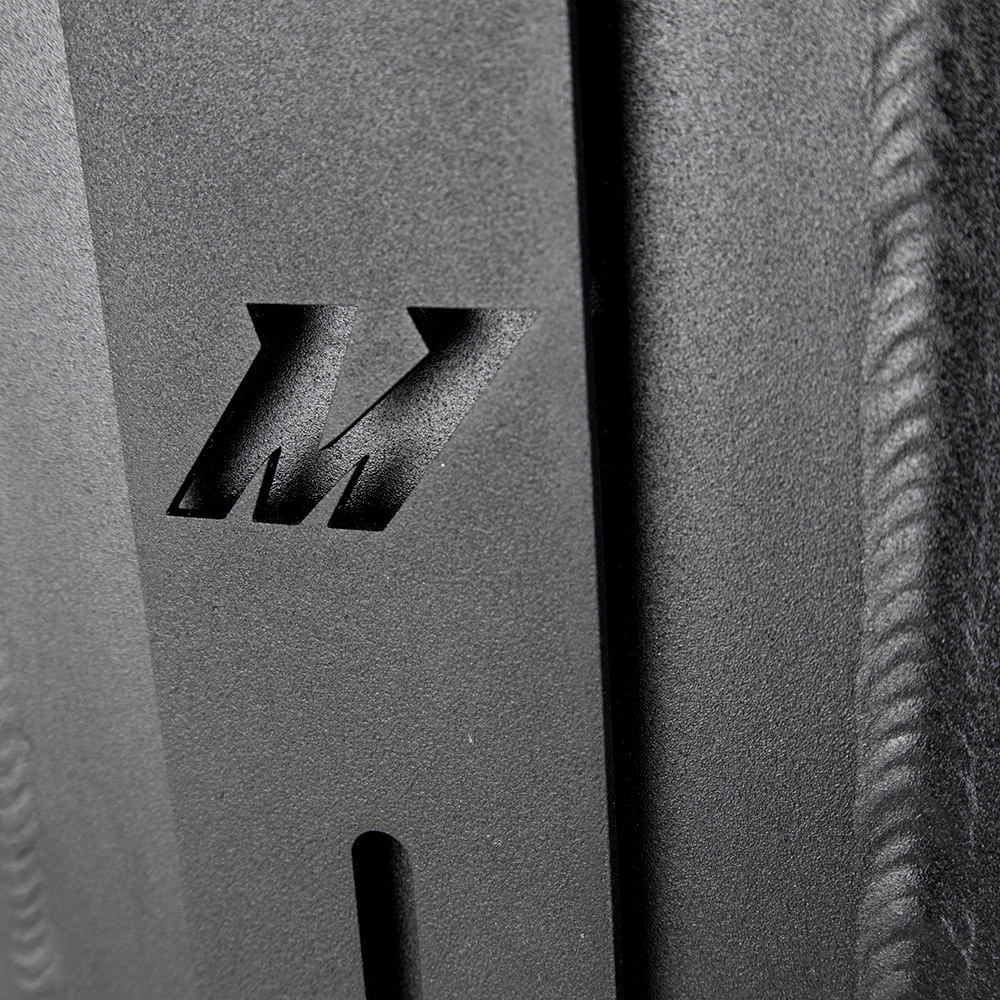

- Finished in a sleek, durable micro wrinkle black powder coat
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-A2W-DP-2
- Product Type: Forced Induction
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Length: 12 in
- Core Height: 4.92 in
- Core Thickness: 4.92 in
- Overall Length: 13.61 in
- Overall Width: 4.92 in
- Overall Height: 10.75 in
- Configuration: 1000HP – Same Side Inlet/Outlet
- Fit Type: Specific
- Grade Type: Performance
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Maximum Recommended Horsepower: 1000 HP
- Maximum Recommended Boost Pressure: 100 psi
Frequently Asked Questions
What is the maximum horsepower rating for the Mishimoto MMINT-A2W-DP-2 intercooler?
This intercooler carries a Maximum Recommended Horsepower rating of 1000 HP.
What is the maximum boost pressure this intercooler can handle?
It has a Maximum Recommended Boost Pressure rating of 100 psi.
What type of core does the MMINT-A2W-DP-2 use?
It uses a bar-and-plate core made from aluminum, with aluminum inlet tank material.
What inlet/outlet configuration does this version feature?
This variant is configured as a 1000HP – Same Side Inlet/Outlet setup, with male inlet and outlet fitting connections.
What hardware is included with the intercooler?
It includes a robust 1/8-inch thick steel mounting bracket and hardware.
Does the Mishimoto MMINT-A2W-DP-2 include a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
