Mishimoto MMINT-A2W-DP-3 Air-to-Water Intercooler 1500HP

Description

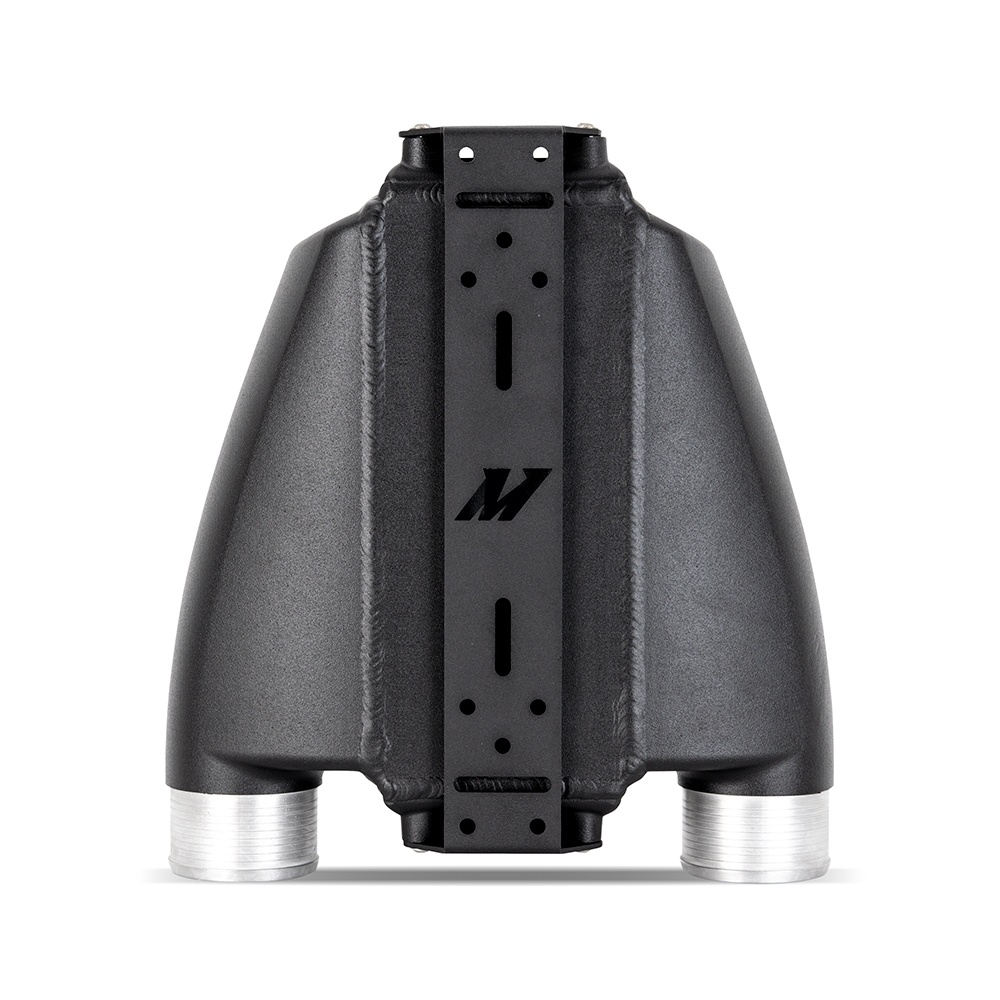

The Mishimoto MMINT-A2W-DP-3 is a bar-and-plate air-to-water intercooler engineered for high-output forced induction builds, featuring a same-side inlet/outlet configuration rated to support up to 1500 horsepower. Built with 5mm-thick cast-aluminum end tanks that are professionally TIG-welded to an aluminum core, it is designed to keep charge-air temperatures under control even under sustained boost. As part of Mishimoto’s full lineup of air-to-water intercoolers, the MMINT-A2W-DP-3 brings the compact efficiency of liquid-to-air cooling to serious forced induction projects.

Reducing intake air temperature is central to minimizing heat soak and detonation while keeping power output consistent, and that is exactly what this forced induction system component is built to do. By pairing a bar-and-plate core with cast-aluminum end tanks that are custom engineered for smooth airflow, the MMINT-A2W-DP-3 helps reduce overall pressure drop while withstanding up to 100 psi of boost. CNC-machined ribbed inlet and outlet couplers grip tightly to your induction system piping, while -16ORB coolant ports built into the core simplify plumbing your air-to-water setup. A sturdy 1/8-inch thick steel universal mounting bracket is included, and Mishimoto’s -16ORB Aluminum Fitting selection (also referenced as -12ORB fittings in Mishimoto’s coolant line options) lets you adapt the core to your preferred coolant line size. Finished in a sleek, durable micro wrinkle black powder coat, this performance induction upgrade is backed by the Mishimoto Lifetime Warranty.

Vehicle Applications

The MMINT-A2W-DP-3 is built as a universal core for custom forced induction installations rather than a fitment tied to one specific factory vehicle. It ships with a 1/8-inch thick steel universal mounting bracket and -16ORB coolant ports built into the core, allowing it to be integrated into project vehicles, engine swaps, and custom charge-air cooling systems that call for a bar-and-plate air-to-water intercooler supporting builds up to 1500 horsepower and 100 psi of boost.

Features

• Highly efficient air-to-water design delivers effective cooling in a compact package
• Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp

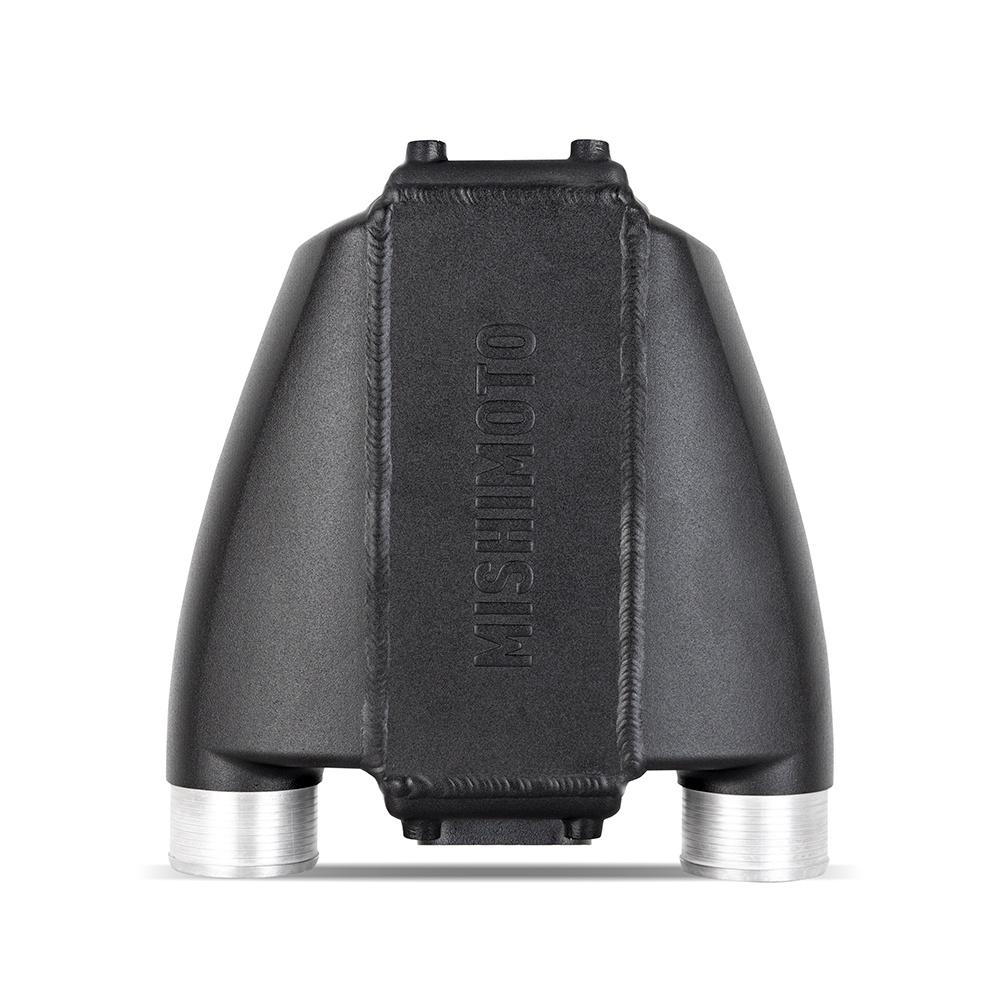

• Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
• Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow
• All-aluminum professionally TIG-welded construction rated to 100psi of boost pressure
• CNC-machined ribbed airflow inlet/outlet produces secure coupler connections
• Sleek, subtle, and durable micro-wrinkle black powder coat finish

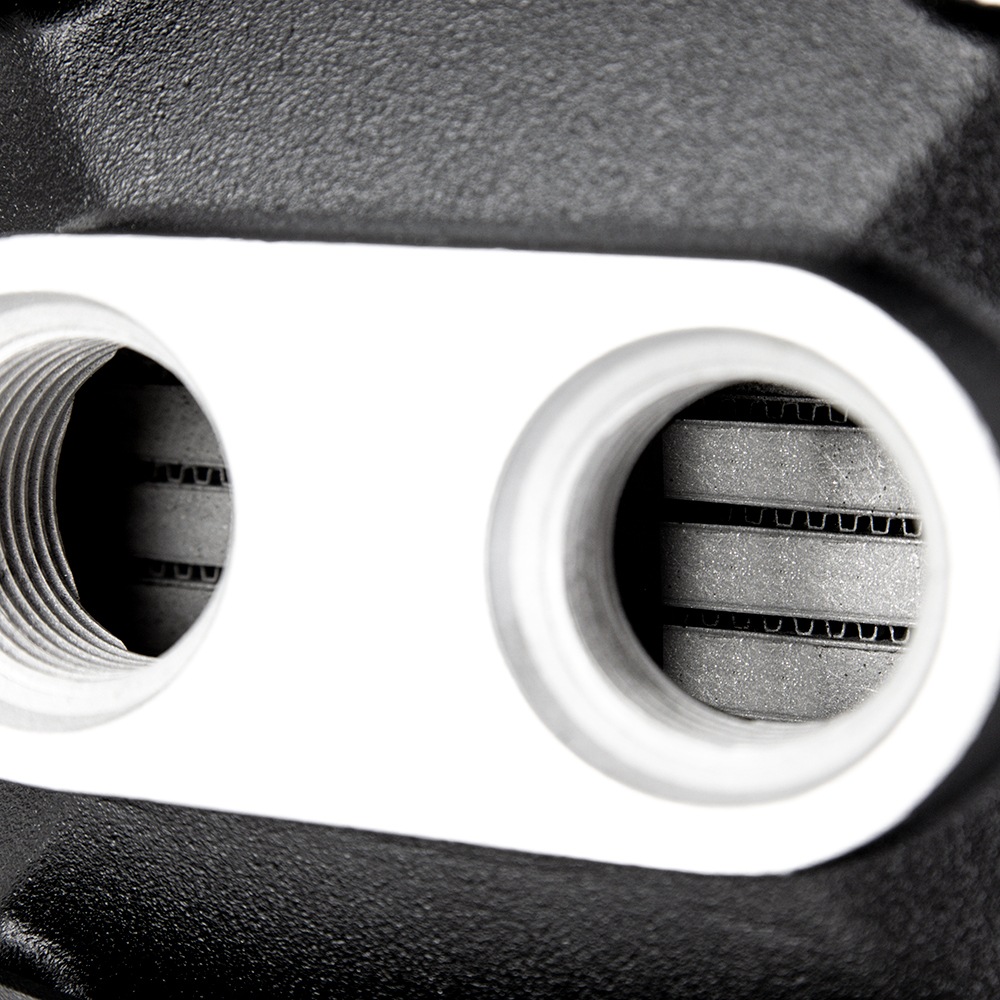

• -12ORB coolant ports provide leak-free line connections

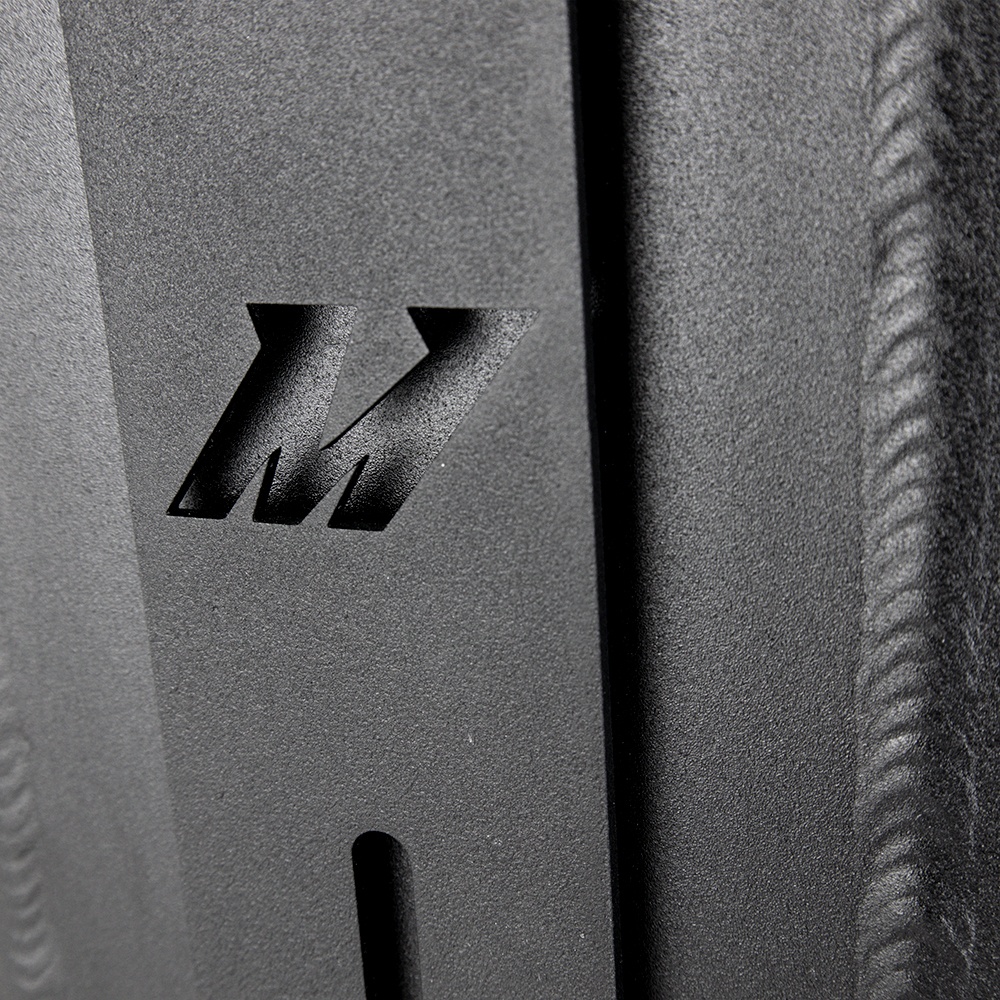

• Includes robust 1/8-in thick steel mounting bracket and hardware
• Abundant coolant line options with Mishimoto’s -12ORB Aluminum Fittings
• Pair with a Mishimoto Air-to-Water Heat Exchanger for the ultimate efficiency in your charge-air cooling setup
• Multiple core sizes to choose from to fit the needs of your project
• Mishimoto Lifetime Warranty

Specifications

• Type: Bar-and-Plate
• Overall Length: 13.61 in
• Overall Width: 5.90 in
• Overall Height: 12.37 in
• Core Material: Aluminum
• Core Length: 12 in
• Core Height: 5.90 in
• Core Thickness: 5.90 in
• Inlet Tank Material: Aluminum
• Inlet Outside Diameter: 3.5 in
• Outlet Outside Diameter: 3.5 in
• Inlet Fitting Gender: Male
• Outlet Fitting Gender: Male
• Grade Type: Performance
• Configuration: 1500HP – Same Side Inlet/Outlet
• Universal Or Specific Fit: Specific
• Maximum Recommended Horsepower: 1500 HP
• Maximum Recommended Boost Pressure: 100 psi
