Description

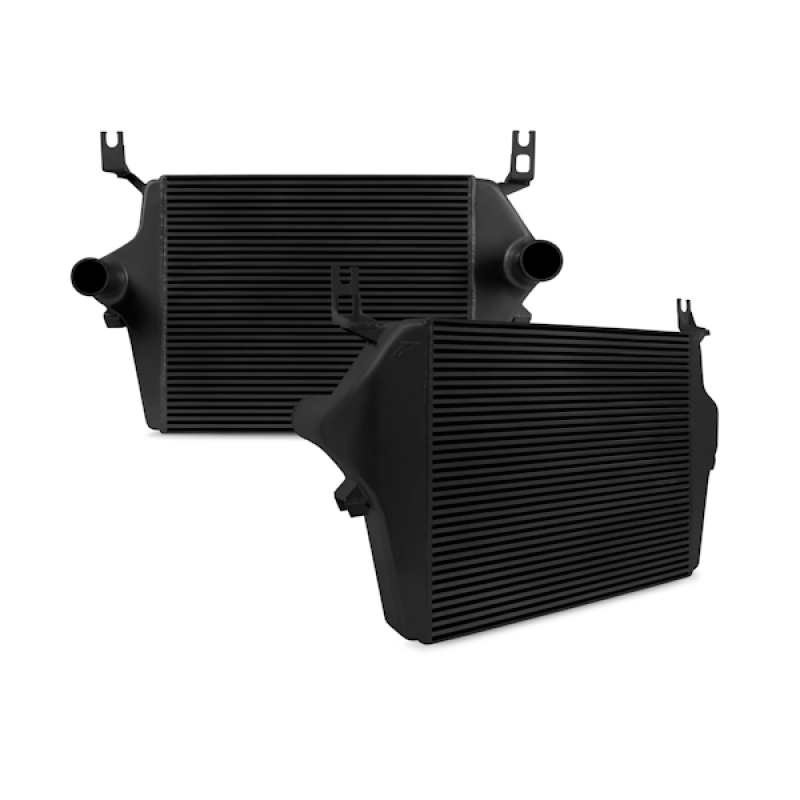

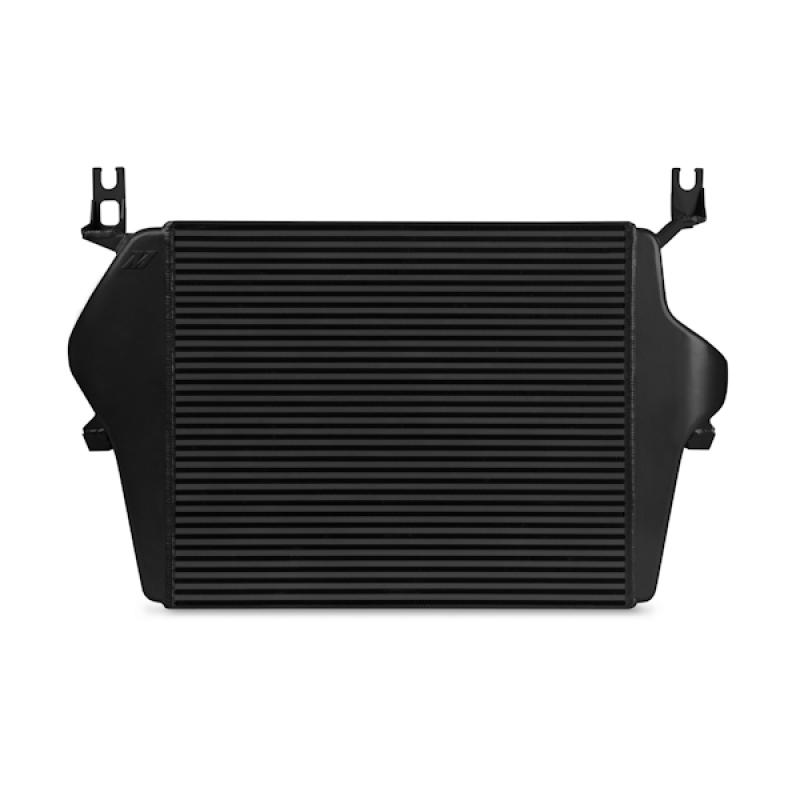

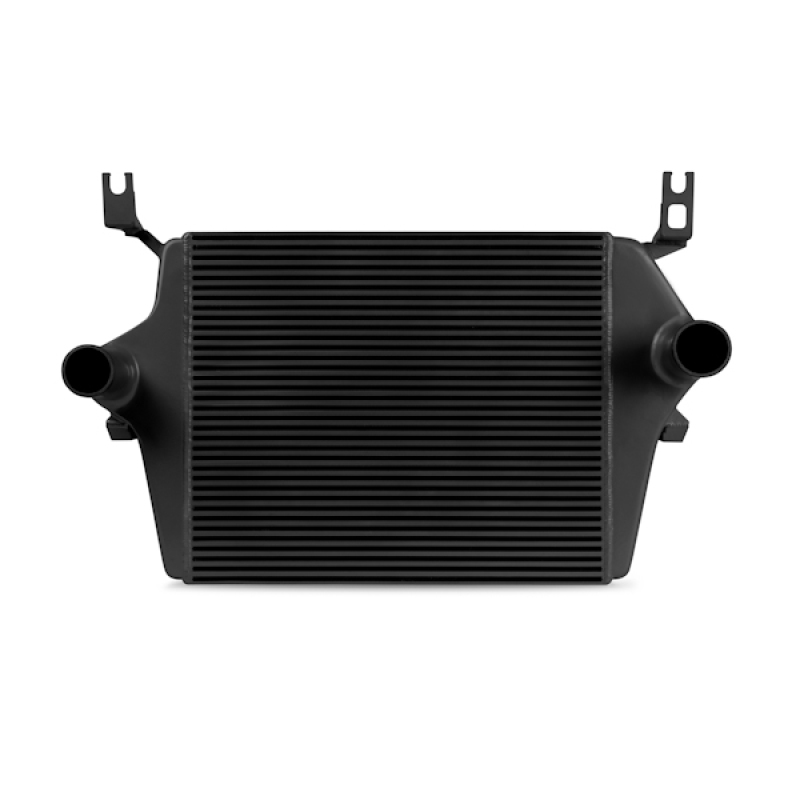

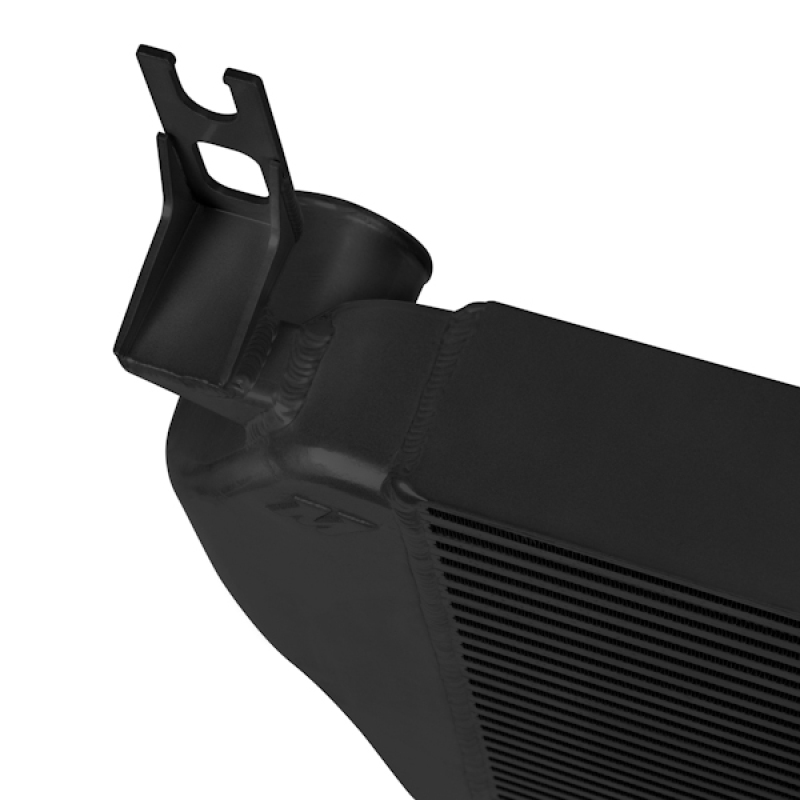

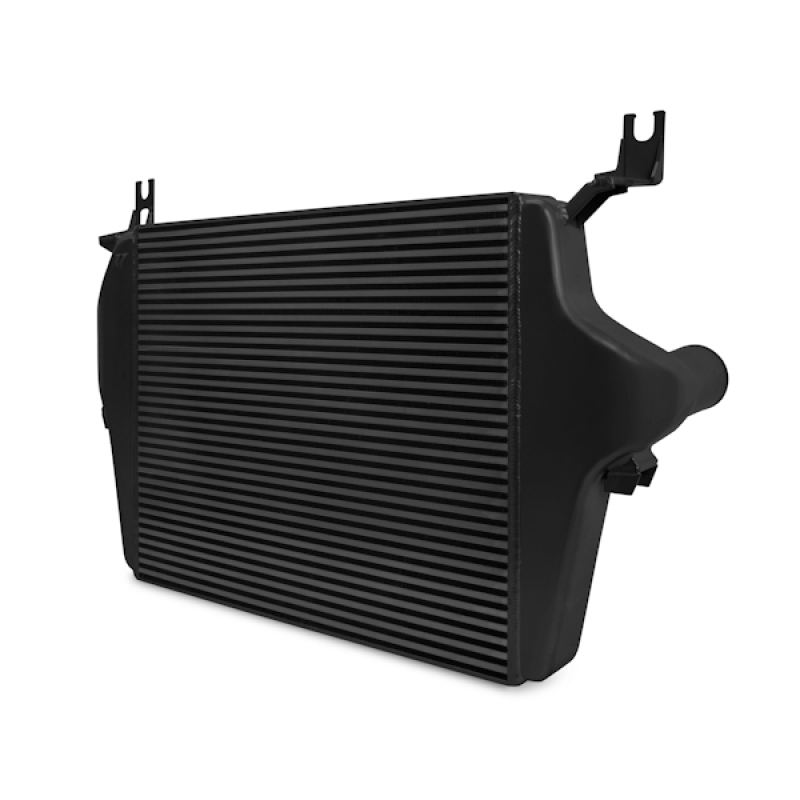

The Mishimoto MMINT-F2D-03BK is a direct-fit, Stealth Black performance intercooler built specifically for the 2003-2007 Ford 6.0L Powerstroke. At the heart of this forced induction upgrade sits a 3.35-inch bar-and-plate core that is 33-percent thicker than the factory intercooler and delivers a 32.5-percent increase in core volume, giving this hard-working diesel platform substantially more capacity to cool dense intake air. Heavy-duty cast aluminum end tanks and an aluminum core make this a purpose-built replacement rather than a generic universal piece.
A high-output 6.0L Powerstroke needs a forced induction system that can keep intake temperatures in check while withstanding sustained boost pressure, and that is exactly the job this Mishimoto performance induction upgrade is designed to do. The end tanks are shaped specifically for optimal airflow, and an air diverter built into the hot-side end tank reduces turbulence and evenly distributes airflow across the core rather than letting it pool in one section. The result is improved airflow through the induction system, lower intake air temperatures, and reduced pressure drop across the core – which in turn reduces stress on the turbocharger and helps extend its service life while improving overall Powerstroke efficiency.
Vehicle Applications
This intercooler is a specific, direct fit for the 2003-2007 Ford 6.0L Powerstroke and covers a wide range of Super Duty and Excursion trims. On the F-250 Super Duty, it fits XL, XLT, and Lariat trims from 2003-2007, plus the King Ranch and Harley-Davidson Edition from 2004-2007. F-350 Super Duty coverage includes XL, XLT, Lariat, and King Ranch trims for 2003-2007, along with the Harley-Davidson Edition for 2004-2007. On the F-450 Super Duty, it fits Lariat, XL, and XLT for 2003-2007 and the Base trim for 2003-2004, while the F-550 Super Duty is covered across Base, Lariat, XL, and XLT trims for 2003-2007. Ford Excursion applications include the Eddie Bauer, Limited, and XLT trims for 2003-2005 and the XLS trim for 2004-2005, all equipped with the 6.0L Powerstroke.
Features
- Direct fit for the 2003-2007 Ford 6.0L Powerstroke
- 3.35-inch bar-and-plate core is 33-percent thicker than factory
- 32.5-percent increase in core volume over the factory intercooler

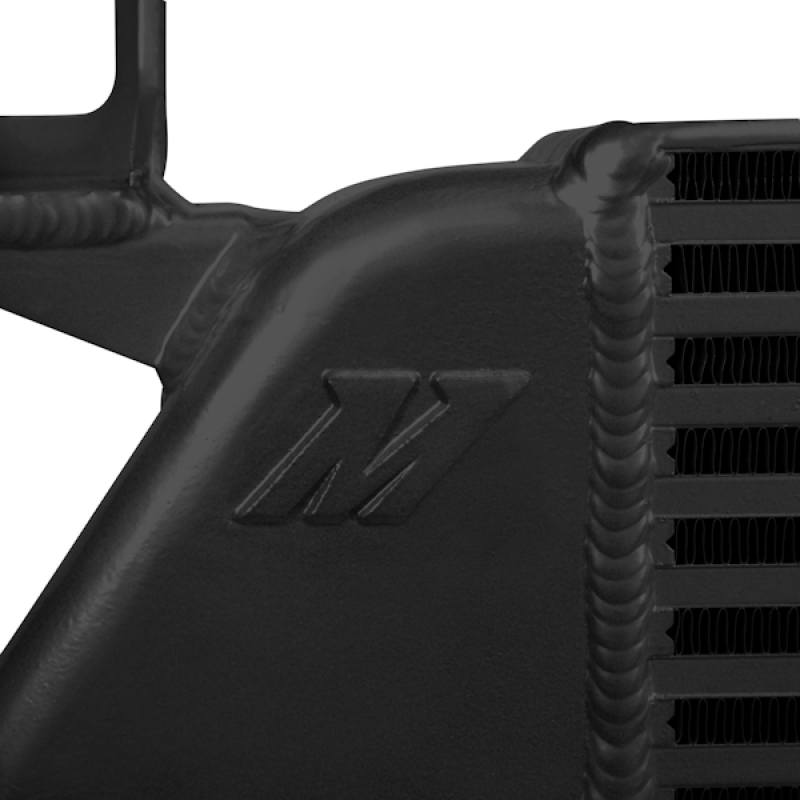

- End tanks strategically designed for optimal airflow
- Air diverter in the hot-side end tank reduces turbulence and evenly distributes airflow across the core
- Reduces turbo stress and helps extend turbocharger life
- Improves airflow and lowers intake air temperatures
- Available in Sleek Silver and Stealth Black finishes
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Black
- Grade Type: Performance
- Fit Type: Specific (direct fit)
- Inlet Outside Diameter: 3.25 in (Male fitting)
- Outlet Fitting: Male
- Overall Length: 38.5 in
- Overall Width: 7.5 in
- Overall Height: 25.2 in
- Core Height: 21.54 in
- Core Length: 25.75 in
- Includes: (1) Mishimoto Intercooler with Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles fit the Mishimoto MMINT-F2D-03BK intercooler?
This intercooler is a direct fit for the 2003-2007 Ford F-250 Super Duty (XL, XLT, Lariat 2003-2007; King Ranch and Harley-Davidson Edition 2004-2007), F-350 Super Duty (XL, XLT, Lariat, King Ranch 2003-2007; Harley-Davidson Edition 2004-2007), F-450 Super Duty (Lariat, XL, XLT 2003-2007; Base 2003-2004), F-550 Super Duty (Base, Lariat, XL, XLT 2003-2007), and Ford Excursion (Eddie Bauer, Limited, XLT 2003-2005; XLS 2004-2005), all with the 6.0L Powerstroke.
What type of core does this intercooler use?
It uses a bar-and-plate core made of aluminum, which is 33-percent thicker than the factory core and provides a 32.5-percent increase in core volume.
What color is this intercooler?
This version of the Mishimoto 6.0L Powerstroke intercooler has a black core; it is also available in a Sleek Silver finish.
What is included with the purchase?
The package includes one Mishimoto Intercooler backed by the Mishimoto Lifetime Warranty.
What are the overall dimensions of the intercooler?
The overall dimensions are 38.5 in length, 7.5 in width, and 25.2 in height, with a core height of 21.54 in and core length of 25.75 in.
How does this intercooler help protect the turbocharger?
By reducing pressure drop and improving airflow across the core, the intercooler reduces stress on the turbocharger, which helps extend its life and improve the efficiency of the Powerstroke.
