Description

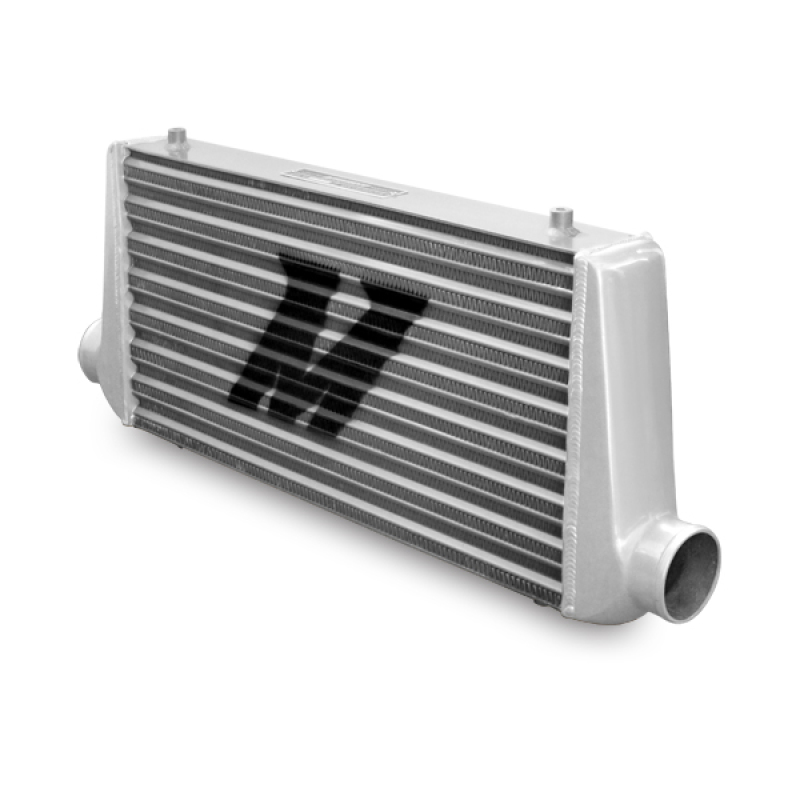

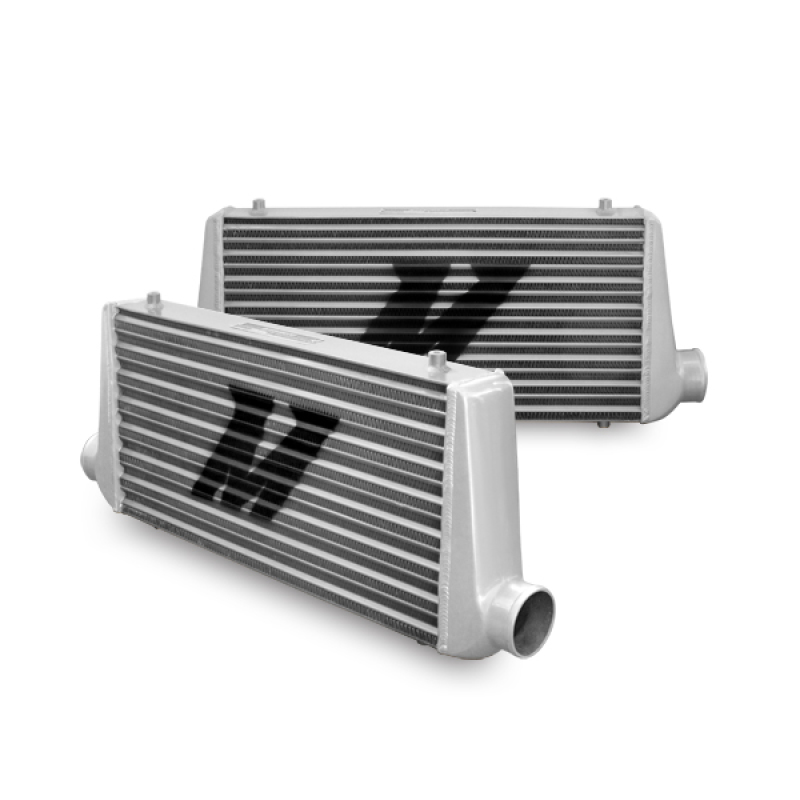

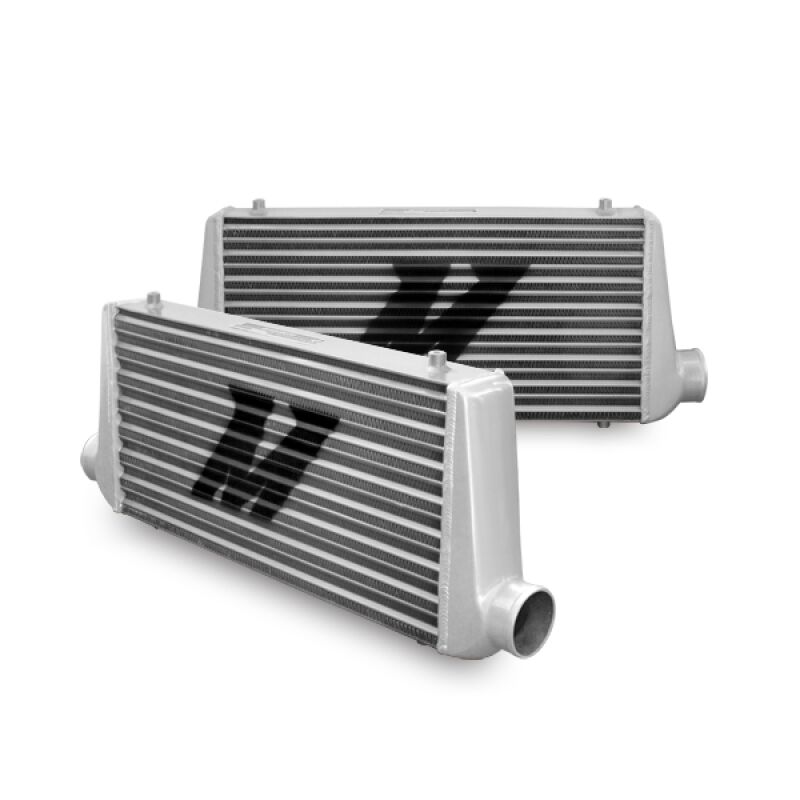

The Mishimoto MMINT-UM is a universal front-mount intercooler built for smaller turbo applications where a compact, efficient forced induction cooling solution is needed. Machined from 6061 aluminum and TIG welded to perfection, this Tube-and-Fin core intercooler is rated to a maximum recommended horsepower of 800 and a maximum recommended boost pressure of 32 PSI, and as a nod to clean styling, only one side of the unit carries the Mishimoto logo.
Whether you’re upgrading a forced induction turbo setup or piecing together a custom induction system from the ground up, this Mishimoto intercooler delivers the cooling capacity a smaller turbo application demands without unnecessary bulk. Robust, one-piece cast aluminum end tanks are engineered to withstand high boost pressures, while the aluminum inlet tank and Tube-and-Fin core work together to pull heat out of the charge air before it reaches the engine. Because it’s a true forced induction system component built for versatility rather than one specific platform, it suits builders looking for a dependable, performance-grade piece for their induction force upgrade.
Vehicle Applications
The Mishimoto MMINT-UM is a universal fit part rather than a vehicle-specific unit, which means it isn’t matched to a single make, model, or engine code. Instead, it’s designed for smaller turbo applications and equipped with 4 universal mounting points, giving fabricators and DIY installers the flexibility to integrate it into custom forced induction turbo and induction system builds.
Features
- Robust, one-piece cast aluminum end tanks withstand high boost pressures
- 4 universal mounting points for custom install flexibility
- Constructed with 6061 aluminum
- TIG welded to perfection

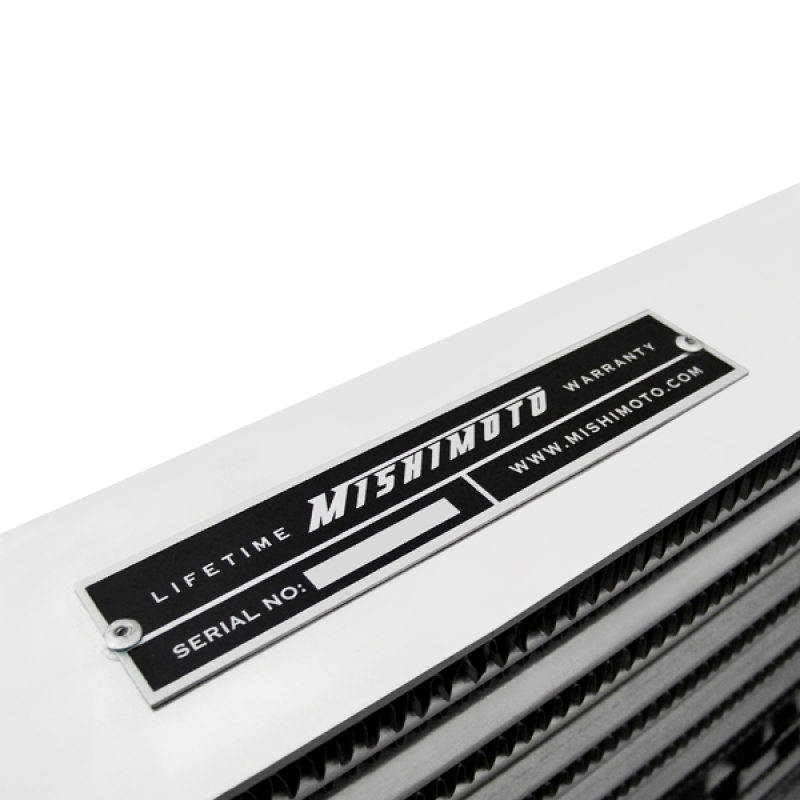

- Mishimoto Lifetime Warranty

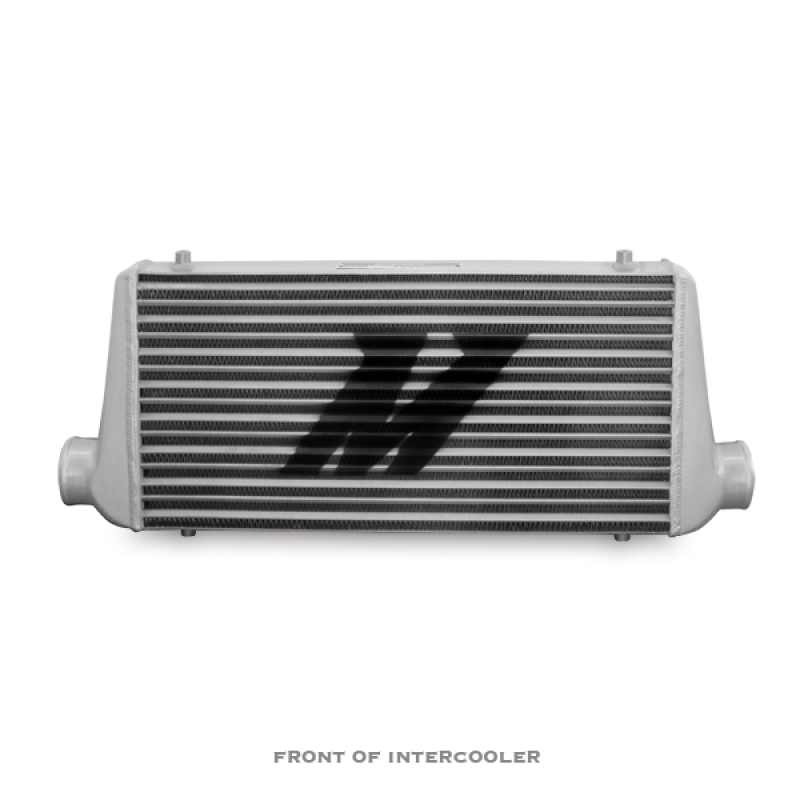

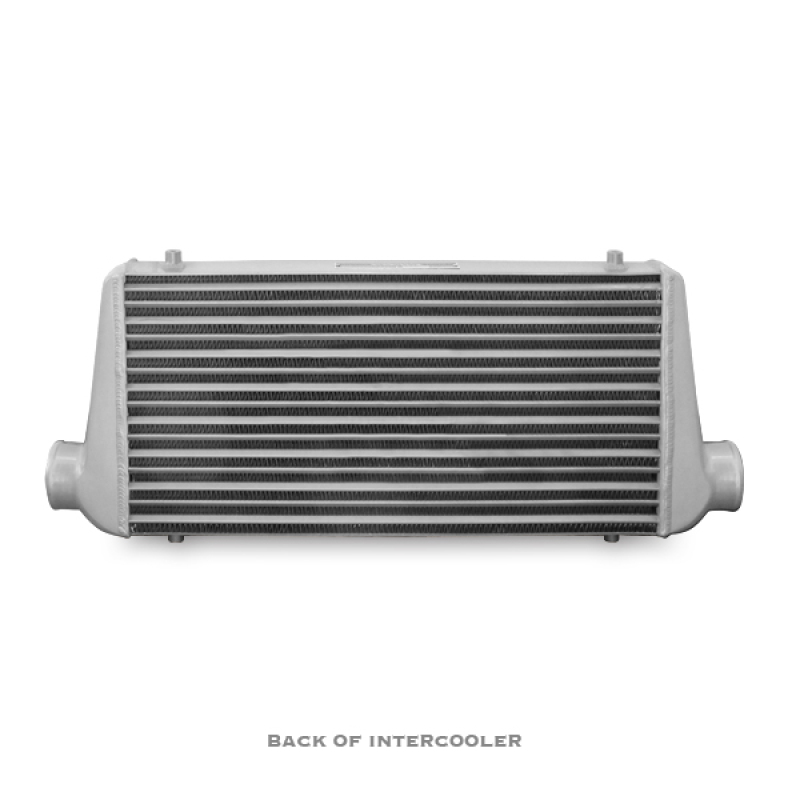

- Only one side of the intercooler features the Mishimoto logo
Specifications
- Brand: Mishimoto
- Part Number: MMINT-UM
- Product Type: Forced Induction
- Universal or Specific Fit: Universal front-mount intercooler for smaller turbo applications
- Core Type: Tube-and-Fin
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Silver
- Grade Type: Performance
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Core Height: 11.75 in
- Core Length: 23.5 in
- Overall Height: 11.75 in
- Overall Length: 31 in
- Maximum Recommended Horsepower: 800
- Maximum Recommended Boost Pressure: 32 PSI
- Includes: (1) Mishimoto Intercooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles fit the Mishimoto MMINT-UM intercooler?
The MMINT-UM is a universal front-mount intercooler designed for smaller turbo applications rather than a specific make or model, and it comes with 4 universal mounting points for custom installations.
What material is the Mishimoto MMINT-UM intercooler made from?
It is constructed of 6061 aluminum with a Tube-and-Fin core and TIG welded to perfection, and it features an aluminum inlet tank along with robust one-piece cast aluminum end tanks.
What’s the maximum horsepower and boost pressure this intercooler supports?
Mishimoto lists a maximum recommended horsepower of 800 and a maximum recommended boost pressure of 32 PSI for the MMINT-UM.
What are the core dimensions of the MMINT-UM?
The core measures 11.75 inches in height and 23.5 inches in length, with overall dimensions of 31 inches in length and 11.75 inches in height.
What’s included with the Mishimoto MMINT-UM?
The package includes (1) Mishimoto Intercooler backed by the Mishimoto Lifetime Warranty.
Does the intercooler have the Mishimoto logo on both sides?
No, only one side of the intercooler features the Mishimoto logo.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
