Description

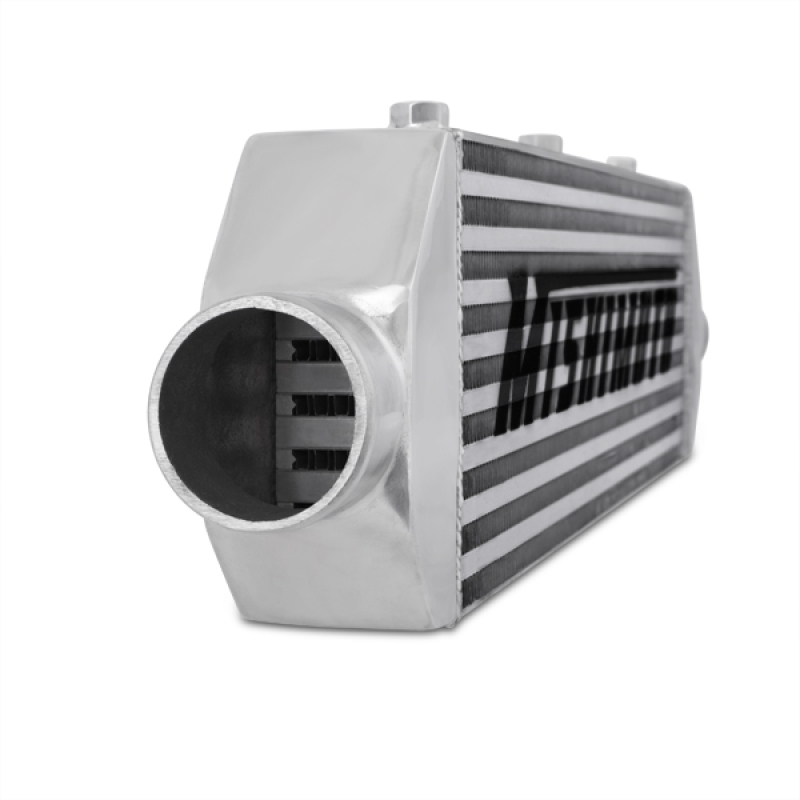

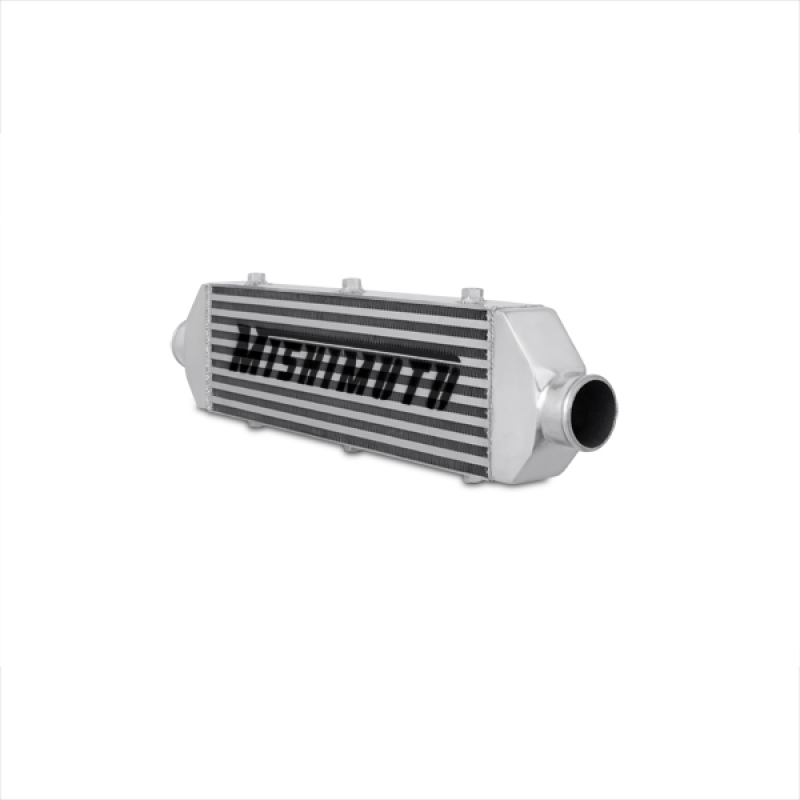

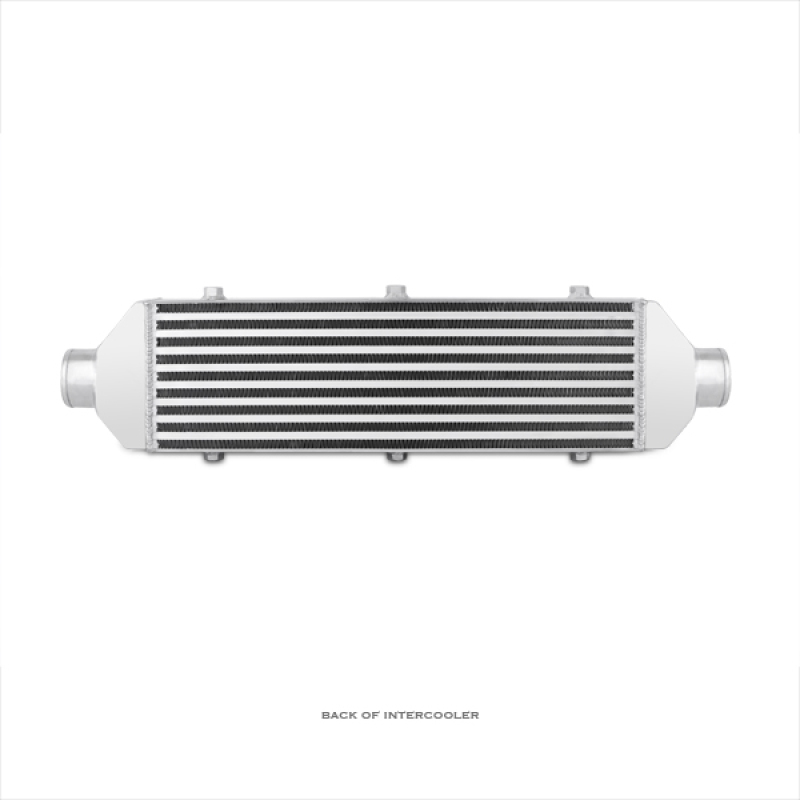

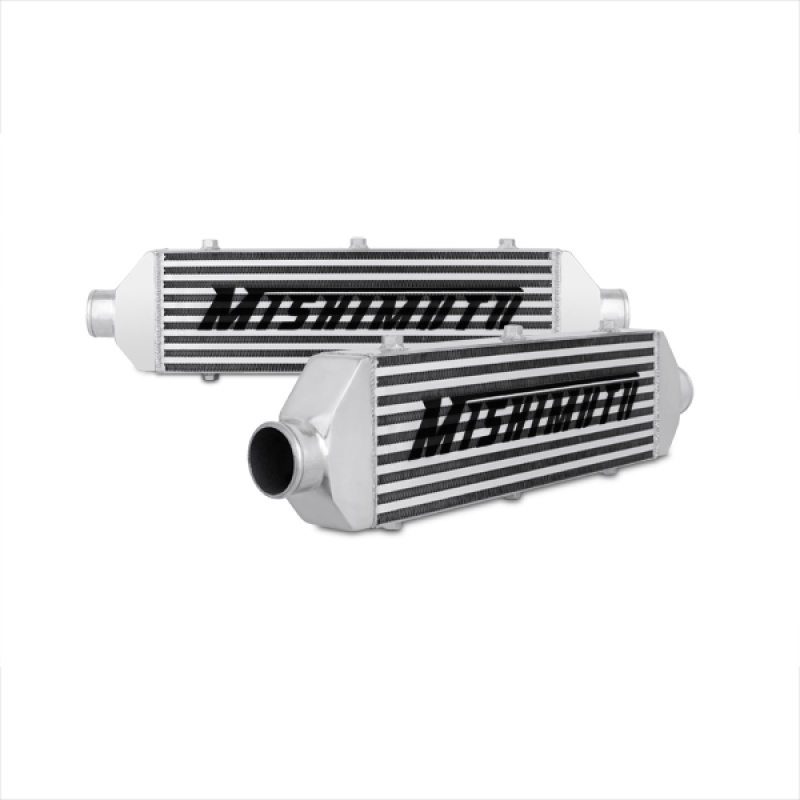

The Mishimoto MMINT-UZ is a universal front-mount intercooler engineered for drivers pushing serious boost through larger turbo setups. Every MMINT-UZ intercooler starts as 6061 aluminum, TIG welded into a bar-and-plate core, and finished with a Silver core color that carries the Mishimoto logo stamped on just one side. It’s rated to handle up to 500 horsepower and 22 PSI of boost, making it a serious contender for anyone building out a forced induction system.
Forced induction relies on efficient heat exchange, and this intercooler is built specifically around that principle. Its bar-and-plate core design and all-aluminum construction give the MMINT-UZ the surface area and structural strength needed to keep charge air cool as boost climbs, which matters for any performance induction setup chasing consistent power under load. Six threaded mounting points spread across the end tanks give installers universal fitment options, while 2.5-inch male inlet and outlet fittings keep plumbing straightforward for custom forced induction turbo piping. Whether you’re dialing in a force induction system on a track build or upgrading the induction system on a street car, the MMINT-UZ is designed to serve as the cooling core of that setup.
Vehicle Applications
As a universal front-mount intercooler, the Mishimoto MMINT-UZ is not restricted to a single factory chassis mount — it’s built to be installed into custom or aftermarket forced induction systems where a larger, higher-capacity core is needed. With six threaded mounting points using an M12x1.25 thread pitch and 2.5-inch male inlet/outlet connections, it’s suited to project vehicles and turbo builds that call for an intercooler capable of supporting up to 500 horsepower and 22 PSI of boost.
Features
- All-aluminum construction with bar-and-plate core
- TIG-welded end tanks for increased strength and durability

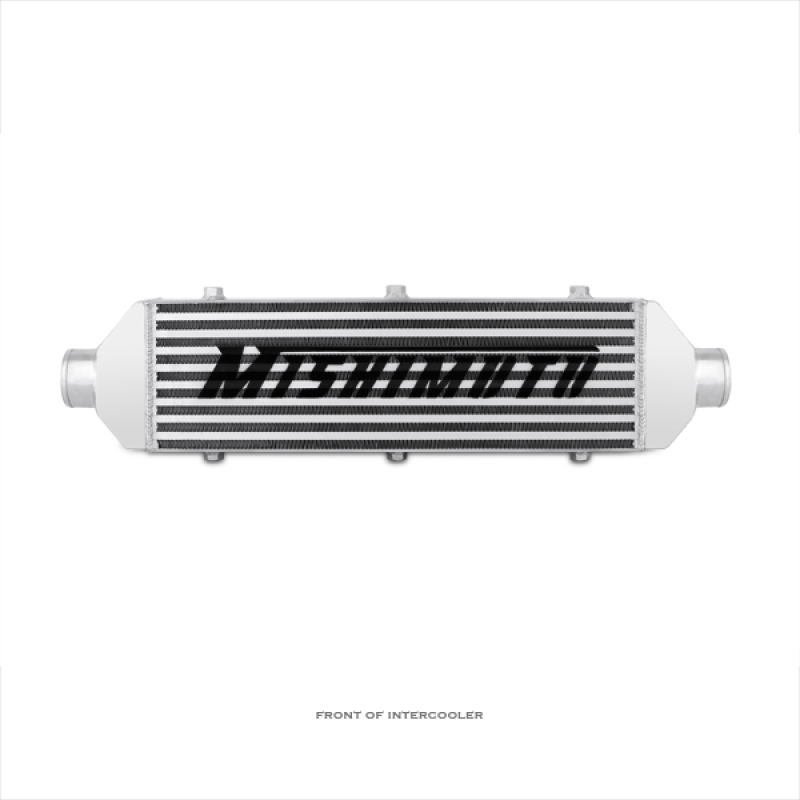

- 6 threaded mounting points for universal fitment
- Rated to 22 PSI

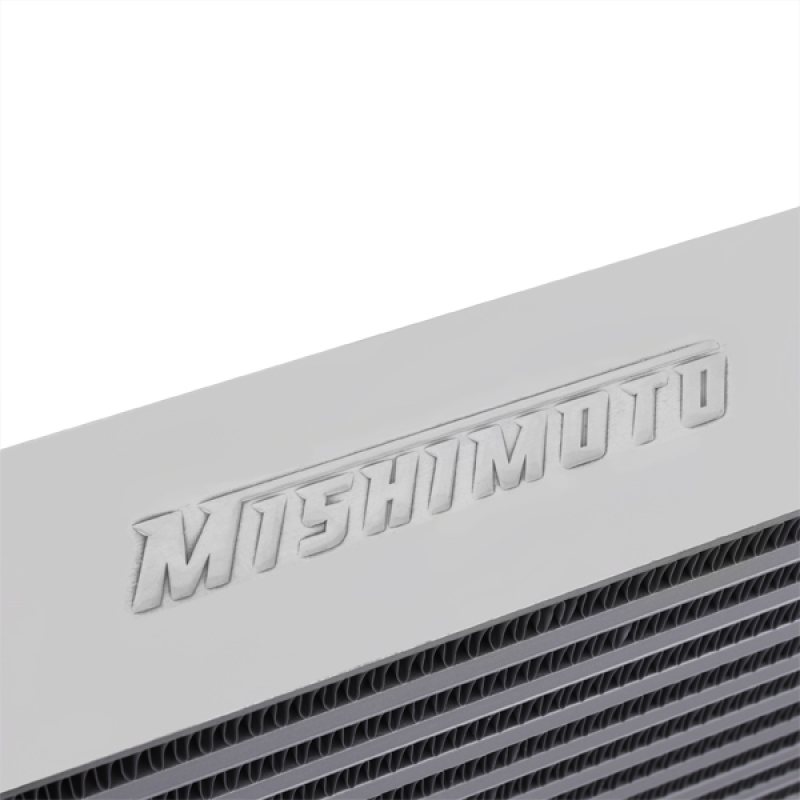

- Mishimoto logo featured on one side of the core only

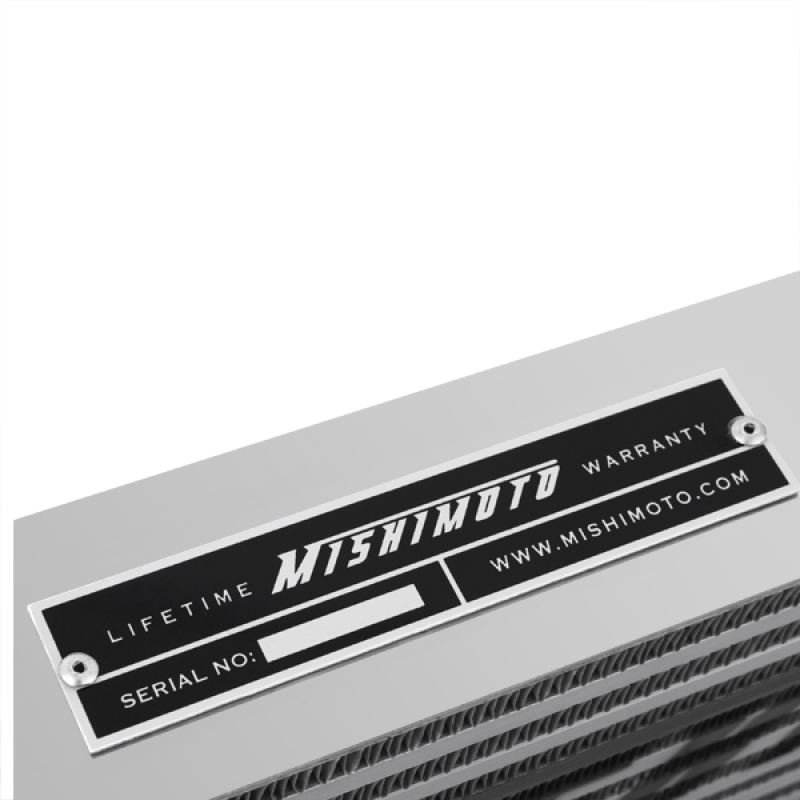

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Type: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Silver
- Inlet Tank Material: Aluminum
- Core Length: 20.5 in
- Core Height: 6.25 in
- Core Thickness: 2.5 in
- Overall Length: 28 in
- Overall Width: 2.5 in
- Overall Height: 7.5 in
- Inlet Outside Diameter: 2.5 in
- Outlet Outside Diameter: 2.5 in
- Inlet/Outlet Fitting Gender: Male
- Grade Type: Performance
- Mounting Point Thread Pitch: M12x1.25
- Maximum Recommended Horsepower: 500
- Maximum Recommended Boost Pressure: 22 PSI
- Includes: (1) Mishimoto Intercooler
- Warranty: Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the maximum recommended horsepower for the Mishimoto MMINT-UZ intercooler?
The Mishimoto MMINT-UZ is rated for applications up to 500 horsepower.
What boost pressure can this intercooler handle?
The MMINT-UZ is rated to handle up to 22 PSI of boost.
What is the core made of?
The core is constructed of 6061 aluminum with a bar-and-plate design and TIG-welded end tanks.
How does the MMINT-UZ mount to a vehicle?
It has 6 threaded mounting points for universal fitment, with a mounting point thread pitch of M12x1.25.
What are the inlet and outlet sizes?
The inlet and outlet outside diameters are both 2.5 inches with male fitting gender.
What is included with the Mishimoto MMINT-UZ intercooler?
The package includes (1) Mishimoto Intercooler backed by the Mishimoto Lifetime Warranty.
