Description

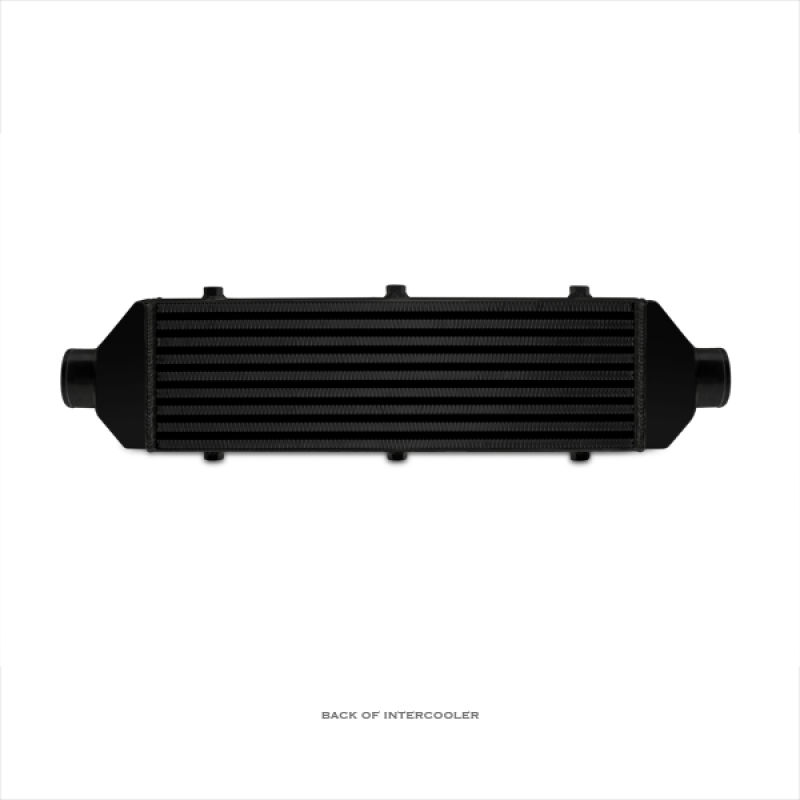

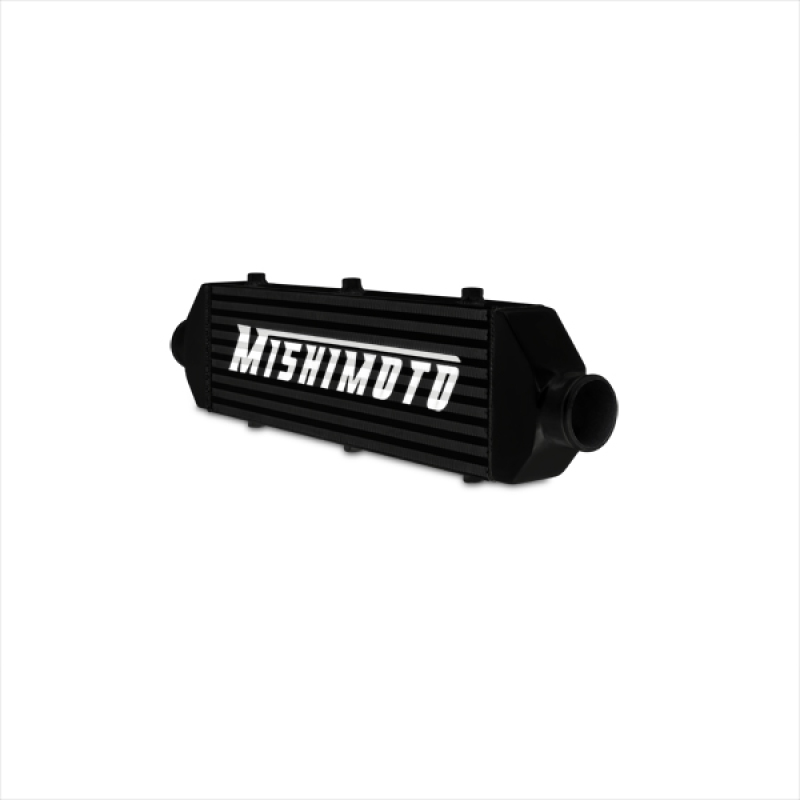

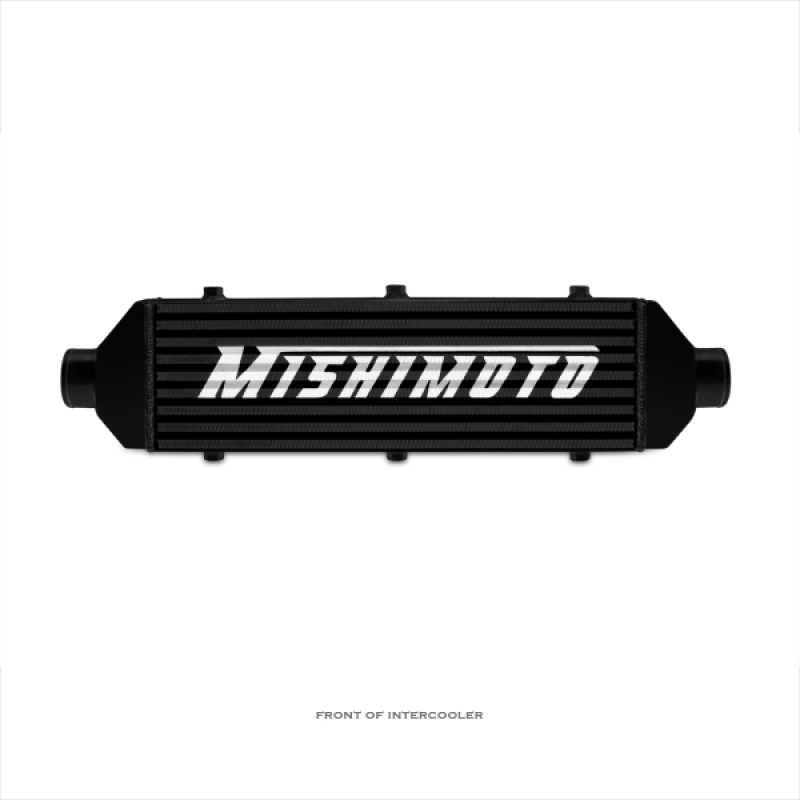

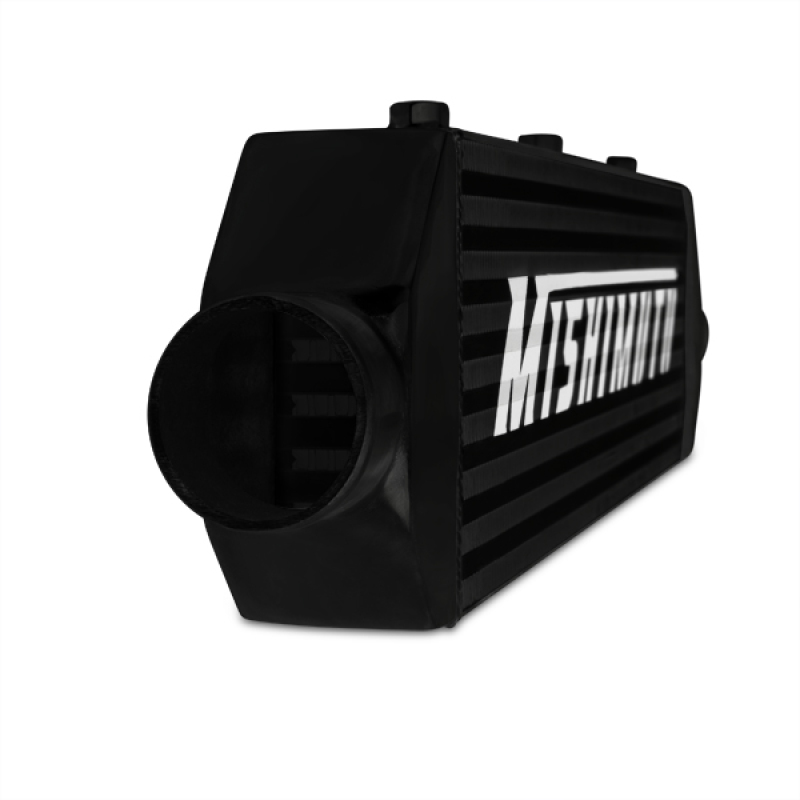

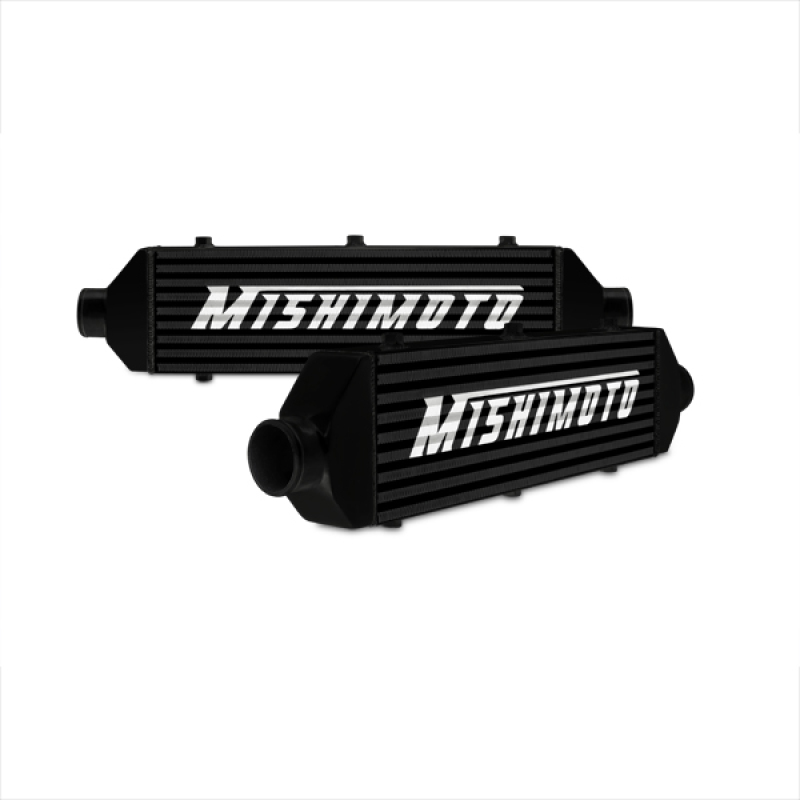

The Mishimoto MMINT-UZB is a universal front-mount intercooler engineered for larger turbo builds that have outgrown a factory cooling core. Built with a bar-and-plate core and finished in a coated all-black look, this intercooler is designed to be the centerpiece of a forced induction system without shouting about it — only one side carries the Mishimoto logo, giving it a sleeper appearance once it’s mounted behind the bumper.
As a purpose-built piece of forced induction hardware, the MMINT-UZB is constructed from 6061 aluminum and TIG welded for a durable induction system that can handle real boost. Mishimoto rates this core to 22 PSI and up to 500 horsepower, making it a strong match for enthusiasts pushing serious force induction into a turbocharged induction engine. Six threaded mounting points give tuners the flexibility to fabricate a mounting solution for universal fitment, while the 2.5-inch male inlet and outlet fittings simplify piping into an existing forced induction turbo setup.
Vehicle Applications
Because the MMINT-UZB is sold as a universal-fit core rather than a vehicle-specific kit, Mishimoto does not tie it to a single make, model, or engine code. Instead, it is built to bolt into custom or semi-custom forced induction turbo setups using its six threaded mounting points and 2.5-inch inlet and outlet piping, so builders working on a wide range of turbocharged platforms can adapt it to their own charge-piping layout. This makes it a practical option for shops and DIY builders assembling a forced induction system from the ground up rather than replacing an OEM intercooler.
Features
- All-aluminum construction with a bar-and-plate core
- TIG-welded end tanks for increased strength and durability
- Aluminum inlet tank material
- 6 threaded mounting points for universal fitment (mounting point thread pitch M12x1.25)
- Rated to 22 PSI with a maximum recommended 500 horsepower
- 2.5-inch male inlet and outlet fittings

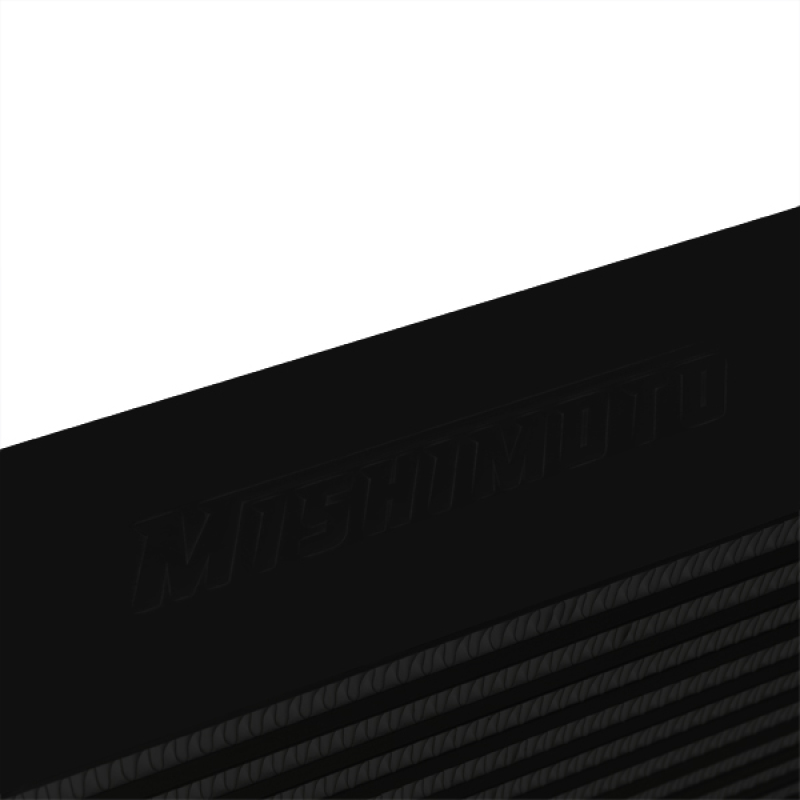

- Coated all-black finish with the Mishimoto logo on only one side
- Performance-grade core finished in black

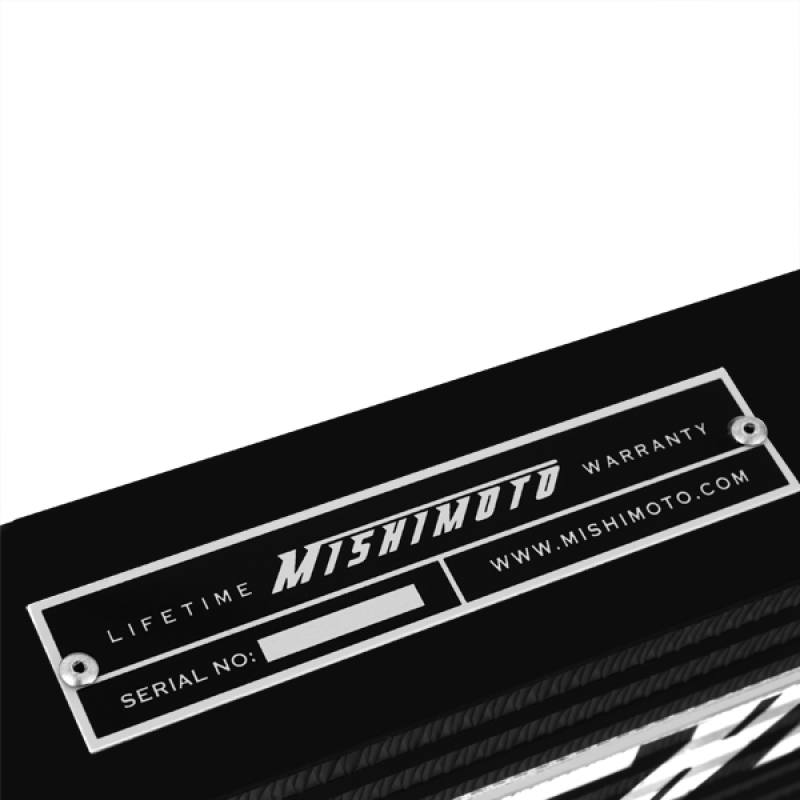

- Backed by the Mishimoto Lifetime Warranty
- Includes (1) Mishimoto Intercooler
Specifications
- Brand: Mishimoto
- Part Number: MMINT-UZB
- Product Type: Forced Induction
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Black
- Grade Type: Performance
- Overall Length: 28 in
- Overall Height: 7.5 in
- Core Length: 20.5 in
- Core Height: 6.25 in
- Core Thickness: 2.5 in
- Inlet Outside Diameter: 2.5 in
- Outlet Outside Diameter: 2.5 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Mounting Point Thread Pitch: M12x1.25
- Maximum Recommended Horsepower: 500
- Maximum Recommended Boost Pressure: 22 PSI
- Includes: (1) Mishimoto Intercooler
- Warranty: Mishimoto Lifetime Warranty
Frequently Asked Questions
What core design does the Mishimoto MMINT-UZB intercooler use?
It uses a bar-and-plate core made from 6061 aluminum with TIG-welded end tanks.
What is the maximum boost and horsepower this intercooler is rated for?
Mishimoto rates the MMINT-UZB to 22 PSI of boost and a maximum recommended 500 horsepower.
What size are the inlet and outlet fittings?
The intercooler has 2.5-inch male inlet and outlet fittings.
Does this intercooler fit a specific vehicle?
No, the MMINT-UZB is a universal front-mount intercooler with six threaded mounting points rather than a vehicle-specific kit.
What color is this Mishimoto intercooler?
This version has a coated all-black finish, with the Mishimoto logo appearing on only one side.
What is included and what warranty applies?
It includes (1) Mishimoto Intercooler and is backed by the Mishimoto Lifetime Warranty.
