Description

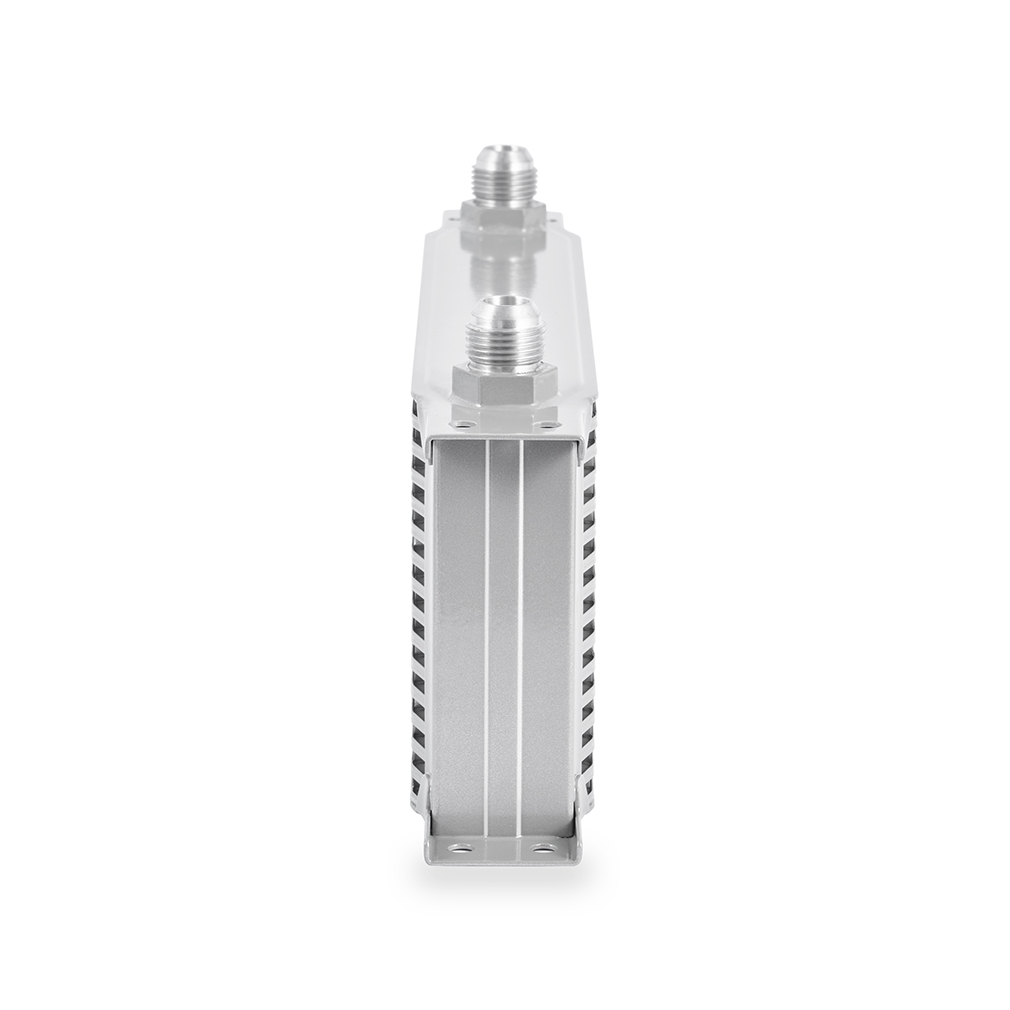

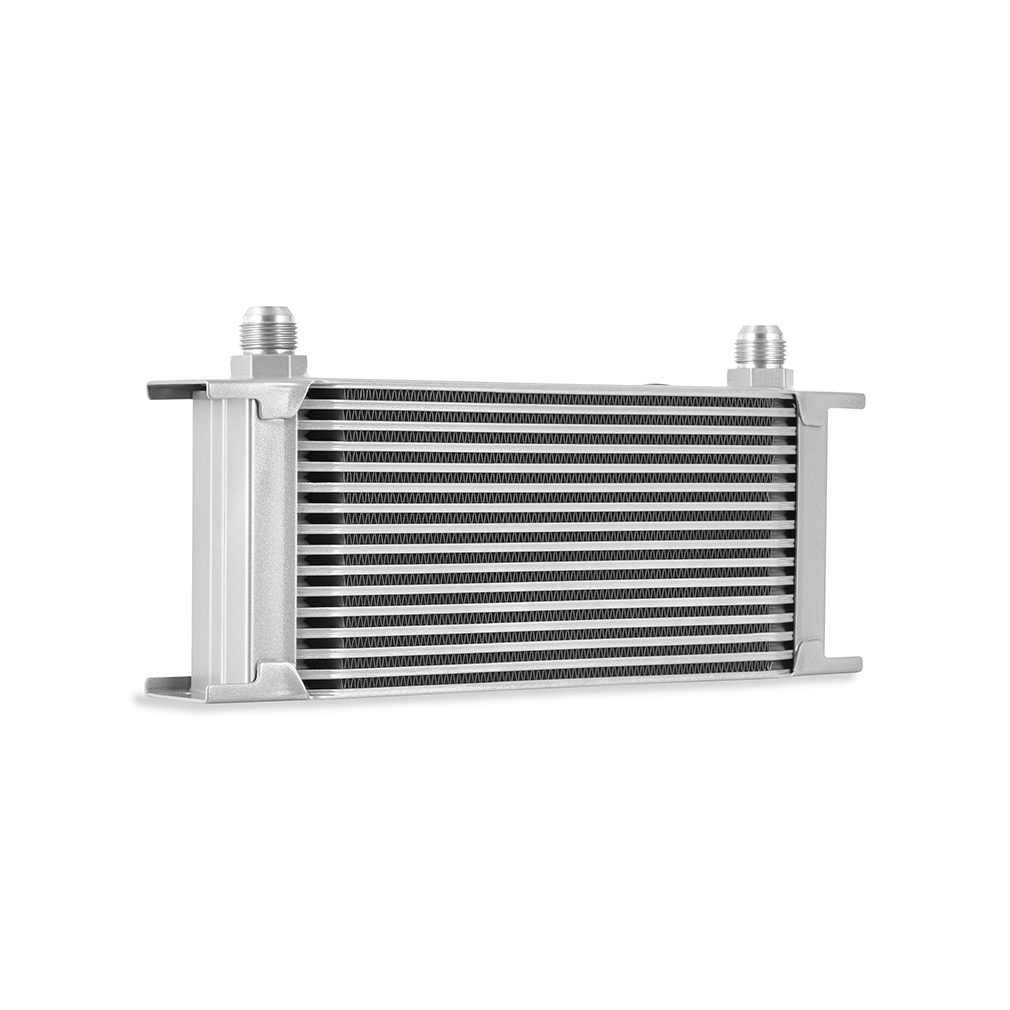

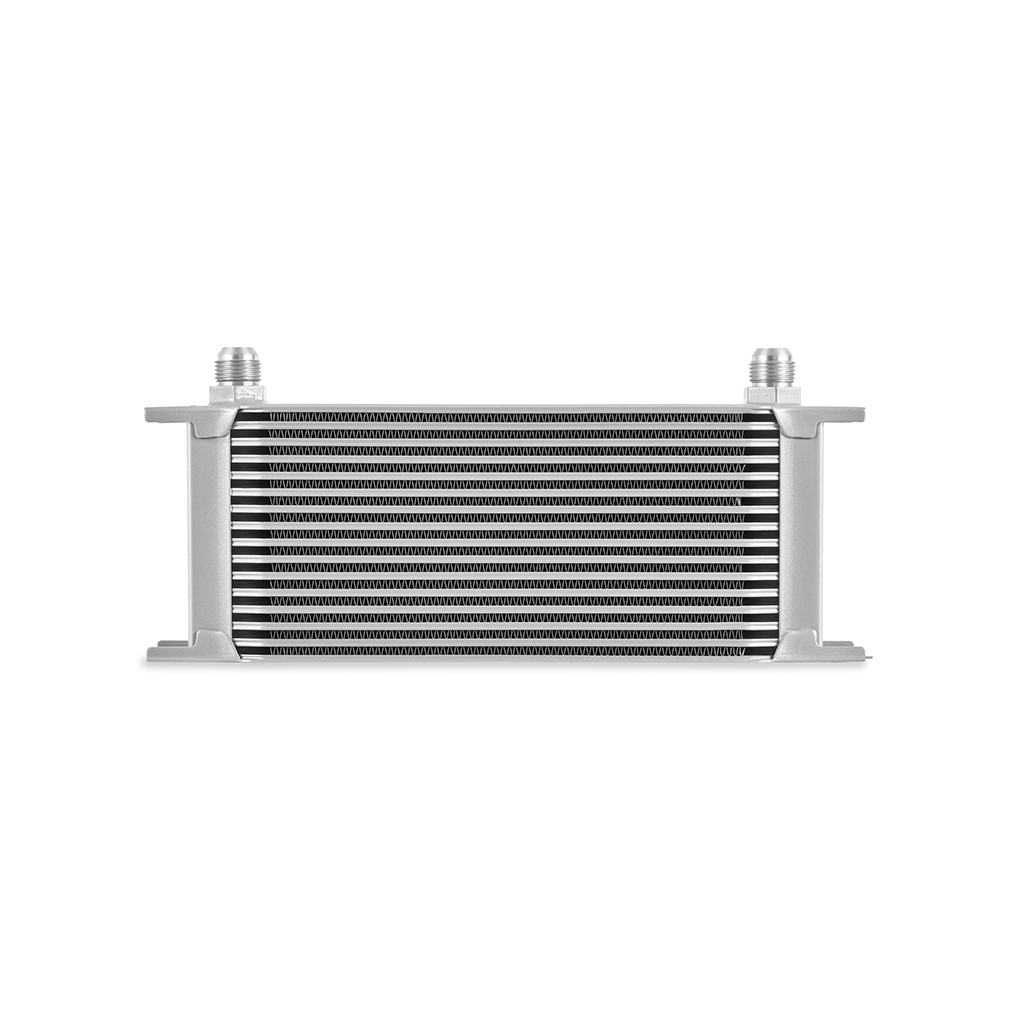

The Mishimoto MMOC-16SL is a 16-row stacked-plate oil cooler engineered to pull excess heat out of your engine oil before it can compromise lubrication. Built with a bar-and-plate core and finished in a sleek silver anodized coating, this performance-grade cooler pairs -10AN male inlet and outlet fittings with eight universal mounting holes, so it’s ready to bolt into nearly any layout that calls for serious oil-temperature control.
Keeping oil within its designed temperature and pressure range is essential to proper lubrication and long engine life, and once a vehicle is modified or driven hard, factory cooling capacity is often the first thing to fall short. This Mishimoto oil cooler addresses that gap directly: its 16-row bar-and-plate core is engineered to provide substantial heat transfer while the -10AN inlet and outlet fittings help keep pressure loss to a minimum, working to preserve oil viscosity for proper lubrication during aggressive driving. Pair this Mishimoto cooler with Mishimoto -10AN braided hoses and -10AN aluminum fittings to build out a complete, leak-free mishimoto oil cooler kit. As a universal oil cooler rather than a vehicle-specific unit, it’s designed to serve as the centerpiece of a custom cooling setup.
Vehicle Applications
The Mishimoto MMOC-16SL is a universal oil cooler and is not tied to a specific make, model, or engine listed by the manufacturer. Its eight universal mounting holes give installers the flexibility to position and mount the cooler wherever it fits best in the engine bay, making it suitable for a wide range of custom cooling and performance builds rather than a single factory application.
Features
- 16-row bar-and-plate stacked-plate core engineered for substantial heat transfer
- Helps protect critical engine components from premature wear caused by excess oil heat
- Works to preserve oil viscosity for proper lubrication during aggressive driving
- Provides ample cooling with minimal pressure loss
- -10AN male inlet and outlet fittings sized to accept Mishimoto -10AN braided hoses and fittings
- Eight universal mounting holes for flexible installation options
- Available in Sleek Silver, Stealth Black, or Bold Gold finishes (this listing is the silver anodized version)

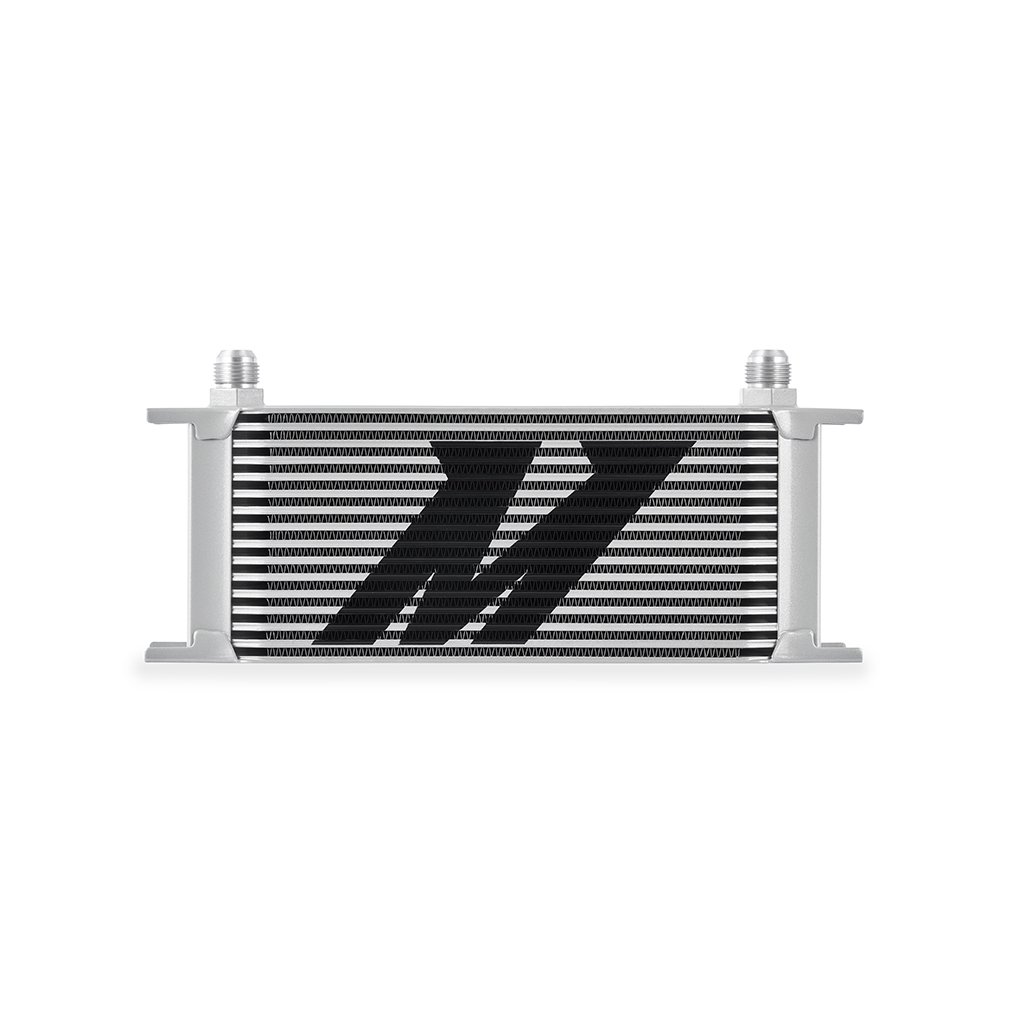

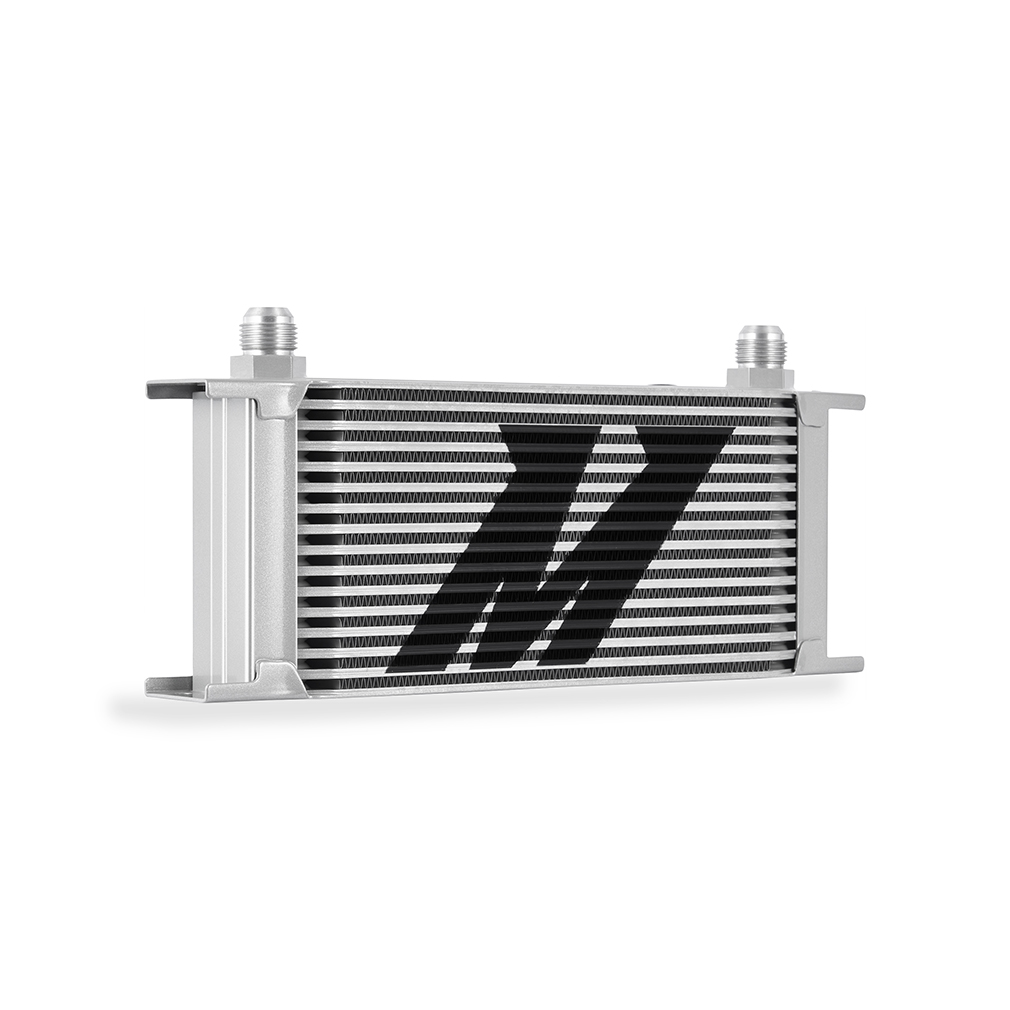

- Only one side of the silver cooler carries the Mishimoto logo; the stealth black option has no logo
- Mishimoto recommends flushing the cooler with one quart of clean oil prior to installation to clear any shipping debris
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Part Number: MMOC-16SL
- Color / Core Color: Silver
- Finish: Anodized
- Core Type: Bar-and-Plate
- Core Row Quantity: 16
- Grade Type: Performance
- Core Height: 4.59 in
- Core Length: 11.53 in
- Overall Width: 3.7 in
- Overall Height: 5.61 in
- Overall Length: 13 in
- Inlet Fitting Type: -10AN, AN Flare, Male, 0.625 in outside diameter
- Outlet Fitting Type: -10AN, AN Flare, Male, 0.625 in outside diameter
- Cooler Fluid Capacity: 0.6 qt
- Includes: Mishimoto 16-Row Oil Cooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the core configuration of the Mishimoto MMOC-16SL oil cooler?
It features a 16-row bar-and-plate core designed to provide substantial heat transfer.
What fittings does the MMOC-16SL use?
It includes -10AN male inlet and outlet fittings (AN Flare) with a 0.625 in outside diameter, sized to accept Mishimoto -10AN braided hoses and fittings.
How is this oil cooler mounted?
The cooler has eight universal mounting holes, giving installers a range of mounting options.
What finish does this version of the cooler have?
This listing is the silver anodized finish; Mishimoto also offers the 16-row cooler in Stealth Black and Bold Gold. Only one side of the silver cooler carries the Mishimoto logo, while the black option has no logo.
Does the MMOC-16SL come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
Is there anything I should do before installing the cooler?
Mishimoto recommends flushing the oil cooler with one quart of clean oil prior to installation to remove any debris accumulated during shipping.
