Description

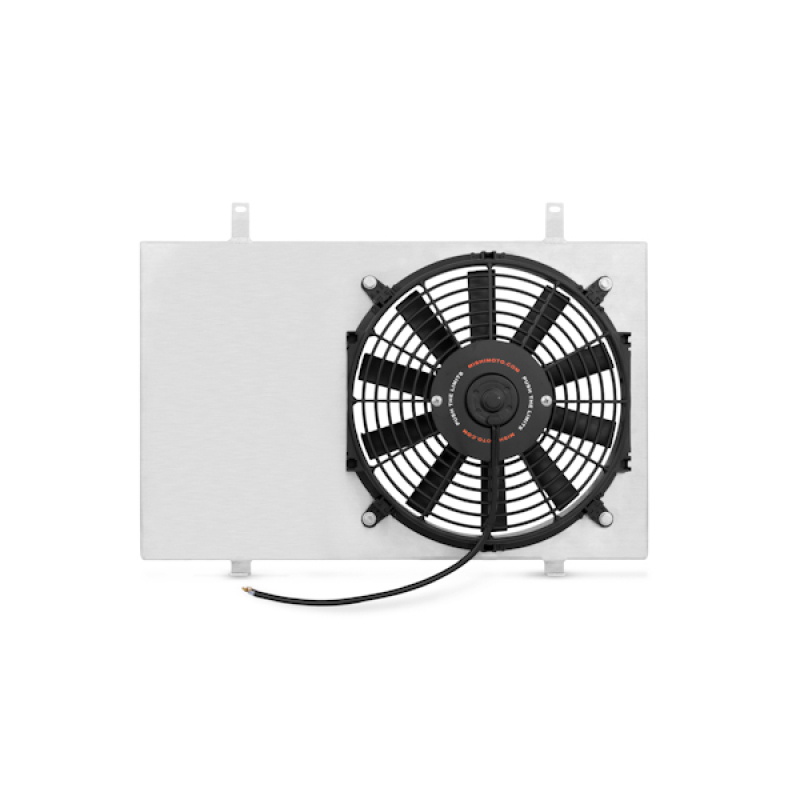

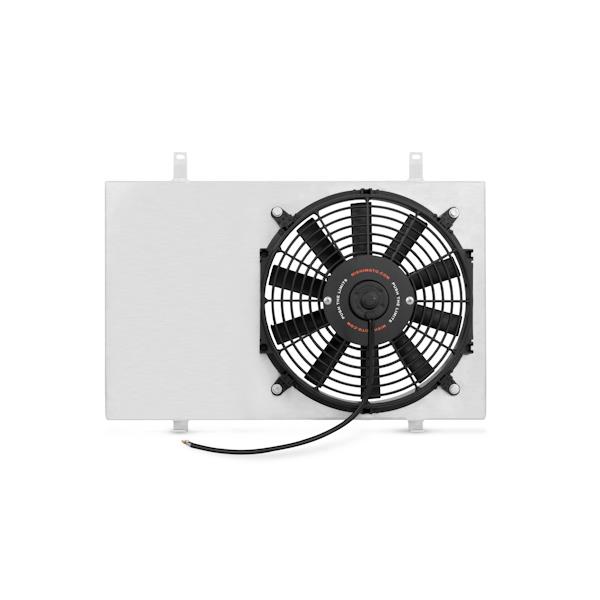

The Mishimoto MMFS-R33-RHD is a Performance Aluminum Fan Shroud Kit built for the Nissan Skyline, pairing a lightweight aluminum shroud with a 14-inch slim electric fan rated at 1300 CFM. Every component in this kit is engineered by Mishimoto to bolt into the factory location, giving your Skyline’s cooling system a direct-fit upgrade without custom fabrication.
This Mishimoto cooling kit is designed to pull heat out of the engine bay while pushing a strong volume of air across the radiator, helping the cooling system work more efficiently under demanding conditions. Because the shroud is significantly lighter than a standard OEM shroud, it also helps reduce overall mass in the engine bay while still fully enclosing the fan blades to protect surrounding components from contact damage. The included electric fan is a plug-in unit, so no fan clutch is used, and the aluminum construction keeps the shroud both rigid and corrosion resistant with a silver, polished-aluminum appearance.
Vehicle Applications
Mishimoto lists this kit under the Nissan Skyline R33 in the product title, while Mishimoto’s own fitment notes describe it as a direct fit for the Nissan Skyline R34, compatible with both the factory Nissan Skyline radiator and Mishimoto’s own Skyline radiator. Mishimoto’s TechSpec data further ties this kit to the R34 chassis code and the RB26DETT engine code, and notes that the shroud works with OEM and Mishimoto radiators alike, though the fan may require additional wiring during installation.
Features
- Direct-fit aluminum fan shroud kit for the Nissan Skyline
- Compatible with both stock and Mishimoto Nissan Skyline radiators

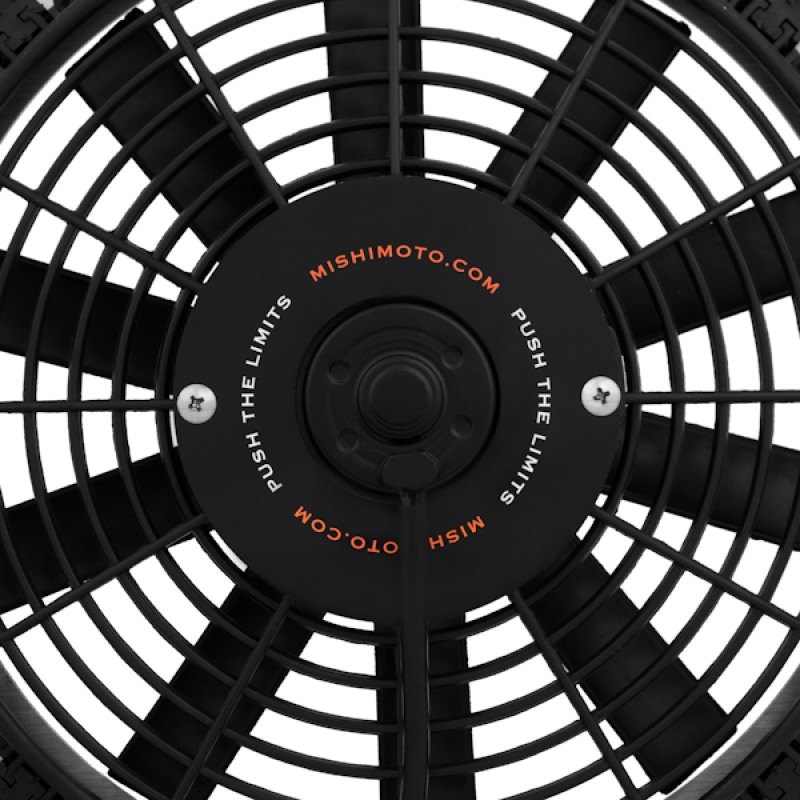

- Includes one 14-inch slim electric fan rated at 1300 CFM
- Maximizes airflow through the radiator to help drive heat from the engine bay
- Fan blades are enclosed within the shroud to help protect nearby engine components
- Polished aluminum shroud finish with a black fan blade
- Plug-in electrical fan (no fan clutch mounted)
- All mounting hardware included

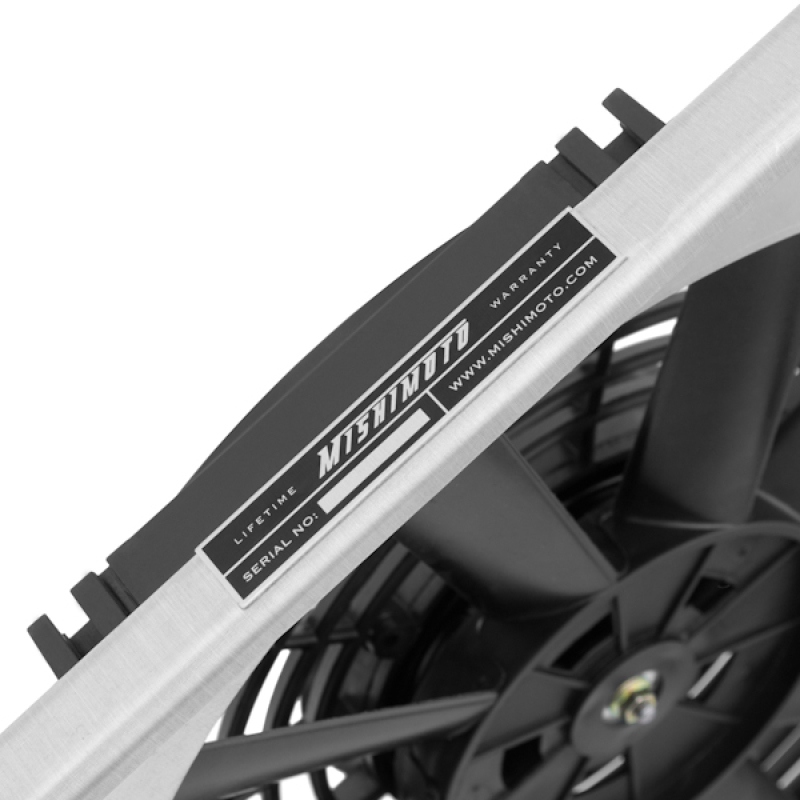

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-R33-RHD
- Product Type: Cooling
- Grade Type: Performance
- Shroud Material: Aluminum
- Shroud Finish/Housing Finish: Aluminum, Silver
- Shroud Included: Yes
- Motor Included: Yes
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Blade Quantity: 10
- Blade Included: Yes
- Fan Clutch Mounted: No
- Electrical or Mechanical: Electrical
- Hardwired or Plug-In: Plug-In
- Control Module Included: No
- Control Unit Included: No
- Fan 1 Diameter: 14 IN
- Fan 2 Diameter: 14 IN
- Fan 1 Blade Quantity: 10
- Fan 2 Blade Quantity: 10
- Maximum CFM: 1300
- TechSpec CFM (Each Fan): 1300

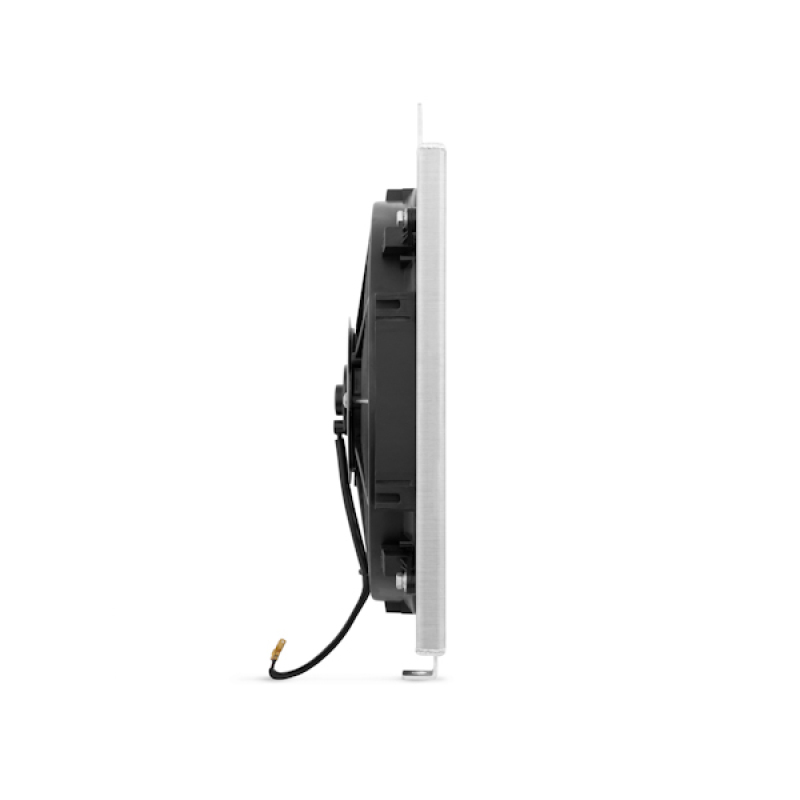

- Width: 3.5 IN
- Height: 18.6 IN
- Depth: 3.5 IN
- TechSpec Length: 25.6 IN
- Mounting Hardware Included: Yes
- Material: Aluminum
- TechSpec Chassis Code: R34
- TechSpec Engine Code: RB26DETT
- TechSpec Includes: (1) Aluminum Fan Shroud, (1) 14-inch Slim Electric Fan, Mishimoto Lifetime Warranty
- TechSpec Note: Compatible with OEM and Mishimoto Radiators; Fans may require additional wiring
Frequently Asked Questions
What vehicles does the Mishimoto MMFS-R33-RHD fan shroud kit fit?
Mishimoto’s product title lists this kit for the Nissan Skyline R33, while Mishimoto’s fitment notes describe it as a direct fit for the Nissan Skyline R34. Mishimoto’s TechSpec data also lists the R34 chassis code with the RB26DETT engine code.
What is included in this Mishimoto fan shroud kit?
The kit includes one aluminum fan shroud, one 14-inch slim electric fan, all mounting hardware, and is backed by the Mishimoto Lifetime Warranty.
Will this shroud work with my stock radiator?
Yes, Mishimoto states this fan shroud kit is compatible with both the stock Nissan Skyline radiator and Mishimoto’s own Nissan Skyline radiator, and it is noted as compatible with OEM and Mishimoto radiators.
How much airflow does the included fan provide?
The included 14-inch electric fan is rated at a maximum of 1300 CFM.
Is additional wiring needed to install the fan?
Mishimoto notes that fans may require additional wiring for installation.
What material is the fan shroud made from?
The fan shroud is made from aluminum with a silver, polished-aluminum finish, and the fan blade is black plastic.
