Description
The Mishimoto Oil Catch Can, part number MMBCC-MUS4-24, is purpose-built for the 2024+ Ford Mustang 2.3L EcoBoost and its 10.6:1 compression ratio running around 18 psi of boost. That combination puts real stress on the PCV system, and this catch can is engineered specifically to intercept the oil vapor that stress creates before it ever reaches your intake tract.
Among the many components of an automobile engine, few are as overlooked—or as important to long-term performance—as the PCV and blow-by management system. This Mishimoto catch can efficiently traps and separates oil particles from the PCV system, keeping them from reaching the intake and cylinders. For anyone researching car engine parts or the parts of a car engine that actually protect combustion efficiency, this is a direct answer: cleaner intake air means a cleaner, more efficient combustion process, helping your EcoBoost Mustang perform the way it was designed to. As a piece of engine hardware, it fits into the broader picture of car engines and how well-chosen engine parts for a car can guard against detonation and power loss caused by unmanaged blow-by and carbon buildup.
Vehicle Applications
This Mishimoto catch can kit is a direct fit for the 2024–2026 Ford Mustang EcoBoost and Ford Mustang EcoBoost Premium, chassis code S650, equipped with the 2.3L EcoBoost engine. It is confirmed to fit alongside the Mishimoto Strut Tower Brace and most aftermarket bracing options; if your Mustang has bracing installed, partial or full removal is required to complete the install, and shims are included to keep the brace level once the catch can is in place.
Features
- Direct fit for 2024+ Ford Mustang 2.3L EcoBoost
- Defends intake and cylinders against blow-by that can cause detonation
- Helps prevent power-robbing carbon buildup on valves and intake components

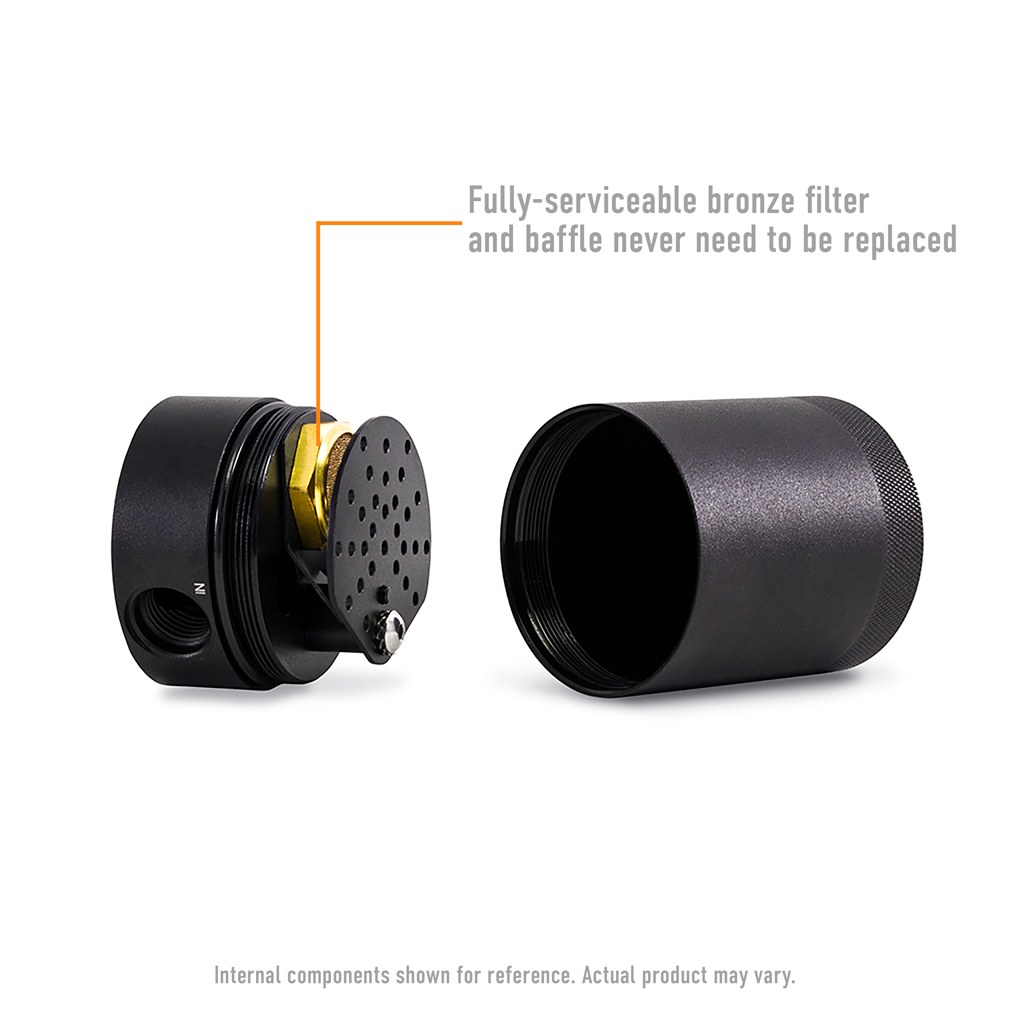

- Fully serviceable components, including a lifetime bronze sintered filter that can be washed and reused indefinitely
- Fits with OEM and Mishimoto strut bars
- Installs in under an hour

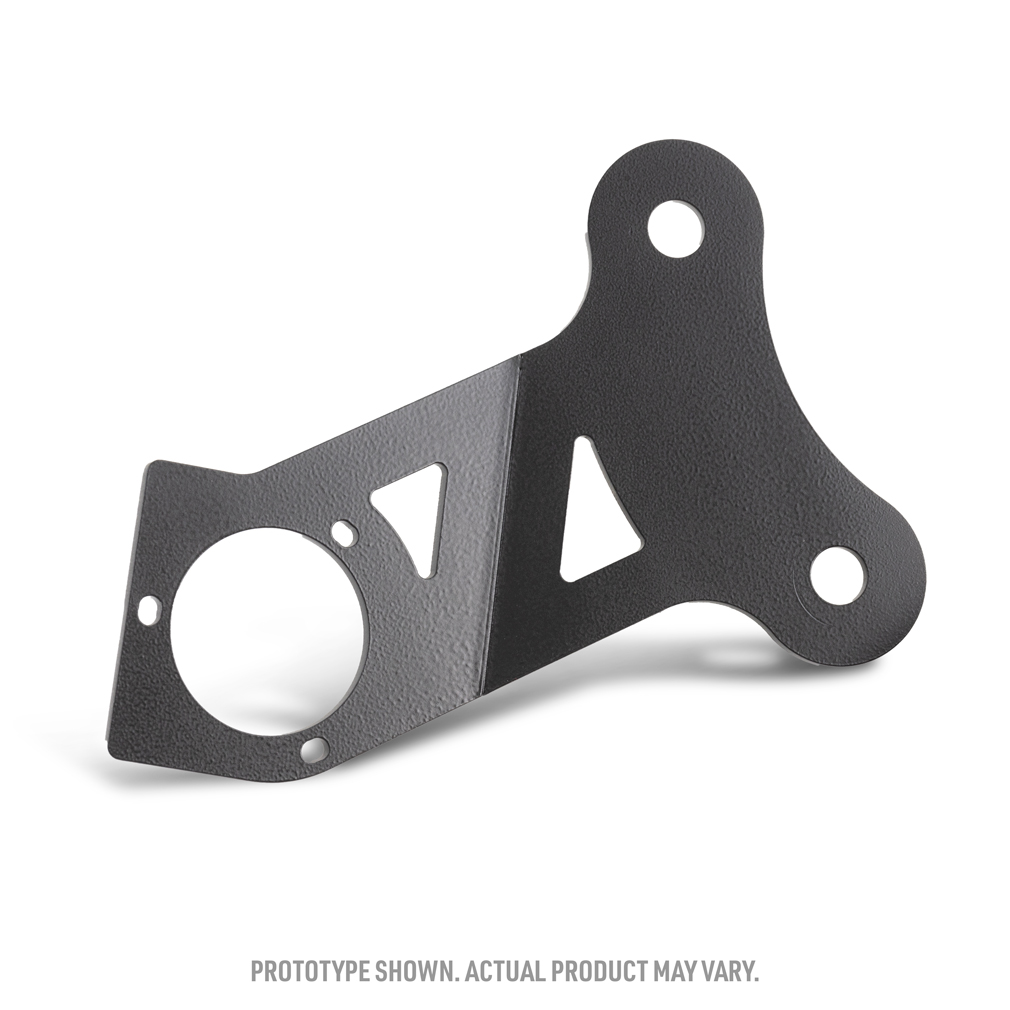

- Sturdy 3mm-thick bracket mounts the catch can away from engine movement and vibration

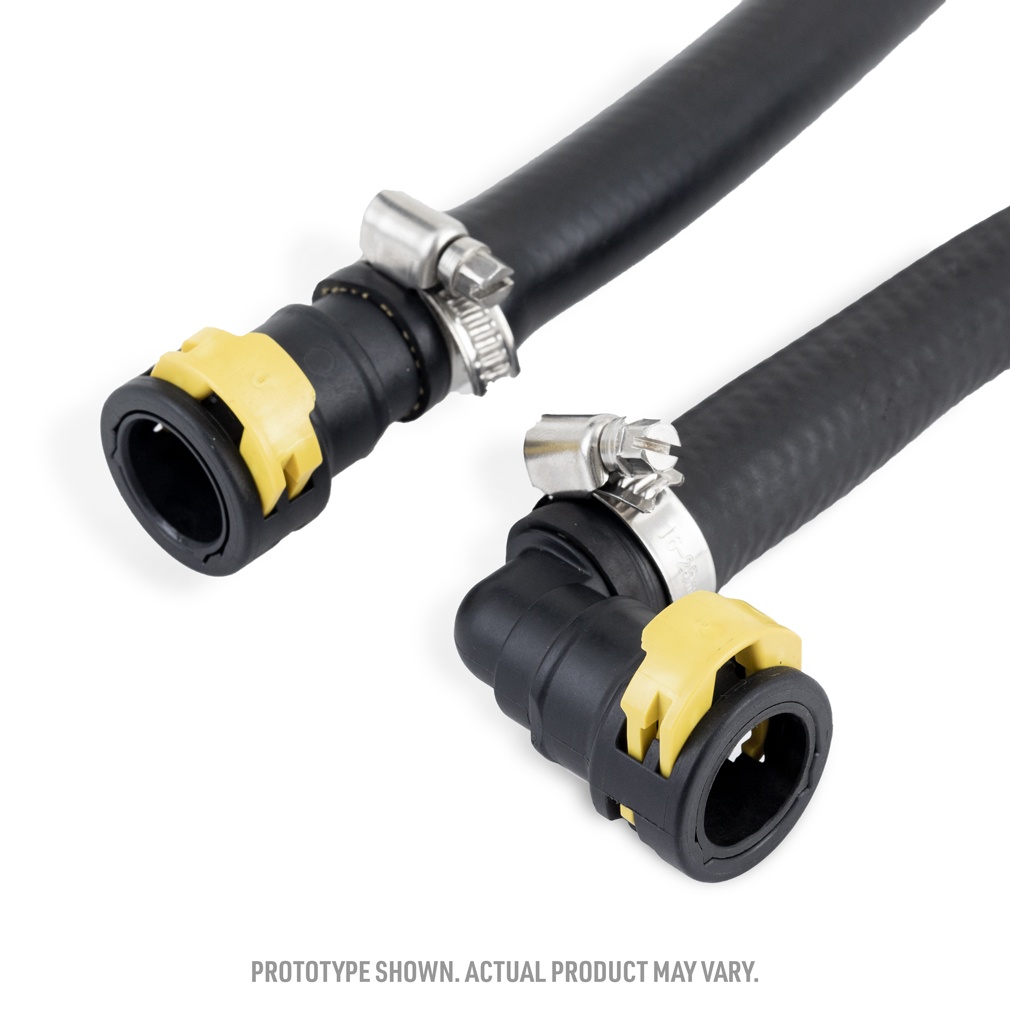

- OEM-quality quick-disconnect fittings for quick, leak-free installation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Color: Black
- Finish: Anodized
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Can Finish: Anodized
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Interior Baffle: Yes
- Drain Plug Included: Yes
- Hose Included: Yes
- Mounting Bracket Included: Yes
- Chassis Code: S650
- Engine Code: 2.3L EcoBoost

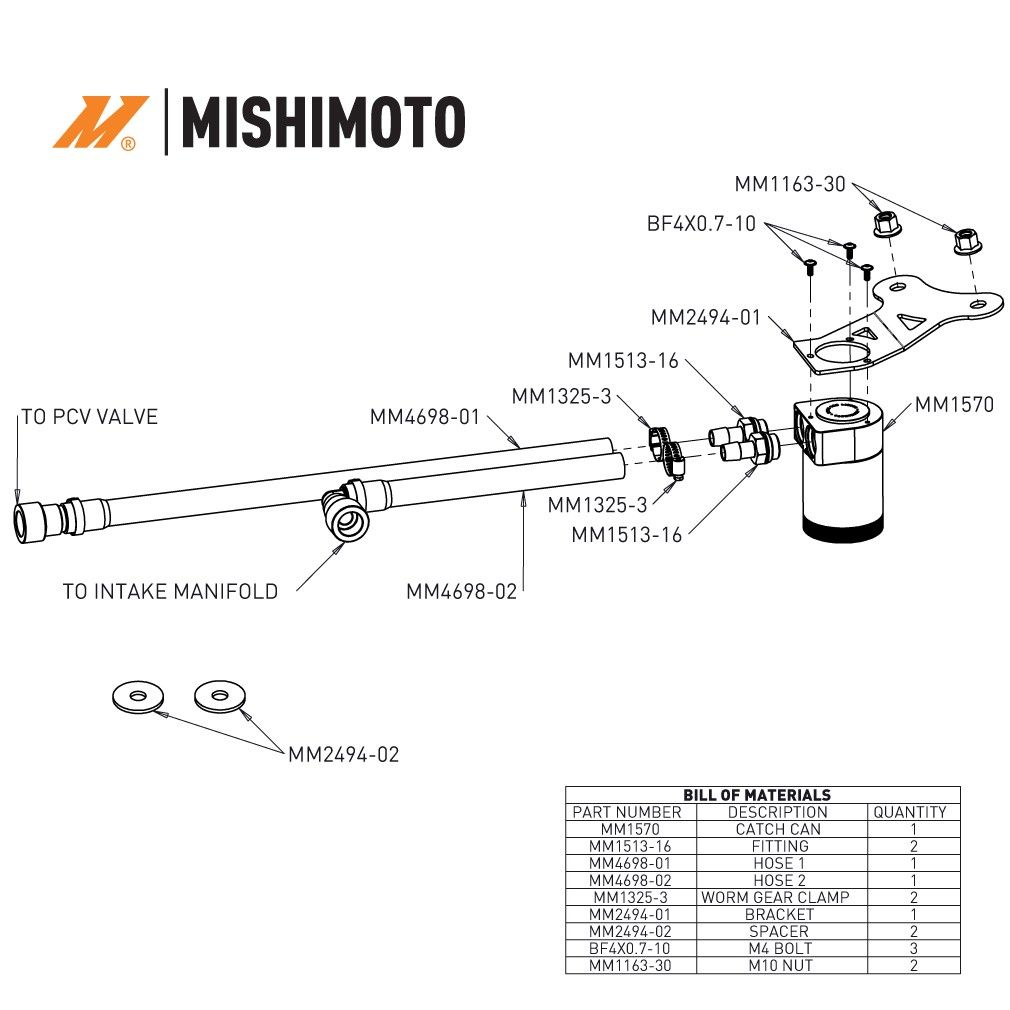

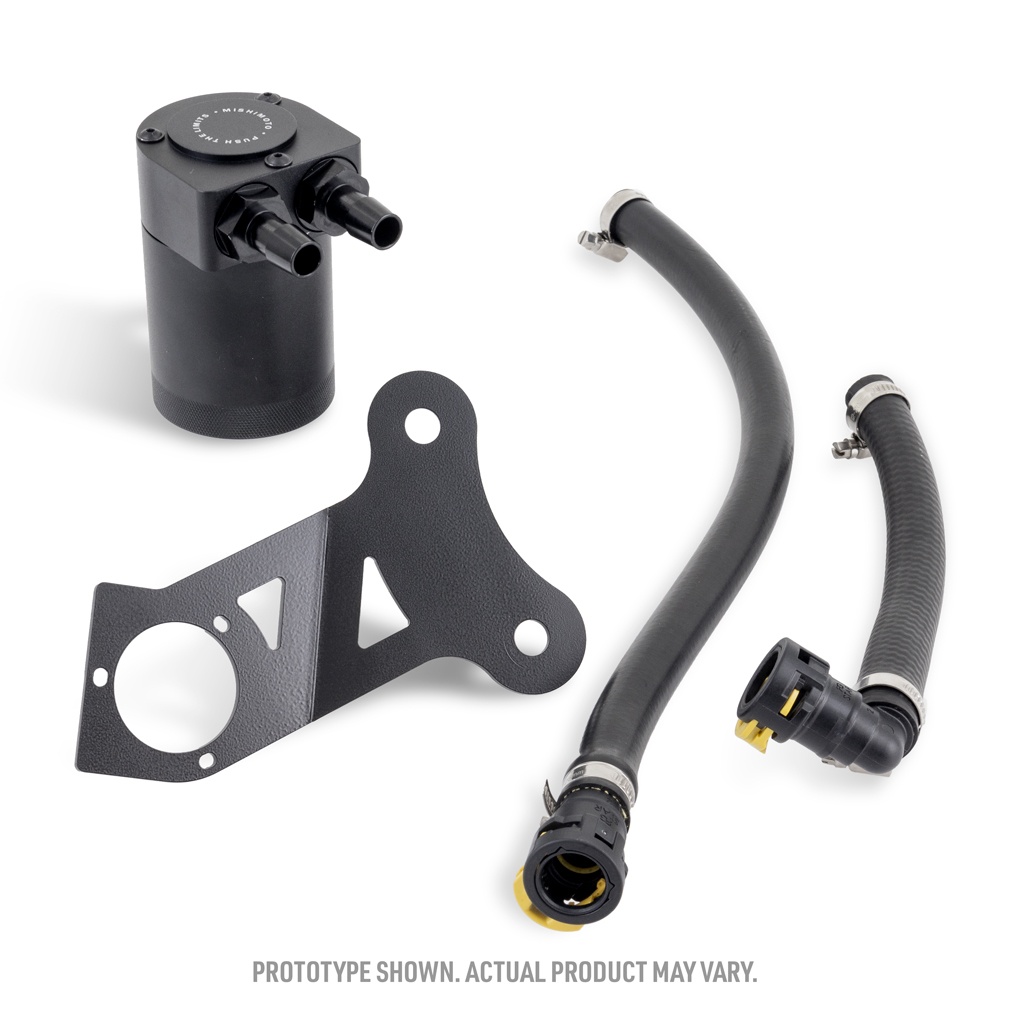

- Includes: (1) Compact Baffled Oil Catch Can, (1) Application-Specific Mounting Bracket, (2) Direct-Fit Hoses w/ Pre-Installed Quick Disconnect Fittings, (2) CNC-Machined Aluminum Barbed Fittings, (2) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
- Recommended worm-gear clamp torque: 22 in-lbs (2.5NM), operating range 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM)
Frequently Asked Questions
What vehicles does the Mishimoto MMBCC-MUS4-24 catch can fit?
It is a direct fit for the 2024–2026 Ford Mustang EcoBoost and Ford Mustang EcoBoost Premium (chassis code S650) equipped with the 2.3L EcoBoost engine.
How long does installation take?
Mishimoto designed this catch can for hassle-free installation that takes under an hour.
Are the internal components serviceable?
Yes, every internal component, including the lifetime bronze sintered filter, can be washed and reused indefinitely rather than replaced.
Will this catch can work with my strut tower brace?

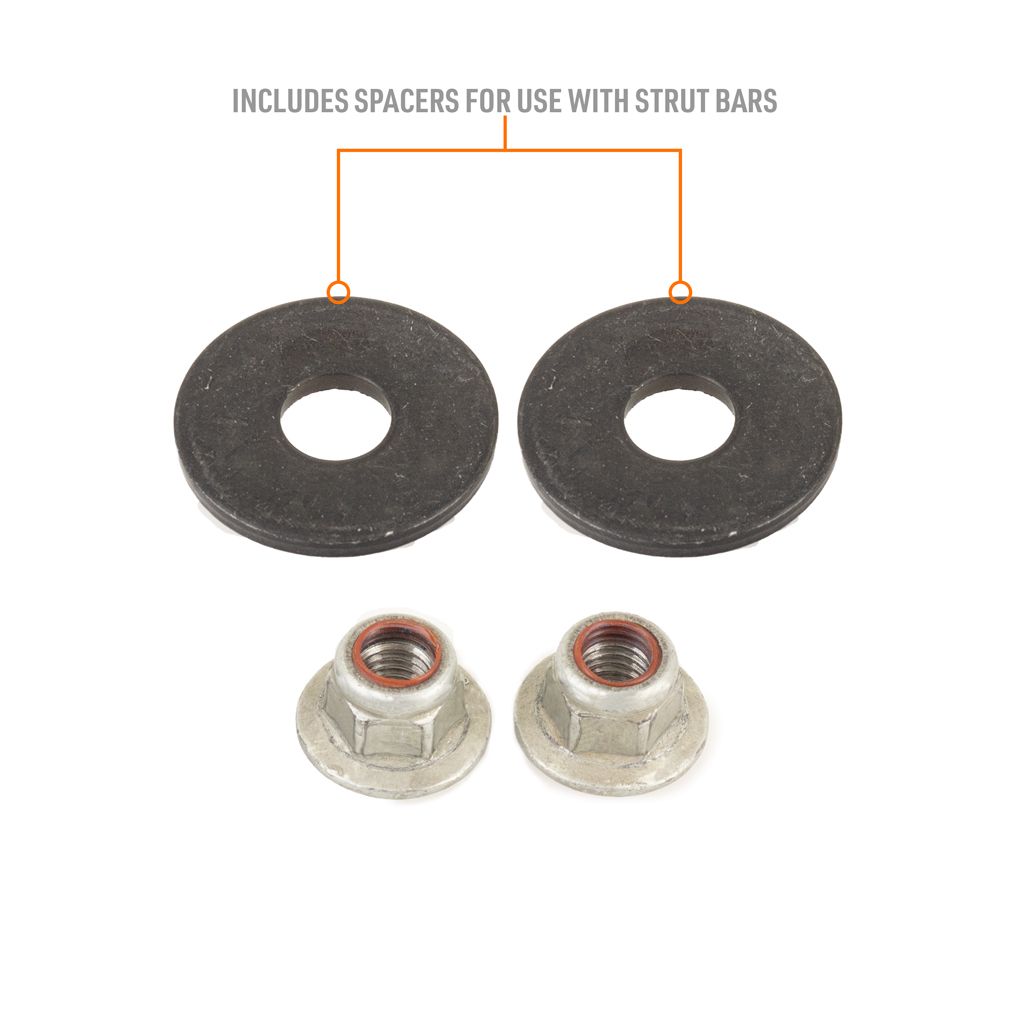

It is confirmed to fit with the Mishimoto Strut Tower Brace and most aftermarket bracing options. If your vehicle has bracing installed, partial or full removal is required, and shims are provided to keep the brace level once the catch can is mounted.
How often should I check the catch can?
Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established, since oil blow-by accumulation varies with ambient temperature and driving conditions.
What is included in the kit?
The kit includes one compact baffled oil catch can, one application-specific mounting bracket, two direct-fit hoses with pre-installed quick disconnect fittings, two CNC-machined aluminum barbed fittings, two worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
