Description
The Mishimoto Oil Cooler Kit (MMOC-MUS8-15TBK) is a purpose-built, Stealth Black anodized bar-and-plate oil cooler engineered specifically for the 2015-2017 Ford Mustang GT (Left Hand Drive). Designed from scratch as the largest oil cooler Mishimoto offers, it mounts in the upper grille for maximum airflow and pairs with the Mishimoto Thermostatic Oil Sandwich Plate and application-specific stainless steel braided lines for a direct, purpose-built installation.
Whether you’re chasing consistent oil temperatures on track days or running a forced-induction Mustang GT, this Mishimoto oil cooler kit is built to keep engine oil temperatures in check. The bar-and-plate core mounts in a way that leaves room in the upper grille for supercharger heat exchangers, and the included application-specific mounting bracket doubles as an air diversion panel to direct more ambient air through the oil cooler. Pre-made stainless steel braided oil lines with durable -10AN fittings simplify plumbing, while the billet aluminum thermostatic oil sandwich plate manages oil flow through the cooler. Installing this Mishimoto oil cooler kit removes the factory fluid-based oil cooler, reducing stress on the engine’s cooling system, and it increases oil capacity by about 1 quart for added thermal margin. The kit also comes with a replacement lower radiator hose to bypass the stock oil cooler and is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This Mishimoto oil cooler kit is a direct fit for the 2015-2017 Ford Mustang GT, including the Mustang GT Premium (2015-2017) and the 2015 Mustang GT 50 Years Limited Edition. It is also listed as compatible with the 2016 Ford Mustang Base and the 2017 Ford Mustang V8. Mishimoto’s technical specifications note this kit is intended for Left Hand Drive S-550 chassis Mustangs equipped with the 5.0 Coyote engine, and the cooler’s mounting design is noted to fit with most aftermarket supercharger kits.
Features
- Direct fit for the 2015-2017 Ford Mustang GT (LHD)
- Innovative bar-and-plate oil cooler mounts in the upper grille, allowing more room for supercharger heat exchangers
- Mounting bracket also serves as an air diversion panel, directing maximum ambient air through the oil cooler
- Pre-made stainless steel braided oil lines with durable -10AN fittings

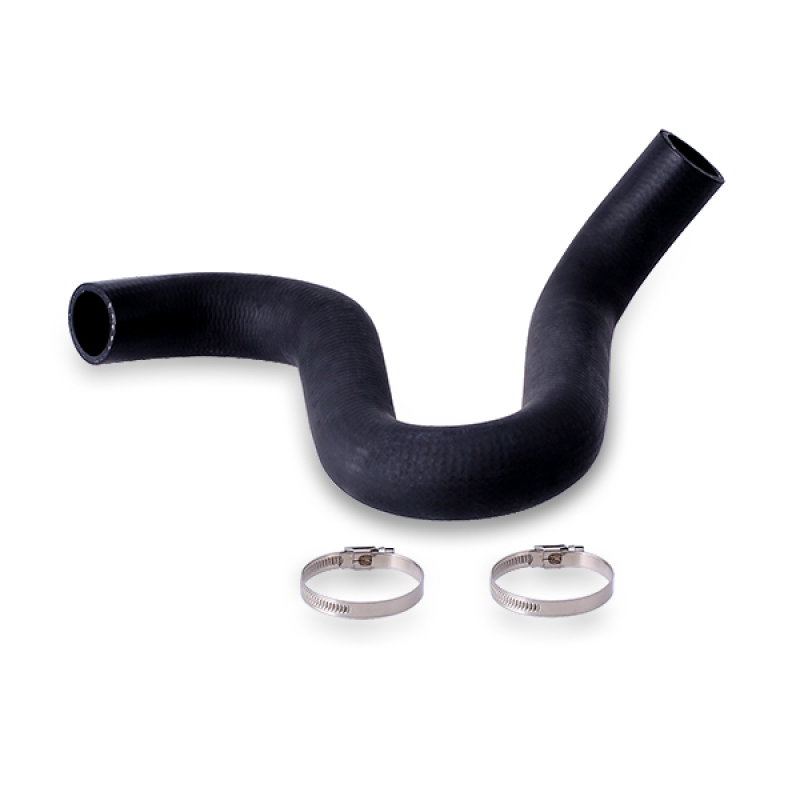

- Includes a replacement lower radiator hose to bypass the stock fluid-based oil cooler
- Removes the stock fluid-based oil cooler for less stress on the engine’s cooling system

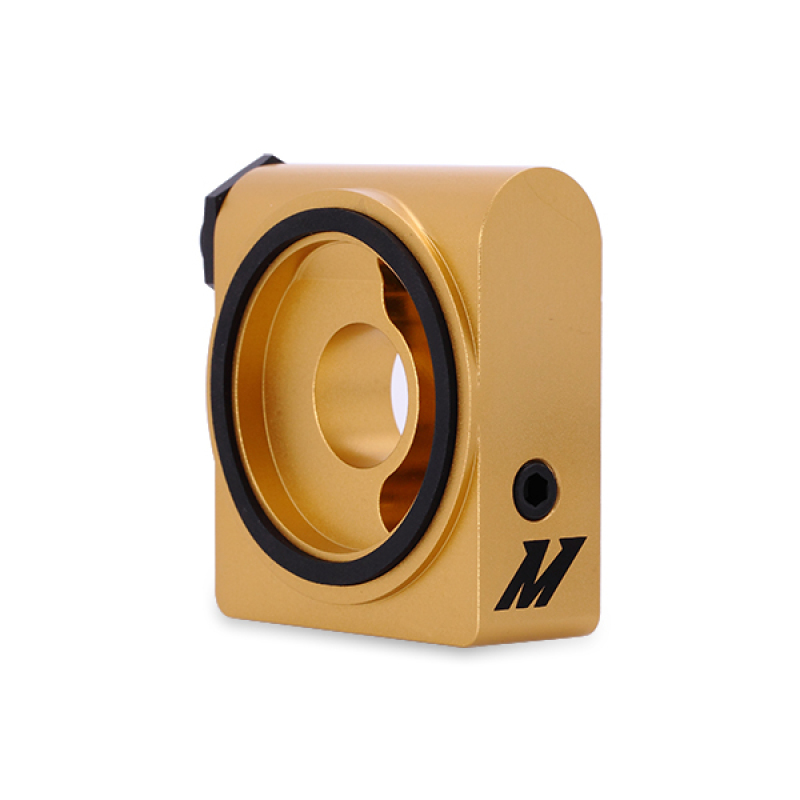

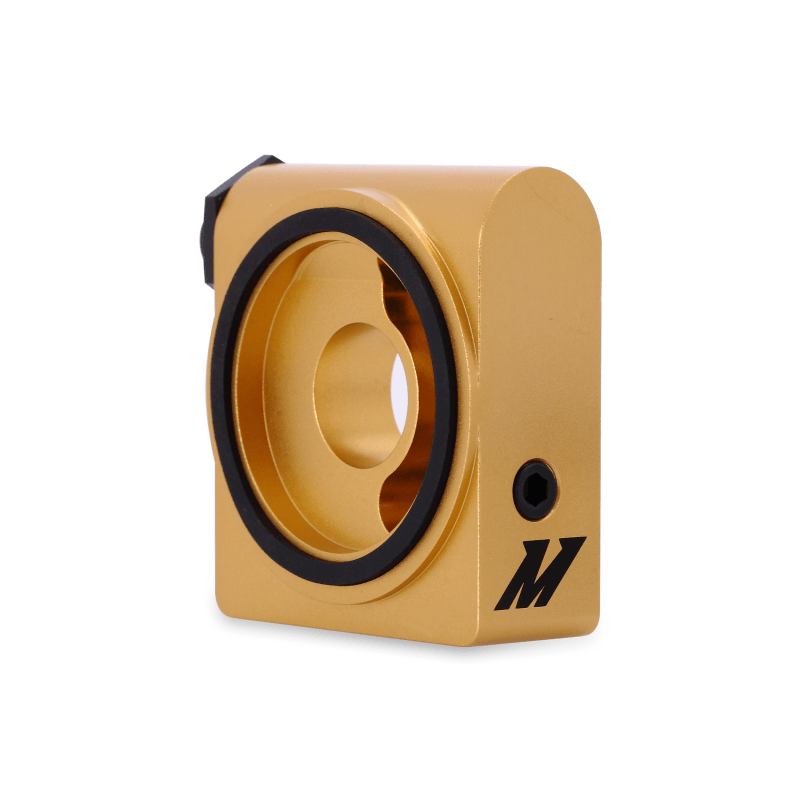

- Billet aluminum thermostatic oil sandwich plate
- Increases oil capacity by 1 quart
- Fits with most aftermarket supercharger kits
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-MUS8-15TBK
- Color/Finish: Black, Anodized
- Core Type: Bar-and-Plate
- Core Color: Black
- Grade Type: Performance
- Inlet Fitting Type: AN Flare, Male, -10AN
- Outlet Fitting Type: AN Flare, Male, -10AN
- Inlet Outside Diameter: 0.625 in
- Outlet Outside Diameter: 0.625 in
- Overall Width: 10.5 in
- Overall Length: 31.7 in
- Chassis Code: S-550
- Engine Code: 5.0 Coyote
- Recommended torque for straight fittings and banjo bolts: 15-25 lb-ft (do not exceed 35 ft-lb)

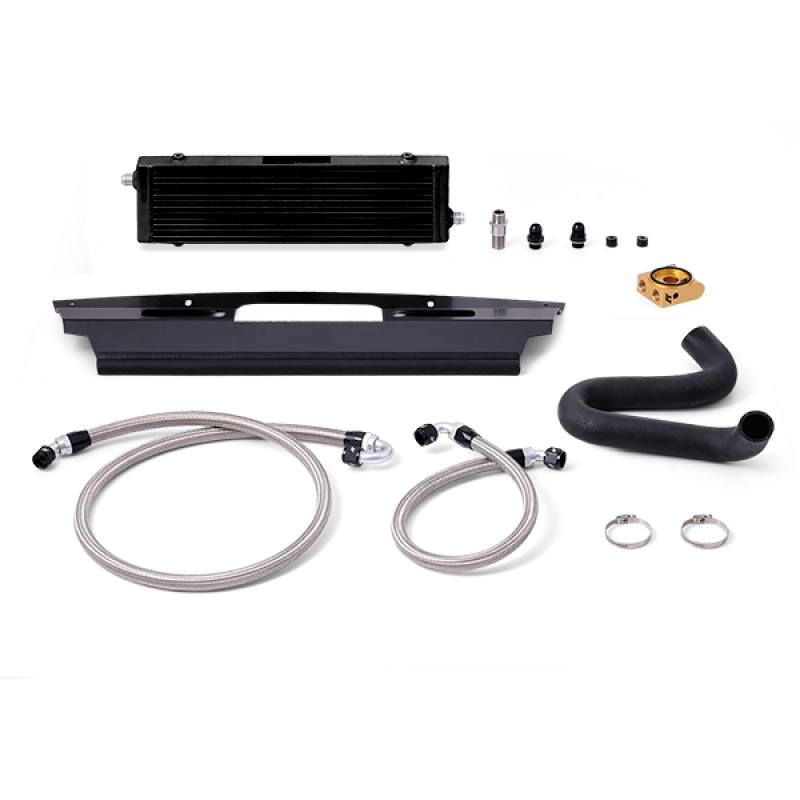

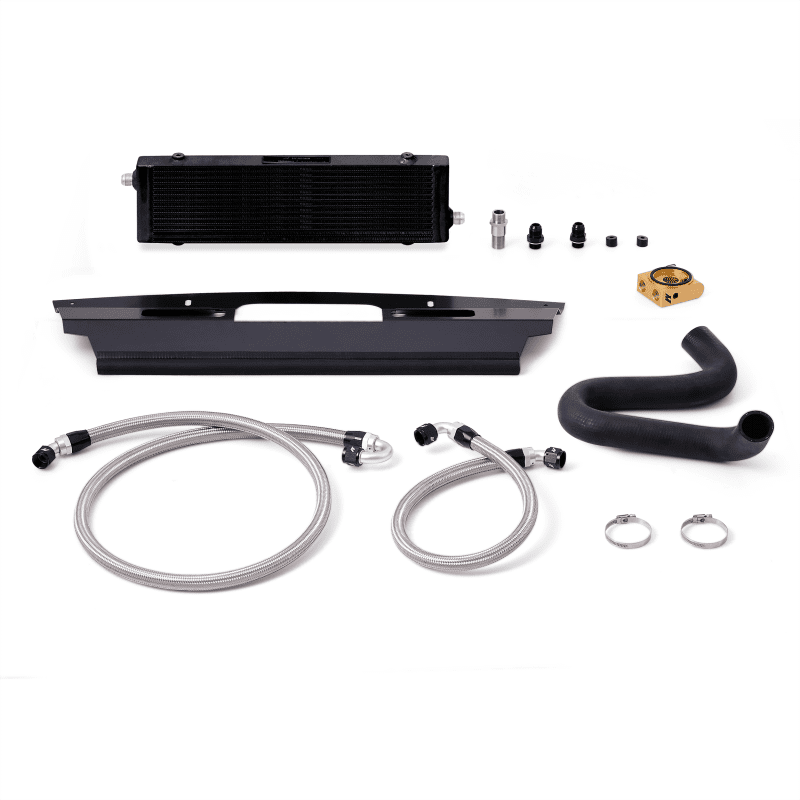

- Includes: application-specific mounting bracket/air diversion shield, bar-and-plate oil cooler, 2ft 5in stainless steel braided hose w/ -10AN fittings, 4ft 11in stainless steel braided hose w/ -10AN fittings, M22 thermostatic sandwich plate, application-specific M22 x 1.5 extended length center bolt, M20 x -10AN straight fittings, 1/8-in NPT plugs, large O-ring, lower radiator hose w/ worm gear clamps, mounting hardware set, and Mishimoto Lifetime Warranty
Frequently Asked Questions
What does the Mishimoto Oil Cooler Kit (MMOC-MUS8-15TBK) include?
It includes an application-specific mounting bracket/air diversion shield, a bar-and-plate oil cooler, a 2ft 5in and a 4ft 11in stainless steel braided hose each with -10AN fittings, an M22 thermostatic sandwich plate, an application-specific M22 x 1.5 extended length center bolt, M20 x -10AN straight fittings, 1/8-in NPT plugs, a large O-ring, a lower radiator hose with worm gear clamps, a mounting hardware set, and the Mishimoto Lifetime Warranty.
Which vehicles does this Mishimoto oil cooler kit fit?
It fits the 2015-2017 Ford Mustang GT and Mustang GT Premium, the 2015 Mustang GT 50 Years Limited Edition, the 2016 Ford Mustang Base, and the 2017 Ford Mustang V8. The kit is designed for Left Hand Drive S-550 chassis vehicles equipped with the 5.0 Coyote engine.
Does this oil cooler kit work with a supercharger installed?
Yes, the kit is designed to fit with most aftermarket supercharger kits, and its bar-and-plate cooler mounts in the upper grille in a way that leaves room for supercharger heat exchangers.
What size fittings does the Mishimoto oil cooler use?
The kit uses -10AN inlet and outlet fittings, which are AN Flare, Male fittings with a 0.625 in outside diameter.
Does installing this kit remove the factory oil cooler?
Yes, installation requires removal of the stock coolant-based oil cooler, and the kit includes a replacement lower radiator hose to bypass it, reducing stress on the engine’s cooling system.
What warranty is included with this Mishimoto oil cooler kit?
This kit is backed by the Mishimoto Lifetime Warranty.
