Description
The Mishimoto Oil Cooler Kit (MMOC-MUS8-18T) brings a purpose-built, bar-and-plate oil cooler to the S-550 chassis, engineered specifically for the 2018-2023 Ford Mustang GT’s 5.0 Coyote III V8. Mounted directly in the upper grille for maximum airflow, it’s the largest oil cooler Mishimoto offers, paired with an application-specific mounting bracket that doubles as an air diversion panel to funnel even more cooling air across the core.
Built around a Performance-grade, anodized Silver bar-and-plate core, this Mishimoto oil cooler kit is designed to keep engine oil temperatures in check without stealing airflow from other cooling components — its compact upper-grille mounting position leaves room for supercharger heat exchangers on modified Mustangs. The kit ships with pre-made stainless-steel braided lines terminated in durable -10AN fittings for a clean, leak-resistant installation, along with a billet aluminum thermostatic oil sandwich plate that helps protect against overcooling by regulating oil flow through the cooler. Because it replaces the factory fluid-based oil cooler, the kit also includes a replacement lower radiator hose, reducing load on the engine’s cooling system while increasing overall oil capacity by roughly 1 quart. Every Mishimoto cooler in this kit is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This Mishimoto oil cooler kit is a direct fit for left-hand-drive 2018-2023 Ford Mustang GT and Mustang GT Premium models, as well as the 2019-2023 Mustang GT V8. It also fits the 2019-2020 Ford Mustang Bullitt, the 2021-2023 Ford Mustang Mach 1, and the 2018 Ford Mustang V8, all built on the S-550 chassis with the 5.0 Coyote III engine.
Features
- Direct fit for 2018-2023 Ford Mustang GT (LHD)
- Innovative bar-and-plate oil cooler mounts in the upper grille, leaving more room for supercharger heat exchangers

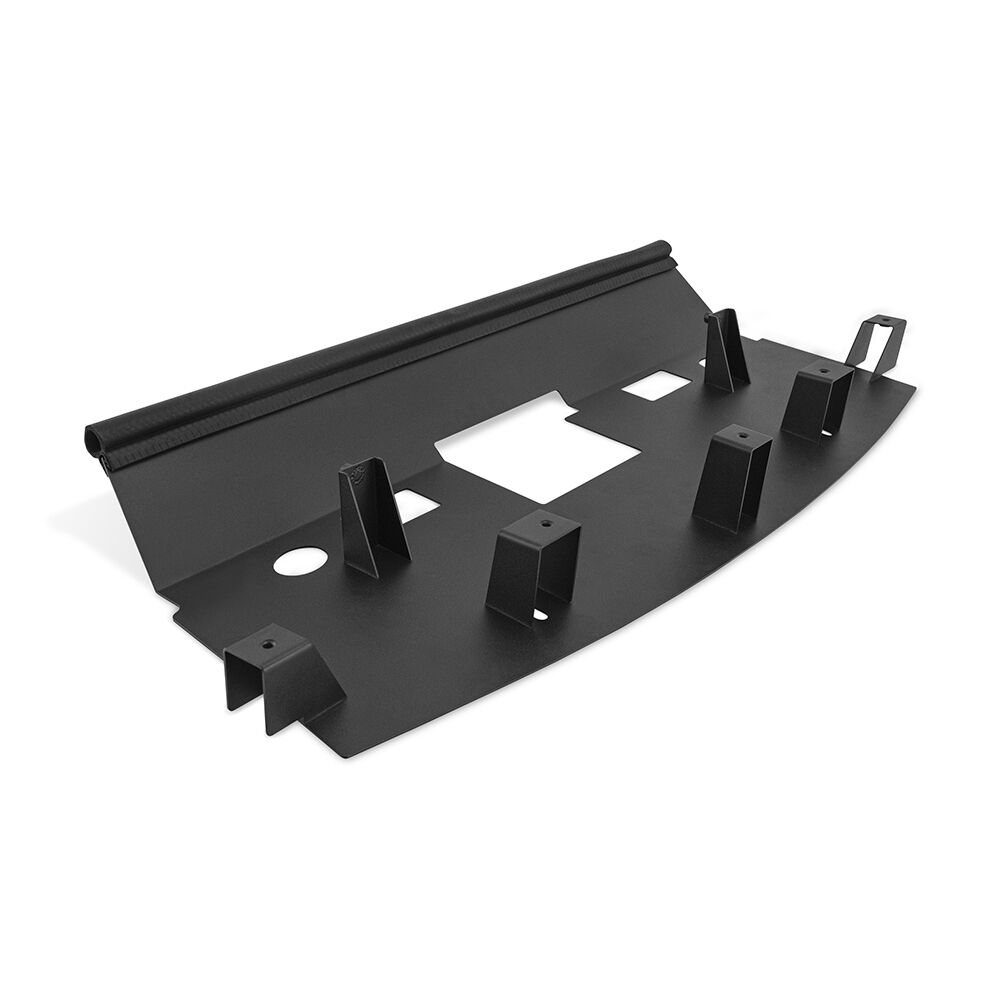

- Application-specific mounting bracket doubles as an air diversion panel to maximize airflow through the cooler
- Pre-made stainless steel braided oil lines with -10AN fittings

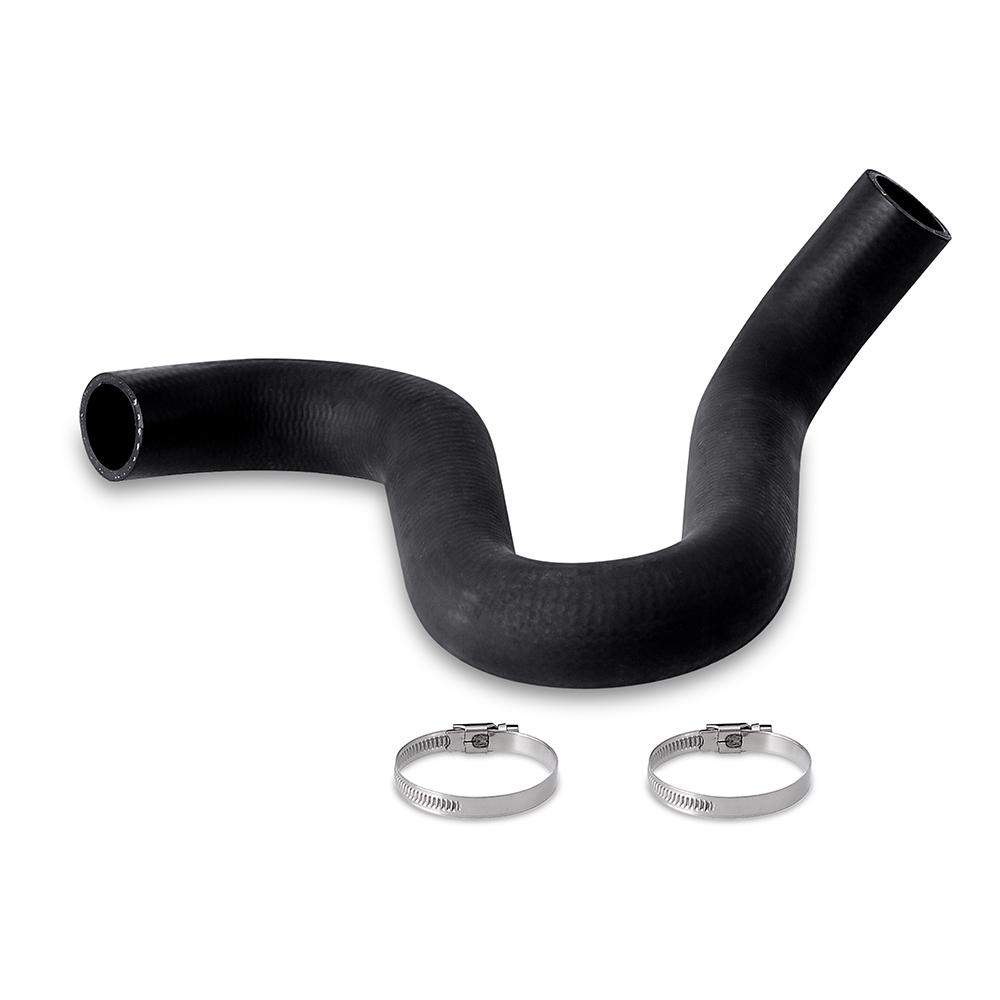

- Includes a replacement lower radiator hose to bypass the stock fluid-based oil cooler
- Removes the stock fluid-based oil cooler to reduce stress on the engine’s cooling system

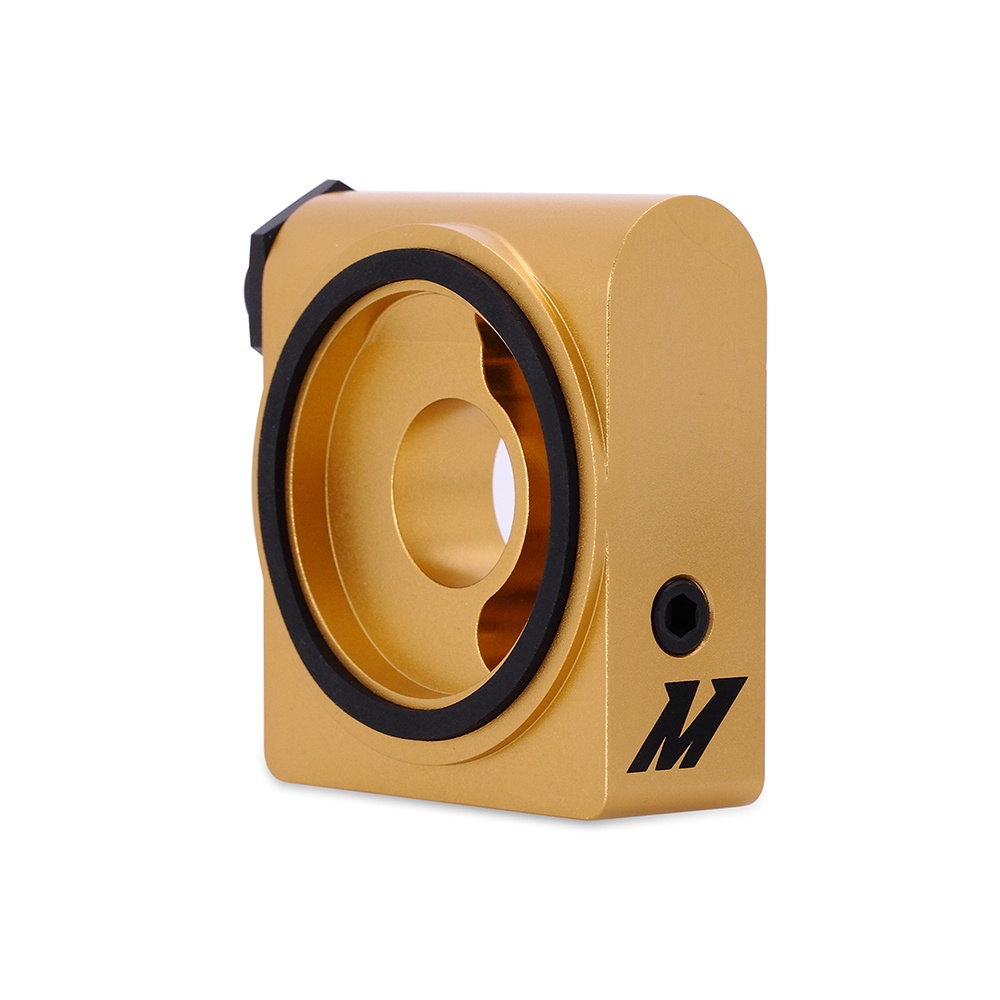

- Billet aluminum thermostatic oil sandwich plate protects against overcooling
- Increases oil capacity by approximately 1 quart
- Fits with most aftermarket supercharger kits
- Available with a Sleek Silver or Stealth Black cooler finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-MUS8-18T
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Finish: Anodized
- Core Color: Silver
- Overall Width: 12.3 in
- Overall Height: 2.5 in
- Overall Length: 28.6 in
- Core Length: 18.5 in
- Inlet/Outlet Fitting Type: AN Flare, Male gender, -10AN fittings

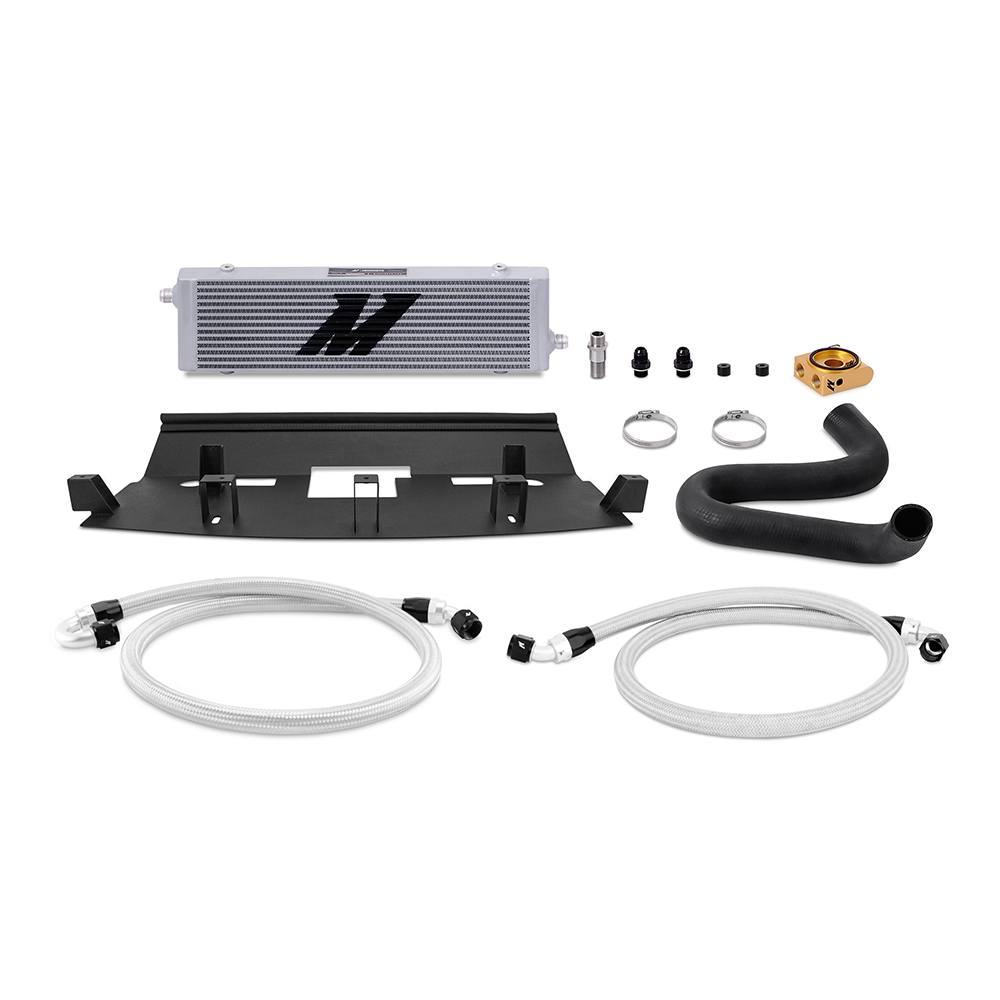

- Includes: application-specific mounting bracket/air diversion shield, bar-and-plate oil cooler, 2ft 3in and 4ft 8in stainless steel braided hoses with -10AN fittings, M22 thermostatic sandwich plate, application-specific M22 x 1.5 extended length center bolt, M20 x -10AN straight fittings, 1/8-in NPT plugs, large O-ring, lower radiator hose with worm gear clamps, and mounting hardware set
- Engine Code: 5.0 Coyote III
- Chassis Code: S-550
Frequently Asked Questions
What vehicles does the Mishimoto Oil Cooler Kit MMOC-MUS8-18T fit?
It’s a direct fit for left-hand-drive 2018-2023 Ford Mustang GT and GT Premium, 2019-2023 Mustang GT V8, 2019-2020 Mustang Bullitt, 2021-2023 Mustang Mach 1, and the 2018 Mustang V8.
Does this kit require removing the factory oil cooler?
Yes, installation requires removal of the stock coolant-based oil cooler, and the kit includes a replacement lower radiator hose to bypass it.
What fittings does the kit use?
The kit uses -10AN fittings with AN Flare, male-gender inlet and outlet connections, along with pre-made stainless steel braided lines.
Does the kit include a thermostatic sandwich plate?
Yes, it includes a billet aluminum M22 thermostatic oil sandwich plate to help protect against overcooling of the engine oil.
What color options are available?
The cooler is available in a Sleek Silver or Stealth Black finish.
Is there a warranty on this kit?
Yes, the Mishimoto Oil Cooler Kit is backed by the Mishimoto Lifetime Warranty.
