Description
The 2022+ Subaru WRX’s FA24 turbocharged engine relies on a surprisingly small liquid-to-liquid heat exchanger to manage oil temperature, a design that heats oil nearly as much as it cools it. Mishimoto’s direct-fit oil cooler kit, part number MMOC-WRX-22TBK, was engineered specifically to address this weak point with a 19-row bar-and-plate cooler finished in a black anodized core, giving modified and track-driven WRX owners a real solution for sustained high oil temperatures.
Rather than replacing the factory liquid-to-liquid cooler, this Mishimoto oil cooler kit works alongside it to help maintain ideal oil temperature and take stress off the primary cooling system. In dyno testing the kit delivered a 20-degree reduction in oil temperature, and it also adds 0.75 quarts of oil to the system for extra cooling capacity. Whether you’ve built up the FA24 for track days or simply want added insurance for spirited street driving, this Mishimoto oil cooler kit and its 19-row core are built to protect the engine from the kind of prolonged heat soak that can lead to catastrophic failure.
Vehicle Applications
This oil cooler kit is a direct fit for the Subaru WRX 2.4L H4 (engine code FA24F, chassis code VB), covering the 2022–2024 WRX Base, the 2022–2026 WRX GT, Limited, Premium, Sport, and Sport-tech trims, and the 2026-model-year WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims.
Features
- Direct-fit design for the 2022+ Subaru WRX

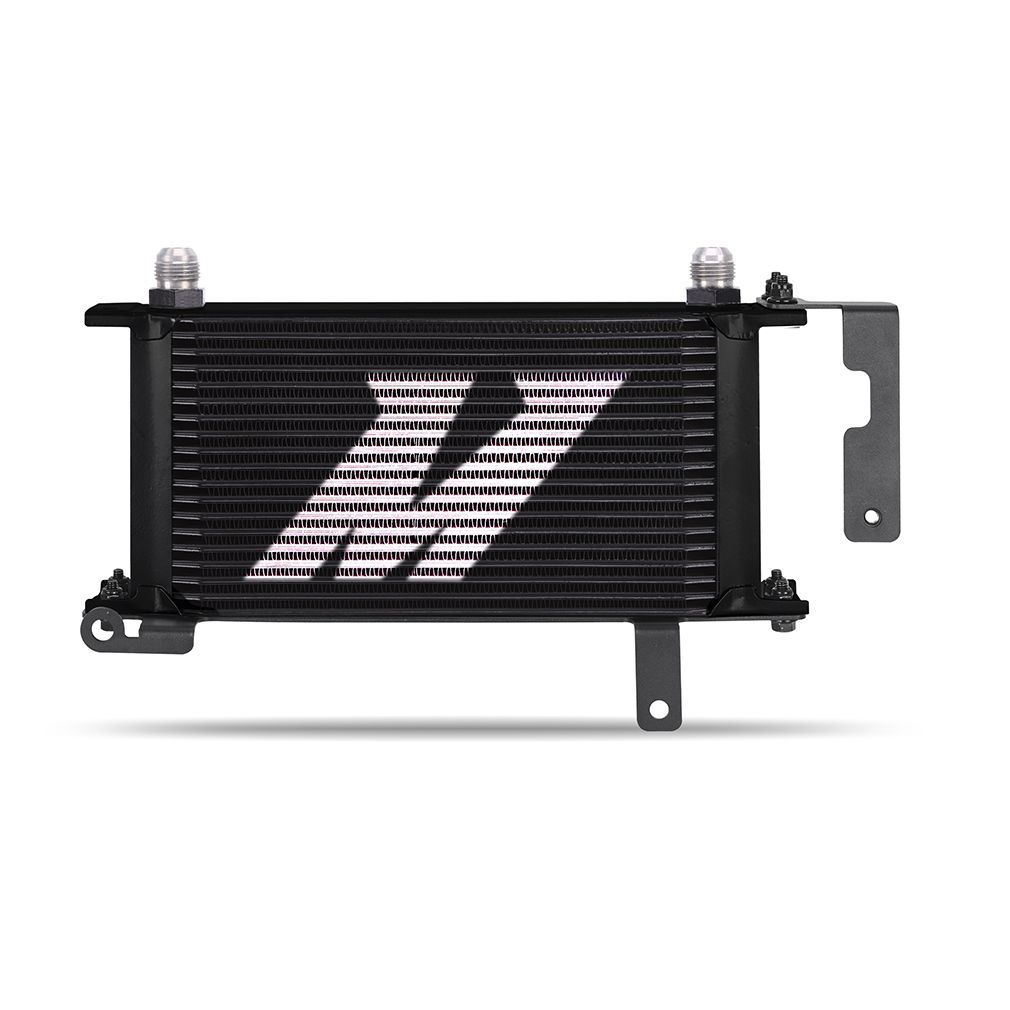

- 19-row bar-and-plate oil cooler mounts in the front bumper for optimal airflow

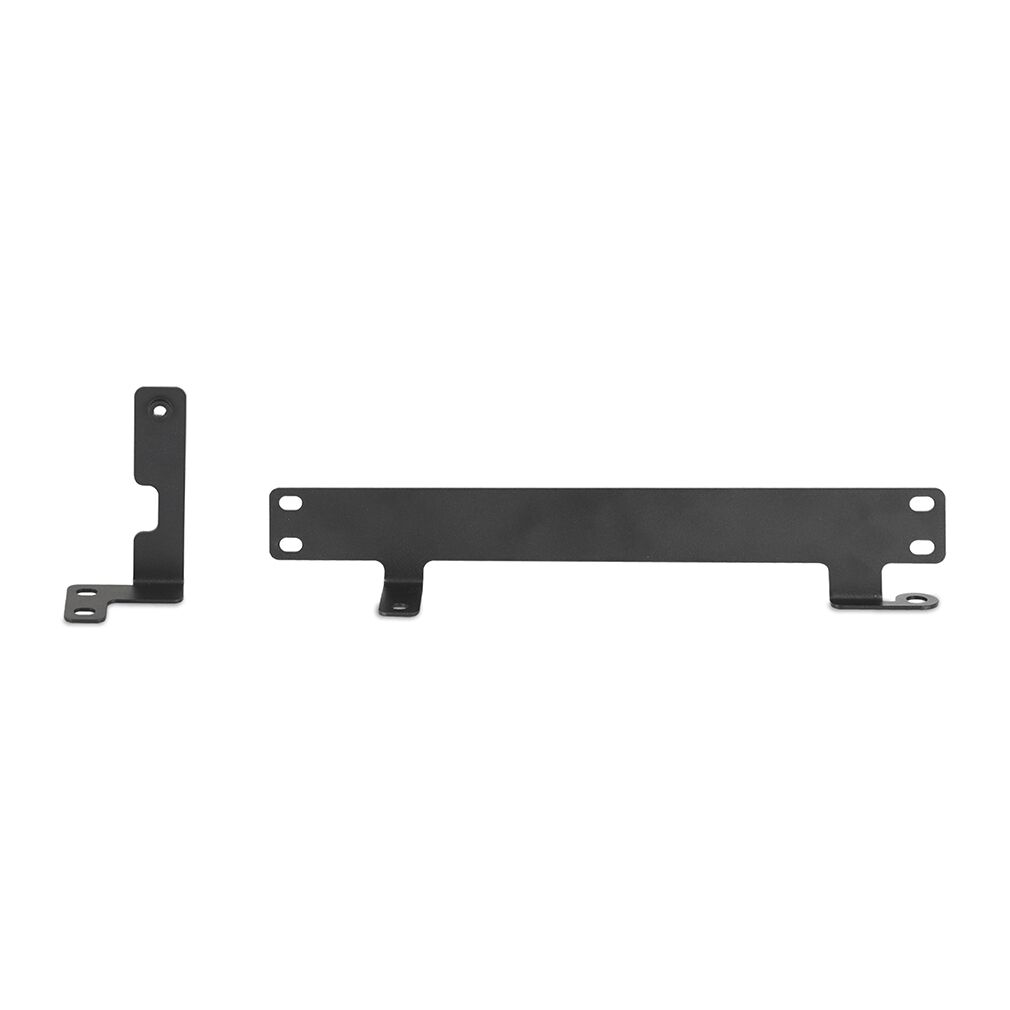

- Robust application-specific mounting brackets for a secure, factory-style install

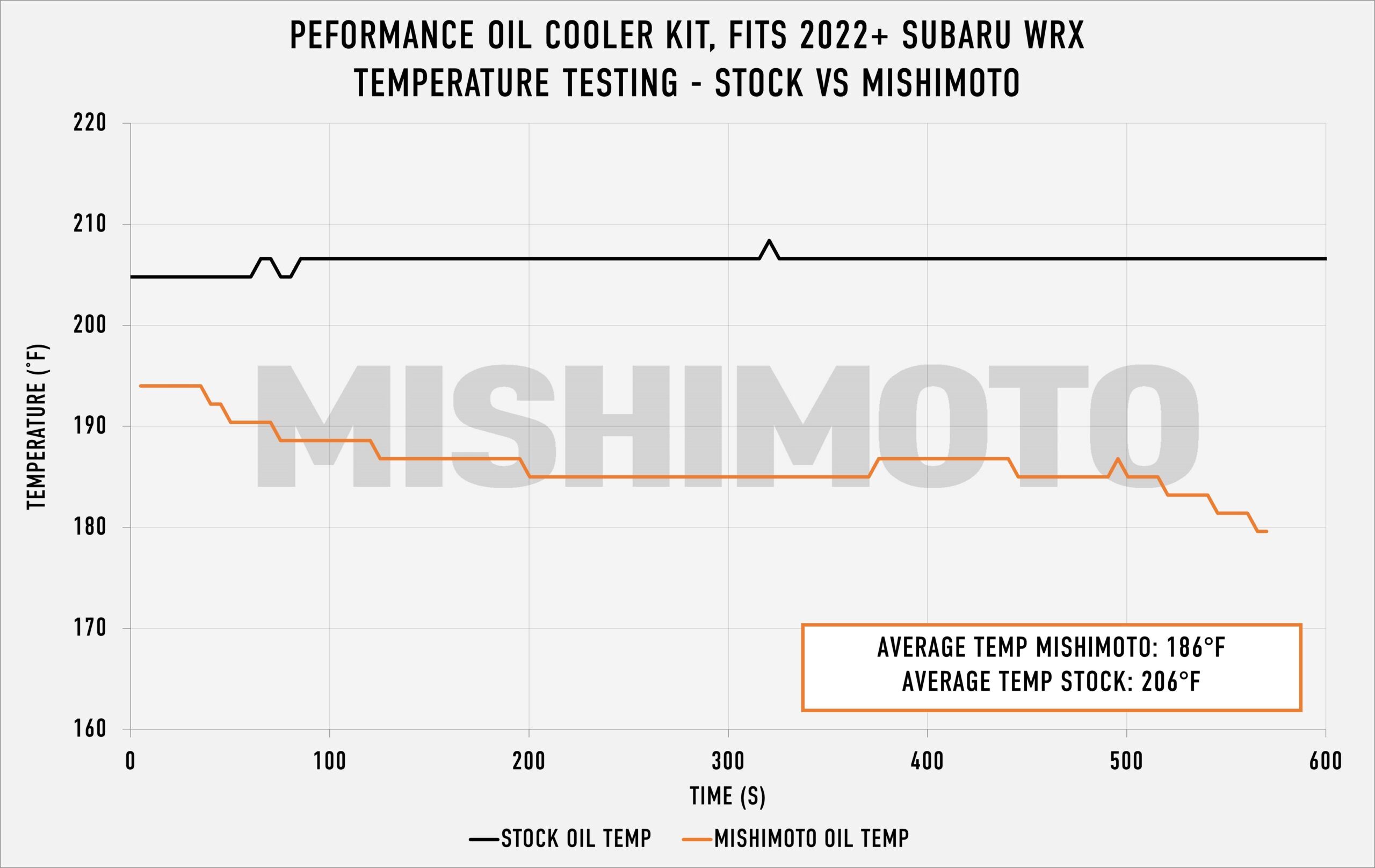

- Dyno-proven 20-degree reduction in oil temperature
- Adds 0.75 quarts of oil to the system for increased cooling capacity
- Retains the stock liquid-to-liquid cooler for fast warmup on daily-driven vehicles
- Choice of thermostatic or non-thermostatic oil sandwich plate

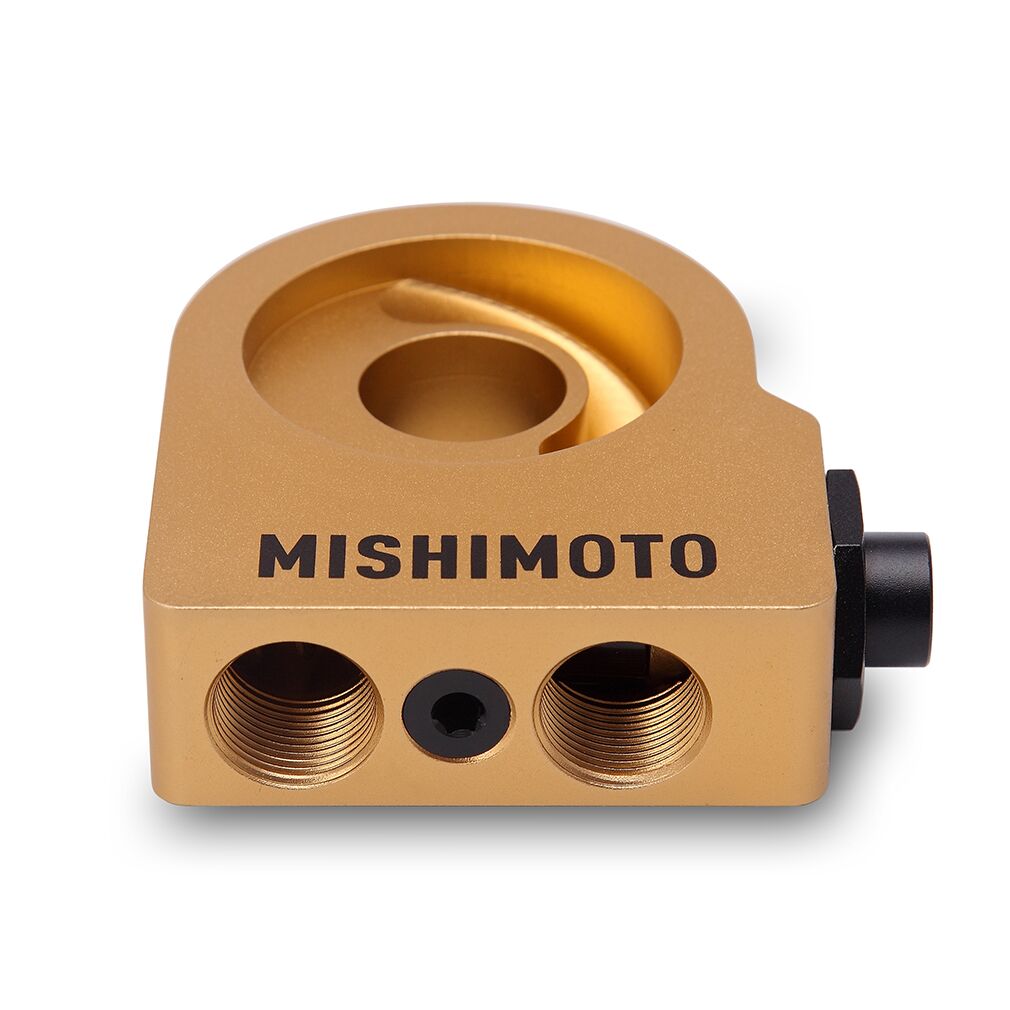

- Thermostatic sandwich plate accepts 160-degree, 185-degree, or 200-degree thermostats and includes NPT ports for pressure or temperature sensors
- Pre-assembled black nylon-covered stainless-steel lines with -10AN fittings for abrasion resistance and an OEM-style look
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-WRX-22TBK
- Core Type: Bar-and-Plate
- Core Construction: Stacked Plate
- Core Row Quantity: 19
- Grade Type: Performance
- Color / Core Color: Black
- Finish: Anodized
- Core Height: 12.95 in.
- Core Width: 11 in.
- Core Thickness: 1.97 in.
- Overall Width: 1.97 in.
- Overall Height: 6.44 in.
- Overall Length: 12.95 in.
- Base Height: 6.44 in.
- Inlet/Outlet Fitting Type: AN Flare, Male, -10AN
- Inlet/Outlet Outside Diameter: 0.625 in.
- Fluid Capacity Added: 0.75 qt.
- Cooler Fluid Capacity: 0.8 qt.
- Engine Application: Subaru WRX 2.4L H4 2022+
- Engine Code: FA24F
- Chassis Code: VB

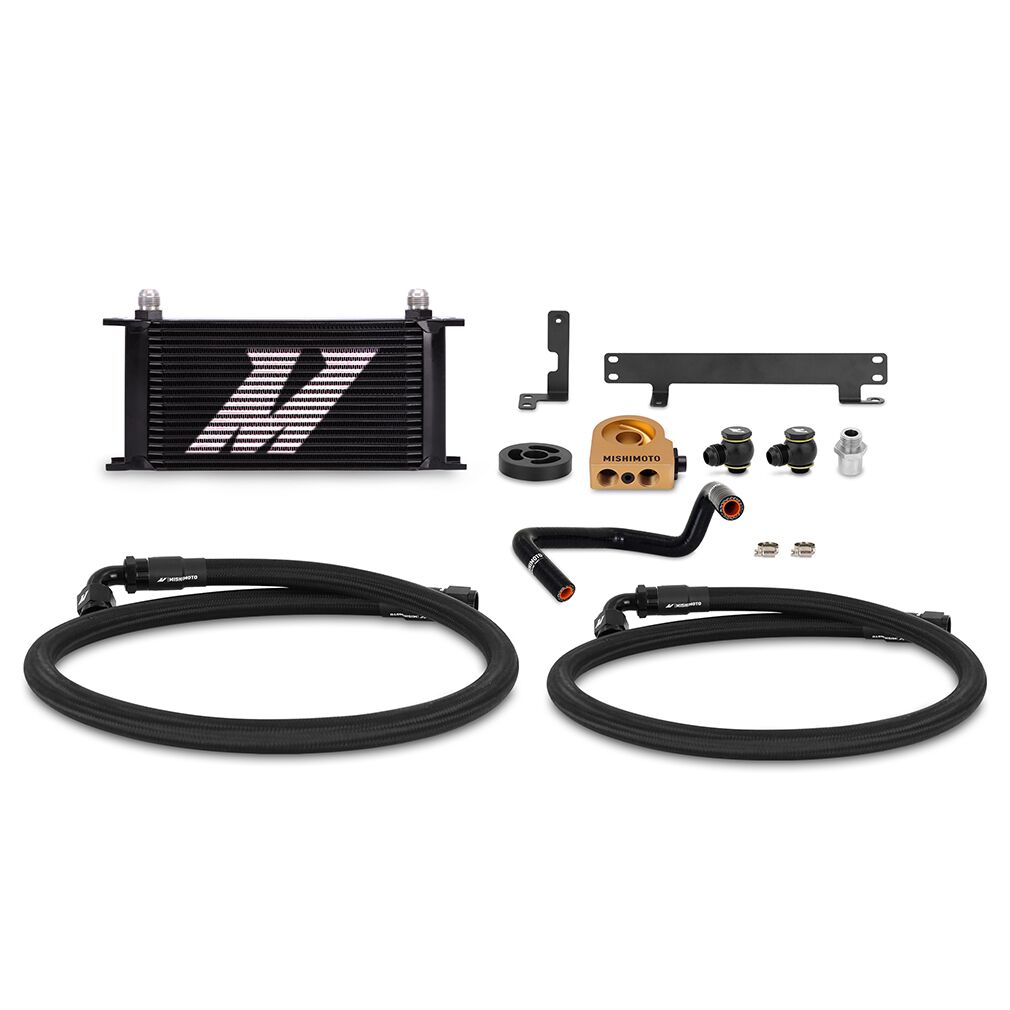

- Includes: (2) application-specific mounting brackets, (1) 19-row oil cooler, (2) stainless-steel braided hoses with fittings, (1) application-specific oil sandwich plate, (2) banjo fittings with bolt, mounting hardware; thermostatic option adds (1) thermostatic oil sandwich plate, (1) stainless-steel sandwich plate adapter, (1) silicone hose, and (2) worm gear clamps
Frequently Asked Questions
What does the Mishimoto MMOC-WRX-22TBK oil cooler kit include?
It includes two application-specific mounting brackets, one 19-row oil cooler, two stainless-steel braided hoses with fittings, one application-specific oil sandwich plate, two banjo fittings with bolt, and mounting hardware. The thermostatic option adds a thermostatic oil sandwich plate, a stainless-steel sandwich plate adapter, a silicone hose, and two worm gear clamps.
Does this kit replace the factory oil cooler on the 2022+ WRX?
No, it works in tandem with the stock liquid-to-liquid cooler to maintain ideal oil temperature and alleviate stress on the primary cooling system.
How much does this oil cooler reduce oil temperature?
Dyno testing showed a 20-degree reduction in oil temperature with this kit installed.
Which vehicles does this oil cooler kit fit?
It is a direct fit for the Subaru WRX 2.4L H4 (engine code FA24F, chassis code VB), covering the 2022–2024 WRX Base, the 2022–2026 WRX GT, Limited, Premium, Sport, and Sport-tech trims, and the 2026 WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims.
Does the kit add extra oil capacity?
Yes, it adds 0.75 quarts of oil to the system for more cooling capacity.
Is this Mishimoto oil cooler kit covered under warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
